Top of the Line Santa Cruz CC carbon FrameBig mountain riding is a nomadic existence, probably the most abused bike in our line up, every Nomad has a story to tell.
Top of the Line Santa Cruz CC carbon FrameBig mountain riding is a nomadic existence, probably the most abused bike in our line up, every Nomad has a story to tell.
Santa Cruz

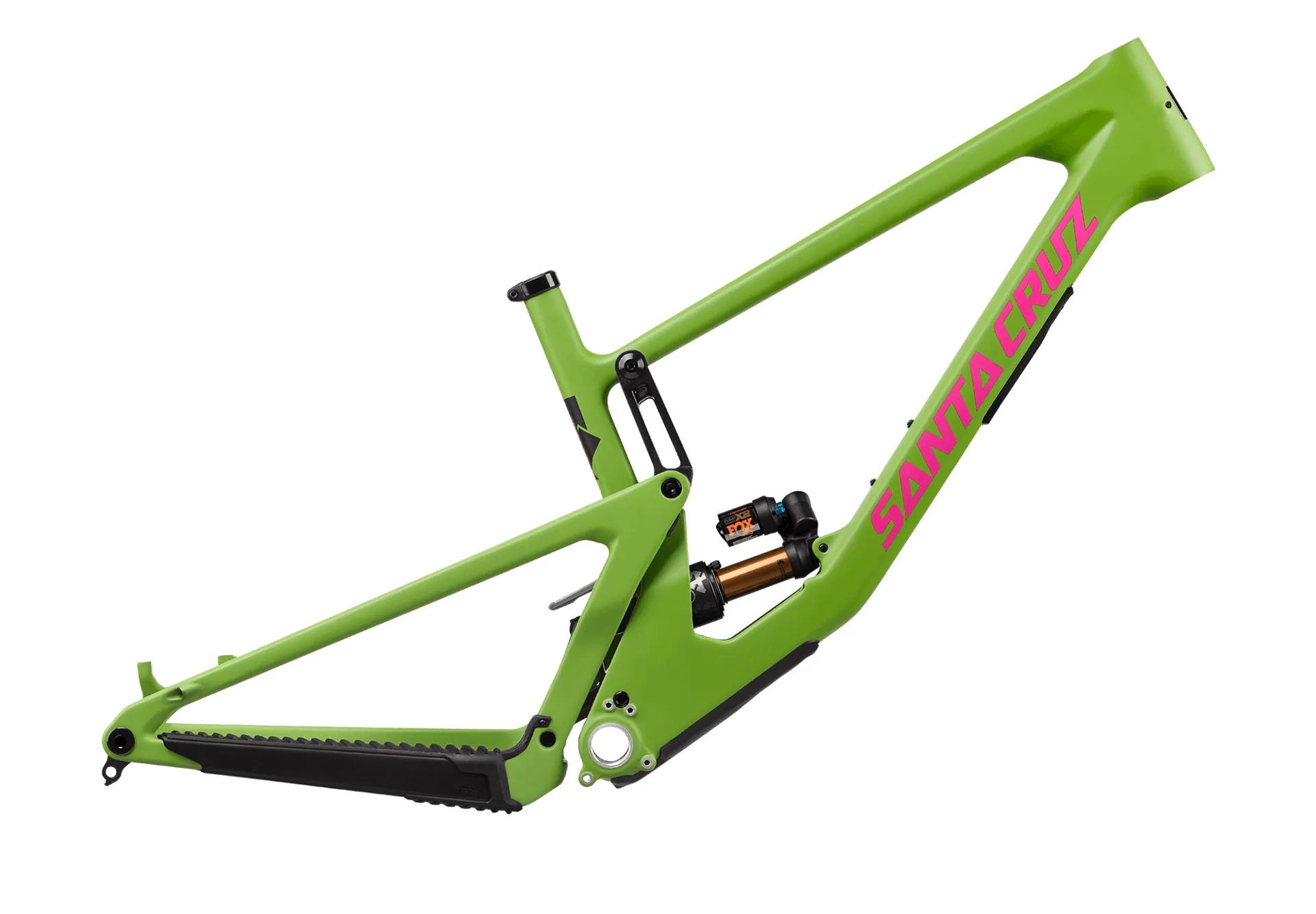

2022 Santa Cruz Nomad CC V.5 Frame Fox Float X2 Air - Adder Green

£3,599.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Santa Cruz Nomad CC V.5 Frame Fox Float X2 Air - Adder Green

Season:2022

Brand:Santa Cruz

Code:NOMADCCV5X2AAG

More travel than a white van

Big mountain riding is a nomadic existence. Meeting friends in farflung car parks. Pinpointing trails you're not sure are even rideable. Sending the ones you know are. Shiny new bling gets battered, shattered and bruised. That’s life. That’s how it should be. That's why the Nomad exists.

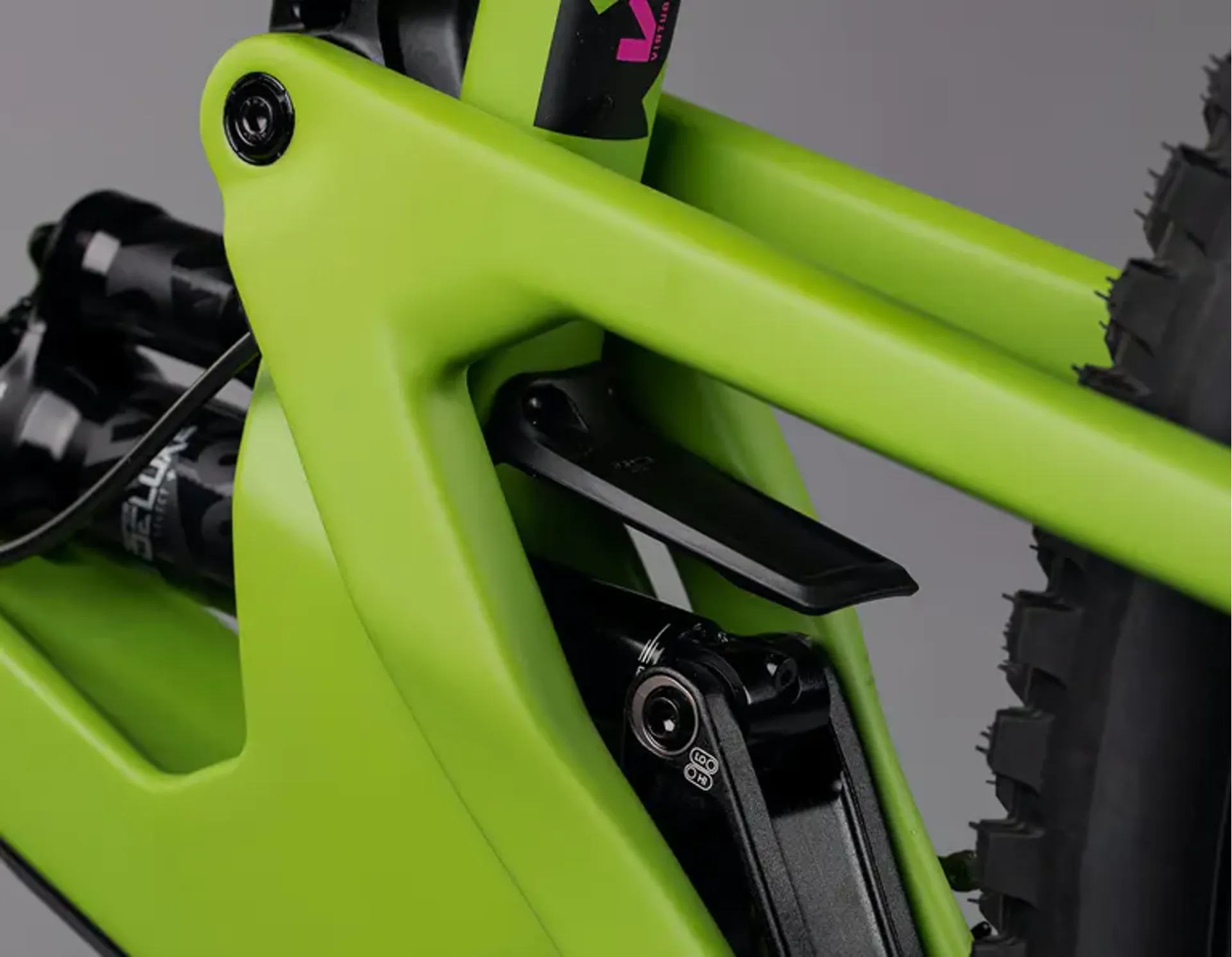

Probably the most abused bike in our line up, every Nomad has a story to tell. But each Nomad we've made keeps coming back for more. It's not Stockholm Syndrome, it's called sealed bearings in all pivots, a lower link grease port, shuttle guards and free bearing replacements. Why scrap a frame when a simple bearing service can make one last a lifetime? That's our stance on sustainability at least, and it's why our carbon fiber doesn’t just mean lighter, it means tough as hell backed up by a lifetime warranty and crash replacement support.

There’s no time for puzzling when on a road trip either. That's why we chose 27.5 wheels as the go-to for the widest variety of riding styles and rider sizes. When peeling your bike out of the van at a new spot your only question should be “Is this a full face or a half lid kinda ride?” The 64-degree head angle and 77-degree seat angle puts you in the sweet spot when winching up to the top of a big drop in. Meanwhile proportional chainstay lengths mean handling is never compromised, regardless of frame size.

And when we say big travel, we're not talking about your Transit's odometer. We're talking 170mm of VPP rear suspension compatible with both coil and air shocks. The details are completed by a neat mud flap to protect the rear shock, plus tidy cable routing within the frame and swingarm, and rubberized DT protectors to shrug off strikes.

So van-lifers unite. The Nomad is the kind of bike you need never worry about all summer long. Sorry we can't say the same for the locked public washrooms and parking tickets.


KEY FEATURES

  • 27.5-inch wheels
  • 170mm of lower link driven VPP rear travel
  • Fox Float X2 Air Shock
  • Designed for 170mm travel forks with 37mm fork offset
  • 64-degree head angle and 78-degree SA (in Hi)
  • Improved leverage curve and twin swingarm uprights

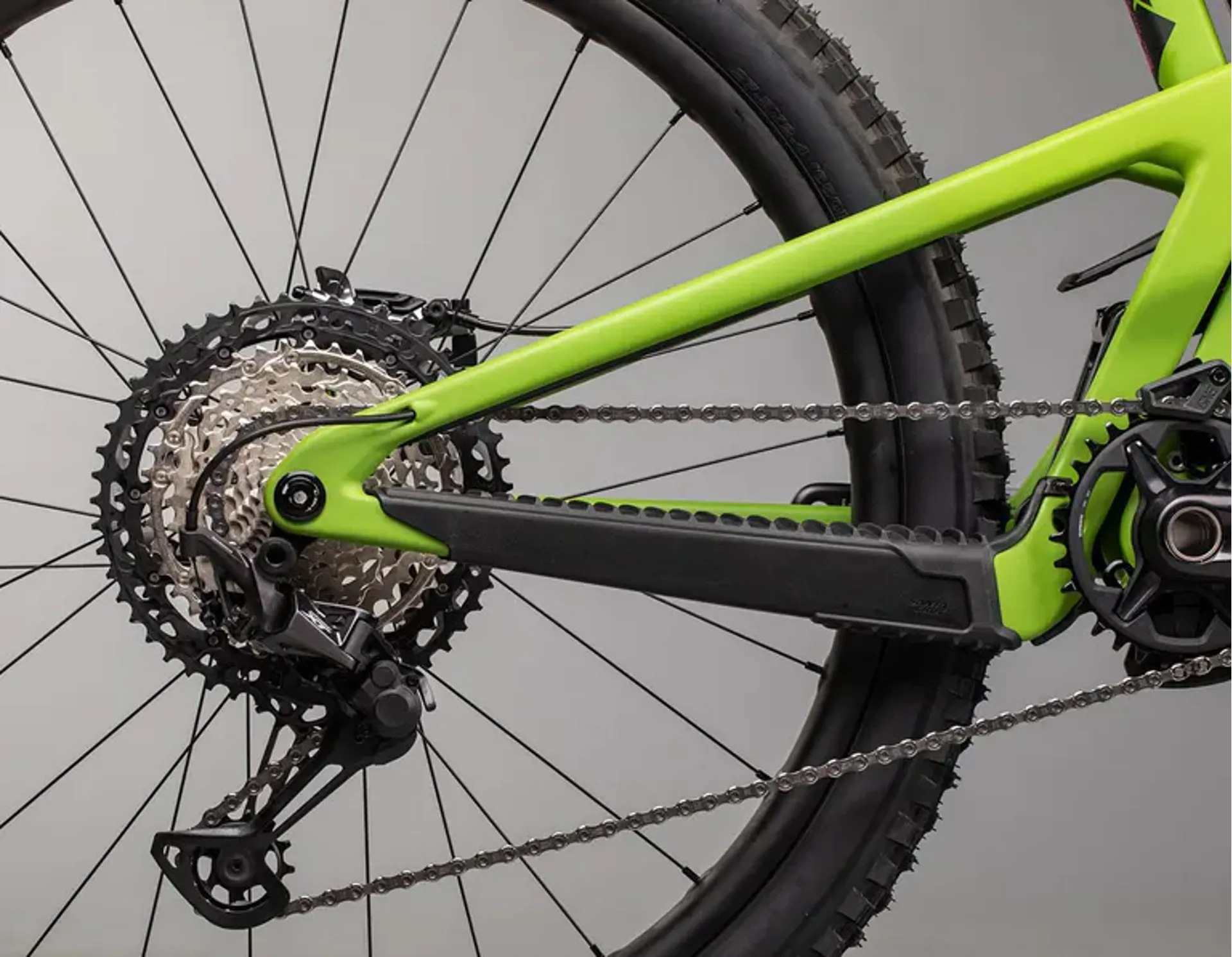

  • Size-specific Chainstay lengths
  • CC frame
  • SRAM Universal Derailleur Hanger
  • Lifetime Frame and pivbt bearing warranty
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Sizing Information
S (Low / High)M (Low / High)L (Low / High)XL (Low / High)
Reach422 / 425mm447 / 450mm472 / 475mm497 / 500mm
Stack603 / 601mm617 / 615mm626 / 623m648 / 646mm
Seat Tube Length380mm405mm430mm460mm
Head Tube Angle63.7 / 64°63.7 / 64°63.7 / 64°63.7 / 64°
Front Center760mm792mm821mm857mm
BB Height340 / 344mm340 / 344mm340 / 344mm340 / 344mm
BB Drop14 / 10mm14 / 10mm14 / 10mm14 / 10mm
Wheelbase1186 / 1185mmm1223 / 1222mm1257 / 1256mm1297mm
Chainstay Length426 / 425mm431 / 430mm436 / 435mm441 / 440mm
Head Tube Length115mm130mm140mm165mm
Top Tube Length552mm582mm610mm644mm
Seat Tube Angle77.9 / 78.2°77.7 / 78°77.5 / 77.9°77.2 / 77.6°
Standover706 / 710mm727 / 732mm728 / 733mm727 / 734mm
