The Ragley Big Al is the 29" wheel version of the Marley, pure and simple a sorted all round trail chassis.
The Ragley Big Al is the 29" wheel version of the Marley, pure and simple a sorted all round trail chassis.
Ragley

Ragley Big AL Hardtail Mountain Bike Frame - Graphite/ Mango

£349.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

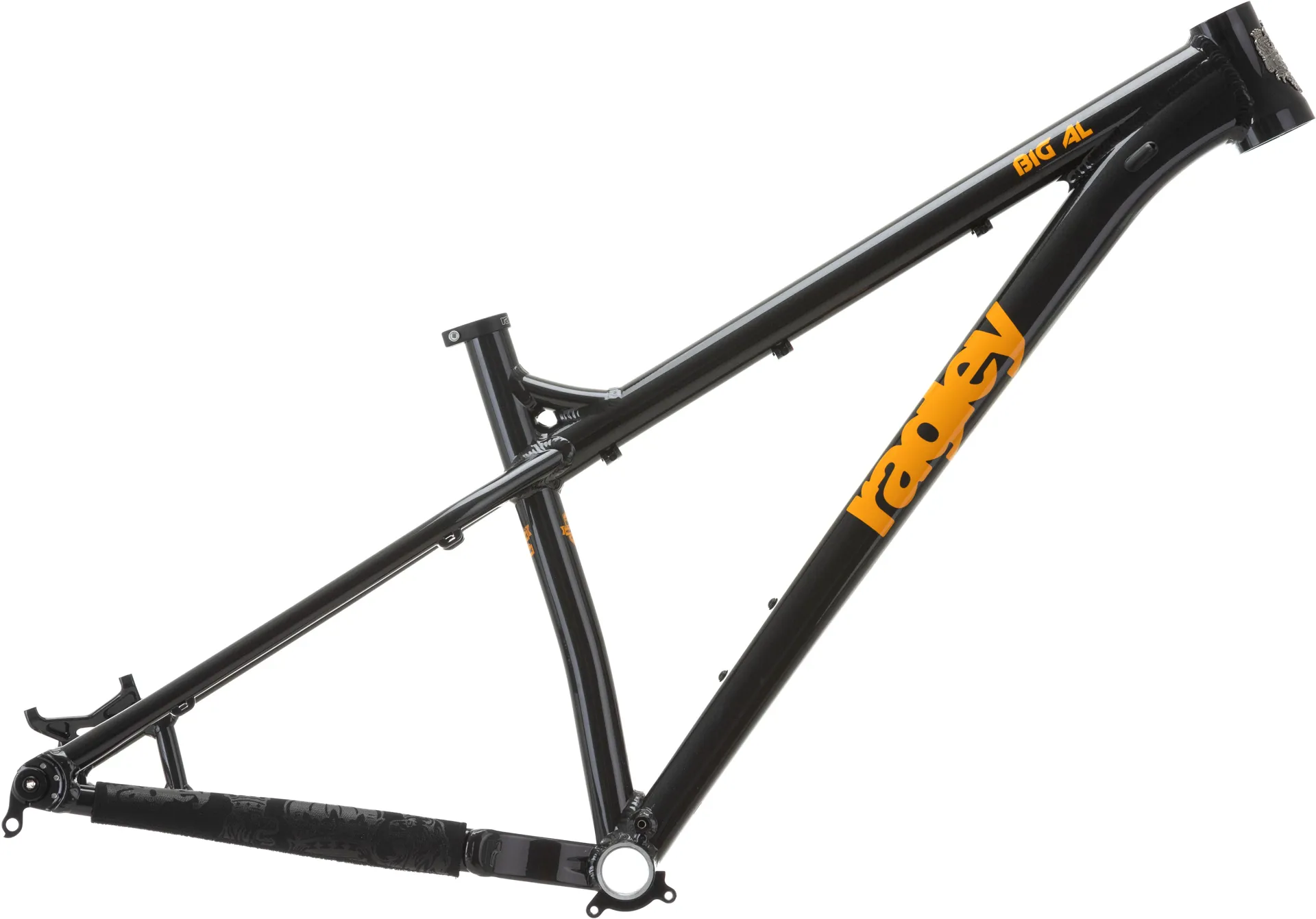

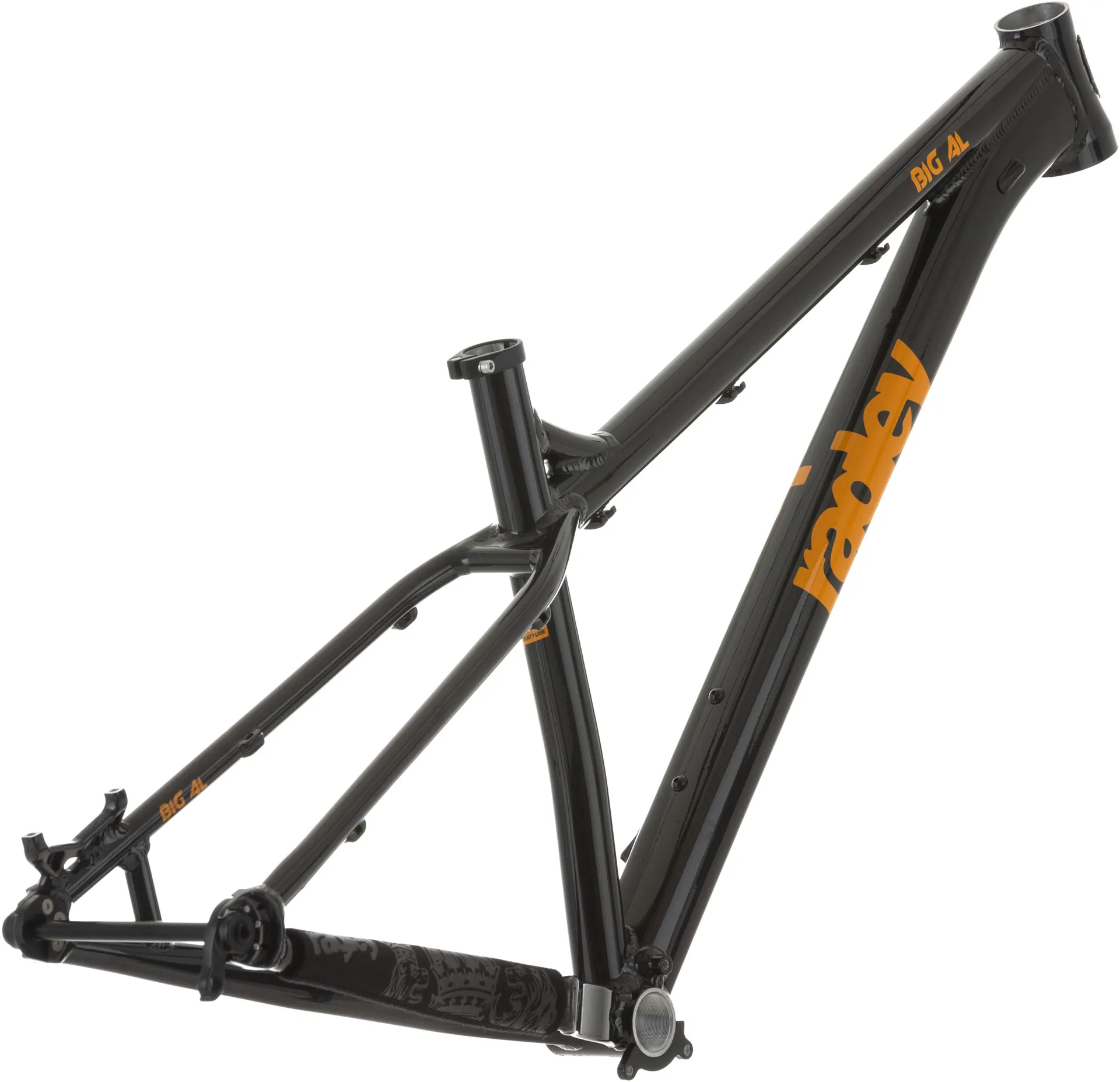

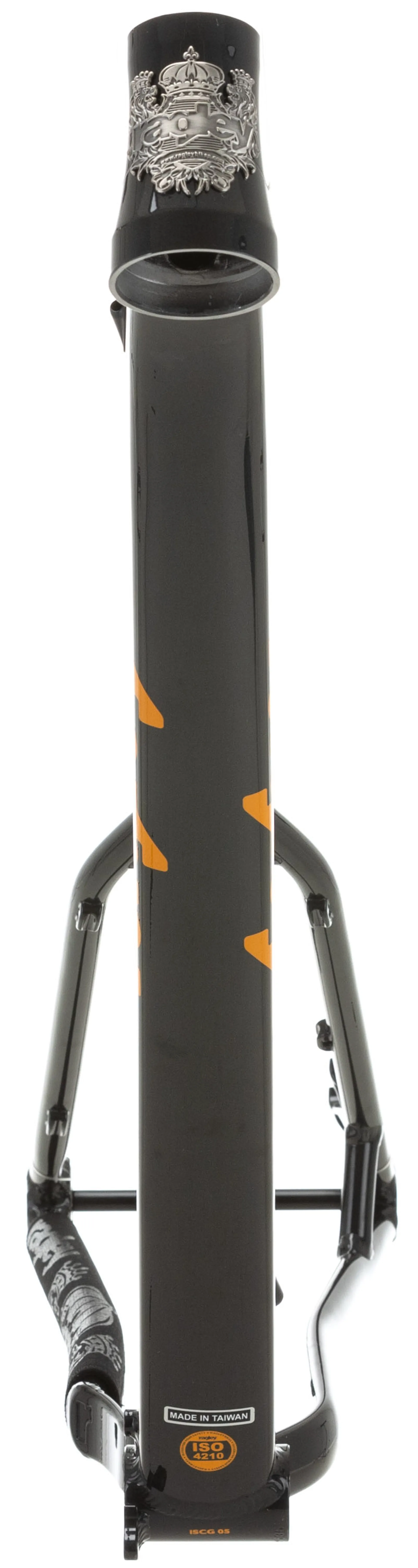

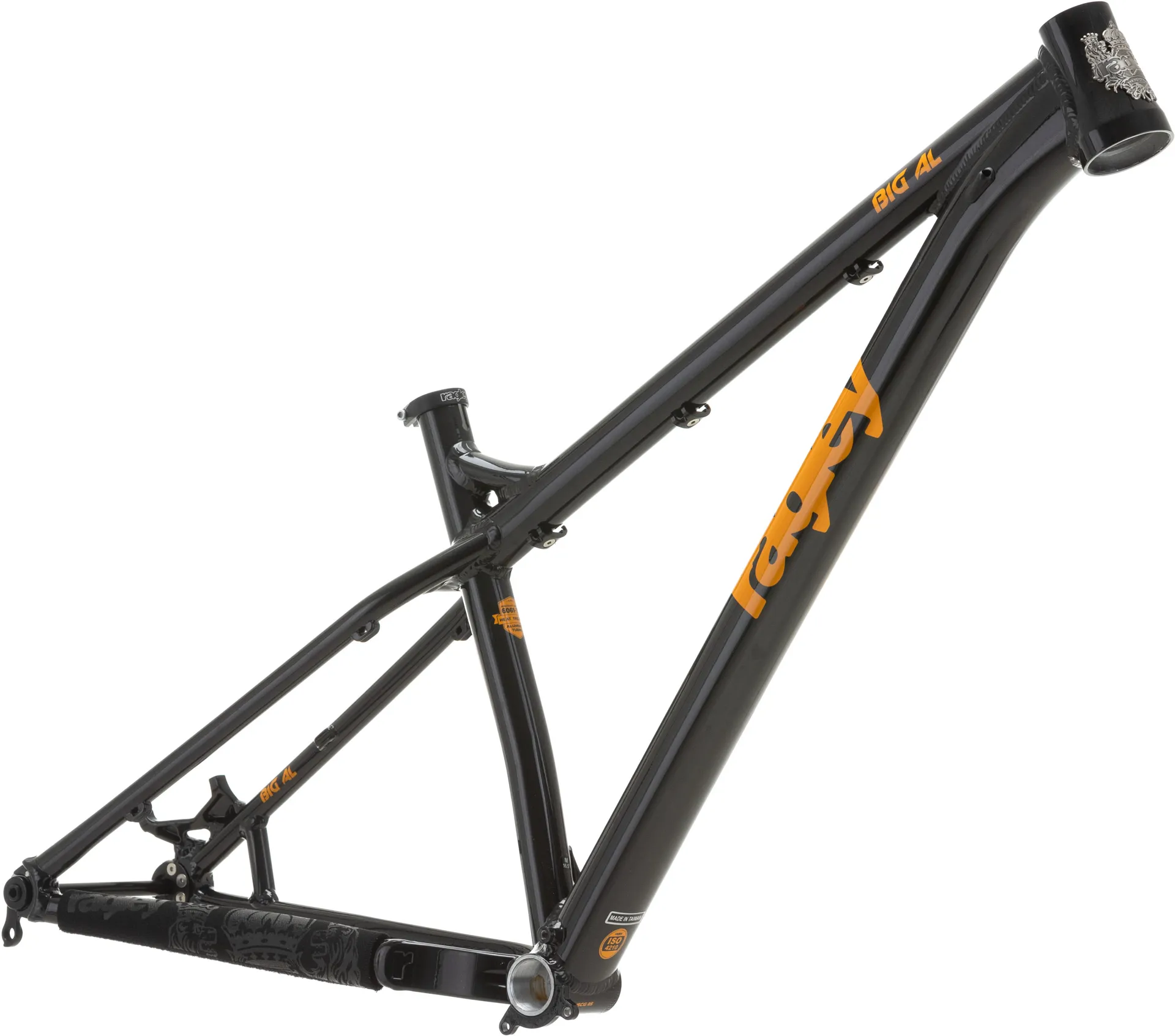

Ragley Big AL Hardtail Mountain Bike Frame - Graphite/ Mango

Season:2023

Brand:Ragley

Code:205343GRA

The Big Al is the 29” counterpart to the Marley; designed as a fun all-rounder with the same performance and value that made its smaller-wheeled sibling a multiple test winner.

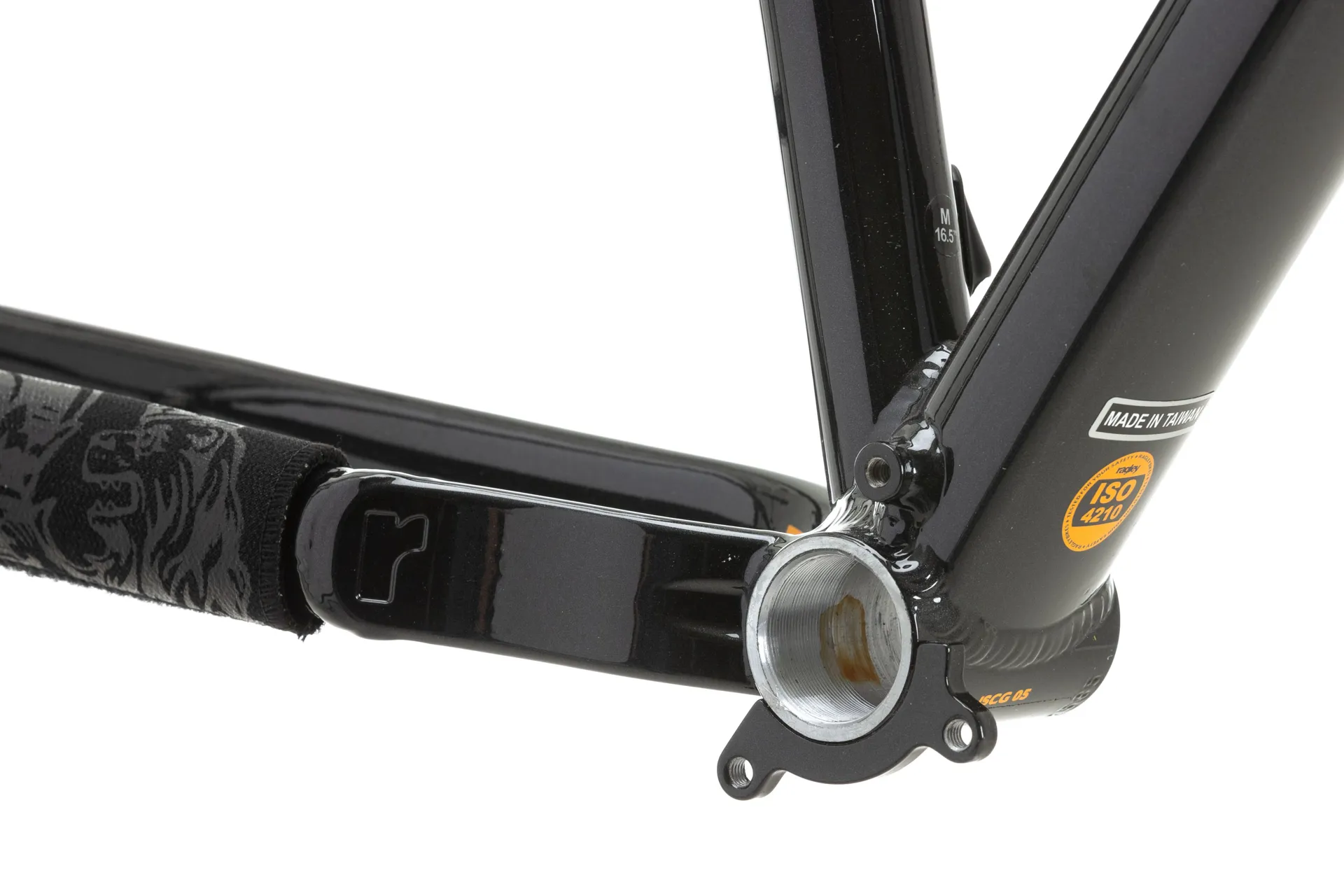

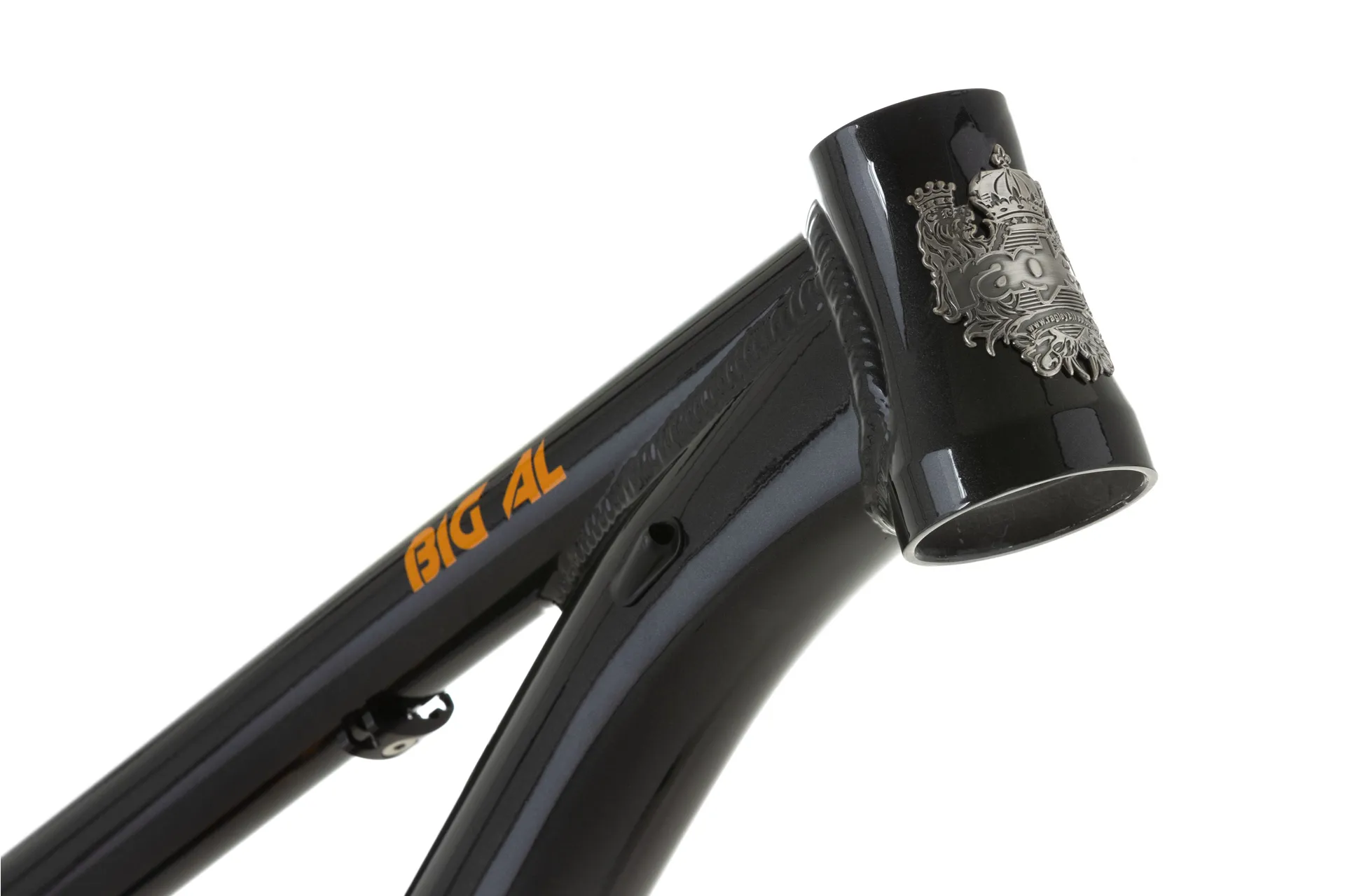

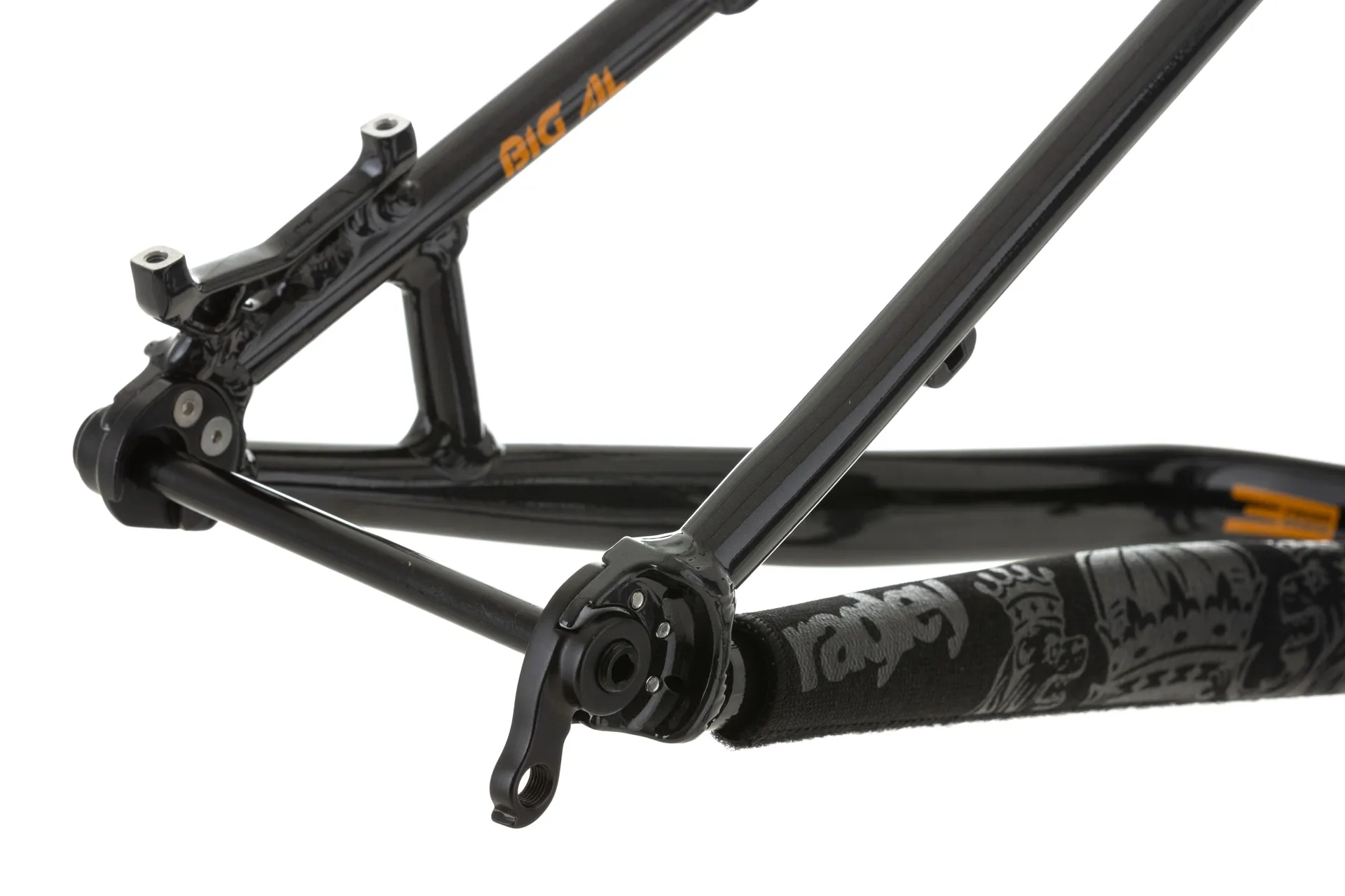

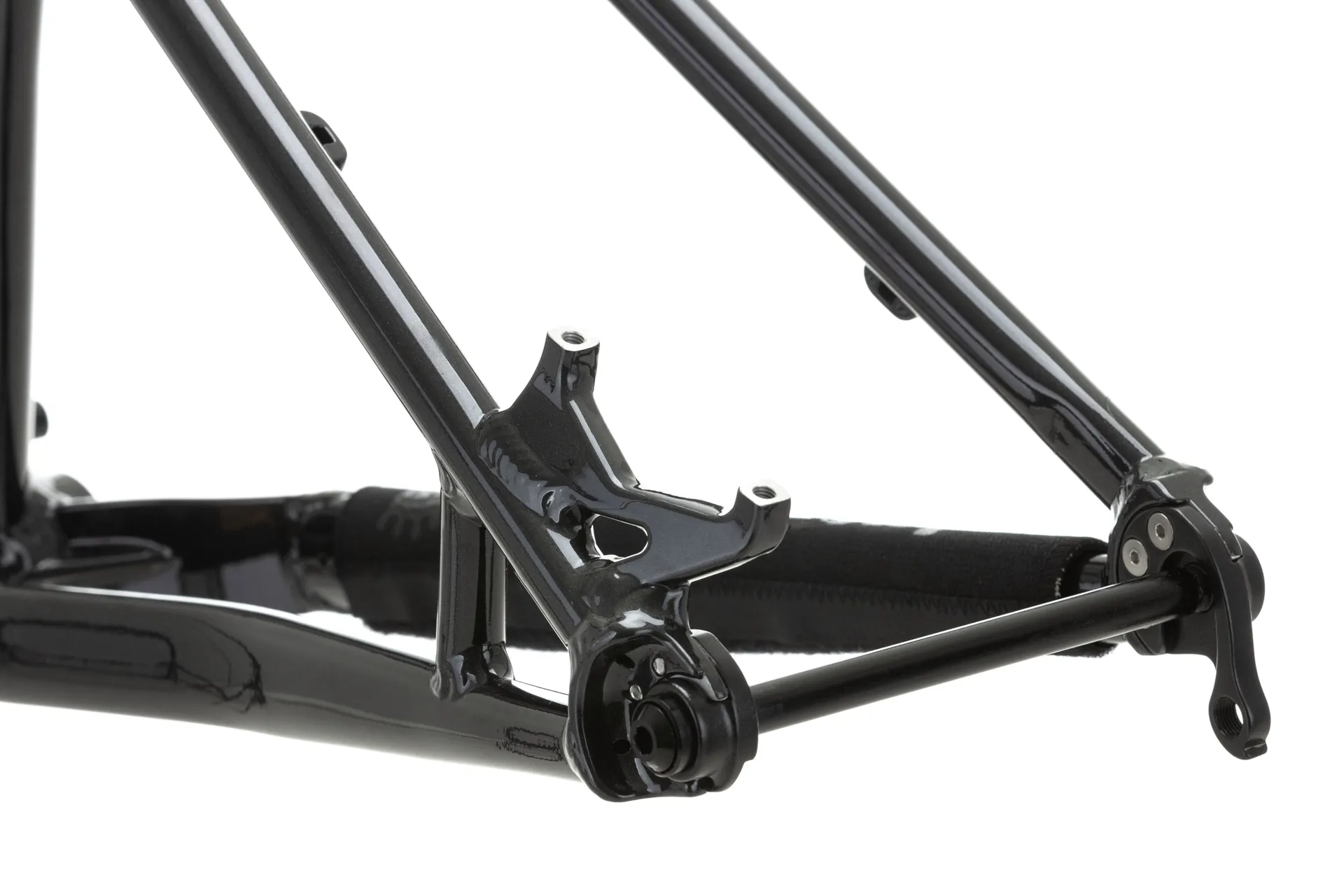

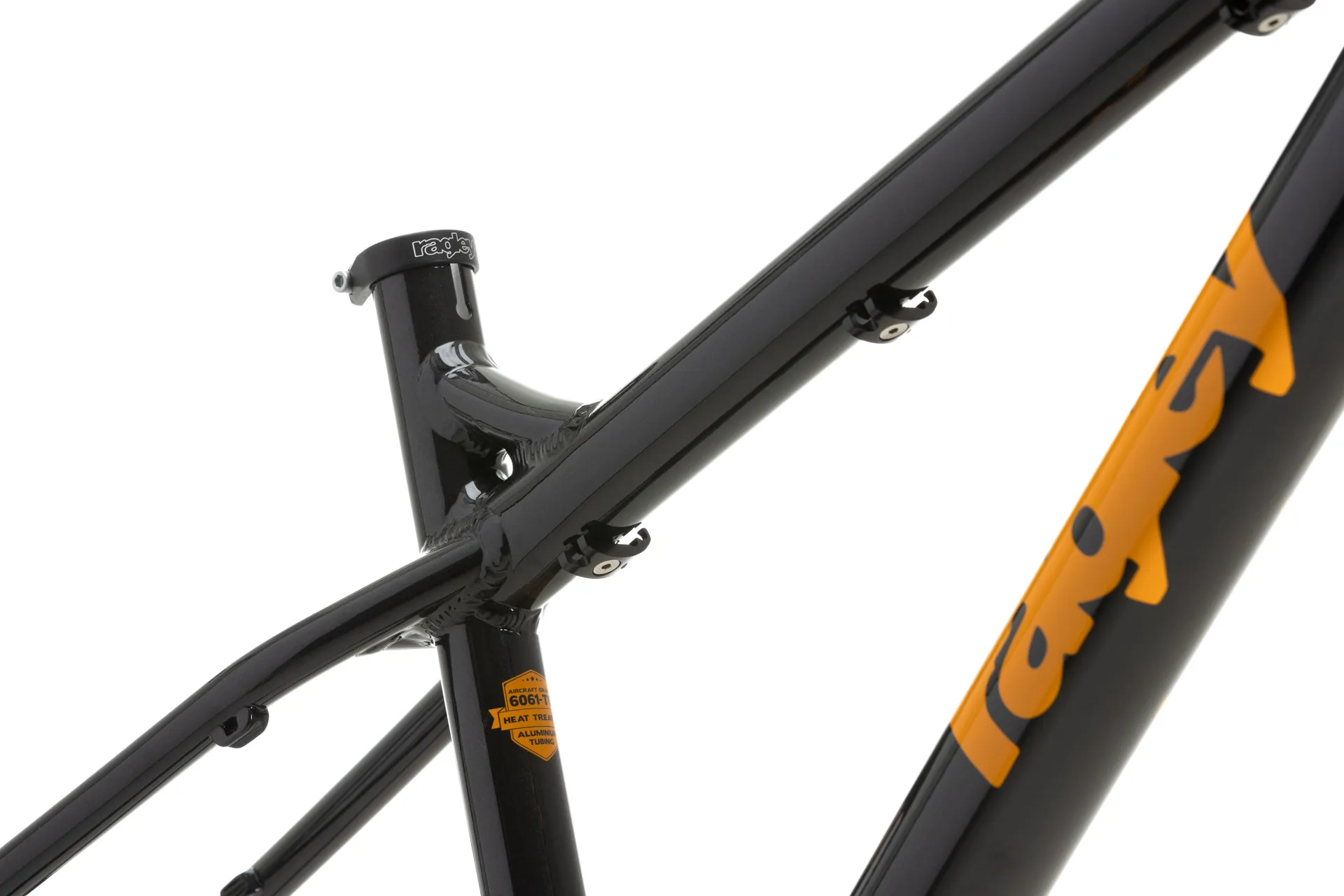

Sharing the custom butted 6061 alloy tubing, the Big Al balances a stiff frame with enough compliance for the longest days in the saddle. ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end all keeping things bang up to date.

As with all Ragley hardtails, the joy really is in the geometry: A perfect balance between all-out gravity led tomfoolery and practical pedalability. Just like the Marley, the Big Al is well mannered during a leisurely all-day ride but drop the saddle and send it down the rough stuff for the good times…

Sizing Information
Frame SizeMediumLargeX-Large
Seattube Length420mm460mm500mm
Effective Top Tube Length625mm645mm667mm
Reach440mm460mm480mm
Stack634mm643mm652mm
Standover Height758mm784mm813mm
Chainstay Length435mm435mm435mm
Headtube Length100mm110mm120mm
Headtube Angle65.5°65.5°65.5°
Seattube Angle72°72°72°
Bottom Bracket Drop-65mm-65mm-65mm
Wheelbase1197mm1217mm1241mm
Max. Tyre Size29" x 2.4"29" x 2.4"29" x 2.4"
Seatpost Diameter31.6mm31.6mm31.6mm
Bottom Bracket Size73mm BSA73mm BSA73mm BSA
Rear Axle12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru
Recommended Fork Travel130mm130mm130mm
Chain GuideISCG 05ISCG 05ISCG 05
Based On Axle To Crown541mm541mm541mm
Chainline52mm52mm52mm
Max Rotor Size203mm203mm203mm
Fork Offset51mm51mm51mm
External Lower Headset Cup Height13mm13mm13mm
Headset44-56mm Tapered44-56mm Tapered44-56mm Tapered
