Long travel, steel tubes, big terrain ready, the 2023 Big Wig is Ragley's mountain munching chassis
Long travel, steel tubes, big terrain ready, the 2023 Big Wig is Ragley's mountain munching chassis
Ragley

Ragley Big Wig Hardtail Mountain Bike Frame - Lollipop

£599.99
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

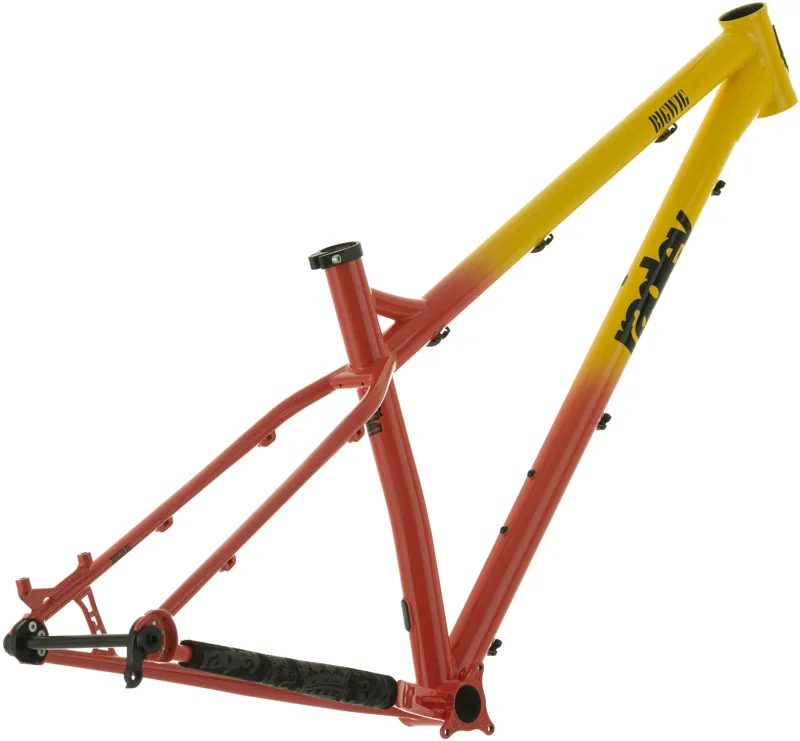

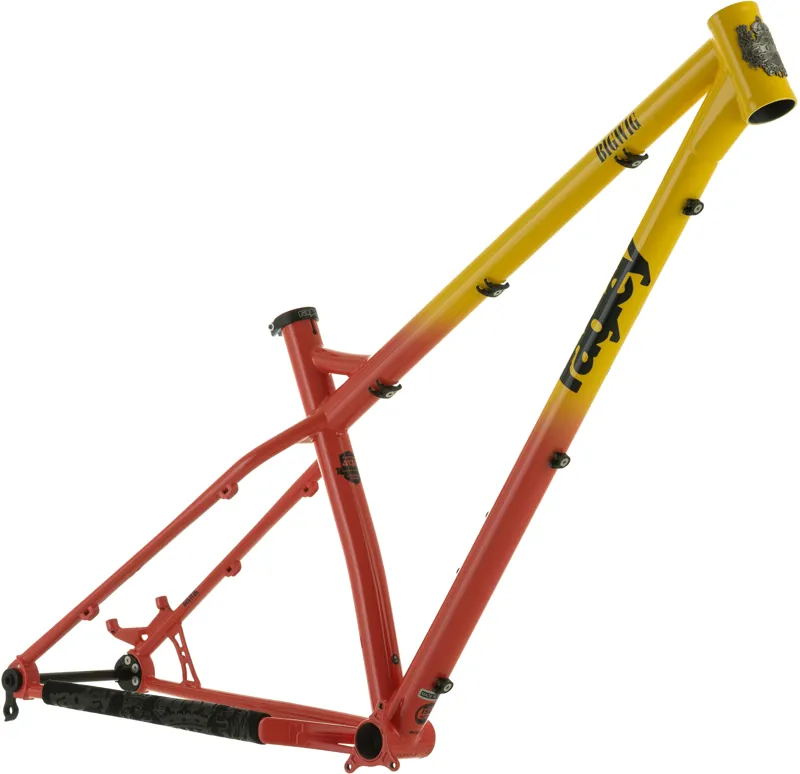

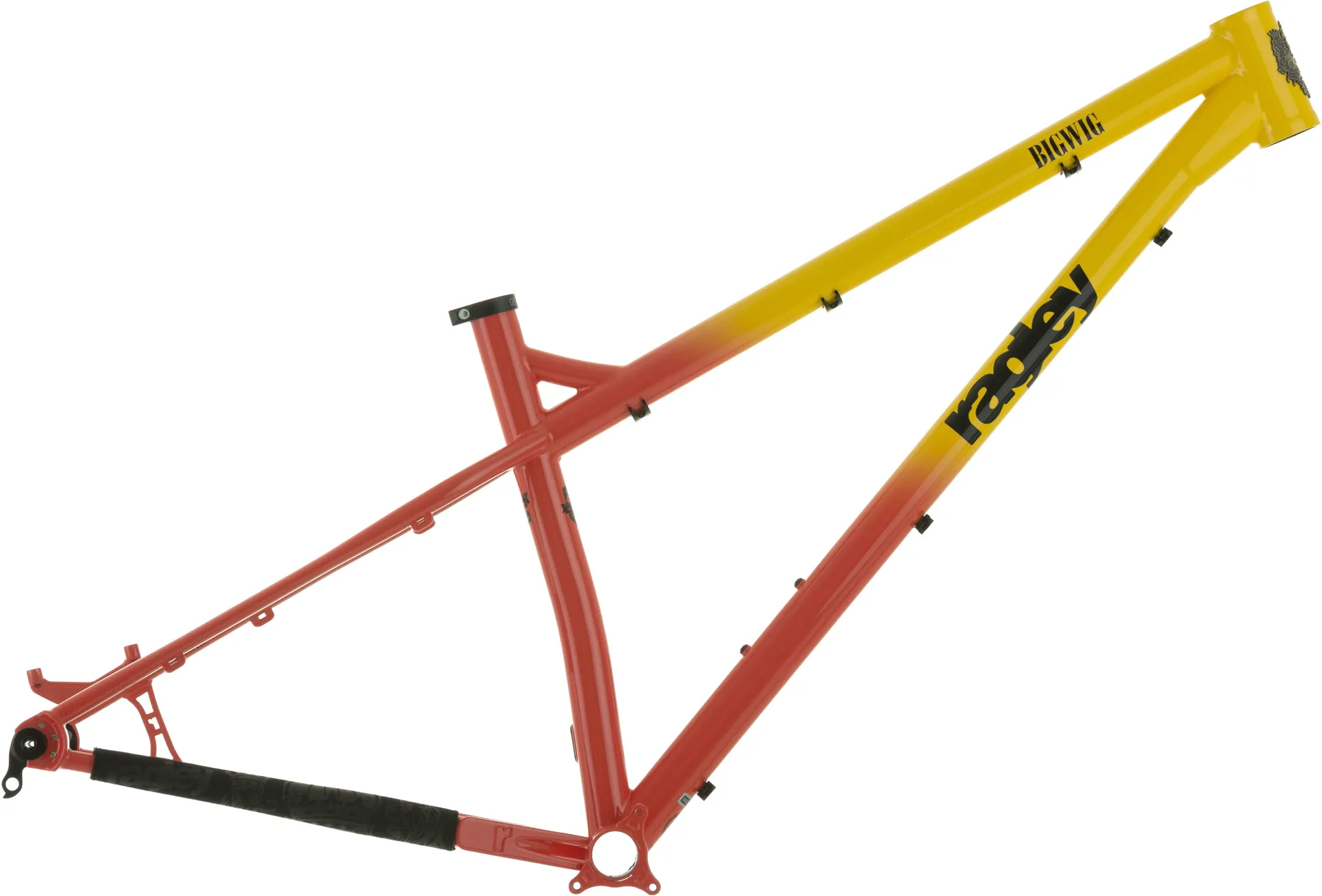

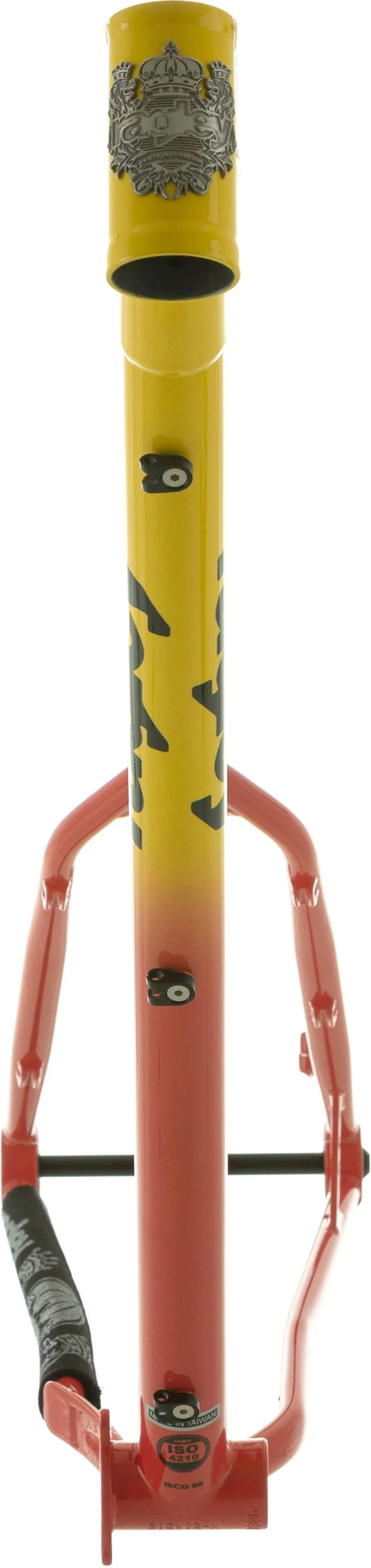

Ragley Big Wig Hardtail Mountain Bike Frame - Lollipop

Season:2023

Brand:Ragley

Code:205346Lollipop

The Big Wig 29er is a commanding bike; the big-wheeled counterpart to the infamous Blue Pig.

The 29” wheels give it all-out speed like no other, with tried and tested geometry putting you in complete control between the choppiest of corners. The Big Wig is at home being piloted at an enduro race, taking on a multi-day adventure or just smashing laps of your favourite trail centre. Like so many of our bikes, it’s a versatile tool to be ridden almost anywhere, by anyone.

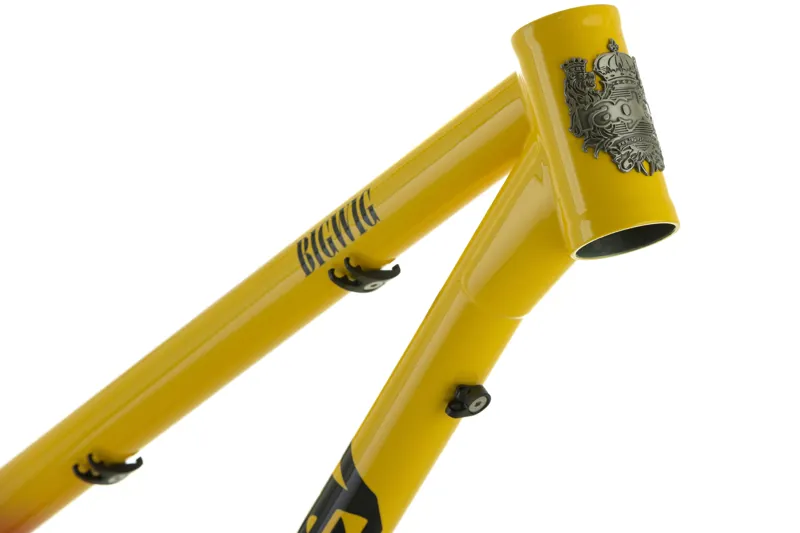

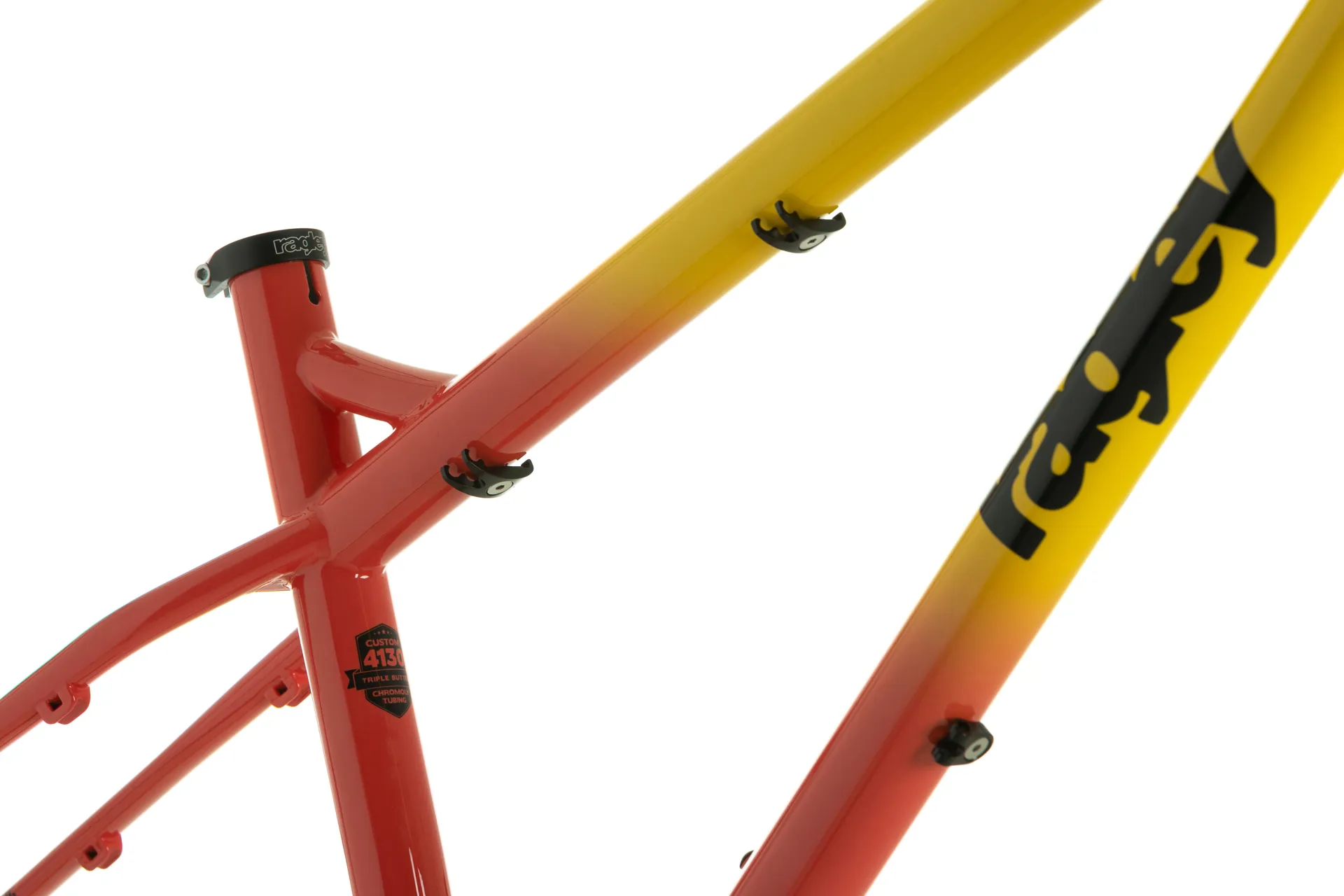

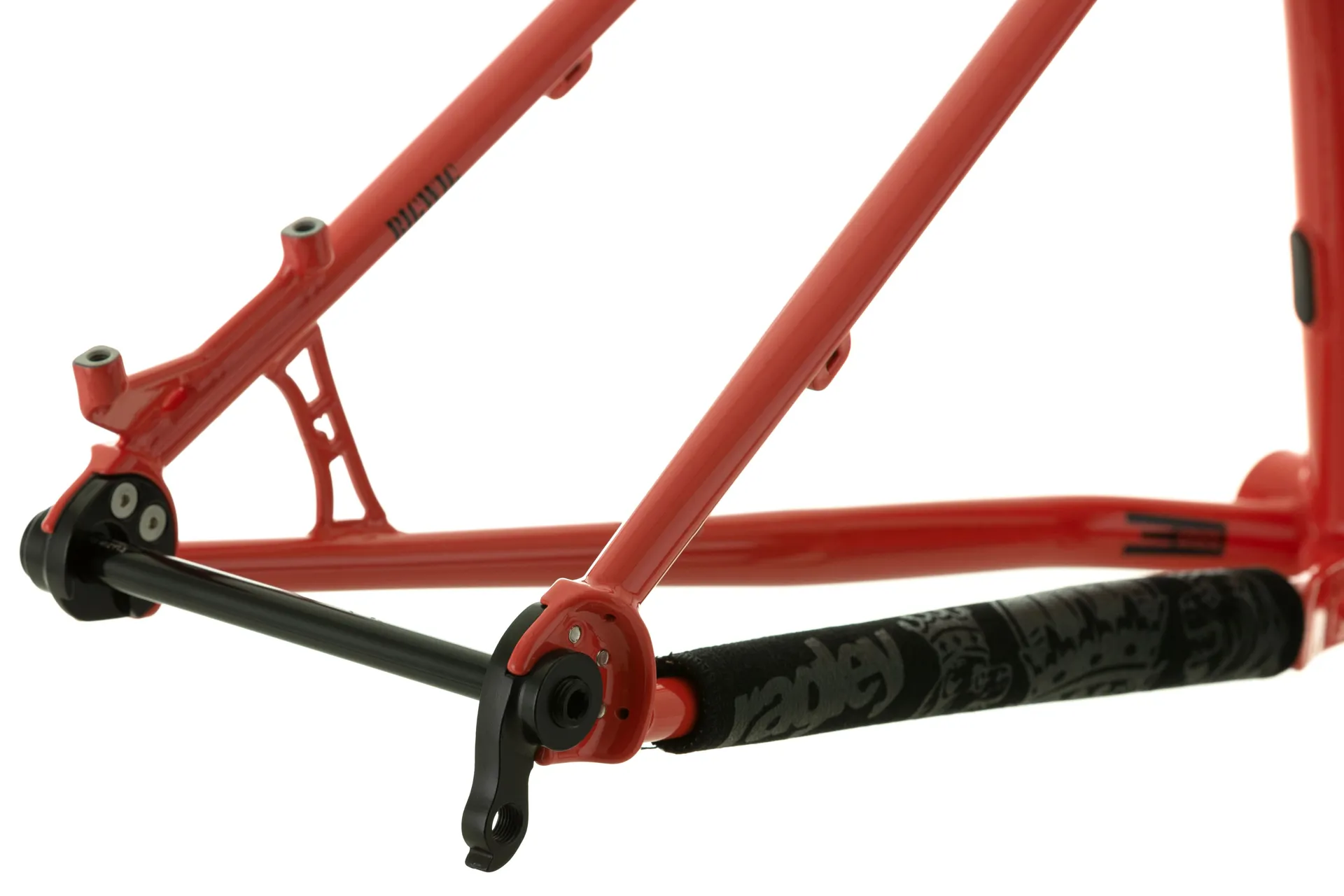

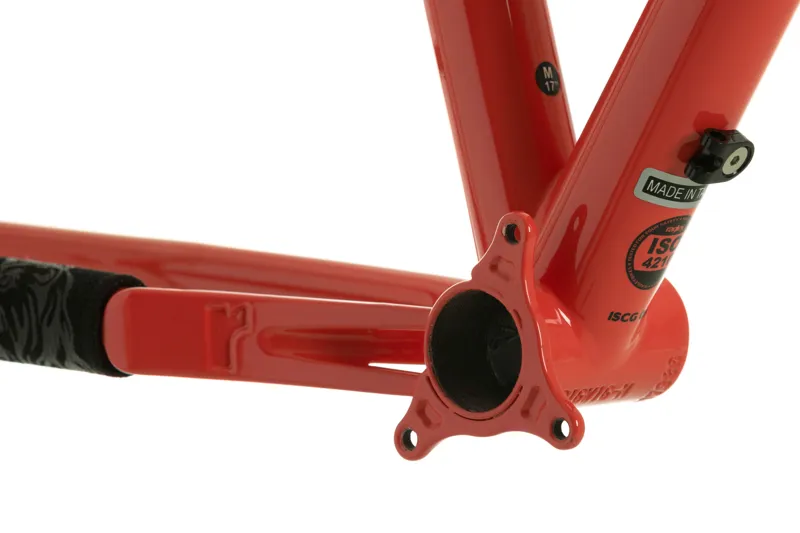

The Big Wig frameset features ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. Our steel frames are engineered from custom triple butted 4130 Chromoly tubing for a frame that is stiff but lively and comfortable. Spec is the usual blend of performance and reliability to fit the no-nonsense Ragley ethos.

Looking for a true do-it-all bike to deliver the good times well into your riding future? The Big Wig will take you there, at speed...

Sizing Information
Frame SizeMediumLargeX-Large
Seattube Length420mm460mm500mm
Effective Top Tube Length625mm645mm667mm
Reach440mm460mm480mm
Stack634mm643mm652mm
Standover Height758mm785mm814mm
Chainstay Length435mm435mm435mm
Headtube Length100mm100mm110mm
Headtube Angle65.5°65.5°65.5°
Seattube Angle72°72°72°
Bottom Bracket Drop-65mm-65mm-65mm
Wheelbase1197mm1217mm1241mm
Max. Tyre Size29" x 2.4"29" x 2.4"29" x 2.4"
Seatpost Diameter31.6mm31.6mm31.6mm
Bottom Bracket Size73mm BSA73mm BSA73mm BSA
Rear Axle12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru
Recommended Fork Travel130mm130mm130mm
Chain GuideISCG 05ISCG 05ISCG 05
Based On Axle To Crown541mm541mm541mm
Chainline52mm52mm52mm
Max Rotor Size180mm180mm180mm
Fork Offset51mm51mm51mm
External Lower Headset Cup Height13mm13mm13mm
Headset44mm44mm44mm
