The latest version of the Ragley MmmBop alloy frame is the perfect 1st custom bike or n+1 for the stable.
The latest version of the Ragley MmmBop alloy frame is the perfect 1st custom bike or n+1 for the stable.
Ragley

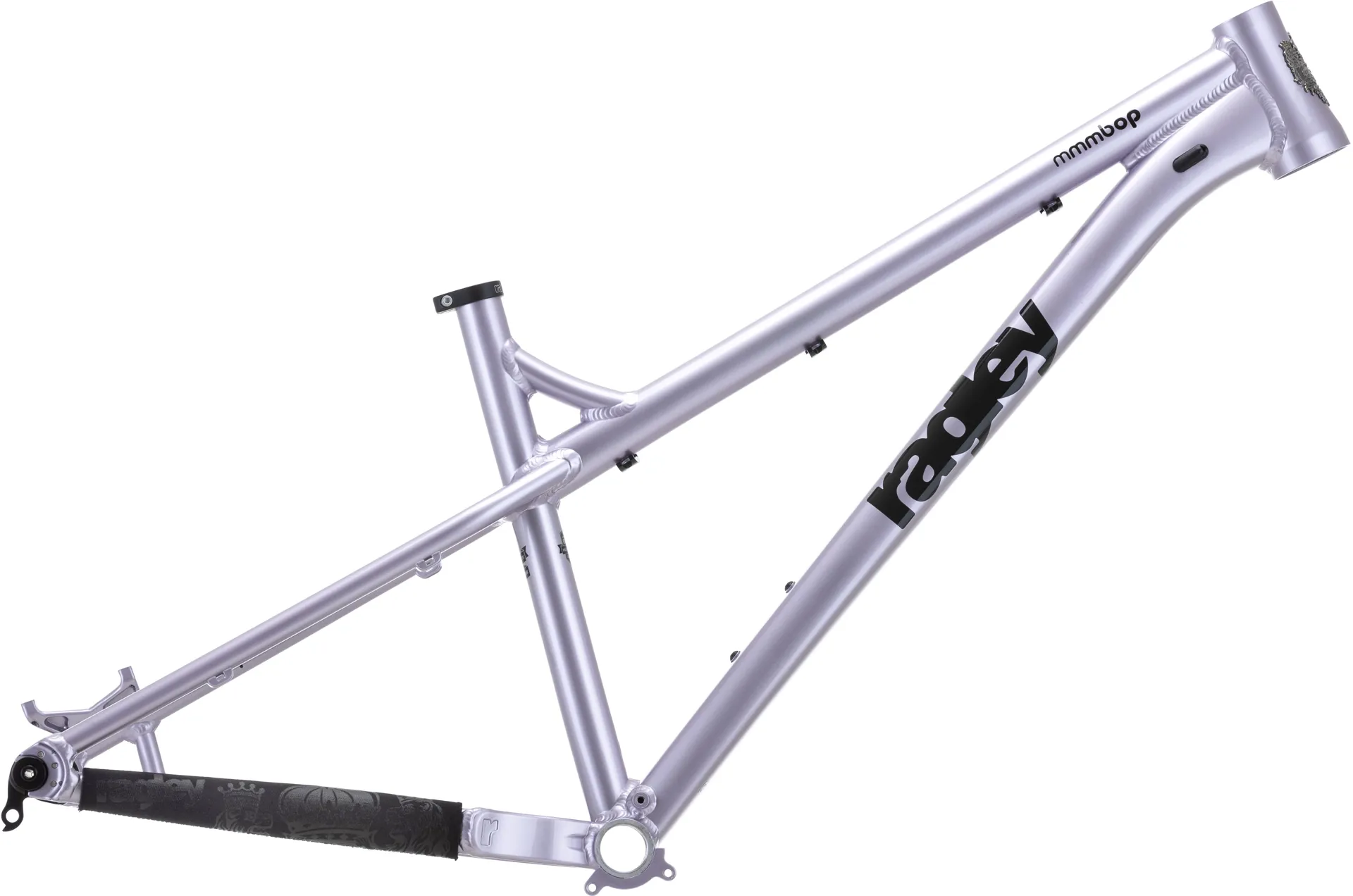

Ragley Mmmbop Hardtail Mountain Bike Frame - Parma Violet

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

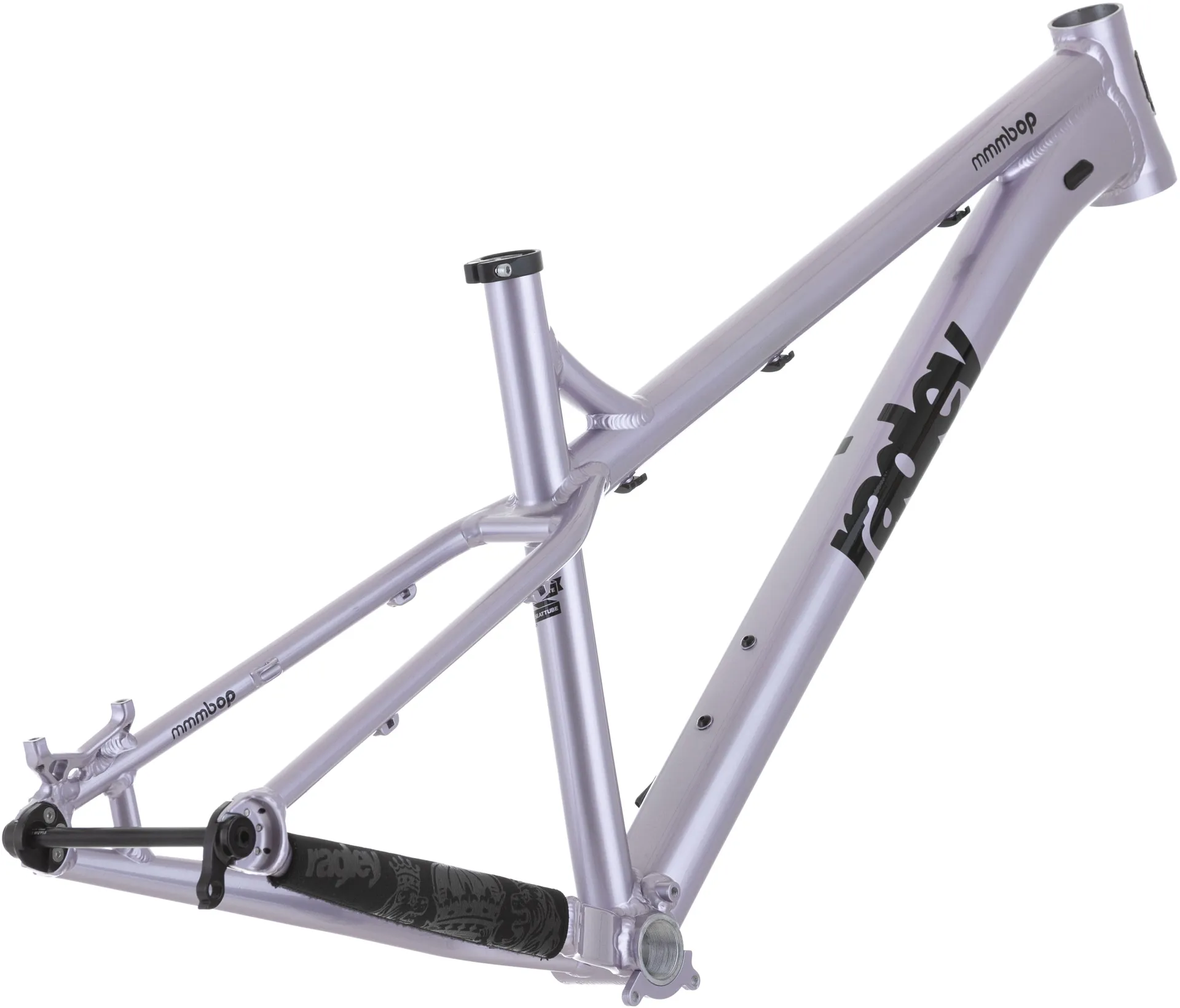

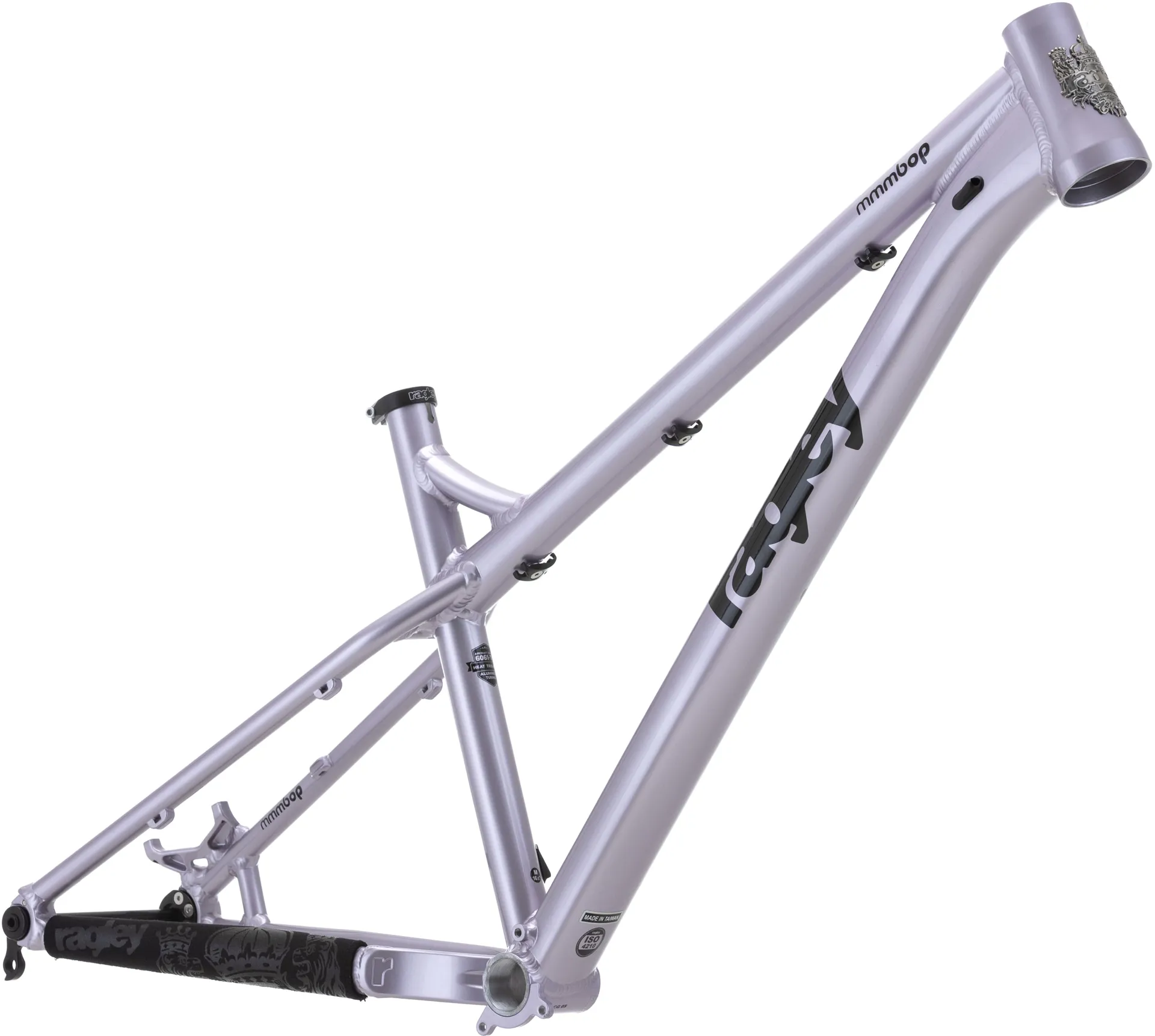

Ragley Mmmbop Hardtail Mountain Bike Frame - Parma Violet

Season:2023

Brand:Ragley

Code:205356PUR

The Mmmbop is here for the fun times. Slack, aggressive and built to hang with any of your full-suspension riding mates. Perfect to ride all-day but drop the saddle and the magic happens…

A 63.75 degree head angle inspires confidence on the steeps, pair with your choice of 150mm fork for bucketloads of composure, and the taught frame keeps things tracking no matter what.

So whether you’re entering the hardtail category at an enduro race, exploring a backcountry epic or just smashing around the local woods, the Mmmbop is ready for anything.

Sizing Information
Frame SizeSmallMediumLargeX-Large
Seattube Length380mm420mm460mm500mm
Effective Top Tube Length595mm617mm640mm663mm
Reach420mm440mm460mm480mm
Stack610mm619mm628mm637mm
Standover Height750mm740.5mm758mm778mm
Chainstay Length425mm425mm425mm425mm
Headtube Length110mm120mm130mm140mm
Headtube Angle63.75°63.75°63.75°63.75°
Seattube Angle74°74°74°74°
Bottom Bracket Drop-45mm-45mm-45mm-45mm
Wheelbase1167mm1192mm1217mm1241mm
Max. Tyre Size27.5" x 2.4"27.5" x 2.4"27.5" x 2.4"27.5" x 2.4"
Seatpost Diameter31.6mm31.6mm31.6mm31.6mm

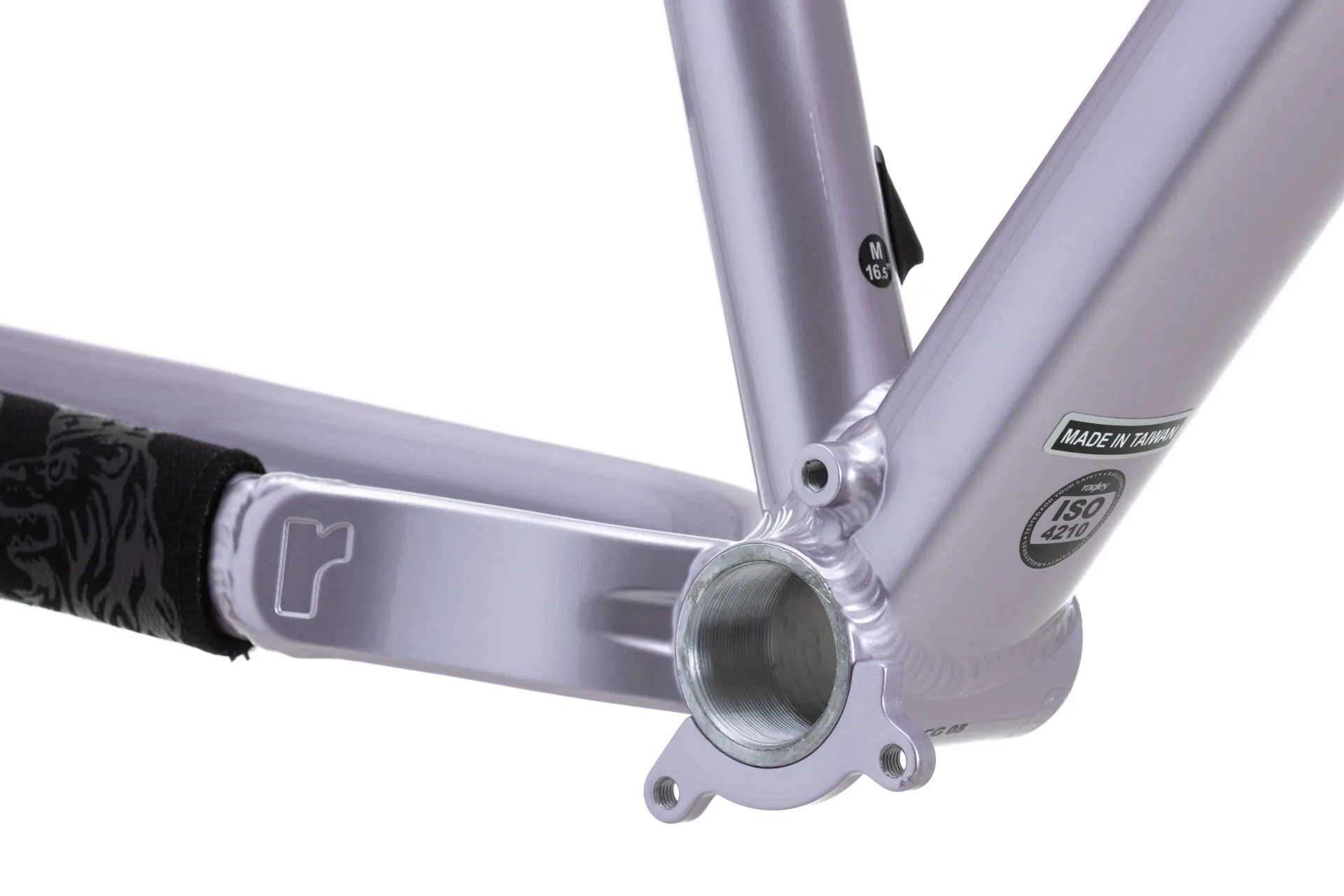

Bottom Bracket Size73mm BSA73mm BSA73mm BSA73mm BSA

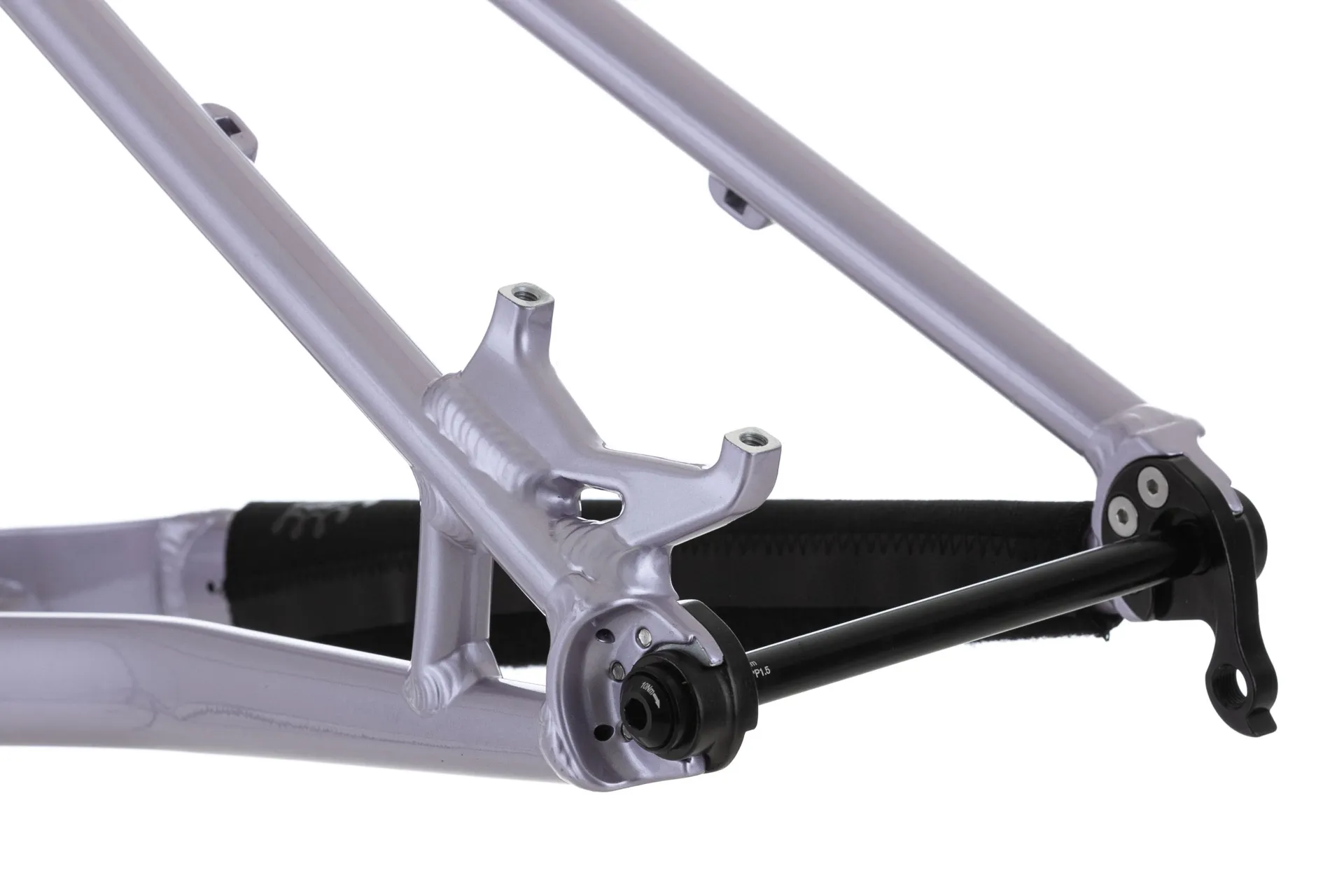

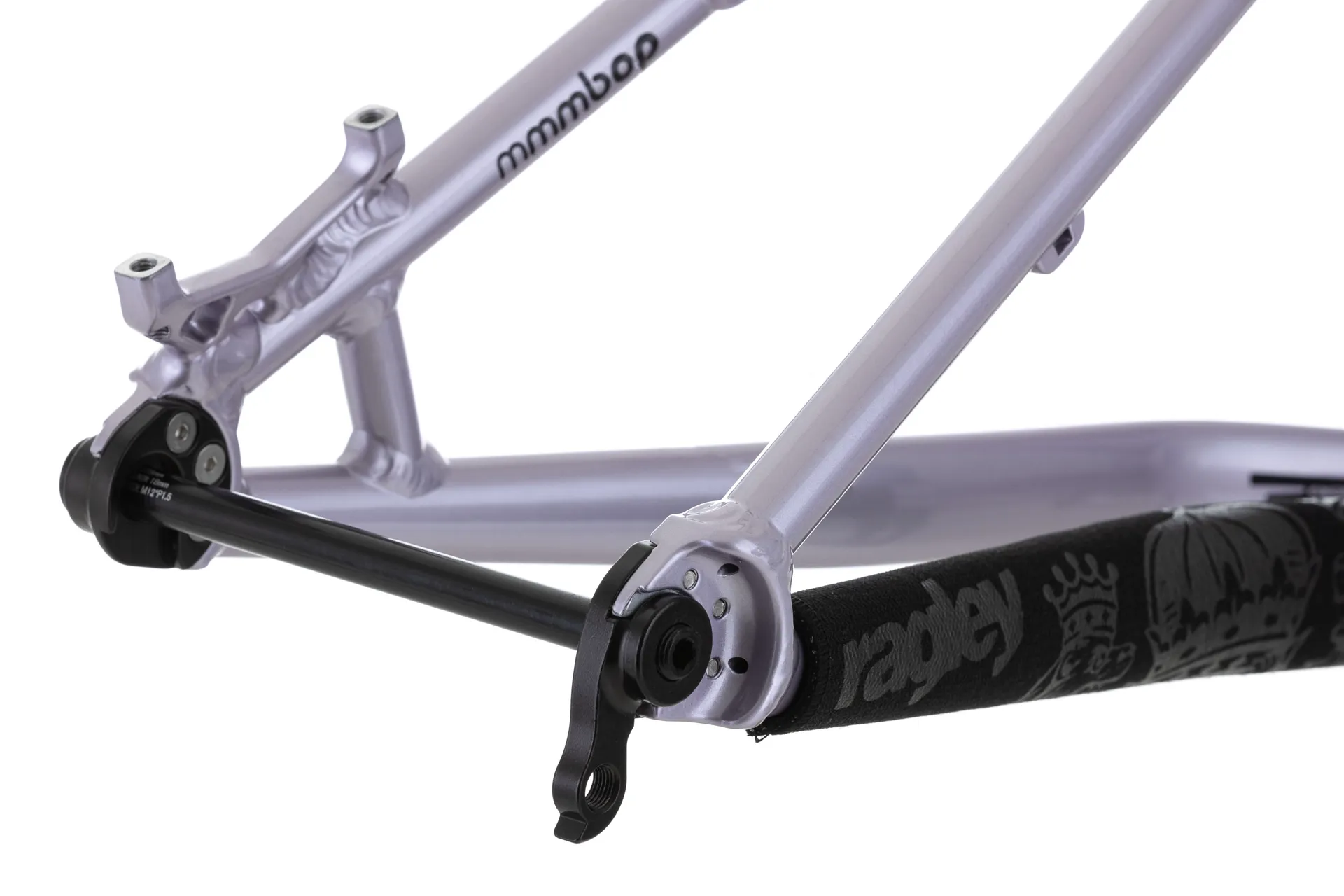

Rear Axle12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru
Recommended Fork Travel150mm150mm150mm150mm
Chain GuideISCG 05ISCG 05ISCG 05ISCG 05
Based On Axle To Crown542mm (150mm Fork)542mm (150mm Fork)542mm (150mm Fork)542mm (150mm Fork)
Chainline52mm52mm52mm52mm
Max Rotor Size180mm180mm180mm180mm
Fork Offset42mm42mm42mm42mm
External Lower Headset Cup HeightZero StackZero StackZero StackZero Stack

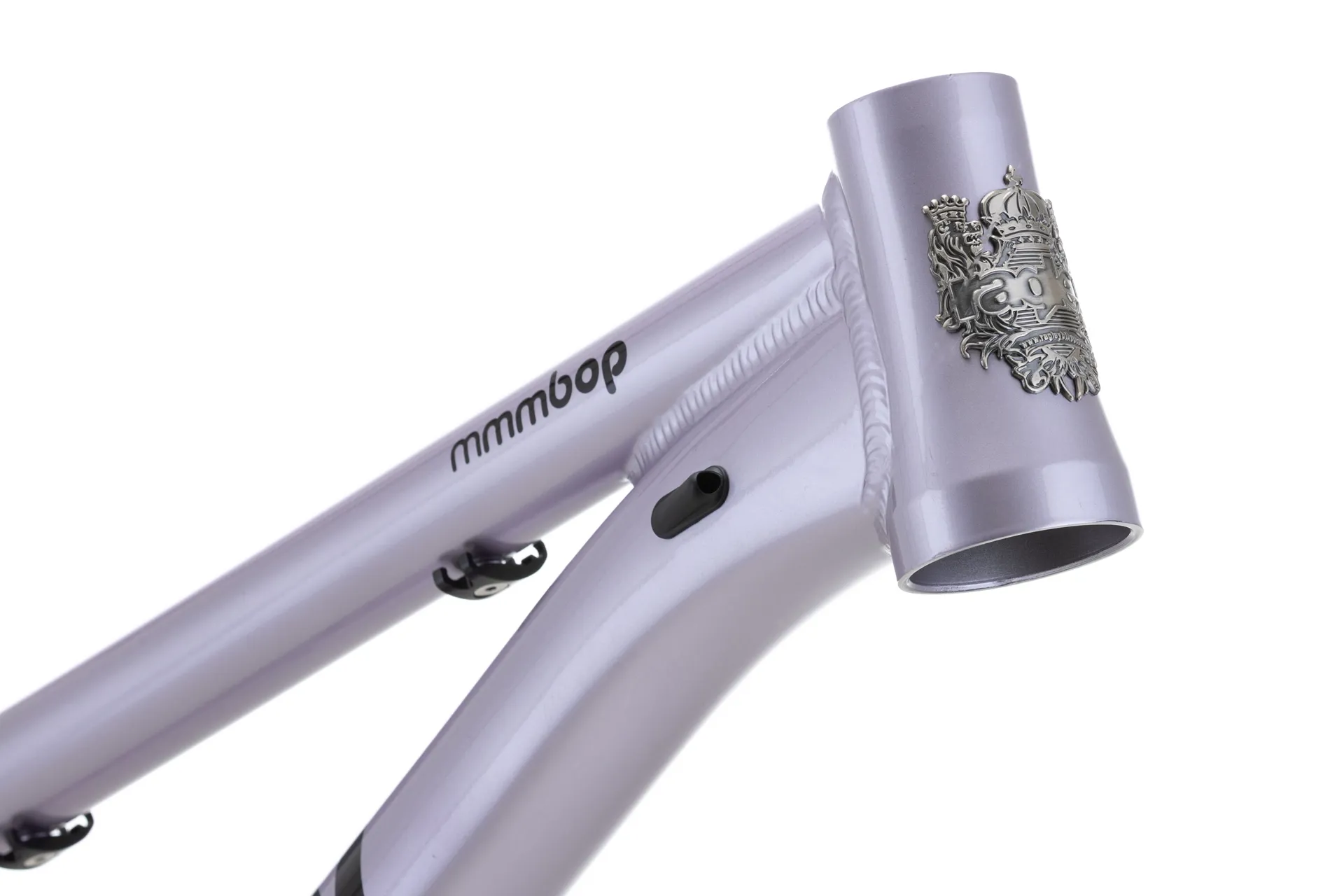

Headset44-56mm Tapered44-56mm Tapered44-56mm Tapered44-56mm Tapered
