Short and fast... the 2023 Ragley Piglet is a proper little XC blaster
Short and fast... the 2023 Ragley Piglet is a proper little XC blaster
Ragley

Ragley Piglet Hardtail Mountain Bike Frame - Orange

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

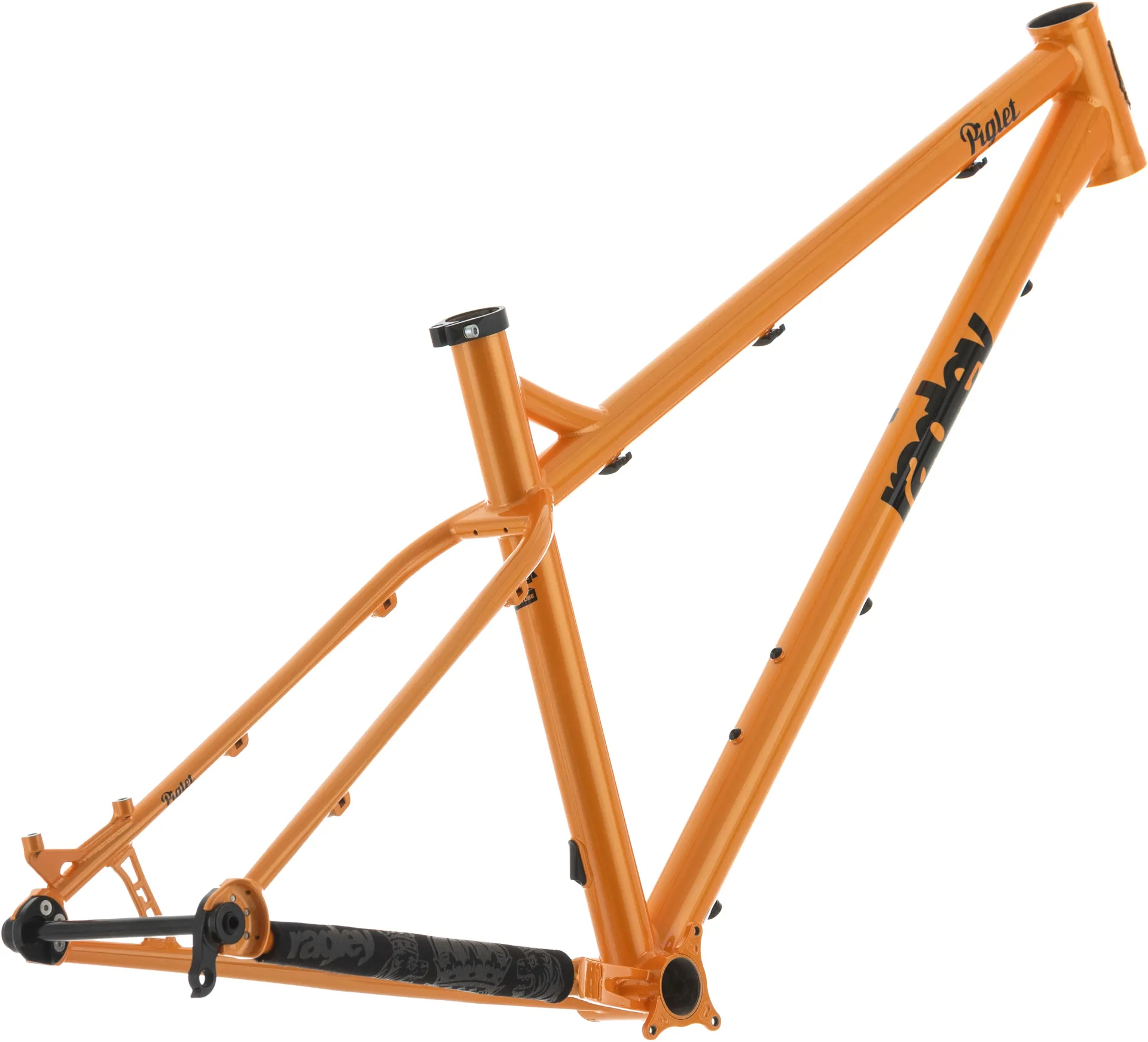

Ragley Piglet Hardtail Mountain Bike Frame - Orange

Season:2023

Brand:Ragley

Code:205345ORG

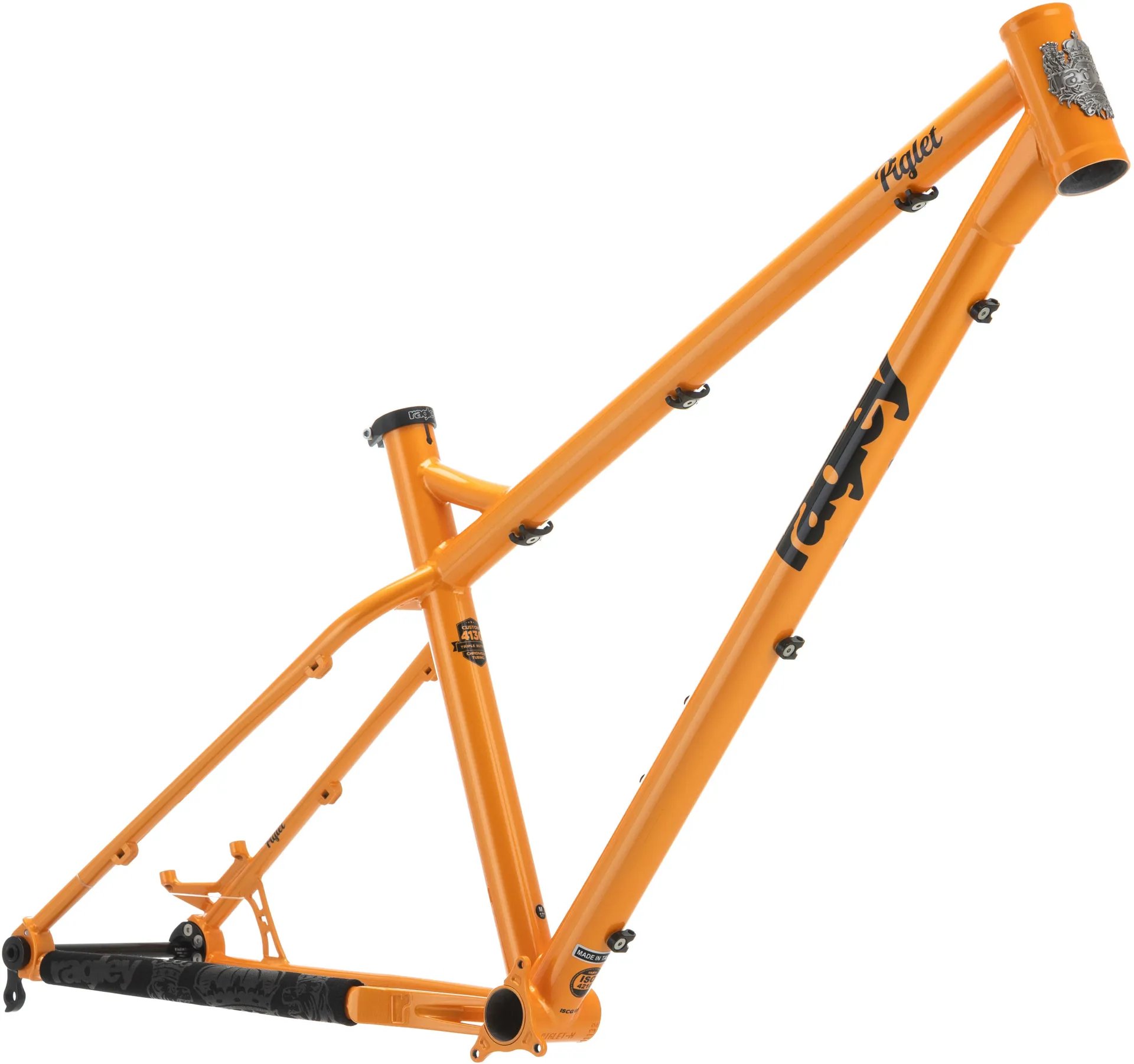

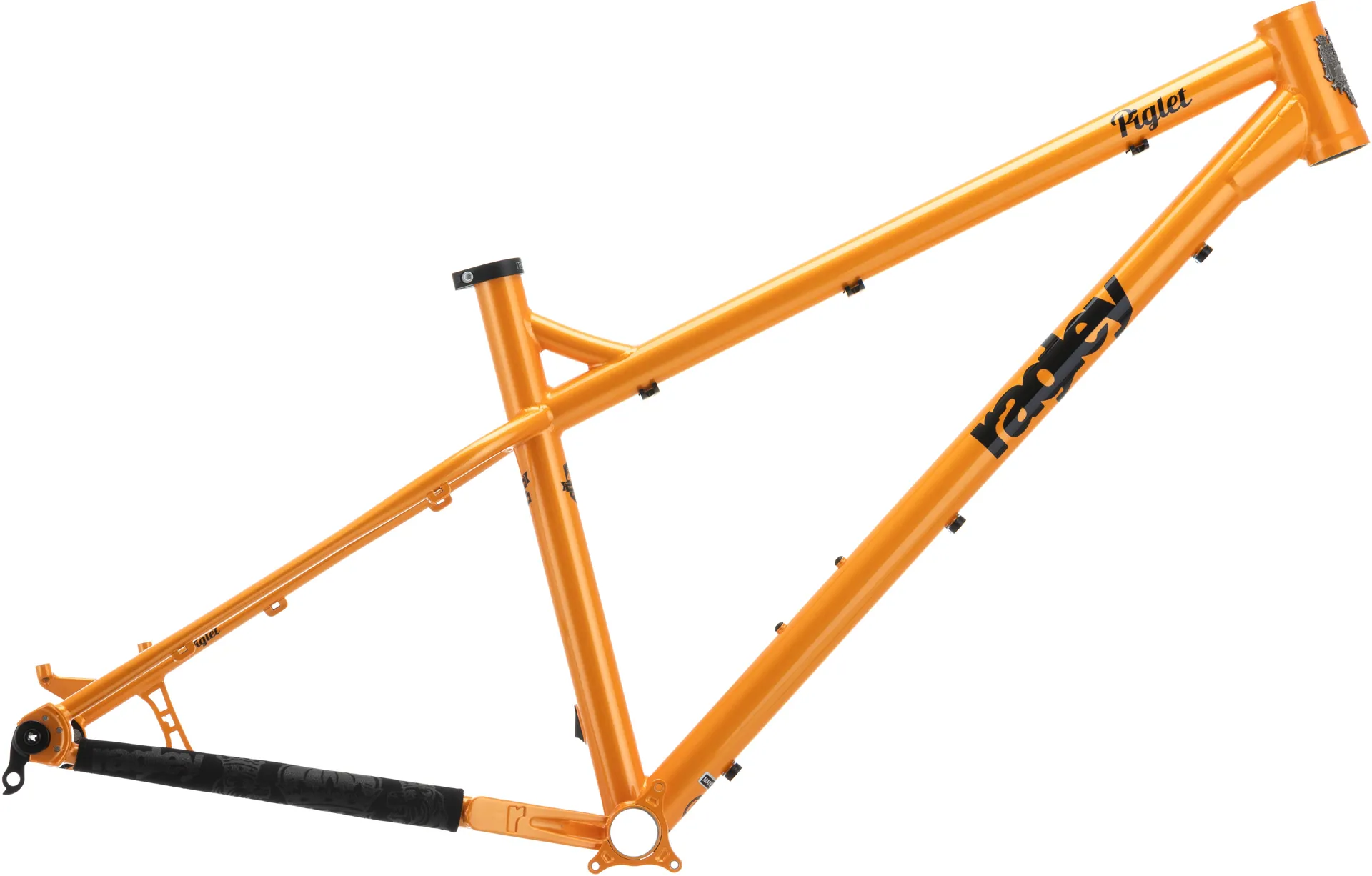

The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.

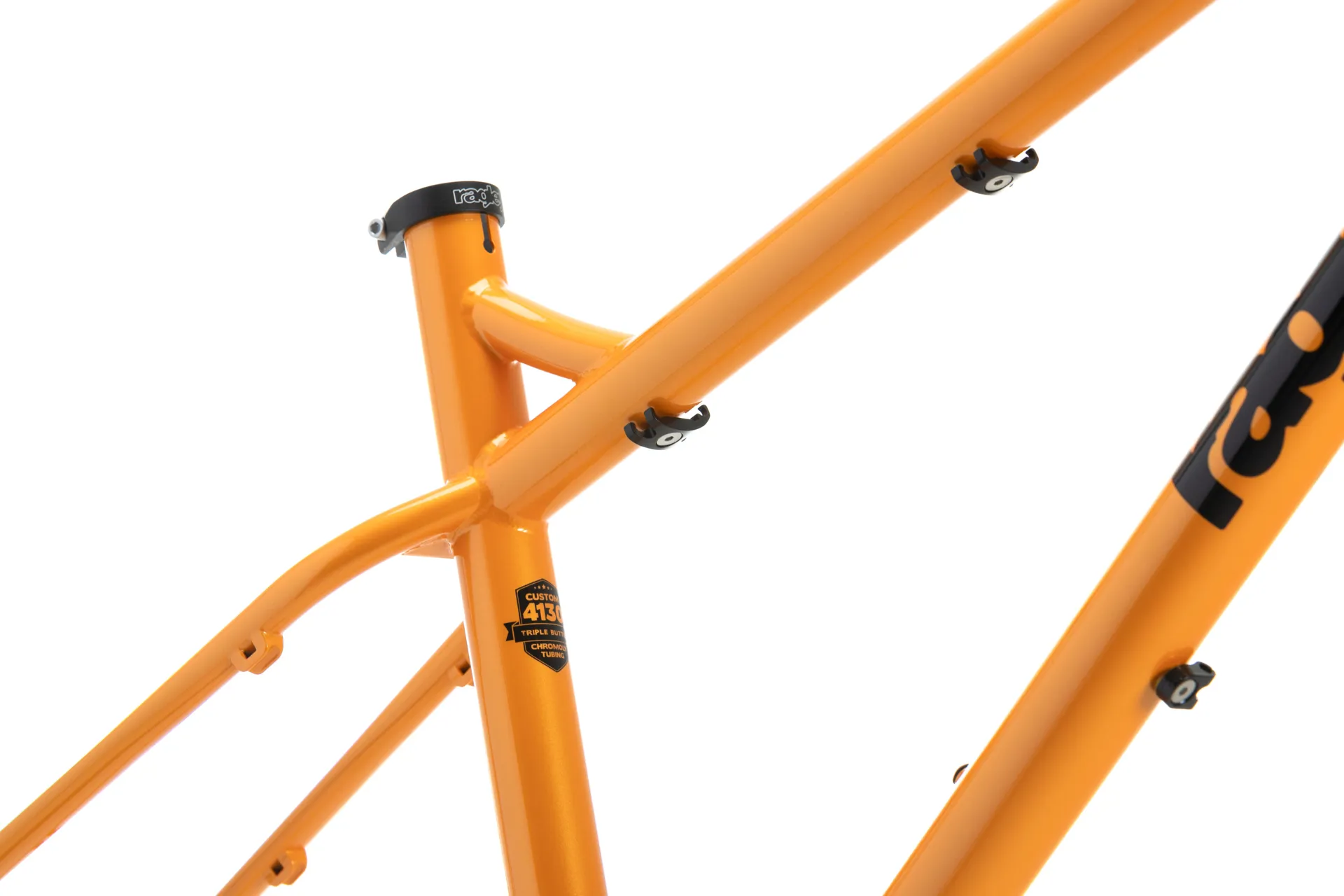

The triple butted 4130 chromoly tubes supply the compliance for all day comfort but enough spring to make it a trail sniper’s dream on tight and twisty singletrack.

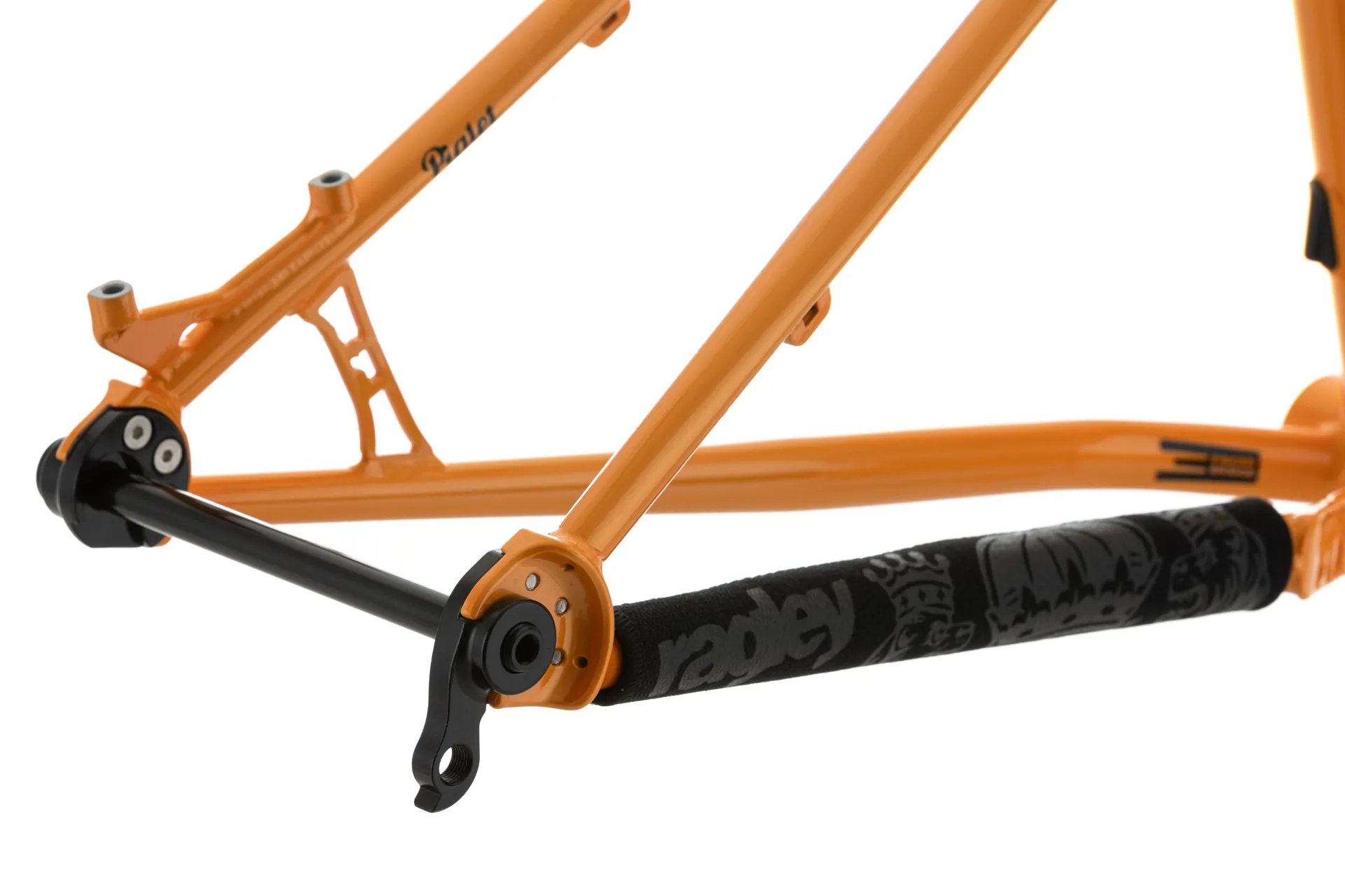

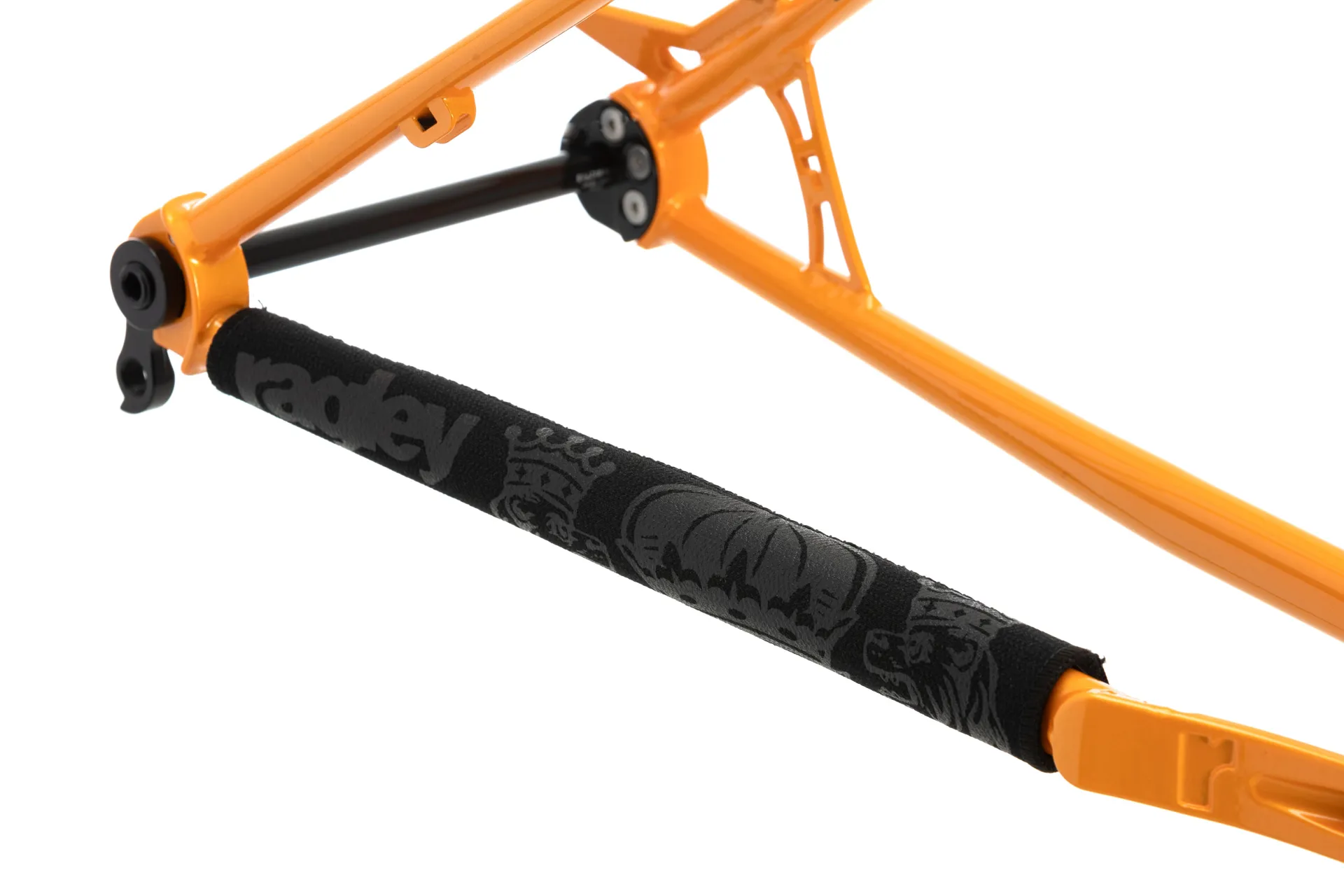

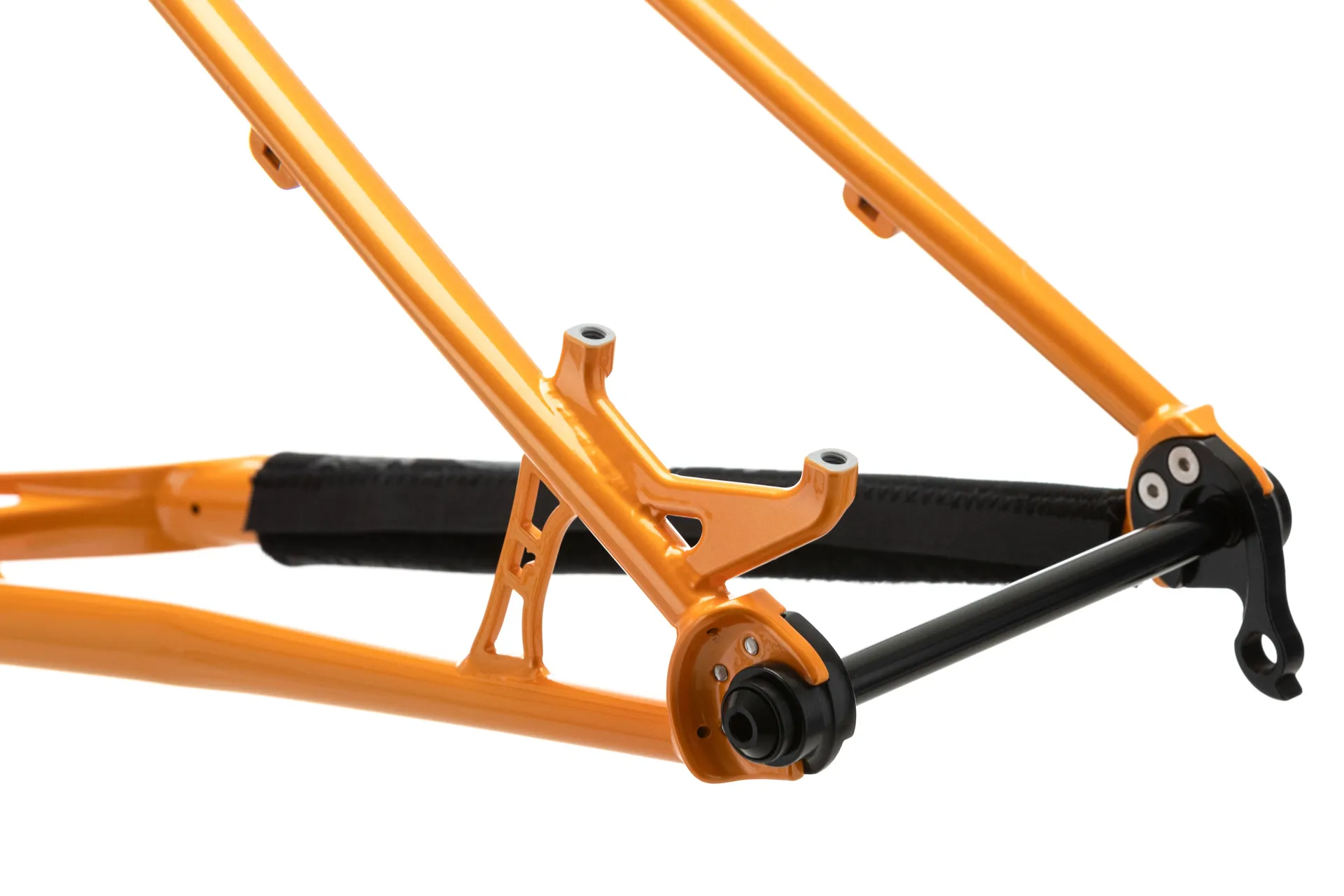

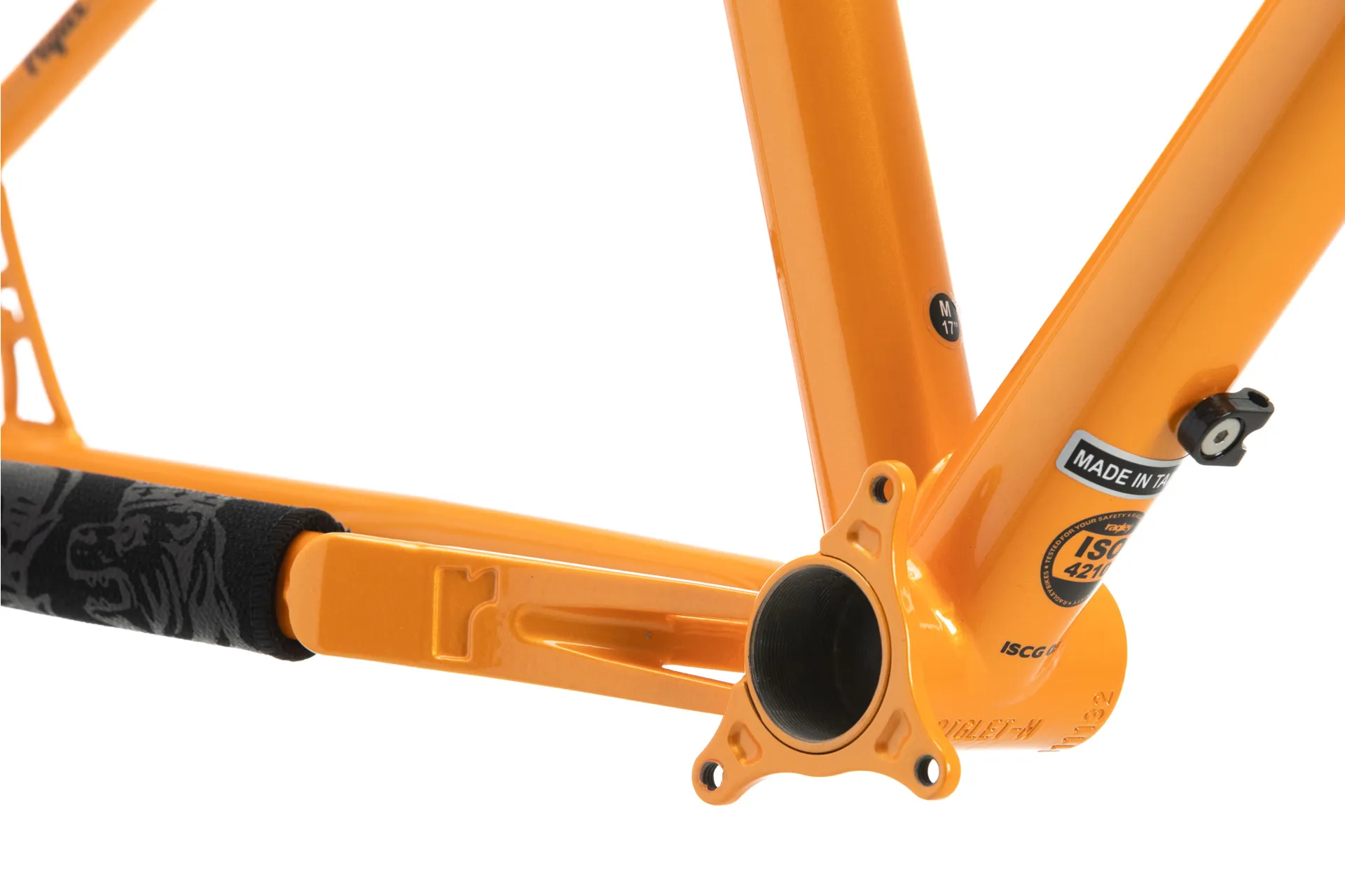

Engaging, lively and accurate, the Piglet is a joy on all-day epics, smashing laps around the local woods or carving up the trail centres. The frame features all the modern standards, including ISCG 05 chain guide tabs and boost 148x12 axle spacing.

This little piggy will make you go wee wee wee all the way home…

Sizing Information
Frame SizeSmallMediumLargeX-Large
Seattube Length380mm420mm460mm500mm
Effective Top Tube Length600mm622mm646mm668mm
Reach415mm435mm455mm475mm
Stack605mm615mm624mm633mm
Standover Height739mm743mm772mm800mm
Chainstay Length425mm425mm425mm425mm
Headtube Length100mm110mm120mm130mm
Headtube Angle65.5°65.5°65.5°65.5°
Seattube Angle73°73°73°73°
Bottom Bracket Drop-45mm-45mm-45mm-45mm
Wheelbase1139mm1163mm1187mm1211mm
Max. Tyre Size27.5" x 2.6"27.5" x 2.6"27.5" x 2.6"27.5" x 2.6"
Seatpost Diameter31.6mm31.6mm31.6mm31.6mm
Bottom Bracket Size73mm BSA73mm BSA73mm BSA73mm BSA
Rear Axle12mm x 142mm Bolt Thru12mm x 142mm Bolt Thru12mm x 142mm Bolt Thru12mm x 142mm Bolt Thru
Recommended Fork Travel130mm130mm130mm130mm
Chain GuideISCG 05ISCG 05ISCG 05ISCG 05
Based On Axle To Crown522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)
Chainline52mm52mm52mm52mm
Max Rotor Size180mm180mm180mm180mm
Fork Offset42mm42mm42mm42mm
External Lower Headset Cup Height13mm13mm13mm13mm
Headset44mm44mm44mm44mm
