Amazing value, great qaulity and lots of fun, the Fairfax E bike is a go for a ride with a smile bit of kit
Amazing value, great qaulity and lots of fun, the Fairfax E bike is a go for a ride with a smile bit of kit
Marin

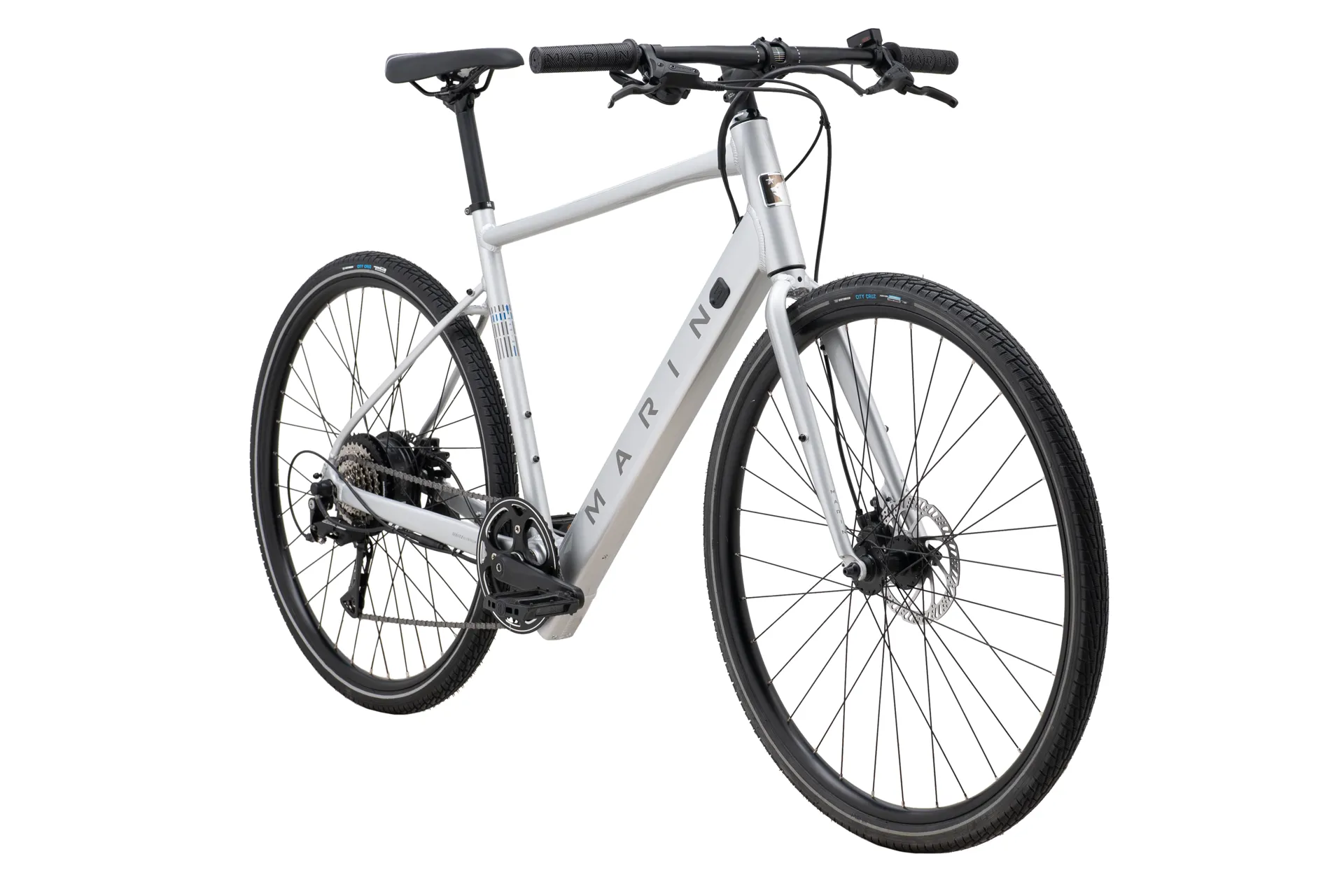

Marin Fairfax E Hybrid E.Bike - Silver

£1,595.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Fairfax E Hybrid E.Bike - Silver

Season:2025

Brand:Marin

Code:7377220SIL

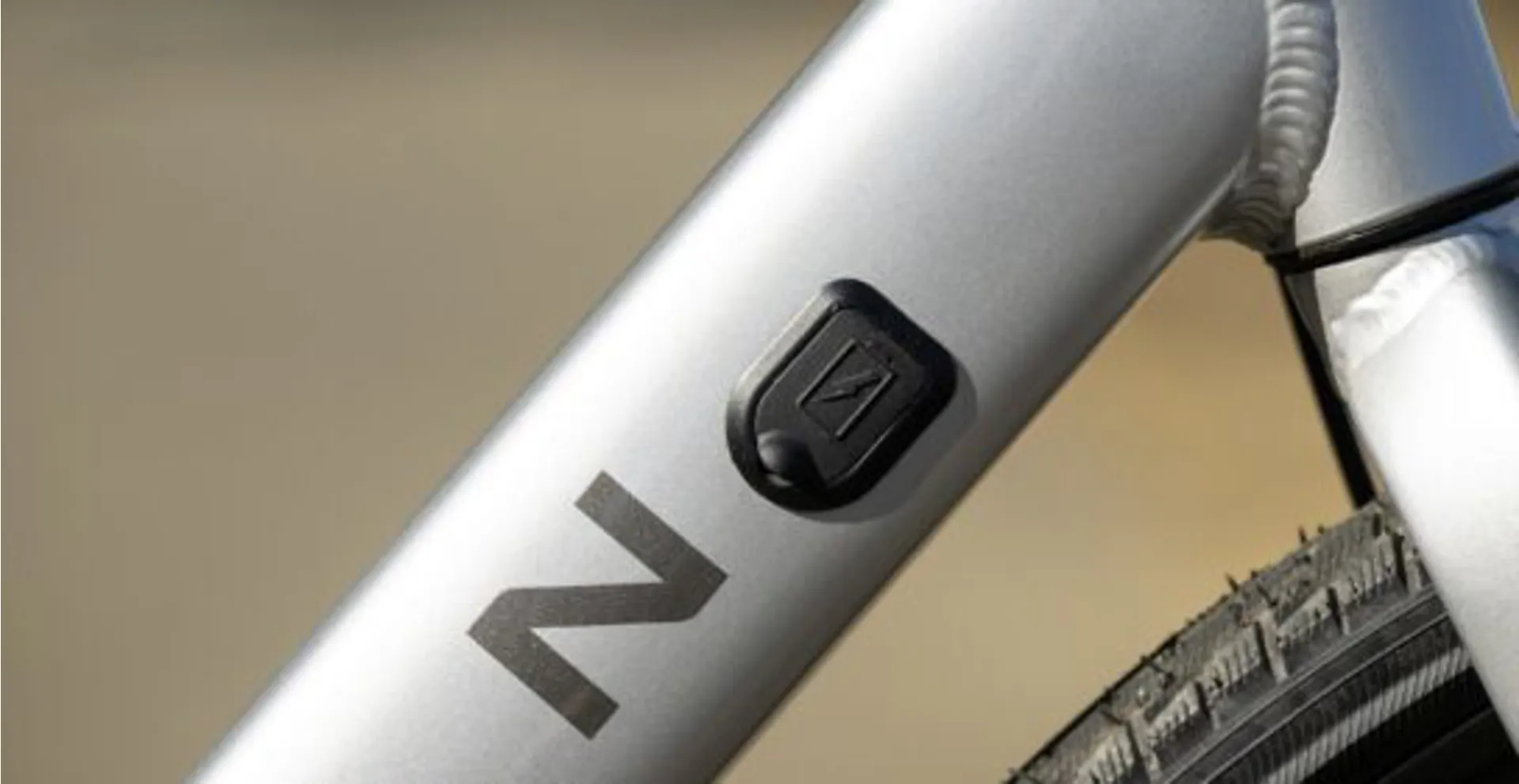

Our critically acclaimed and best-selling Fairfax has gone electric. The all-new Fairfax E brings the power to scoot you along with 40Nm of torque from the rear hub, quietly and seamlessly adding a boost to your pedaling. The 340Wh battery is cleanly integrated into the Series 2 aluminum frame's downtube, while a Shimano 8-speed Altus drivetrain provides plenty of gearing range. Finally, hydraulic disc brakes from Tektro allow for controlled and comfortable stopping power in all conditions.


  • System: Bafang rear hub motor
  • Max torque :40Nm
  • Max assisted speed: 25 km/h
  • Battery capacity: 340Wh
  • Range: 19-62 miles/30-100km
  • Rider app: Bafang Go
Technical Information
  • FRAME
    Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts
  • FORKS
    6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
  • RIMS
    Marin Aluminum Double Wall, Disc Specific
  • HUB, REAR

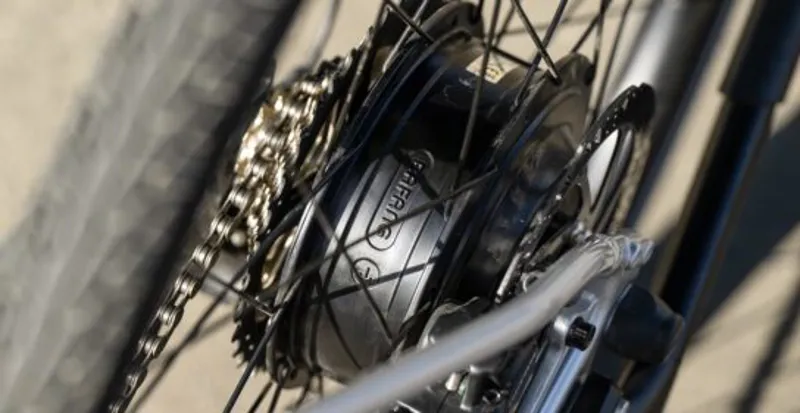

    Bafang 250 Watt Hub Motor, 40Nm Torque, 36H
  • HUB, FRONT
    Forged Aluminum Alloy, 32H
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead
  • DERAILLEUR, REAR
    Shimano Acera, 8-Speed, Wide Range
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    Shimano Altus 8-Speed RapidFire
  • CRANKSET
    Alloy Crank, Steel 42T Chainring, Ring Guard
  • MOTOR
    Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1
  • BOTTOM BRACKET
    Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
  • CHAIN
    KMC X8
  • CASSETTE
    Shimano HG-400, 8-Speed, 11-40T
  • BRAKE, FRONT

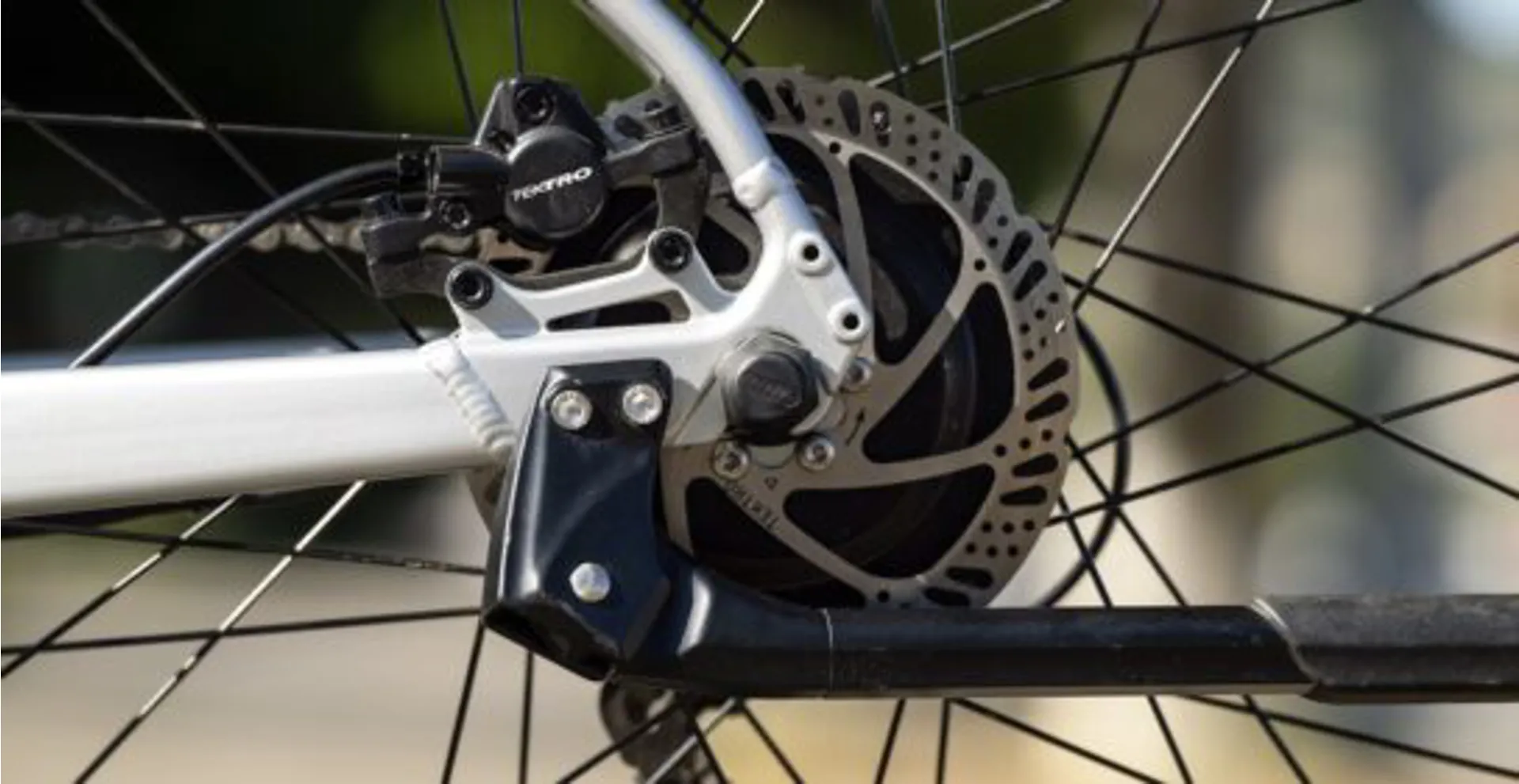

    Tektro HDM-275 Hydraulic Disc, 160mm Rotor
  • BRAKE, REAR
    Tektro HDM-275 Hydraulic Disc, 160mm Rotor
  • BRAKE LEVERS
    Tektro Hydraulic
  • HANDLEBAR
    Marin Alloy Flat
  • STEM
    Marin Alloy
  • GRIPS
    Marin County
  • HEADSET
    FSA, Orbit CE No.8B
  • SEATPOST
    Marin Alloy, 27.2mm
  • SADDLE
    Marin Fitness
  • PEDALS
    Marin Oso OEM Nylon Platform
  • KICKSTAND
    Rear Mount Alloy
  • BATTERY
    Bafang 340Wh, 36V, In-tube
  • CONTROLLER

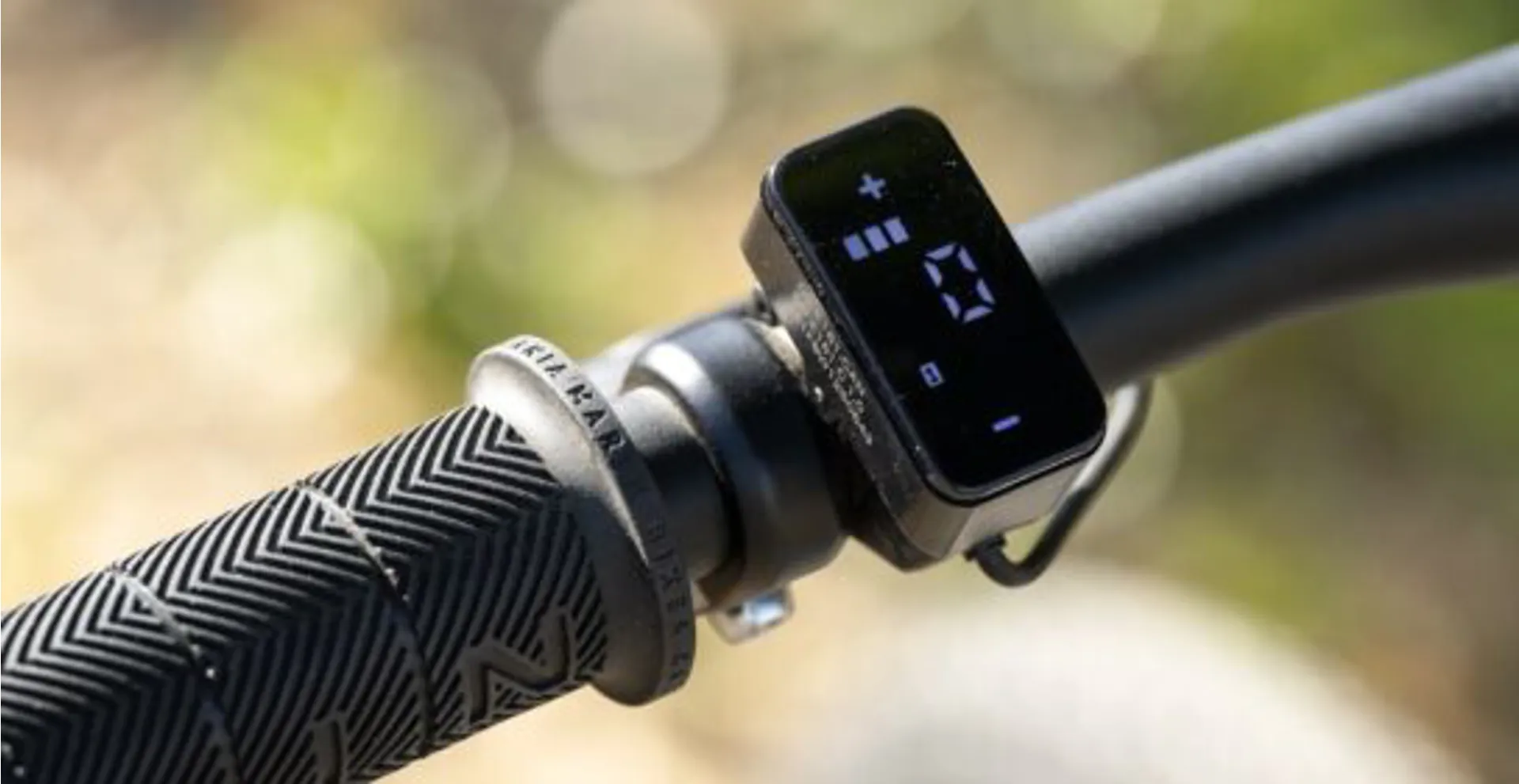

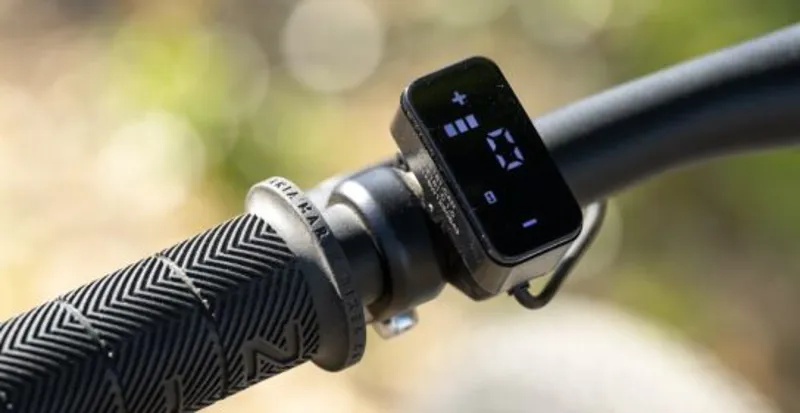

    Bafang Handlebar Mount LED Switch & Display
  • RANGE/ CHARGING
    19-62 Miles/30-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 4 Hours
Sizing Information
SMLXL
Stack571.3590.1609637.3
Reach399.5420440455
Head Tube Angle70.5°70.5°70.5°70.5°
Head Tube Length155175195225
Seat Tube Angle73.5°73.5°73.5°73.5°
Seat Tube Length430480520550
Top Tube Effective569595620644
BB Height283.5283.5283.5283.5
BB Drop70707070
Chain Stay445445445445
Wheel Base1070109711231148
Stand Over Height705.9745.2779.9808.9
Fork Offset50505050
SeatPost Diameter27.227.227.227.2
Handlebar Width640680680680
Stem Length70707070
Crank Length170170170170
