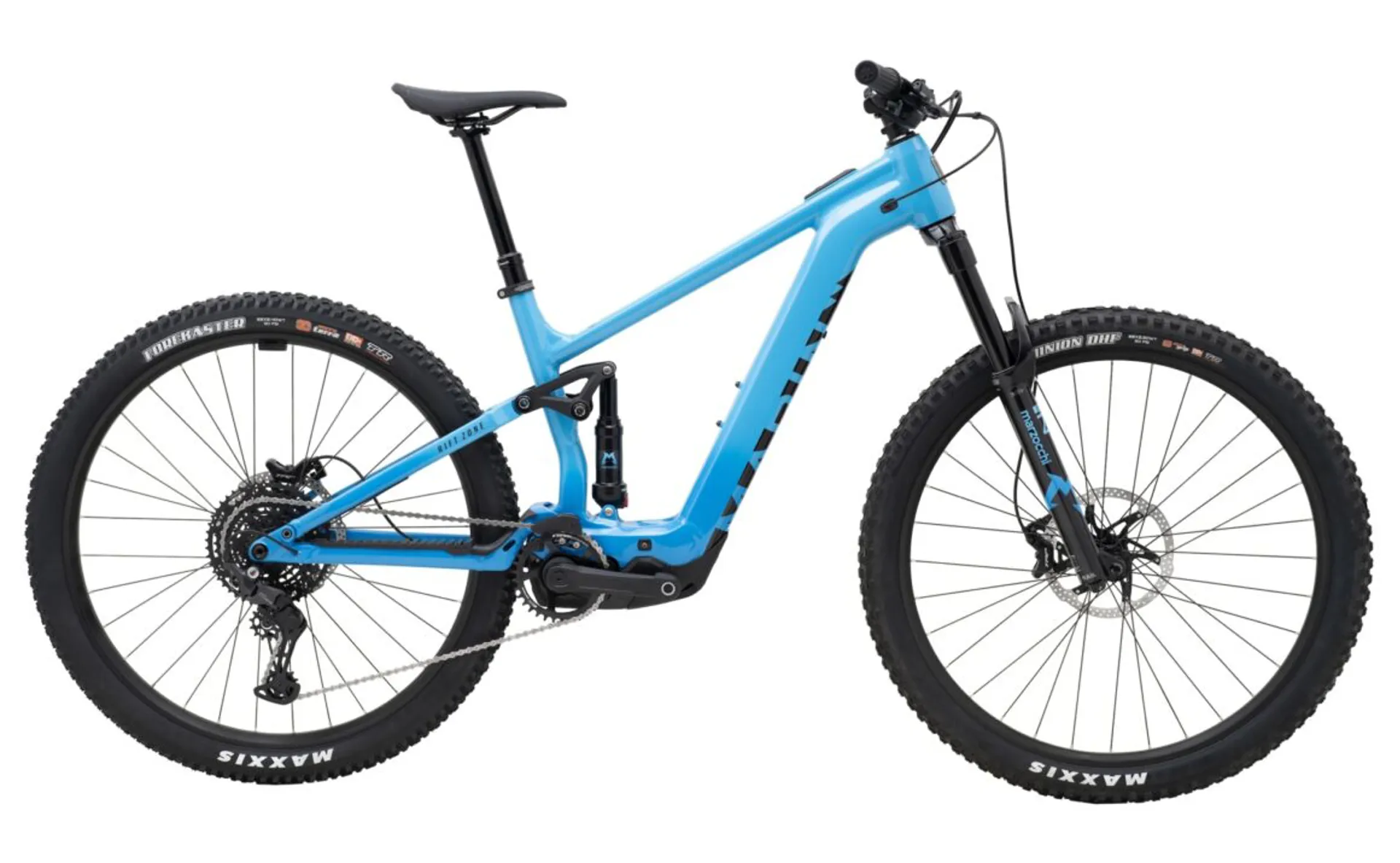

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.
Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.
The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes.
FRAME
Rift Zone EL models are built around our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes and full internal cable routing, giving riders the highest-end alloy frame that Marin offers. 29” wheels roll at both ends of all three models in the Rift Zone EL collection.
MULTITRAC SUSPENSION
It wouldn’t be a Rifty without our much-heralded MultiTrac suspension that pairs an ideal leverage curve with a custom shock tune. The resulting 140mm of travel balances pedal efficiency and the ability to float over rocks and roots while delivering confidence-inspiring chassis control.
ADJUSTABLE HEADTUBE ANGLE
The headtube angles on the Rift Zone EL models can be fine-tuned via the proprietary headset cups and inserts, allowing for approximately +/- 0.50° of adjustability beyond the stock 65° headtube angle to best suit your riding style and local trails.
DRIVE UNIT
Packing 55Nm torque and up to 600W of power in a lightweight 4.4lbs/2kg drive unit, Bosch’s Performance Line CX drive unit delivers a silent riding experience with no motor noise and no drag at speed, for a very natural feeling power delivery.
BATTERY
The Bosch CompactTube 400Wh battery delivers from 15-55 miles (25-90km) of range (based on rider weight, terrain, climate and level of assist used) and fully charges in about six hours using the included 2A charger. It’s securely mounted in the downtube and is removable using common tools.
CONTROLLERS
Bosch’s system controller is conveniently located on the top tube and includes the power switch and an LED-based mode/battery level indicator.
The wireless mini remote is within reach of the rider’s left thumb and controls the power assist mode, allowing the rider to make quick adjustments on the fly.
PROTECTION
Made from a 30% fiberglass-infused nylon, similar to what is used on safety and football helmets, the moto-inspired integrated downtube guard helps deflect errant rocks, logs, or anything else riders may encounter on the trail. This guard also includes drain ports to let moisture flow from the frame.
Chainstays and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted.
EXTRAS
Bosch’s PowerMore range extending battery can be added to the downtube of all the Rift Zone EL models, giving the riders an additional 250Wh of power in a form factor not much larger than a water bottle. Available at extra cost here.
RANGE, CHARGING TIME
15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
