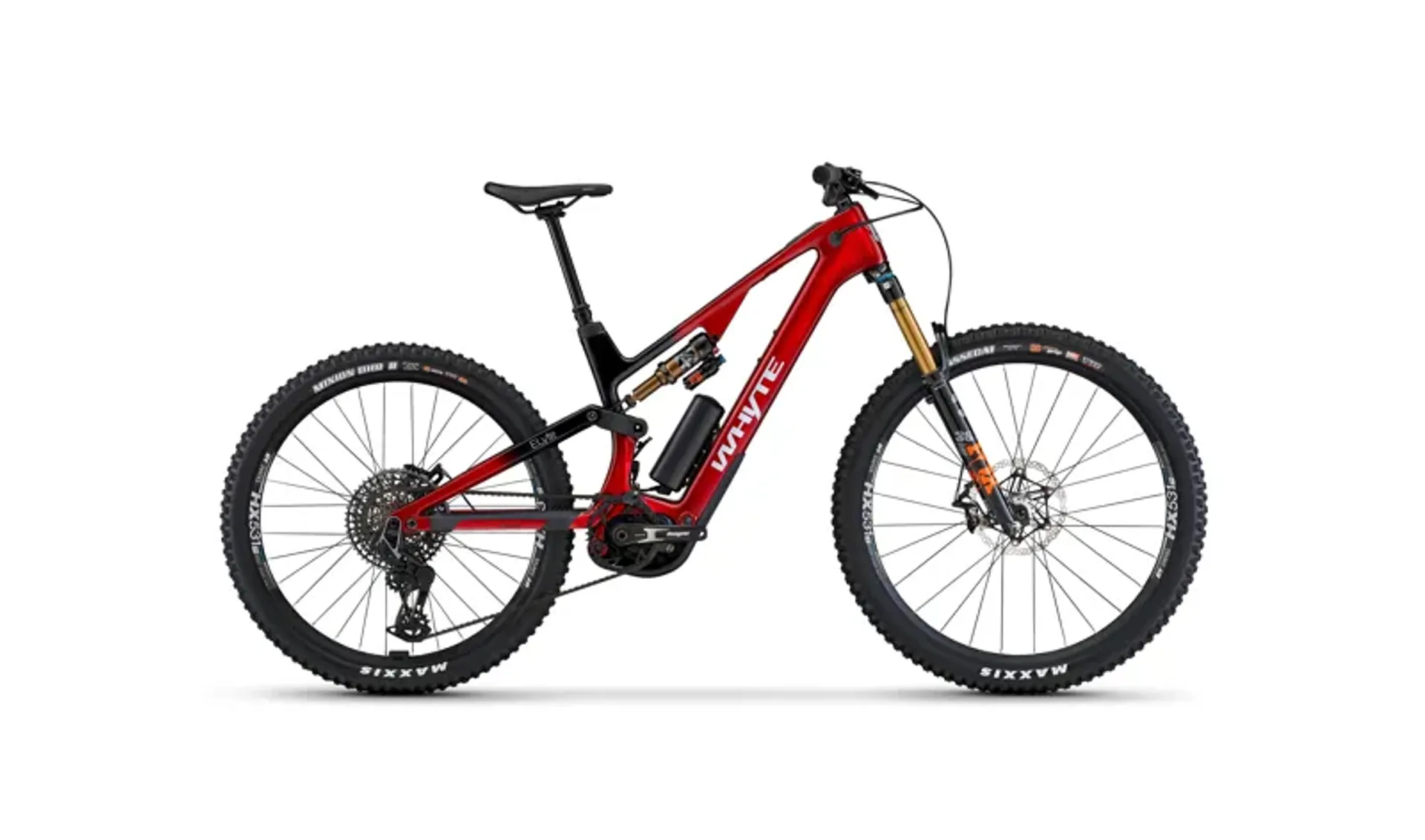

Whyte ELyte Evo Stag Works Trail/Enduro eMountain Bike in Ruby Red/Black

Season:2025

Brand:Whyte Bikes

Code:edafKLBhetihWDERDERSLGovE

Head turning, mind blowing.

Whyte's top of the range ELyte EVO Stag Works is the dream bike of our design and engineering team, made real for you: full-power (600W), full-torque (85Nm) – all the time – so you can make the most of your precious time. With a full carbon frame, our lowest centre of gravity ever for the finest, most capable handling, mixed (MX) wheels (29er front, 27.5in rear), and the latest Bosch CX motor, ELyte EVO Stag Works delivers the very best mountain bike handling and ride feel with full-power capability so you can get more out of every ride.

Features:

  • 150mm front + 142mm rear of custom-tuned suspension travel
  • Uni-directional carbon fibre frame is light and reassuringly strong
  • Bosch's new Performance Line CX full-torque (85Nm), full-power (600W) motor
  • 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further
  • MX wheels (29er front, 27.5in rear) so you can tackle the techiest terrain
  • 492.28mm complete bike centre of gravity for the best handling possible
Technical Information
  • Colour
    Gloss ruby red with black fade
  • Cassette
    SRAM XS 1295, T-Type, 10-52T, 12 speed
  • Frame
    Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
  • Chain
    SRAM XO T-Type, 12 speed
  • Fork
    Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle
  • Crankset
    Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
  • Rear Shock
    Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte
  • Bottom Bracket
    N/A
  • Headset
    FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
  • Seatpost
    Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
  • Rear Hub
    Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
  • Saddle
    Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
  • Front Hub
    Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
  • Handlebar
    Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide
  • Spokes
    DT Swiss Elemental
  • Stem
    Whyte Trail full CNC, 32mm extension, 35mm bar bore
  • Rims
    DT HX531, 30mm Internal
  • Grips
    Whyte Enduro lock-on
  • Tyre
    Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear
  • Brakes Front
    Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
  • Shift Levers
    SRAM AXS Pod, right, MMX, 12 speed
  • Brakes Rear
    Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
  • Front Mech
    N/A
  • Brake Levers
    Hope Tech 4
  • Rear Mech
    SRAM XO T-Type AXS, 12 speed
  • Pedals
    Fibre reinforced composite platform
  • Weight
    20.8kg (size M, with innertubes + without pedals or PowerMore)
