The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.
Marin

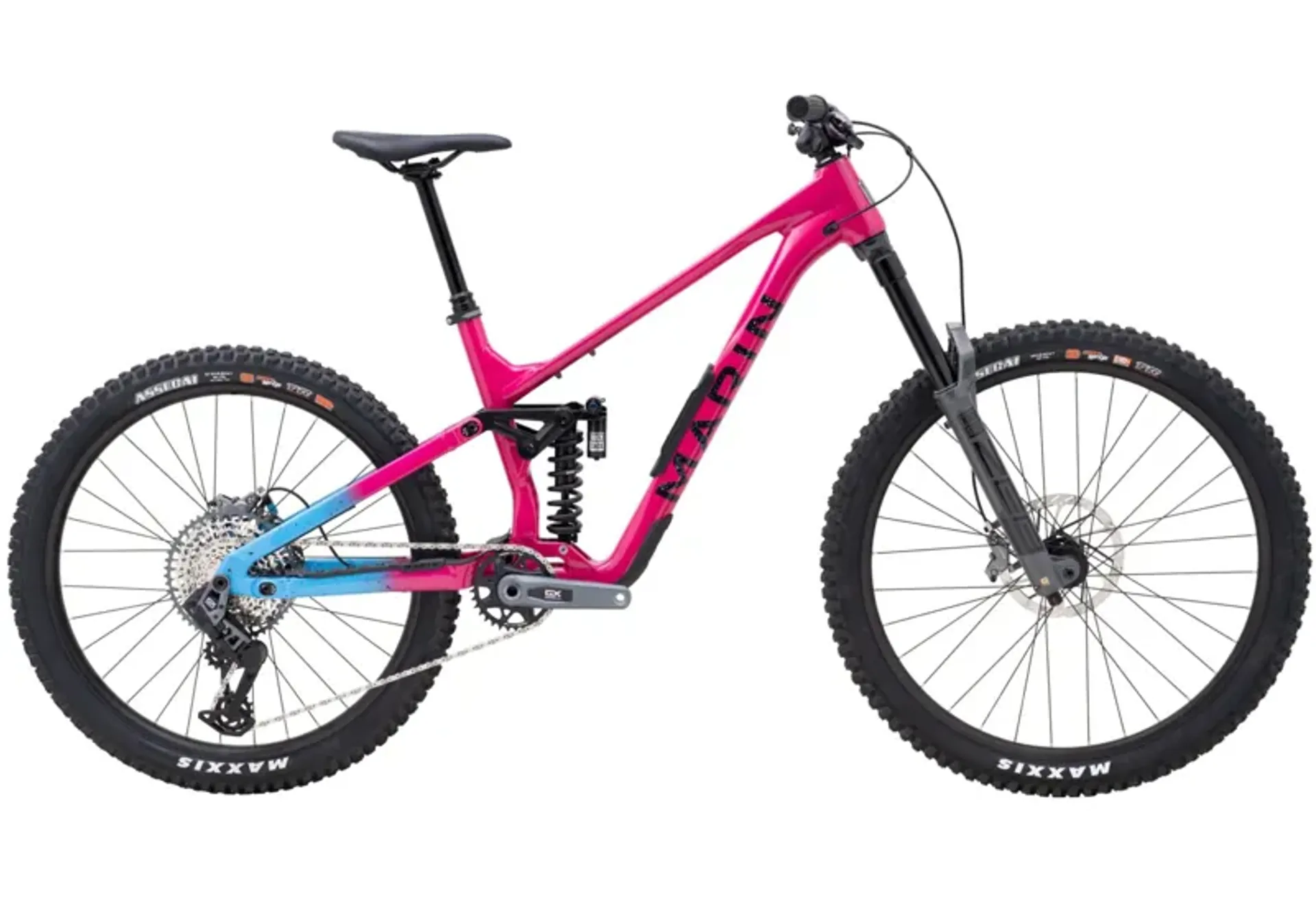

Marin Alpine Trail XR AXS Mountain Bike - Gloss Magenta/ Blue/ Black

£5,199.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Alpine Trail XR AXS Mountain Bike - Gloss Magenta/ Blue/ Black

Season:2025

Brand:Marin

Code:7375210PNKBLU

The all-new Alpine Trail series is our boldest and most capable line of enduro bikes ever, built upon our most advanced, most adjustable frames to date.

Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

"XR" = "Xtra Rad" here at Marin, and we pulled out all the stops with the XR AXS take on the Alpine Trail. Not only did we grace the bike with Ultimate-level RockShox suspension, but took the drivetrain up a notch with SRAM's GX Eagle AXS wireless 12-speed drivetrain. SRAM's Code Bronze brakes provide tenacious stopping power with their 4-piston calipers and 203mm rotors.

Features:

  • MULTITRAC 2 LT

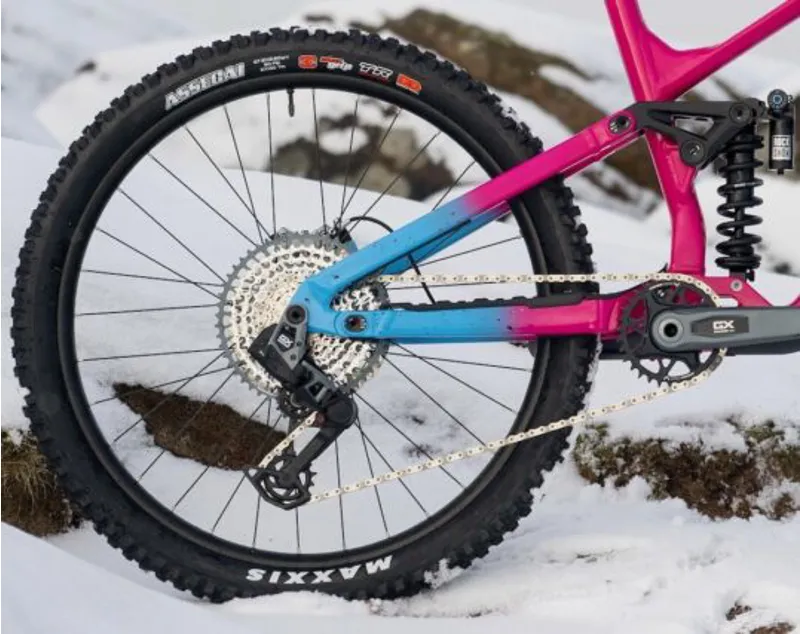

MultiTrac 2 LT debuts on the aluminum-framed Alpine Trail alloy models. MultiTrac 2 LT shifts from seatstay pivots to chainstay pivots, ensuring that the suspension performance matches our design goals, which are not achievable using pivots located on the seatstay once travel exceeds 150mm. With MultiTrac 2 LT, the benefits of relocating the rear pivot points from the seatstay to the chainstay become apparent, as it reduces anti-rise, allowing for better chassis control while braking, more mid-stroke support, and better feel at bottom out.
  • ADJUSTABLE GEOMETRY

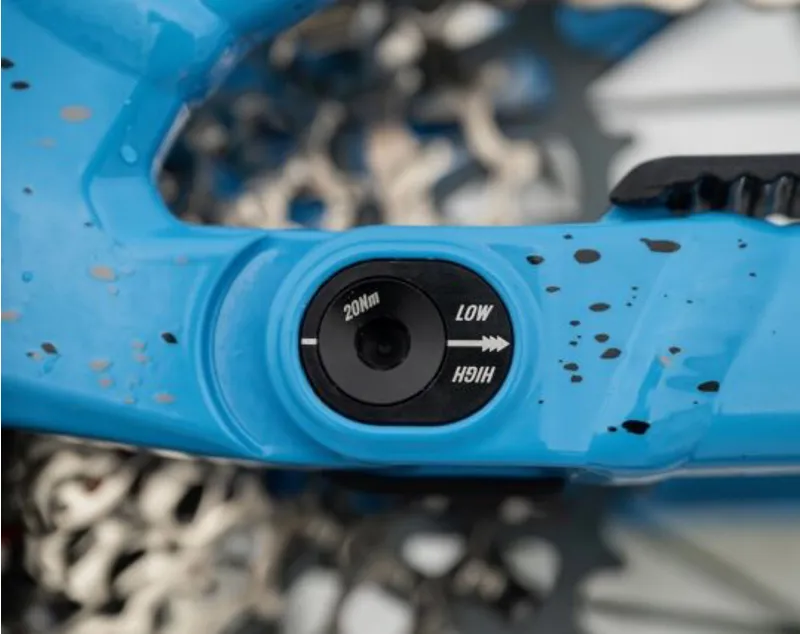

With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.

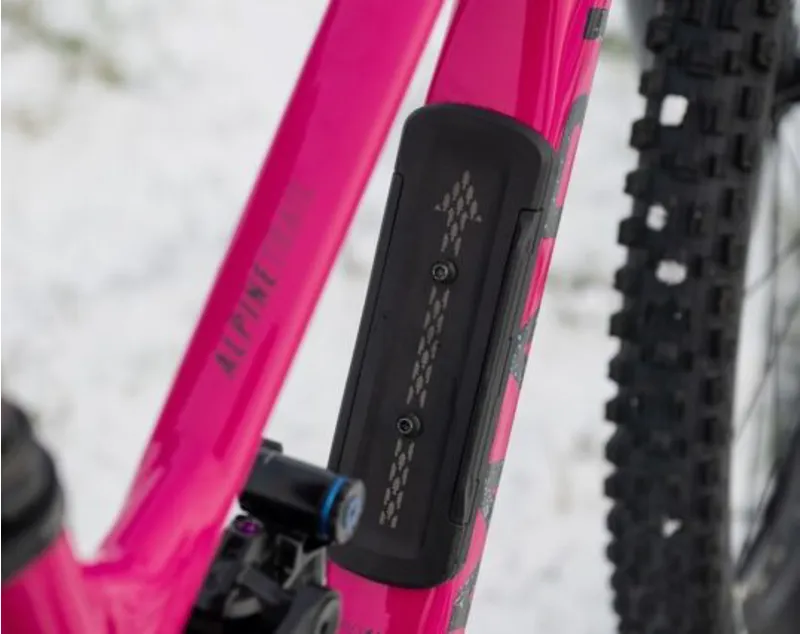

  • BEAR BOX DOWNTUBE STORAGE
The all-new Alpine Trail aluminum models now feature our Bear Box integrated downtube storage, complete with a custom nylon bag with a weather-sealed zipper. The hatch door is secure and double-sealed, with bottle bosses. Keep your riding essentials safe and protected from the elements during your big ride.
  • Adjustable Headtube Angle
Using our proprietary headset cups and inserts, the headtube angle on Alpine Trail aluminum models can be adjusted to +0.75° or -0.75° from the standard 63° position, giving the rider three options.
  • PROTECTION

Chainstay and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes, and integrated downtube guards helps deflect errant rocks, logs, or anything else riders may encounter on the trail.

Additionally, all aluminum frame models include a gasket around the cable exit hole reduces noise and prevents the brake hose and derailleur cable from marring the frame, and a mudflap positioned over the lower suspension pivot keeps spray and muck off the bearings. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted. They will be available as a service part for when riders make changes to their components.

Technical Information
  • FRAME
    All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • FRONT SUSPENSION
    RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
  • REAR SUSPENSION
    RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:400lbs
  • RIM
    Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
  • HUB REAR
    Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
  • HUB FRONT
    Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
  • SPOKES
    14g Black Stainless Steel
  • TIRES
    Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible
  • DERAILLEUR REAR
    SRAM GX Eagle AXS T-Type
  • DERAILLEUR FRONT
    -
  • SHIFT LEVER
    SRAM AXS POD MMX
  • CRANKSET
    SRAM GX Eagle, 32T, 55MM CL, 170MM Length
  • BOTTOM BRACKET
    SRAM DUB MTB 73
  • CHAIN
    SRAM GX Eagle T-Type
  • CASSETTE
    SRAM GX 1275 T-Type 10-52T
  • BRAKES FRONT
    SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor
  • BRAKES REAR
    SRAM Code Bronze 4-Piston Hydraulic, HSC 200mm Rotor
  • BRAKE LEVERS
    SRAM Code Bronze Stealth Hydraulic
  • HANDLEBAR
    Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
  • STEM
    Marin CNC, 35mm Length, 35mm Bar Bore
  • GRIPS
    Marin Grizzly Lock-On
  • HEADSET
    FSA Custom, Adjustable HTA Design
  • SEATPOST
    TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
  • SADDLE
    Marin Speed Concept
  • PEDALS
    -
  • EXTRAS
    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
  • EXTRAS
    Downtube Storage Bag
Sizing Information
SMLXL
STACK620.08633.51642.6646.93
REACH430460490520
HEADTUBE ANGLE63.5°63.5°63.5°63.5°
HEADTUBE LENGTH100115125130
SEATTUBE ANGLE79.2°79°78.8°78.6°
SEATTUBE LENGTH400420430460
TOPTUBE EFFECTIVE556592626659
BB HEIGHT352352352352
BB DROP (REAR/FRONT)7/247/247/247/24
CHAINSTAY435435435435
WHEELBASE1211.421248.111282.571317.8
STANDOVER HEIGHT683.3268 9.88695.6698.13
FORK OFFSET44444444
SEATPOST DIAMETER34.934.934.934.9
HANDLEBAR WIDTH780780780780
STEM LENGTH35353535
CRANK LENGTH160160160160
