The Bobcat Trail 5 has everything needed to take your trail riding to the next level of fun, a great component spec and super sorted handling is the key here.
The Bobcat Trail 5 has everything needed to take your trail riding to the next level of fun, a great component spec and super sorted handling is the key here.
Marin

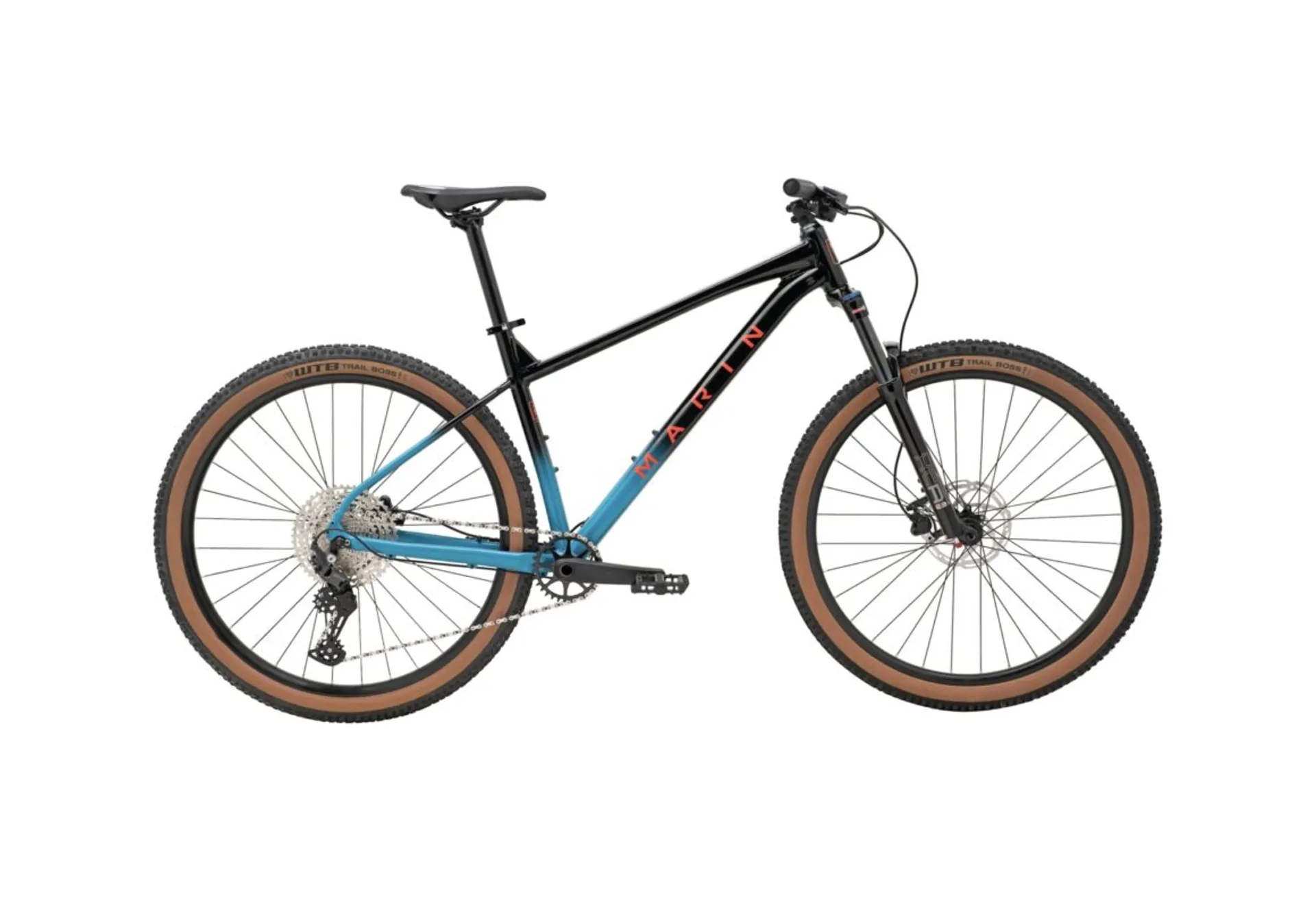

Marin Bobcat Trail 5 Hardtail Mountain Bike - Gloss Black/Dark Blue/Red

£999.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Bobcat Trail 5 Hardtail Mountain Bike - Gloss Black/Dark Blue/Red

Season:2025

Brand:Marin

Code:7375310BLU

Super capable, super fun, super value. The Marin Bobcat Trail is your perfect gateway to mountain biking, combining quality components, a lightweight aluminum frame and trail-ready geometry.

The best of the Bobcats, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-your-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano CUES 11-speed shifting, Tektro hydraulic brakes and trendy tanwall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.

  • Shimano Cues 1x11-speed drivetrain
  • SR/Suntour XCR LOR-DS BOOST fork w/ thru-axle
  • Tubeless-compatible rims

SERIES 2 ALUMINUM FRAMES

The Bobcat Trail has a Series 2 aluminum frame that features double butted 6061 tubing, internal cable routing, and forged 135mm open dropouts that ensure a stiff and light frame package.

THE COMPLETE MOUNTAIN BIKE PACKAGE

Long, low, and slack trail geometry coupled with 120mm travel suspension forks, lightweight Series 2 aluminum alloy frames, 180mm front disc rotors, and wide-range drivetrains make the Bobcat Trail the complete mountain bike package capable of tackling real singletrack.

29" OR 27.5" WHEEL SIZES

The Bobcat Trail is available with 27.5” or 29” wheels to optimize rider fit and trail experience. Sizes XS – Medium are available with 27.5” wheels to maximize standover, sizes Medium – XL with 29” wheels best suited for taller riders.

INTERNAL DROPPER COMPATIBLE

All Bobcat Trail models have 30.9mm seatposts and internal cable routing ports for future dropper post compatibility.

Technical Information
  • FRAME
    Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
  • FRONT SUSPENSION
    SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout, 42mm (27.5") and 46mm (29") Offsets
  • RIMS
    Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
  • HUB, REAR
    Forged Alloy, Disc, 32H
  • HUB, FRONT
    Forged Alloy, Disc, 32H
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    WTB Trail Boss Comp, 27.5/29x2.25, Wire Bead
  • DERAILLEUR, REAR
    Shimano CUES U6000GS, w/Clutch
  • DERAILLEUR, FRONT
    N/A
  • SHIFT LEVER
    Shimano CUES 11-Speed
  • CRANKSET
    Alloy Crank, Steel Narrow-Wide Chainring, 32T
  • BOTTOM BRACKET
    Sealed Cartridge Bearings, Square Taper
  • CHAIN
    KMC LG
  • CASSETTE
    Shimano CUES CSLG300, 11-Speed, 11-48T
  • BRAKE, FRONT
    Tektro M280 Hydraulic Disc, 180mm Rotor
  • BRAKE, REAR
    Tektro M280 Hydraulic Disc, 160mm Rotor
  • BRAKE LEVERS
    Tektro M280 Hydraulic
  • HANDLEBAR
    Marin 31.8 Riser, 12mm Rise, 780mm Width
  • STEM
    Marin Alloy, 31.8mm Clamp, 45mm
  • GRIPS
    Marin MTB, Closed End
  • HEADSET
    FSA No.10-P
  • SEATPOST
    Marin Alloy, 30.9
  • SADDLE
    Marin MTB
  • PEDALS
    Nylon Platform
Sizing Information
Bobcat Trail 3 geometry diagram
SM (27.5)M (29)LXL
Stack603608635639644
Reach445455455475495
Head Tube Angle66.5°66.5°66°66°66°
Head Tube Length105110110115120
Seat Tube Angle74.5°74.5°74.5°74.5°74.5°
Seat Tube Length381431431482520
Top Tube Effective612623631652673
BB Height307307311.5311.5311.5
BB Drop4848616161
Chain Stay415415430430430
Wheel Base11441156118612081230
Stand Over Height640690704732760
Fork Offset4242464646
SeatPost Diameter30.930.930.930.930.9
Handlebar Width780780780780780
Stem Length4545454545
Crank Length170170170170170
