The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail.
The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail.
Marin

Marin Pine Mountain 1 Mountain Bike - Gloss Grey/ Silver/ Teal

£1,399.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

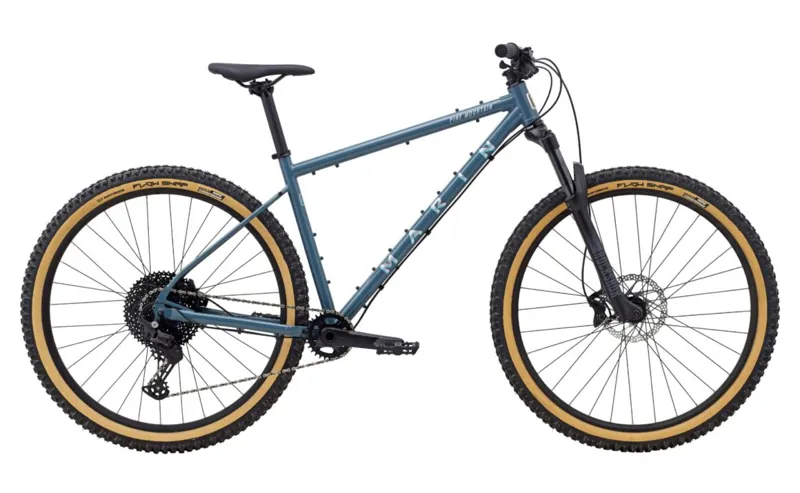

Marin Pine Mountain 1 Mountain Bike - Gloss Grey/ Silver/ Teal

Season:2025

Brand:Marin

Code:7359680GLSGRYSILGRN

The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail.

It features fully updated geometry, a series 2 double-butted CrMo frame and all the bikepacking mounts you’ll ever need. All that, combined with a 120mm RockShox Recon RL fork, grippy and dependable Vee Tire co. Flow Snap 2.6” tire, Shimano shifting and our much-loved Marin Bedroll handlebar.

STEEL IS REAL

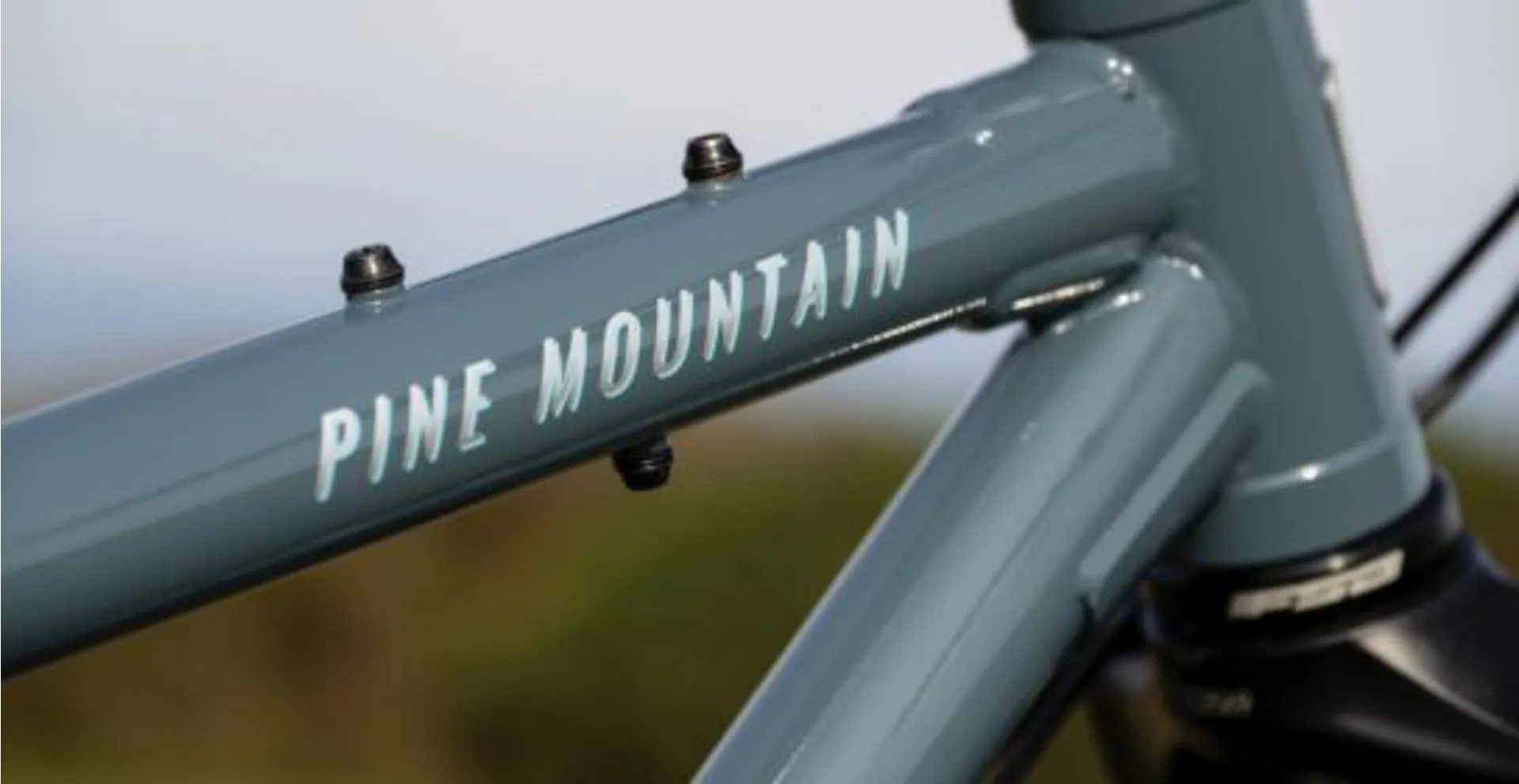

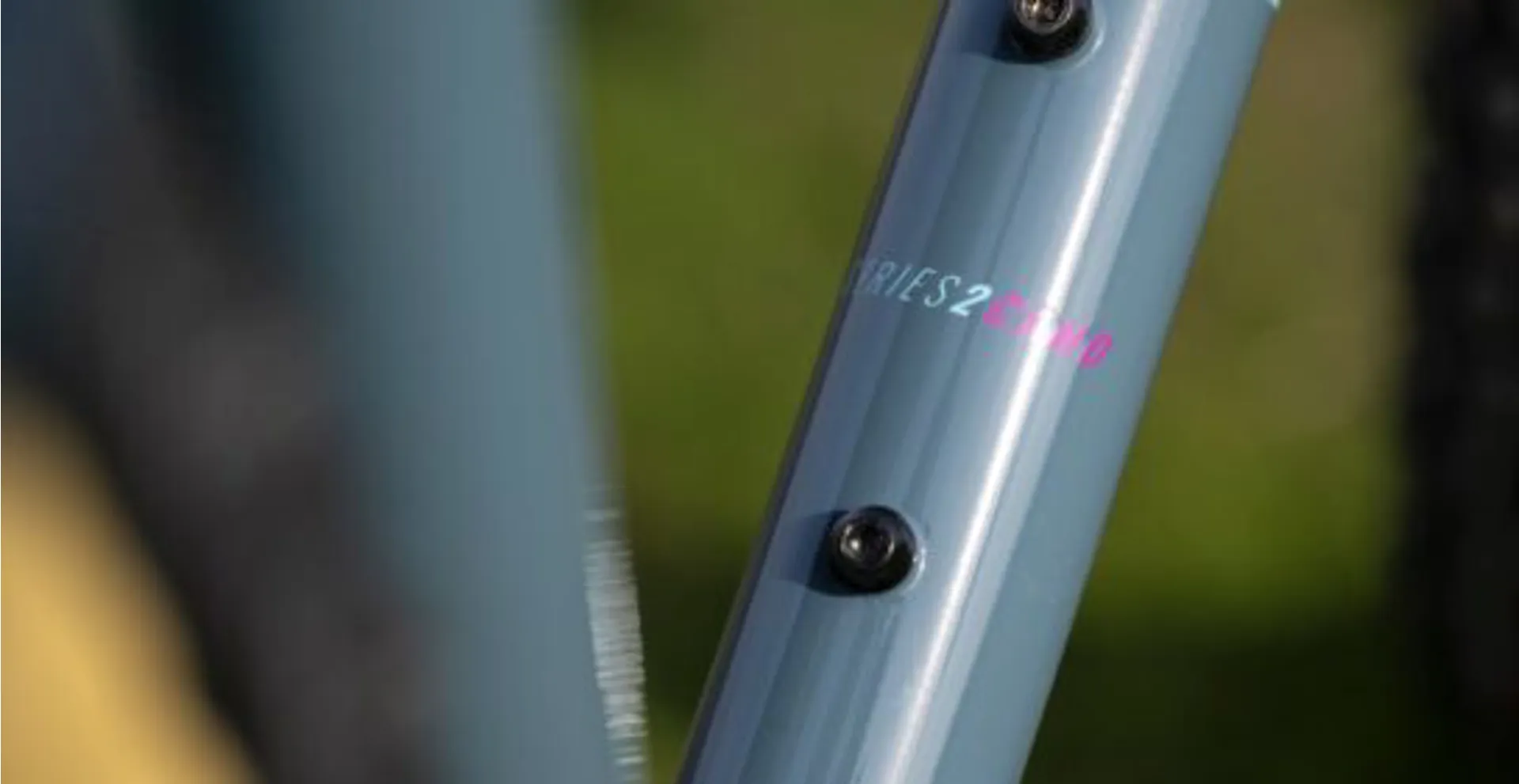

The Pine Mountain 1 uses a butted and formed Series 2 4130 CrMo frame with Boost 141mm dropouts, full fender and rack mounts, and tons of bosses for a wide variety of gear mounting options. Step up to Series 3 tubing and cast thru-axle dropouts with the Pine Mountain 2. Both Pine Mountain models feature internal dropper post routing.

BIKEPACKING ABILITIES

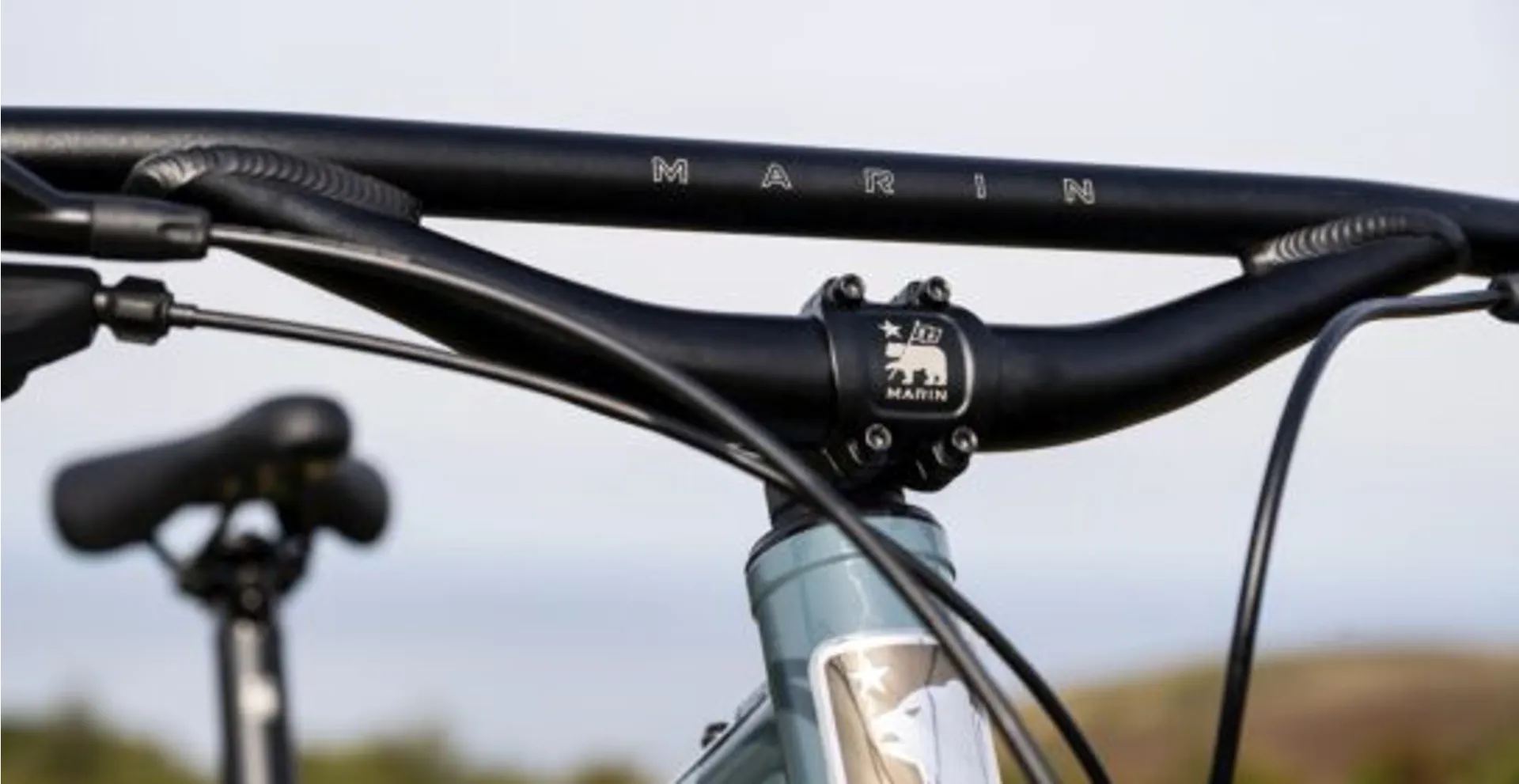

The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting, lights, phones, cycle computers, or whatever else catches your fancy. Available exclusively on the Pine Mountain and Pine Mountain E series.

TRAIL GEOMETRY
The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainsstays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.

TUBELESS READY 29”
Tubeless-ready 32mm internal dimension rims and 2.6” tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip singletrack.

Technical Information
  • Frame
    Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts(custom bag templates here)
  • Front Suspension
    RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
  • Rims
    Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
  • Hub, Rear
    Forged Alloy, 141x9mm, Disc, 32H
  • Hub, Front
    Forged Alloy, 110x15mm, Disc, 32H
  • Spoke, Nipples
    14g Black Stainless Steel
  • Tires
    Vee Tire Co. Flow Snap, 29x2.6", Wire Bead
  • Derailleur, Rear
    Shimano Deore 11-Speed
  • Derailleur, Front
    -
  • Shift Lever
    Shimano Deore 11-Speed
  • Crankset
    Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
  • Bottom Bracket
    External Sealed Cartridge Bearings
  • Chain
    KMC X11
  • Cassette
    SunRace 11-Speed, 11-51T
  • Brake, Front
    Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
  • Brake, Rear
    Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
  • Brake Levers
    Shimano MT400 Hydraulic
  • Handlebar
    Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
  • Stem
    Marin 3D Forged Alloy, 35mm
  • Grips
    Marin Bear Paw Locking
  • Headset
    FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost
    Marin Alloy, 30.9mm
  • Saddle
    Marin Pine Mountain Trail
  • Pedals
    Nylon Platform
Sizing Information
Pine Mountain 1 geometry diagram
SMLXL
Stack629633.4638642.6
Reach420450475505
Headtube Angle66°66°66°66°
Headtube Length95100105110
Seattube Angle75°75°75°75°
Seattube Length381431482520
Toptube Effective588.5620646677
BB Height318318318318
BB Drop60606060
Chainstay430430430430
Wheelbase1145117712041236
Standover Height697.55742.45786.98818.91
Fork Offset44444444
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170175175175
