The Marley has become a classic: light, punchy and versatile.
The Marley has become a classic: light, punchy and versatile.
Ragley

Ragley Marley 2.0 - Red

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

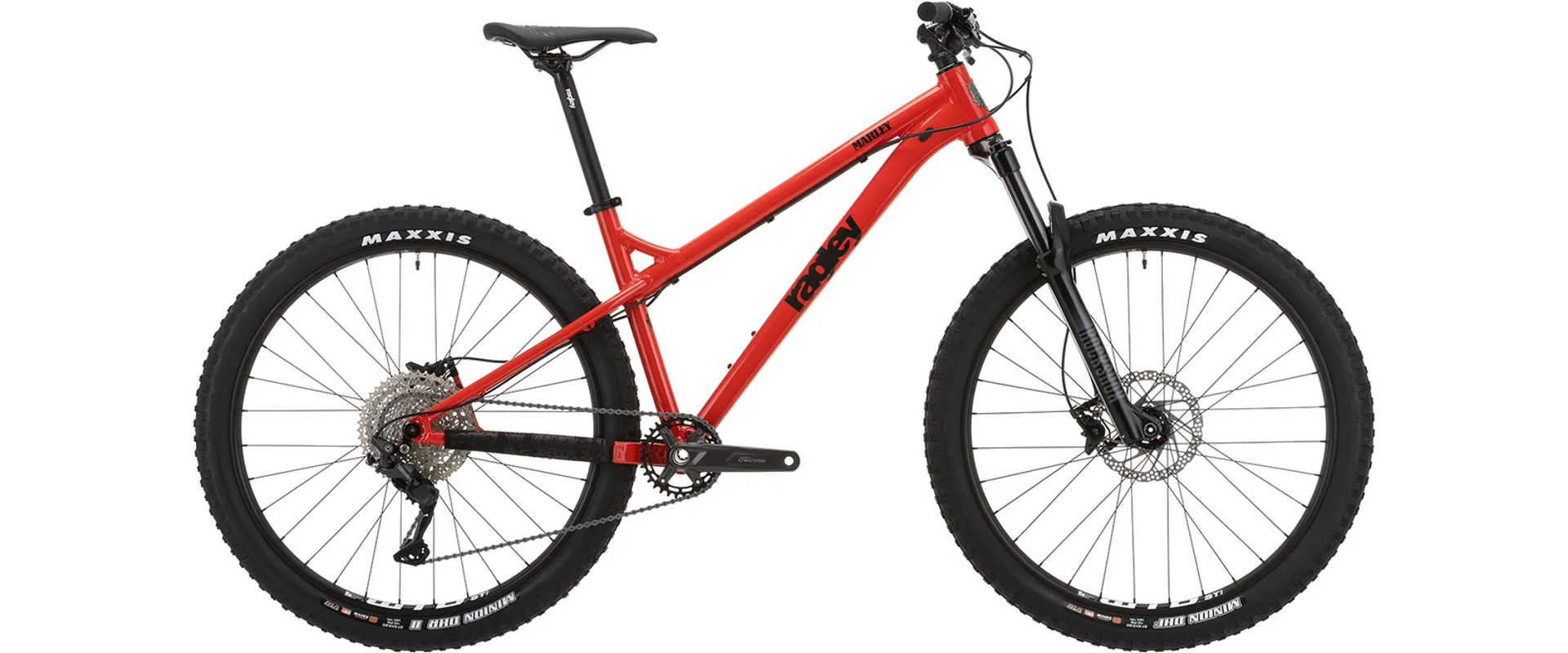

Ragley Marley 2.0 - Red

Season:2022

Brand:Ragley

Code:106515859RED

The Marley has become a classic: light, punchy and versatile.

It might be your first bike to explore off-road, or the agile plaything of a seasoned rider. Using 6061 alloy tubing, the Marley balances a stiff frame with enough compliance for the longest of days in the saddle.

Geometry is based firmly around fun with a 65.5-degree head angle keeping things stable and confidence inspiring on the rough stuff. Elsewhere on the frame the tick-boxes are checked; ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end.

Components are chosen for performance and reliability. A Shimano/Sunrace groupset, SRAM DB8 brakes, RockShox forks, tubeless ready wheels and the range topping 3C EXO+ Maxxis tyres.

Up, down, along and over; the Marley proves a great riding all-rounder doesn’t have to break the bank.

Material6061 alloy
Recommended Fork Travel130mm – 140mm
Axle to Crown522mm (130mm Fork)
Fork Offset52mm
Wheels Size27.5''
Max Tyre Size2.6''
HeadtubeZS44/28.6 | ZS56/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12x148mm Boost
Rear Axle12mm x 148mm Thru-Axle M12*P1.5
Chain GuideISCG 05 Tabs
Brake MountPM160
ProtectionChainstay Protector
Technical Information
  • Frame
    Ragley Marley Alloy Frame
  • Fork
    RockShox Recon Silver RL 130mm travel, Solo Air, 27.5" , Maxle Stealth, 15X110MM, 46mm Offset
  • Wheelset
    Nukeproof Neutron, Boost, 36 points of engagement, HG Freehub, Sealed bearings, WTB ST i30 TCS 2.0 27.5" 32h rims
  • Shifter
    Shimano Deore M4100, 10-SPEED, Direct attach to brake with iSpec EV
  • Rear Deraileur
    Sunrace RDMS300
  • Chain
    KMC 10SPEED X10-EPT
  • Cassette
    Sunrace MS2 10 speed, 11-46t
  • Crankset
    Race Face Ride. 170mm, 32t
  • Brakes
    SRAM DB8
  • Rotors
    SRAM Centerline 180mm
  • Tyres
    Maxxis 27.5x2.60 Minion DHF Foldable 120TPI 3C MaxxTerra/EXO+/TR, 27.5x2.60 Minion DHRII Foldable 120TPI 3C MaxxTerra/EXO+/TR
  • Handlebars
    Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm)
  • Stem
    Ragley 31.8mm clamp, 50mm length, +3° rise
  • Saddle
    Ragley Saddle
  • Seatpost
    Ragley 31.6mm x 400mm length Alloy
  • Headset
    Nukeproof Neutron ZS44/28
Sizing Information
SmallMediumLargeX-Large
(A) Reach415mm435mm455mm475mm
(B) Stack601mm613mm619mm628mm
(C) Effective Top Tube Length599mm622mm644mm667mm
(D) Seattube Length380mm420mm460mm500mm
(E) Seattube Angle (Actual)73737373
(F) Headtube Length110mm120mm130mm140mm
(G) Headtube Angle65.565.565.565.5
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1137mm1161mm1186mm1209mm
(J) Bottom Bracket Drop-45mm-45mm-45mm-45mm
(K) Stand Over Height737mm750mm772mm778mm
(L) Fork Travel130mm130mm130mm130mm
(M) Fork Offset42mm42mm42mm42mm
(N) Axle to Crown522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)
