The latest version of this genre busting bike offers multi terrain ability with cracking value for money
The latest version of this genre busting bike offers multi terrain ability with cracking value for money
Marin

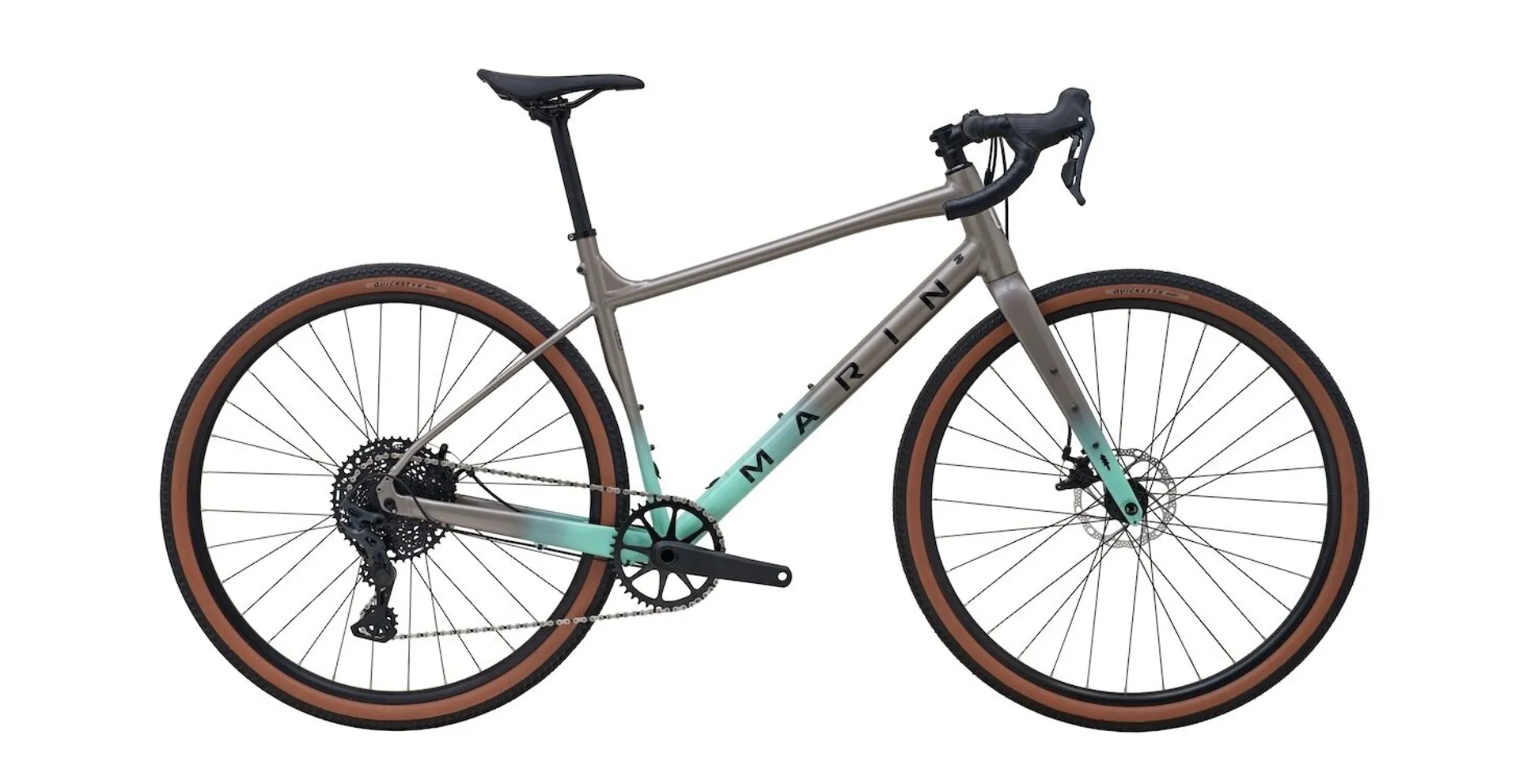

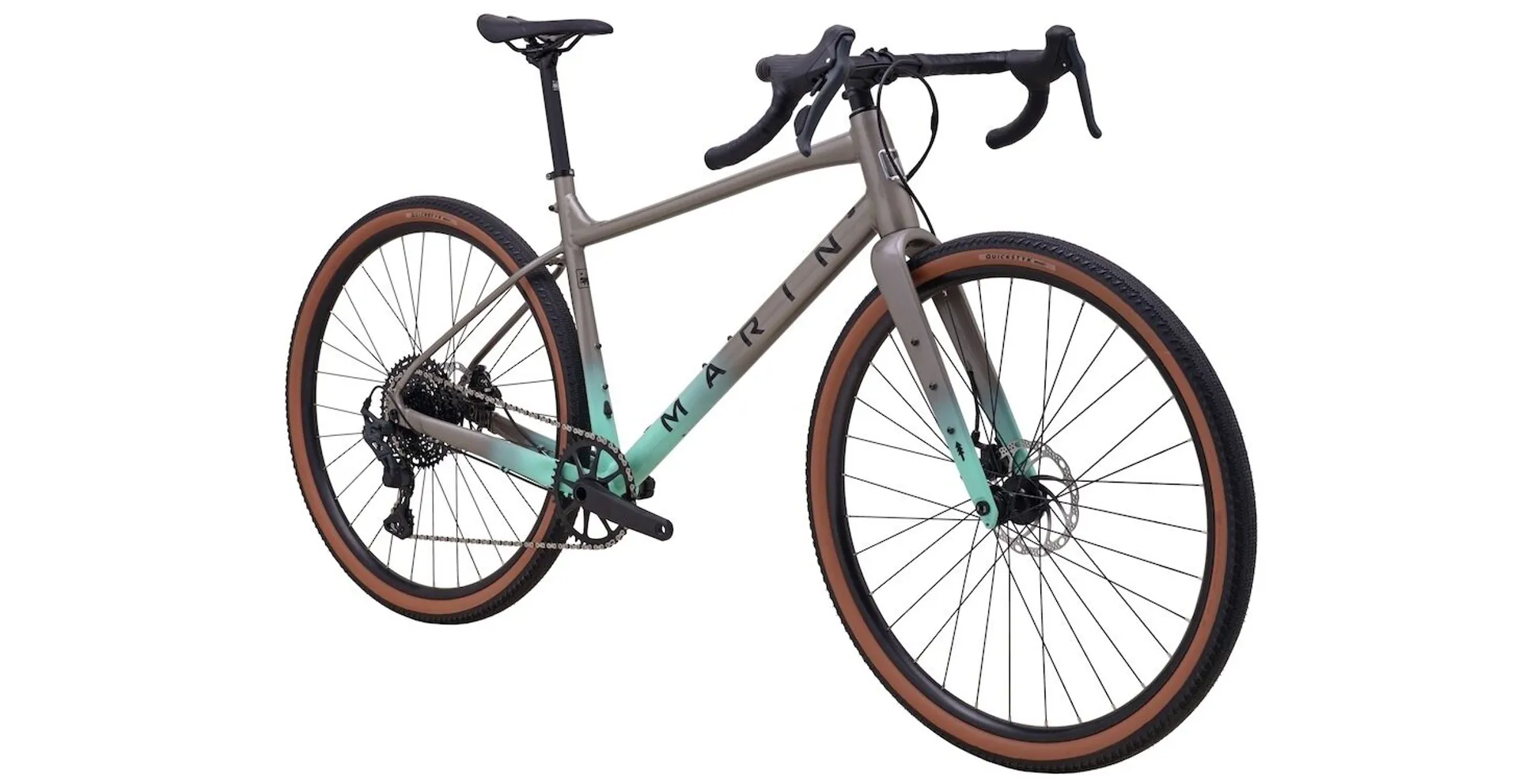

Marin Gestalt X10 Drop Bar Gravel Bike - Gloss Grey/ Green

£1,369.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Gestalt X10 Drop Bar Gravel Bike - Gloss Grey/ Green

Season:2025

Brand:Marin

Code:7398180GRYGRN

The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.

The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.

The Gestalt X10 means extra fun at an extra awesome price. Pick one up and you’ll be riding our MTB-inspired, Series 3 aluminum Gestalt X frame and a whole heap of tough and capable kit, including a 10-speed microSHIFT groupset, cushy and grippy 45mm wide Vee Tire Co tires, Tektro disc brakes and plenty of kick-ass Marin components.

Technical Information
  • Frame
    Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Fork
    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Rims
    Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
  • Hub, Rear
    Forged Aluminum Alloy, Disc, 32H
  • Hub, Front
    Forged Aluminum Alloy, Disc, 32H
  • Spoke, Nipples
    14g Black Stainless Steel
  • Tires
    Vee Tire Co., Quickstyx, 700x45, Tubeless Compatible
  • Derailleur, Rear
    microSHIFT SWORD 10-Speed Wide-Range
  • Derailleur, Front
    -
  • Shift Lever
    microSHIFT SWORD, 10-Speed
  • Crankset
    Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
  • Bottom Bracket
    External Sealed Cartridge Bearings
  • Chain
    KMC X10
  • Cassette
    microSHIFT SWORD 10-Speed, 11-48T
  • Brake, Front
    Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
  • Brake, Rear
    Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
  • Brake Levers
    microSHIFT SWORD
  • Handlebar
    Marin Butted Alloy, Compact 16º Flared Drop
  • Stem
    Marin 3D Forged Alloy
  • Grips
    Marin Shock Absorbing Perforated Tape
  • Headset
    FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Seatpost
    Marin Alloy, 27.2mm
  • Saddle
    Marin Beyond Road Concept
  • Pedals
    -
  • Extras
    Bolt-On Thru-Axles F and R
Sizing Information
SMLXL
Stack547.6566589.1621.5
Reach400420440460
Headtube Angle67.5°67.5°67.5°67.5°
Headtube Length130150175210
Seattube Angle75°74°74°74°
Seattube Length460485505530
Toptube Effective546.7582.3608.9638.2
BB Height282.5282.5282.5282.5
BB Drop80808080
Chainstay425425425425
Wheelbase1065.21092.81122.41155.6
Standover Height678.6687.7708.6734.5
Fork Offset50505050
