Steel frame and carbon forks with a great value spec... the 2023 Ragley Trig is a do it all Gravel bike
Steel frame and carbon forks with a great value spec... the 2023 Ragley Trig is a do it all Gravel bike
Ragley

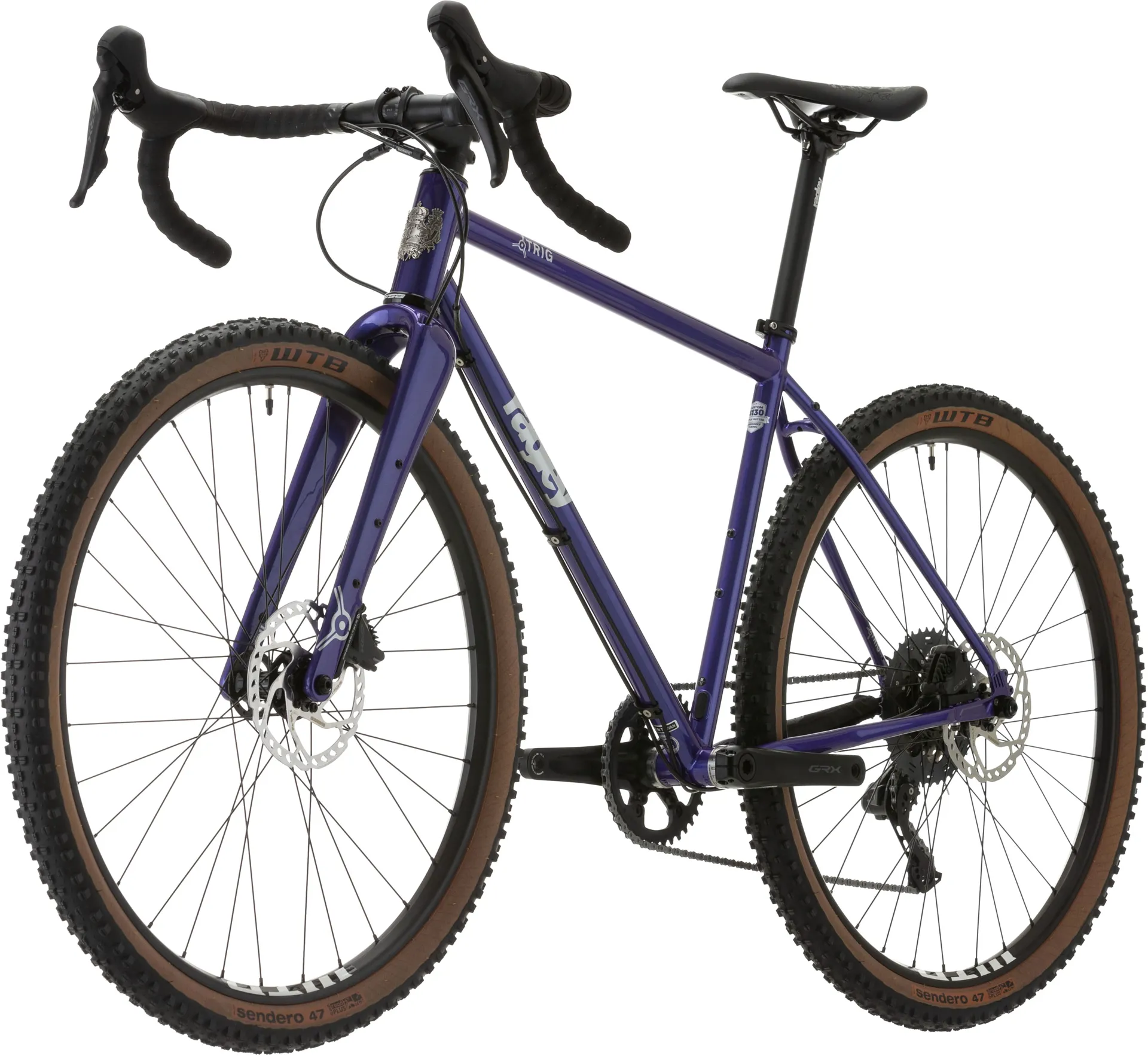

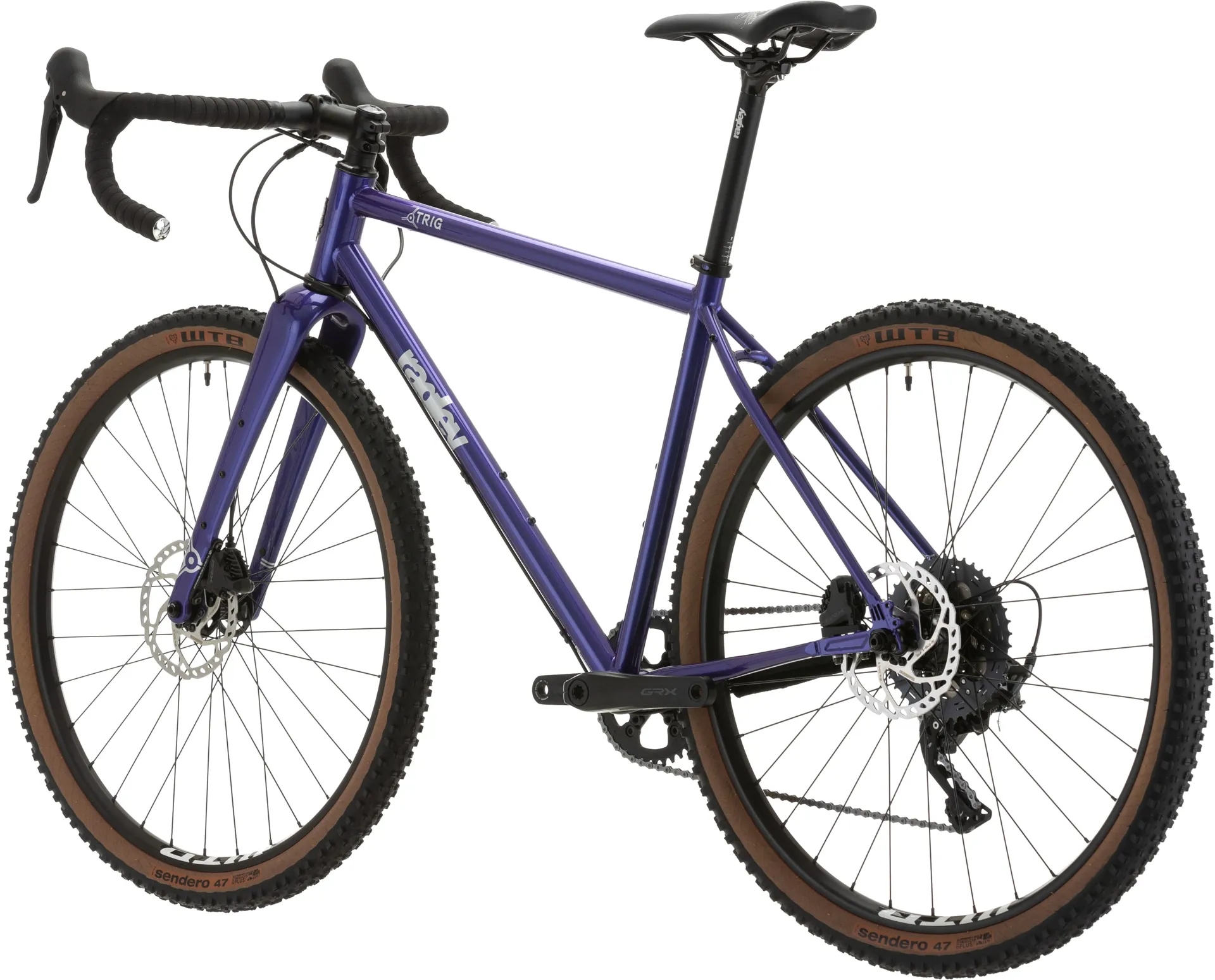

Ragley Trig Gravel Bike - Ultra Violet

£1,749.99
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

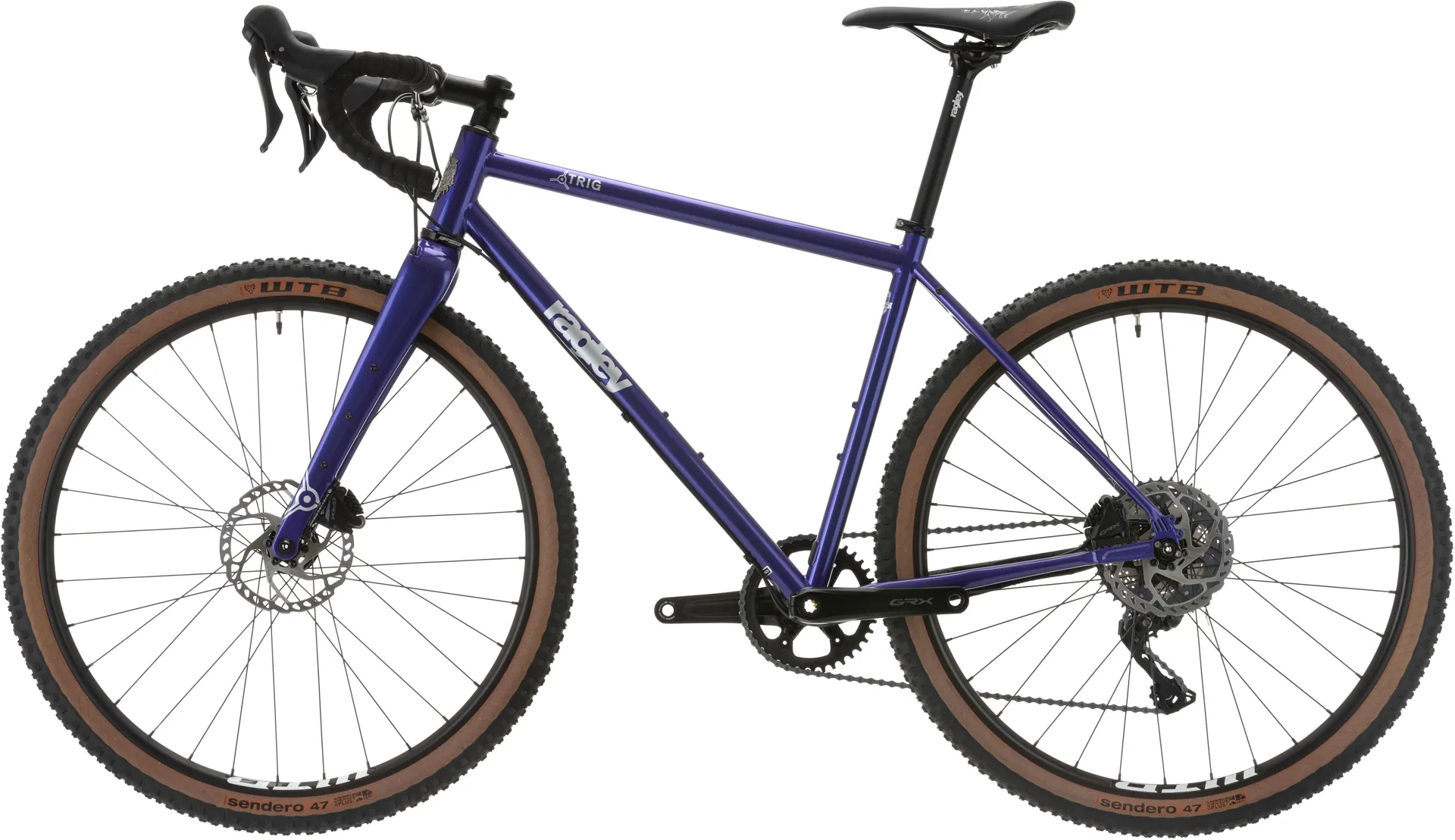

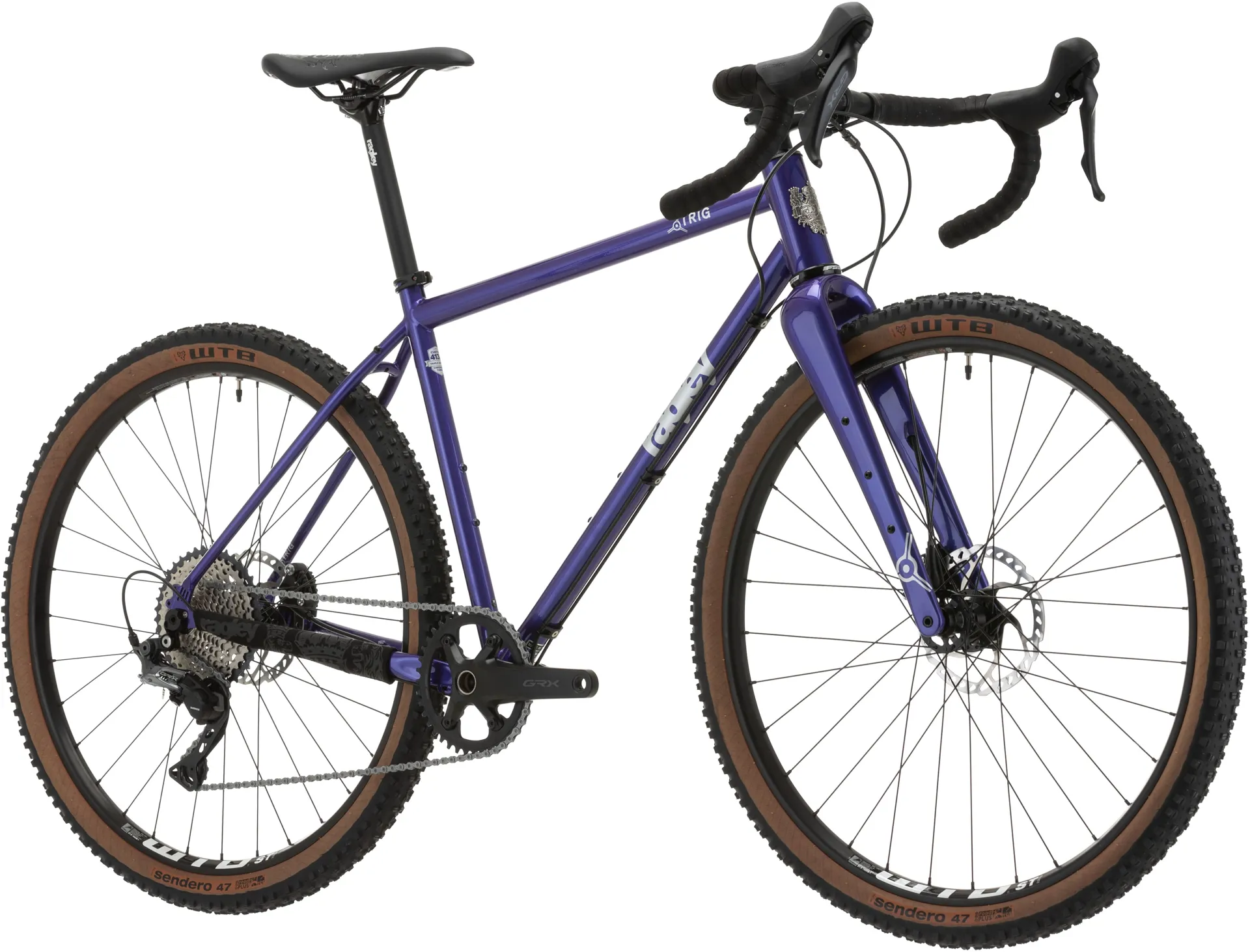

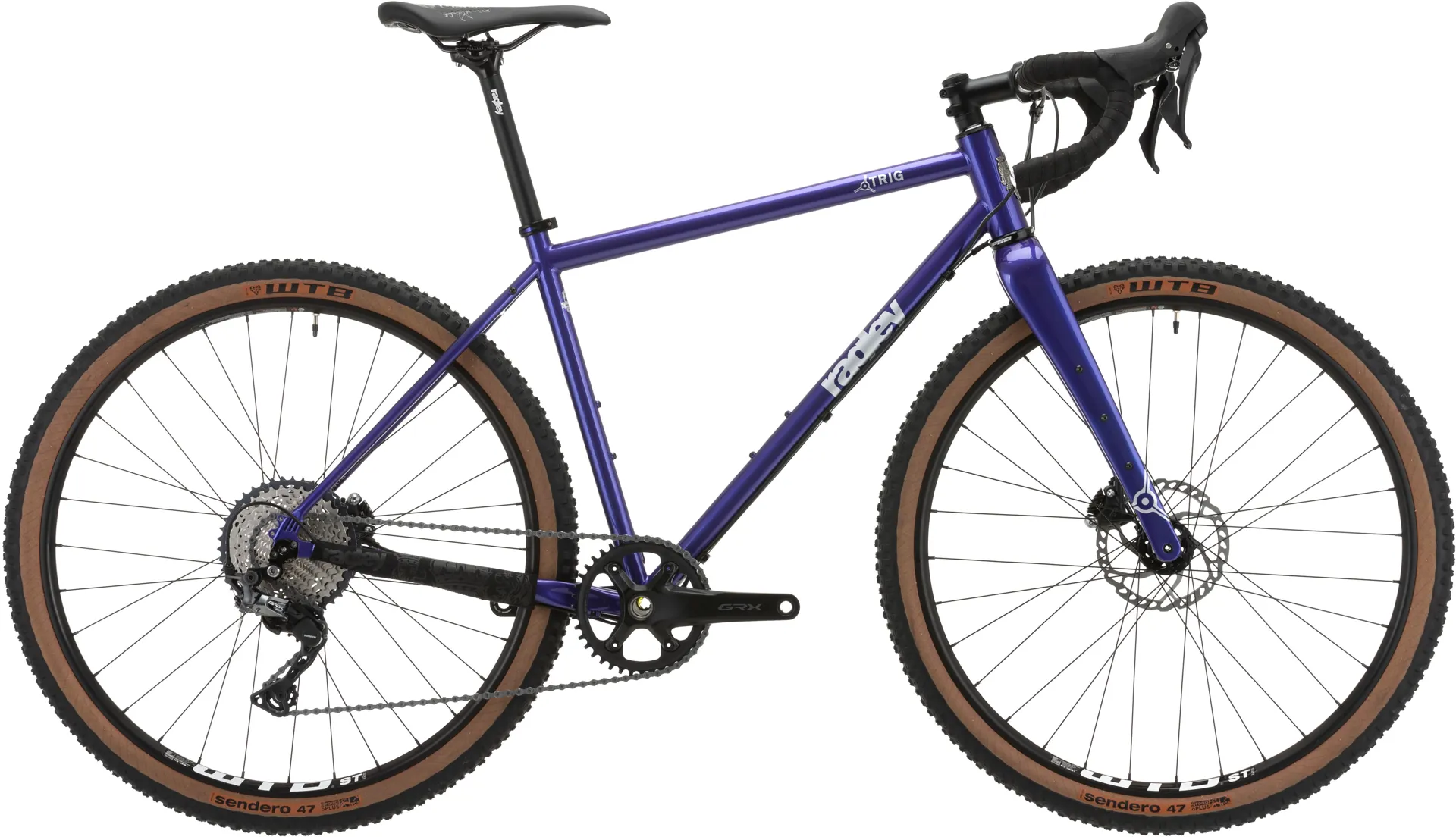

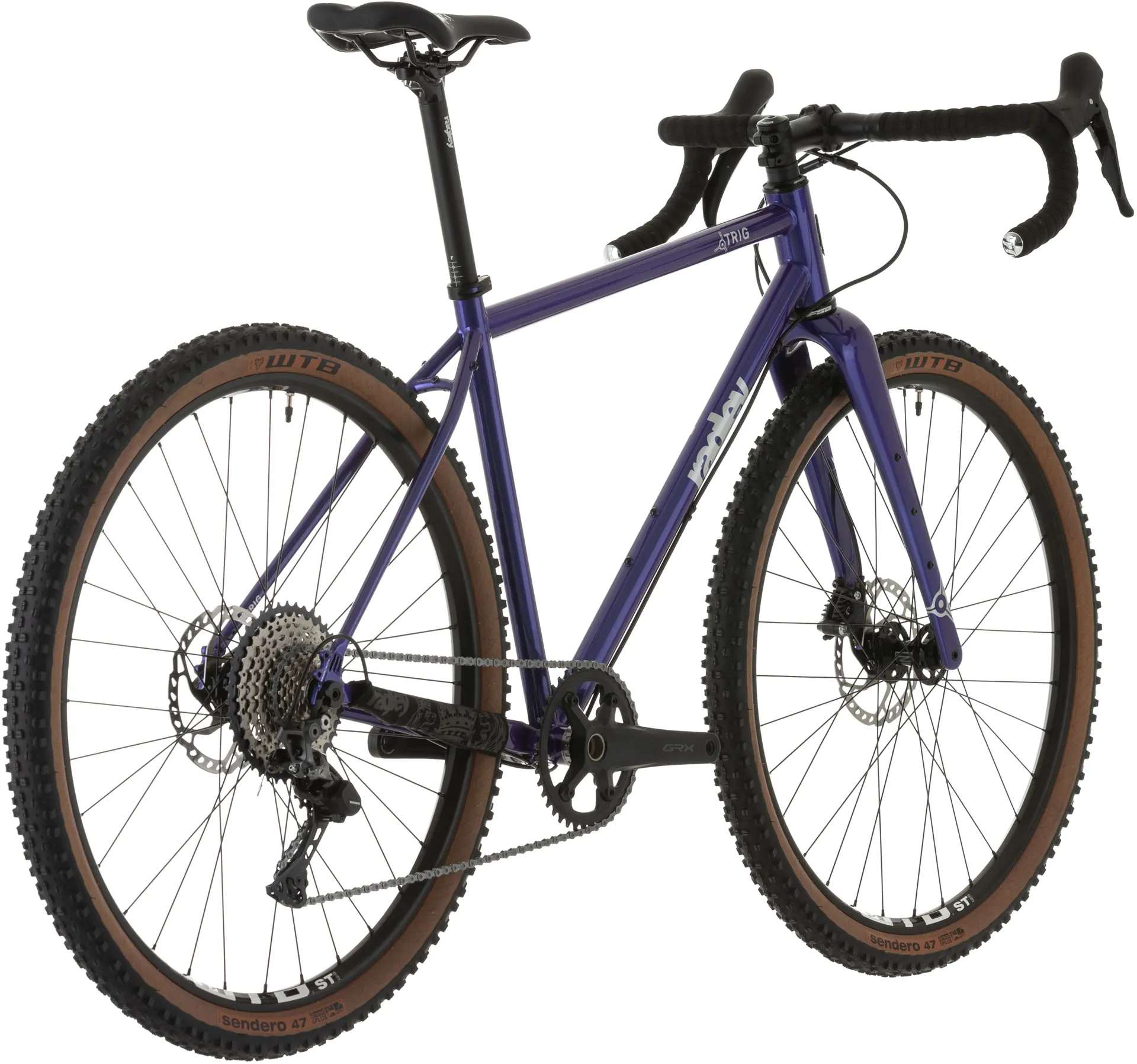

Ragley Trig Gravel Bike - Ultra Violet

Season:2023

Brand:Ragley

Code:205340PUR

The Trig has been a firm favourite for a massively diverse group of riders. We have seen them fully loaded for multi-day adventures, shod with slicks as an urban commuter, or just ridden stock for local bridleway missions.

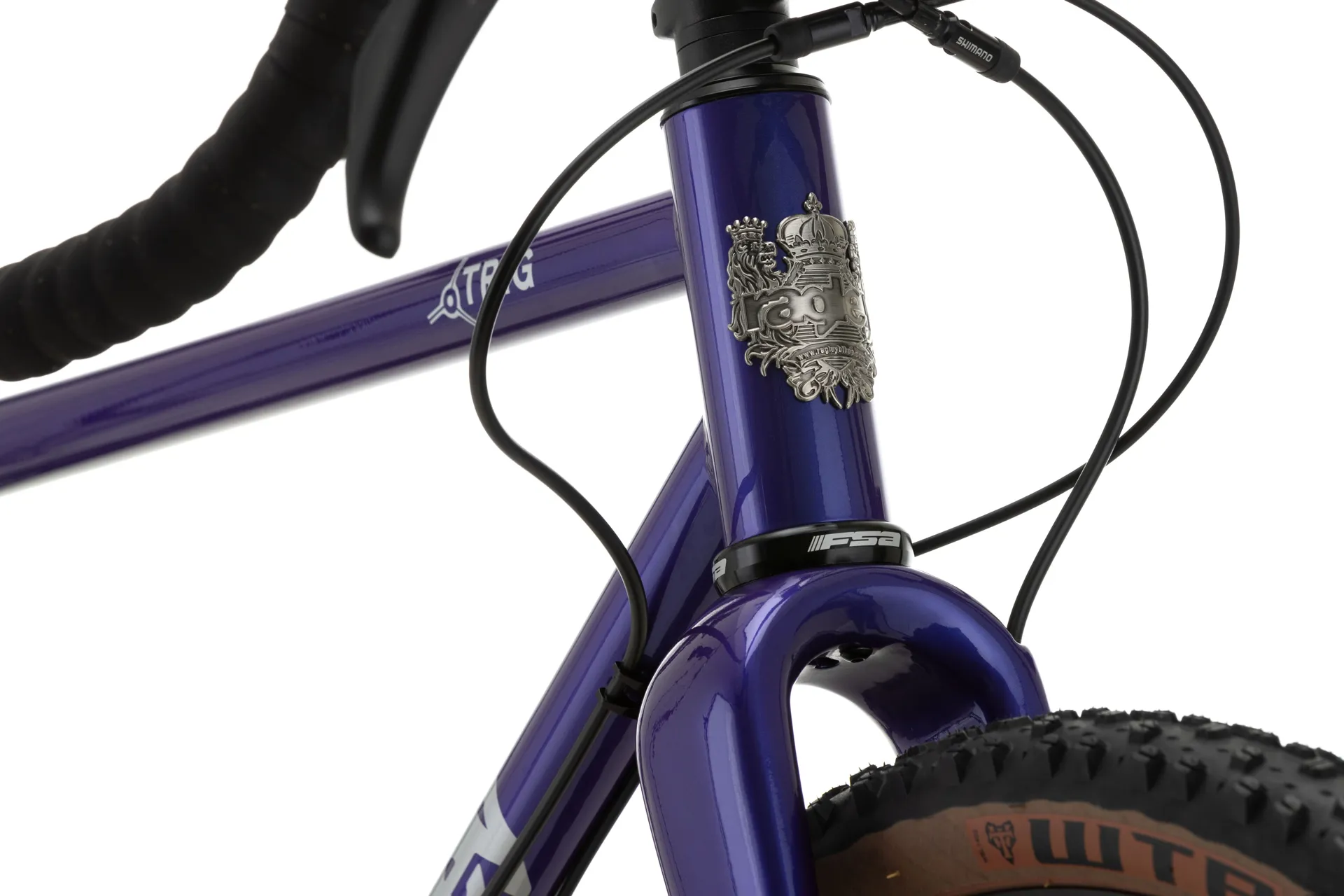

The Trig frameset features a 44mm headtube, multiple bottle cage mounts and tyre clearance to run any 700 or 650 gravel tyre option you want (and up 2.1” wide MTB tyres on 27.5” wheels). Want to get a little rowdier with your drop-bar endeavours? It’s even dropper post compatible for future off-road biased upgrades.

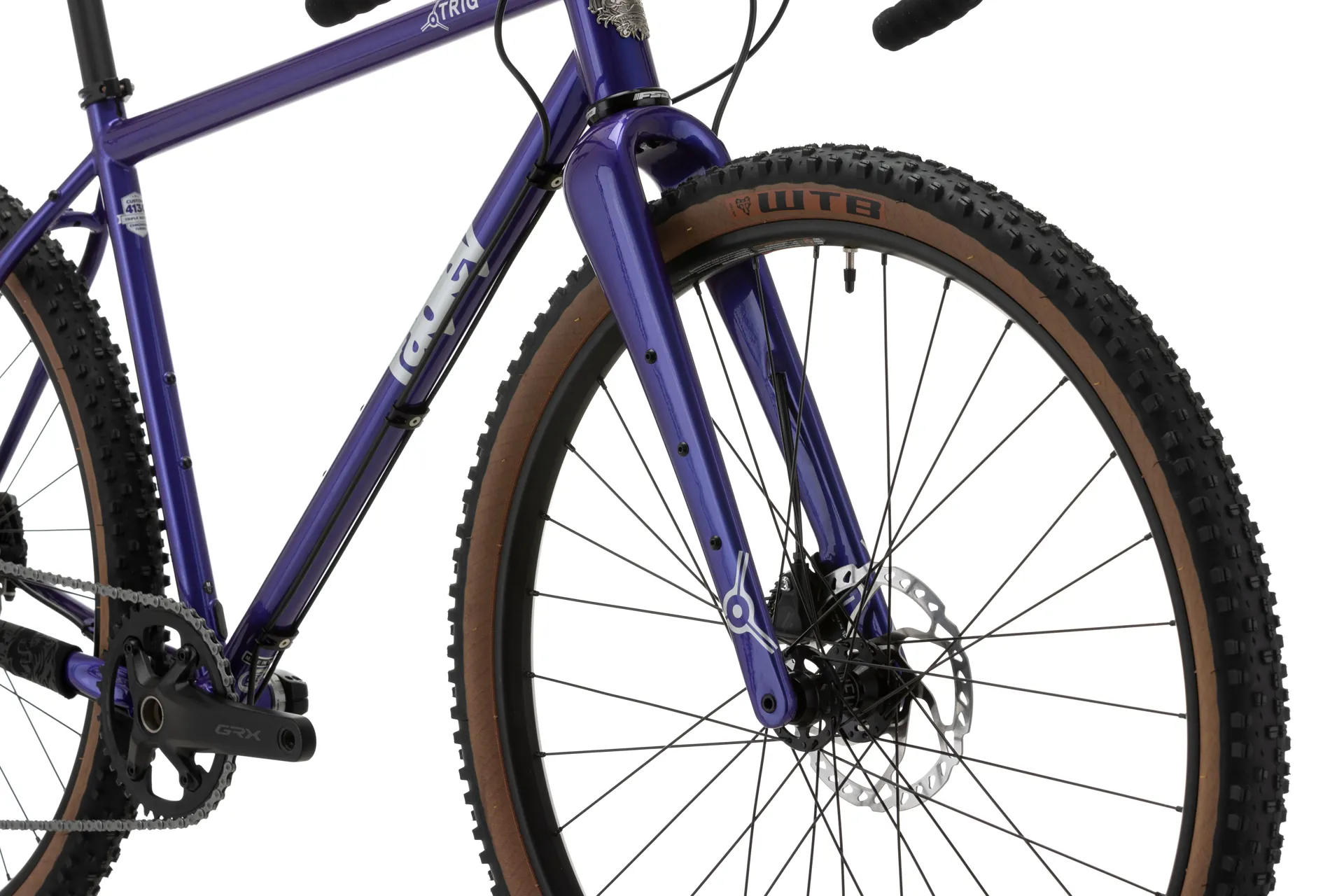

The frame is engineered from custom triple butted 4130 Chromoly steel tubing resulting in a frame that is lightweight and supple enough to provide comfort on longer trail rides whilst robust and stiff enough to take some serious abuse. The carbon fork features a 12mm thru axle and the mounting points you need to take to the backcountry.

We’re not going to pigeonhole the trig as gravel or adventure anymore. It’s all the same thing. We just made a super fun and reliable bike for you to go find your own adventure.

Technical Information
FrameRagley Trig 4130 Cro-mo
ForkRagely Carbon Disc Fork, 12mm x 100mm, Flat Mount
HeadsetFSA NO.9M,1 1/8-1.5 Tapered
Compression DeviceFSA TH-883-1 Compressor

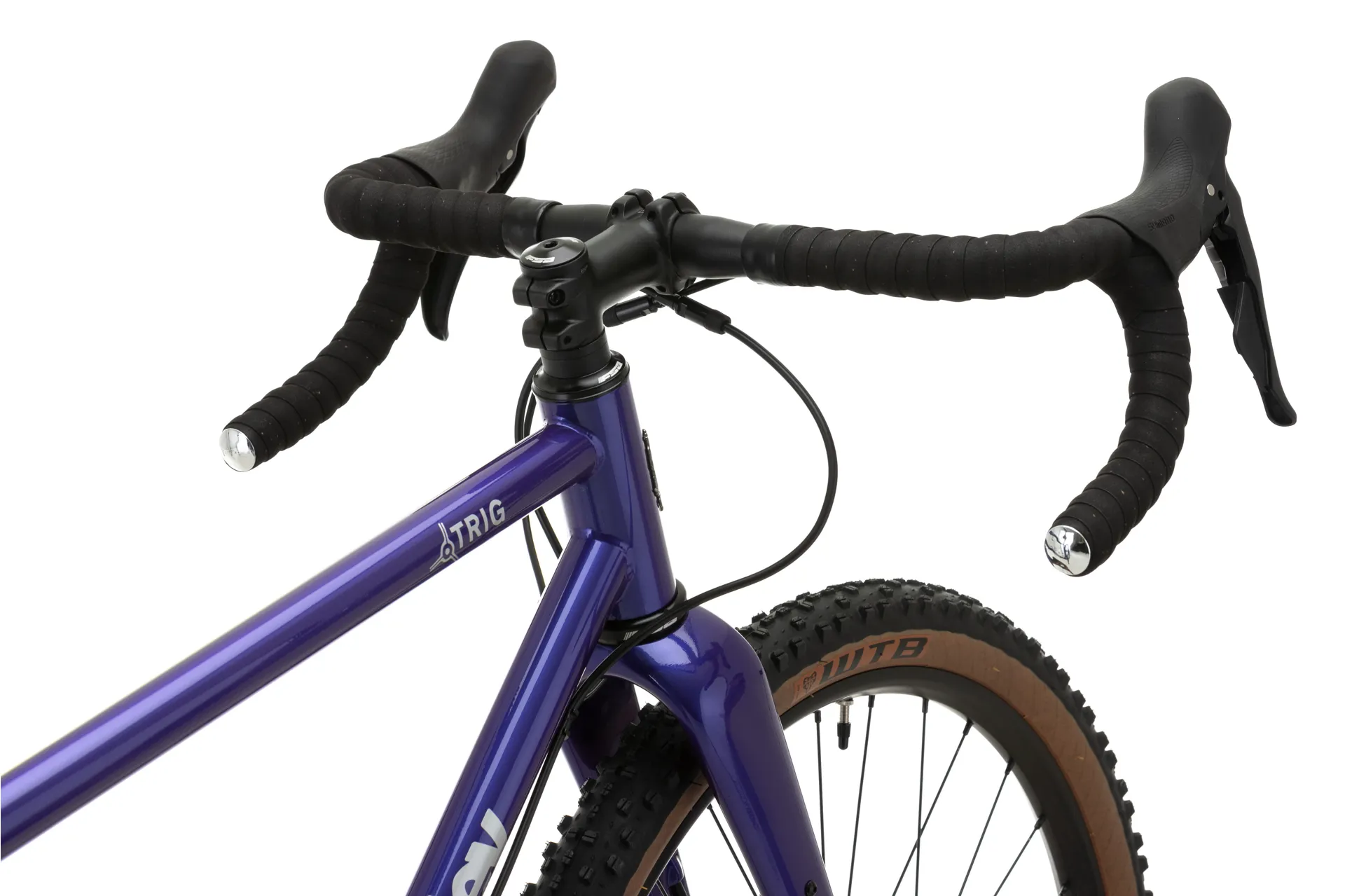

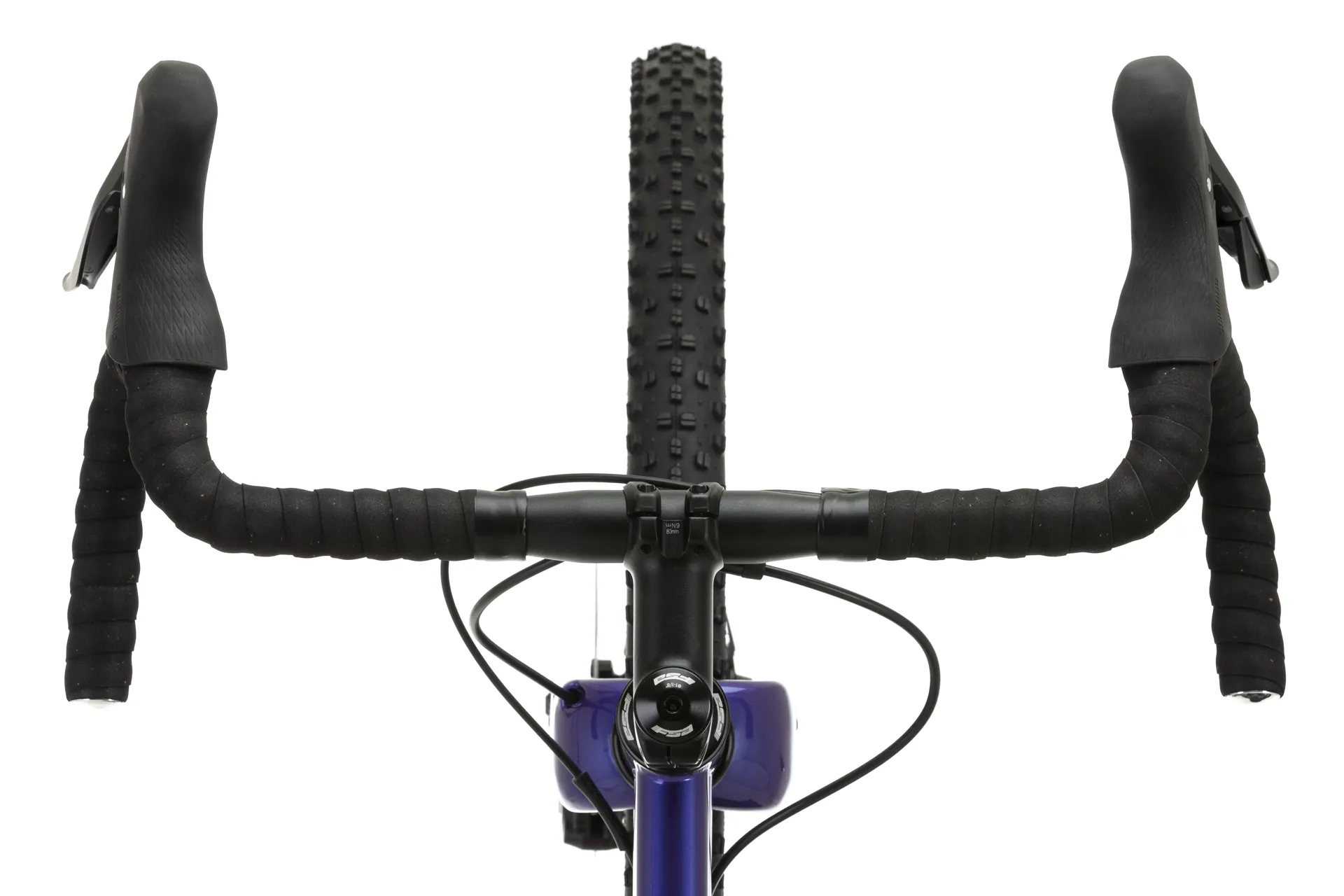

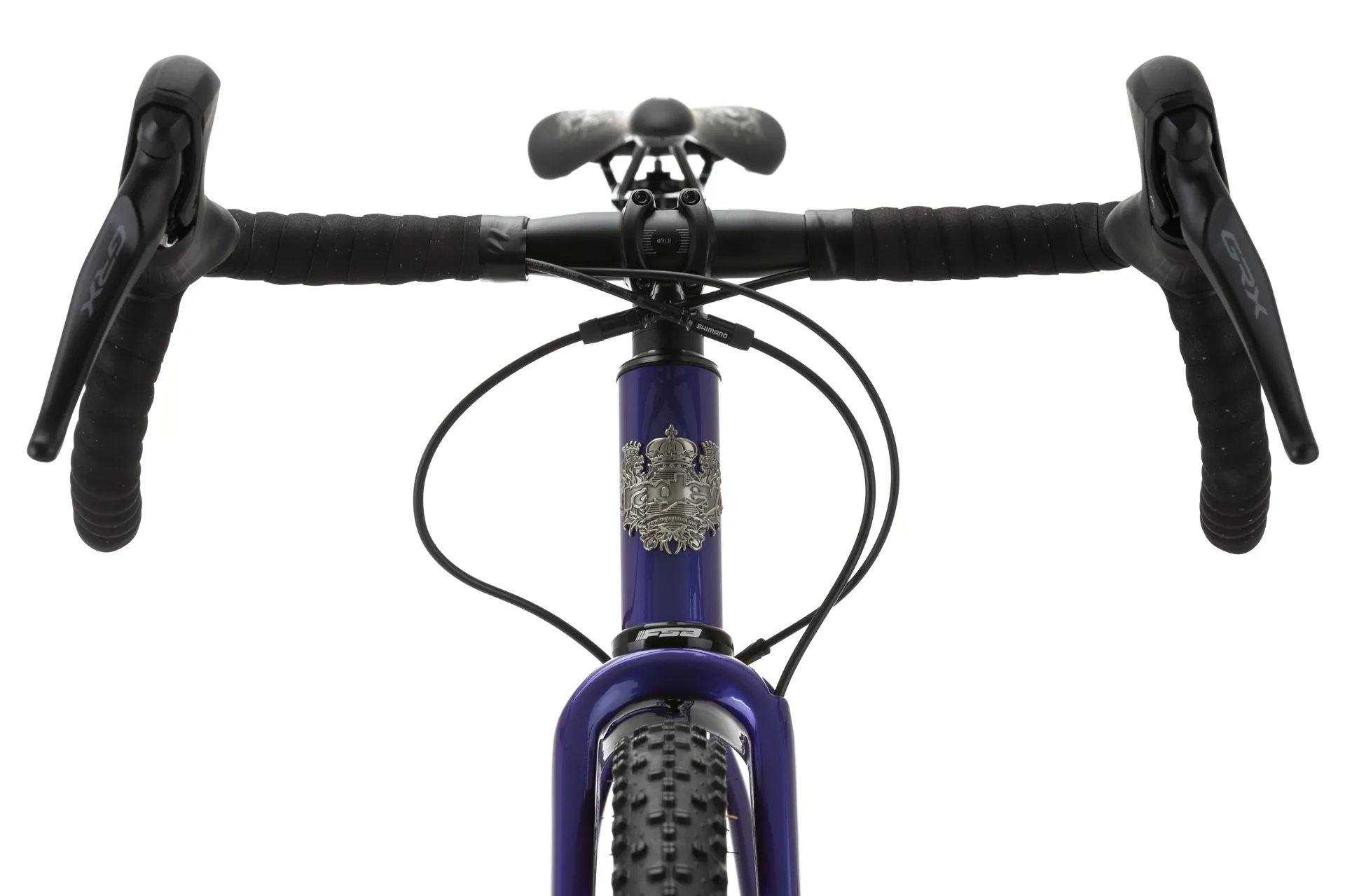

HandlebarRagley Alloy, 31.8mm,
48cm-400mm Wide, 50cm-420mm Wide, 52/55/58cm-440mm Wide
StemRagley, 31.8mm Clamp, 7 Degree Rise,
48 / 50cm:70mm, 52cm:80mm, 55 / 58cm:90mm
Bar TapeRagley Black cork cushion tape with bar end plug
Front WheelNukeproof Neutron Hub, 12mm x 100mm, Sealed bearings, 32h, 6-bolt disc on a WTB ST i25 TCS 2.0 Rim 650b (taped for tubeless)
Rear WheelNukeproof Neutron Hub, 36 points of engagement, 142mm x 12mm, Sealed bearings, 32h, 6-bolt disc on a WTB ST i25 TCS 2.0 Rim 650b (taped for tubeless)
Front Thru Axle SpecDiameter: 12mm, Pitch:1.5, Length:120mm
Rear Thru Axle SpecDiameter 12mm, Pitch 1.75, Axle Length 167mm, Thread Length: 20mm
Front TyreWTB Sendero 650b x 47c
Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
Rear TyreWTB Sendero 650b x 47c
Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
ChainKMC 11 speed

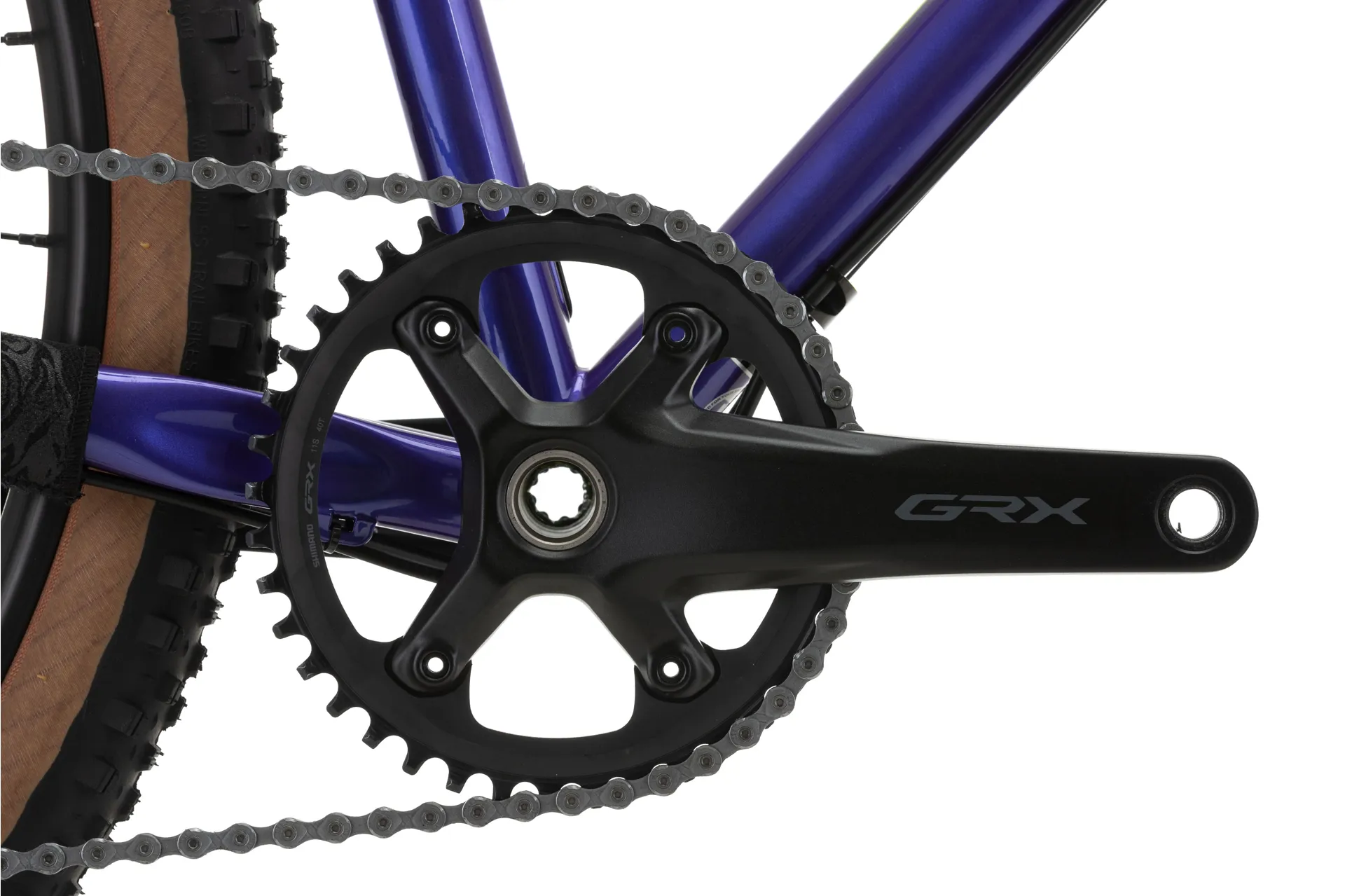

CranksetFSA Omega 170mm
Bottom BracketFSA MegaExo

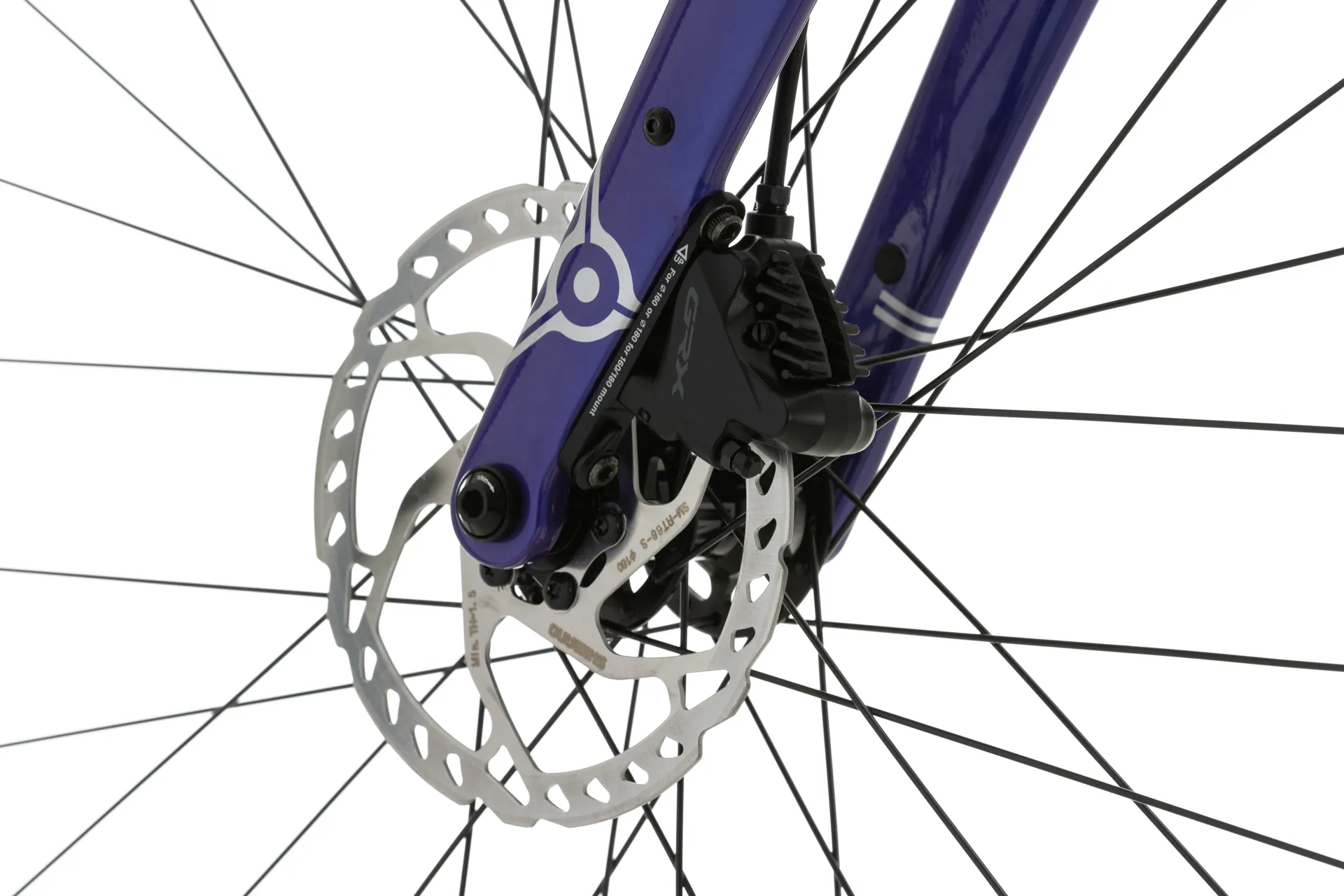

Front BrakeShimano GRX RX600 lever with RX400 calliper, 160mm RT66 rotor, Resin pads with fin
Rear BrakeShimano GRX RX600 lever with RX400 calliper, 160mm RT66 rotor, Resin pads with fin
Rear DerailleurShimano GRX RX812 11-Speed, Shadow Plus
Rear ShifterShimano RX600 11 speed
Drivetrain CablesShimano
CassetteShimano SLX M7000, 11-Speed, 11-13-15-17-19-21-24-28-32-37-42

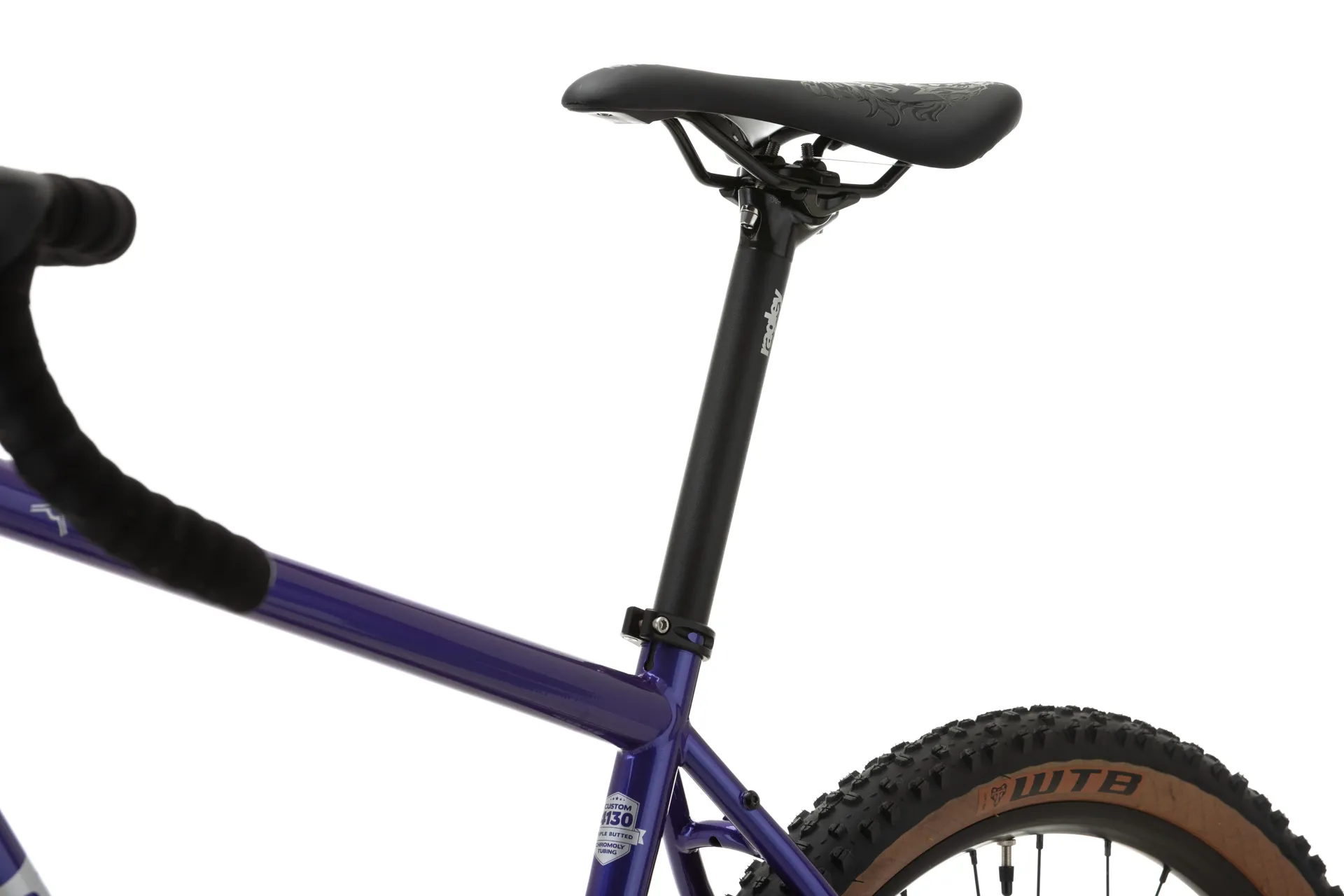

SADDLERagley Tracker
SEAT POSTRagley 27.2mm x 400mm
SEAT SCREWRagley 29.8mm
Also included:Ragley Chain stay protector, touch up paint, tubeless valves
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified
Sizing Information
Frame SizeSmallMediumLargeX-Large
Seattube Length440mm470mm500mm530mm
Effective Top Tube Length543mm555mm570mm590mm
Reach389mm395mm402mm417mm
Stack538mm559mm587mm604mm
Standover Height749.9mm748.3mm783.8mm817.2mm
Chainstay Length425mm425mm425mm425mm
Headtube Length105mm125mm155mm173mm
Headtube Angle69.5°70°70°70°
Seattube Angle74°74°74°74°
Bottom Bracket Drop-66mm-66mm-66mm-66mm
Wheelbase1026mm1035mm1052mm1073mm
Max. Tyre Size700x40c/27.5"x2.1"700x40c/27.5"x2.1"700x40c/27.5"x2.1"700x40c/27.5"x2.1"
Seatpost Diameter27.2mm27.2mm27.2mm27.2mm
Bottom Bracket Size68mm BSA68mm BSA68mm BSA68mm BSA
Headset44mm44mm44mm44mm
Front MechBand-on 30mmBand-on 30mmBand-on 30mmBand-on 30mm
Rear Axle12mm x 142mm Bolt Thru12mm x 142mm Bolt Thru12mm x 142mm Bolt Thru12mm x 142mm Bolt Thru
MountsRack and mud guardRack and mud guardRack and mud guardRack and mud guard
Cable RoutingInternal TT FD and RDInternal TT FD and RDInternal TT FD and RDInternal TT FD and RD
Axle To Crown410mm 45mm offset410mm 45mm offset410mm 45mm offset410mm 45mm offset
Wheel Size700C/27.5"700C/27.5"700C/27.5"700C/27.5"
Max Rotor Size160mm160mm160mm160mm
