The newest version of the Stigmata is now even more ready to tackle your varied cycling duties.. race around a cross circuit or load up your bags and head off into the wilderness, The Force 1x blurs the lines of what just one bike can do
The newest version of the Stigmata is now even more ready to tackle your varied cycling duties.. race around a cross circuit or load up your bags and head off into the wilderness, The Force 1x blurs the lines of what just one bike can do
Santa Cruz

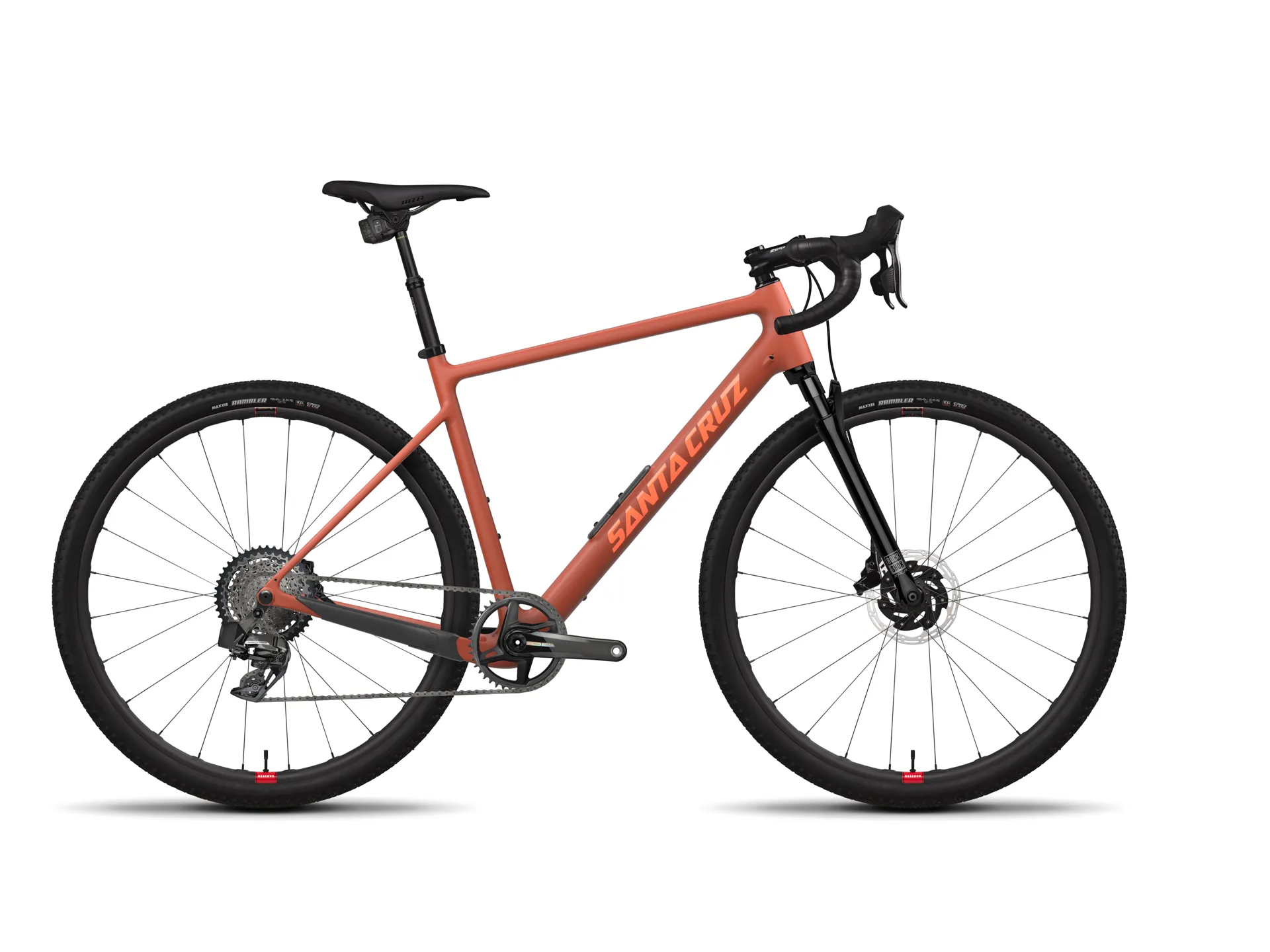

Santa Cruz Stigmata CC V4 Force AXS 1x RSV Kit - Matte Brick Red

£6,999.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Stigmata CC V4 Force AXS 1x RSV Kit - Matte Brick Red

Season:2024

Brand:Santa Cruz

Code:SCSTIGCFOAXSRSV1MBR

Go Fast. Go Light. Go Further.

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Key Features:

Frame Material:Carbon CC
Wheel Size:700c
Front Travel:40mm
Transmission:SRAM Force XPLR AXS 12 Speed 1x
Brakes:SRAM Force Flat Mount
Wheels:Reserve 25|GR and DT Swiss 350 Centerlock Hubs
SuspensionR.Shox Rudy Ultimate XPLR
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Technical Information
FrameCarbon CC
ForkRockShox Rudy Ultimate XPLR, 40mm
Rear DerailleurSRAM Force XPLR AXS, 12spd
ShiftersSRAM Force AXS, 12spd
CassetteSRAM XG-1271 XPLR 10-44t
ChainSRAM Force Flat Top, 12spd
CranksSRAM Force AXS DUB, 40t
Bottom BracketSRAM DUB 68mm Road Wide BB
BrakesSRAM Force Flat Mount 2-Piston
Brake RotorsSRAM CLX R, Centerlock, 160/160mm
HeadsetCane Creek 40 IS Integrated Headset
BarsZipp Service Course SL-70 XPLR Bar
StemZipp Service Course Stem, 70mm
GripsVelo Bar Tape
Front HubDT Swiss 350, 12x100, Centerlock, 24h
Rear HubDT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
RimsEaston ARC Offset 25 700c
Front TireMaxxis Rambler, 700x45c, DC, EXO, TR
Rear TireMaxxis Rambler, 700x45c, DC, EXO, TR
TubesReserve Sealant
Seat PostRockShox Reverb AXS XPLR, 27.2, 75mm
SaddleWTB Silverado Medium, Ti
Sizing Information
SMLXLXXL
Reach 390405420435450
Stack 564576600612631
Head Tube Angle 69.5°69.5°69.5°69.5°69.5°
Seat Tube Length 455485515545575
Front Center 625645668688710
BB Height 278280280282282
BB Drop 7876767474
Wheelbase 10431063108711081130
Rear Center 423423423423423
Head Tube Length 105120145160180
Top Tube Length 552570592610631
Seat Tube Angle 74°74°74°74°74°
Standover Height 728753778804830

Frame Sizing

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.

Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
