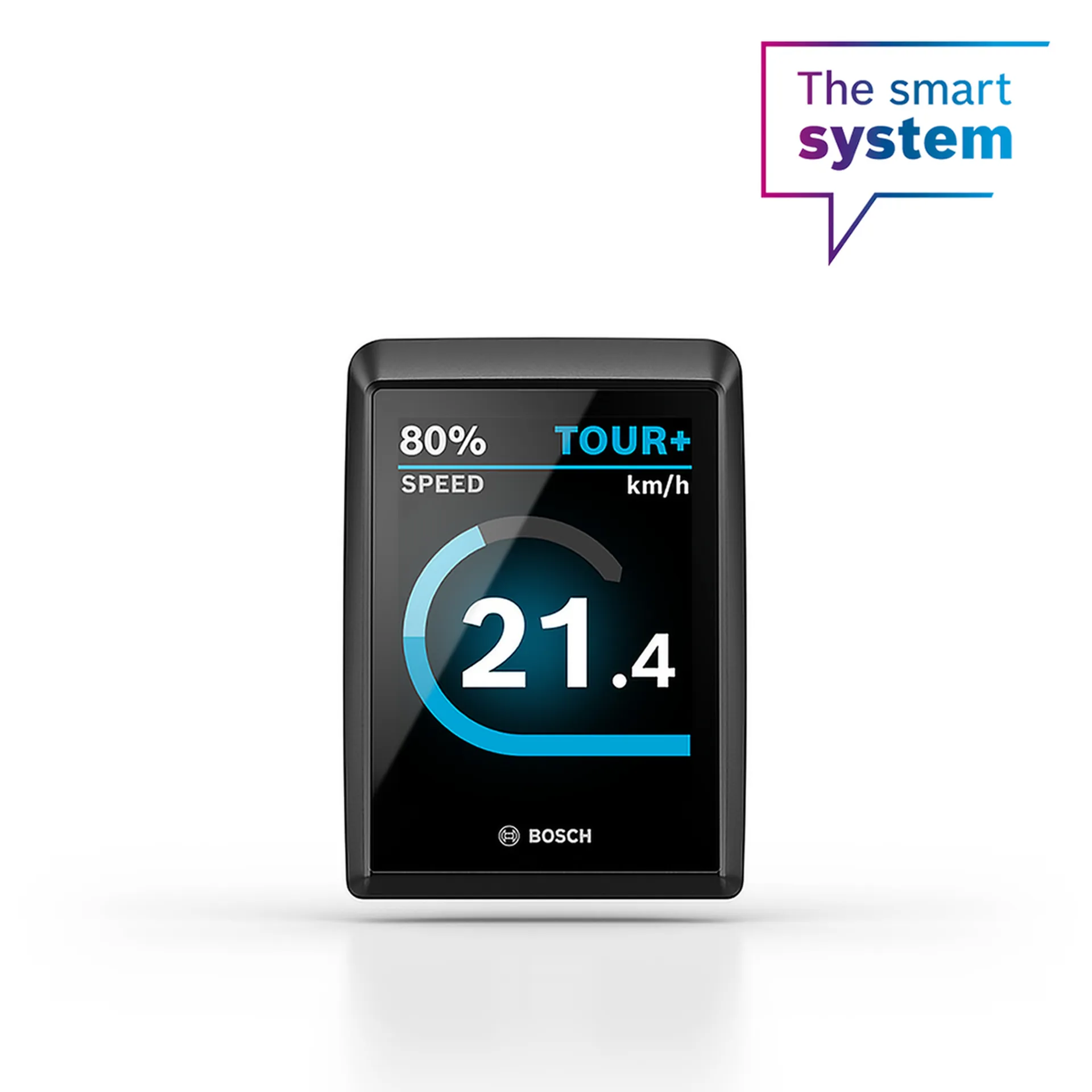

The Kiox 500 is a display for the smart system, and is your robust, intelligent companion. It can be intuitively controlled via the control unit, is compact and protected against water splash and dust. The colour display is optimally readable and 40 percent larger then the Kiox 300. This makes the Kiox 500 screen area almost twice the size.
- Minimalist navigation function

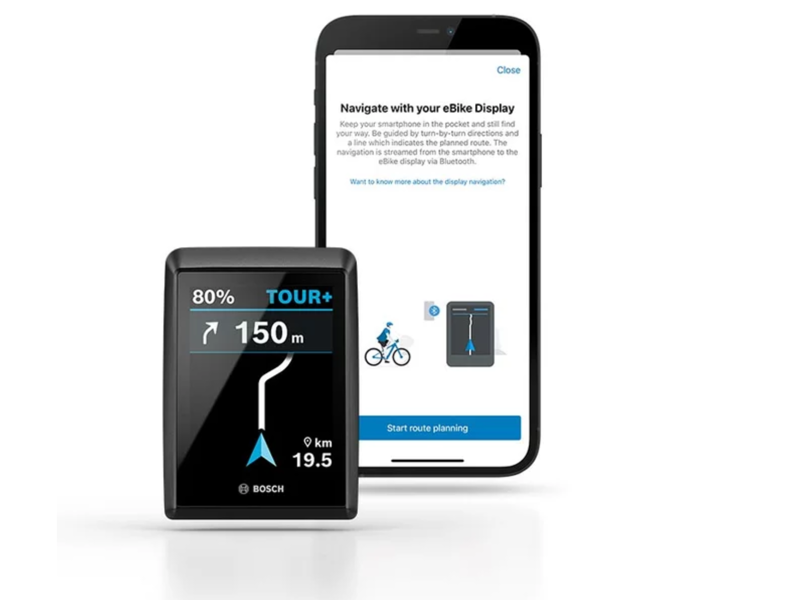

With the clear, free navigation function for Kiox 500, you can reach your destination in the most efficient way by planning your route in the eBike Flow app or importing it from komoot. You can transfer it to your display via Bluetooth and an arrow will symbolise your current position. The route is indicated by a clear line and turn-by-turn directions guide you. With the Kiox 500, additional notification tones sound, for example, before a turn. The arrival time, distance and time to destination as well as the range in each riding mode can be called up using the control units on the Kiox 500.
- Enhance performance and motivation

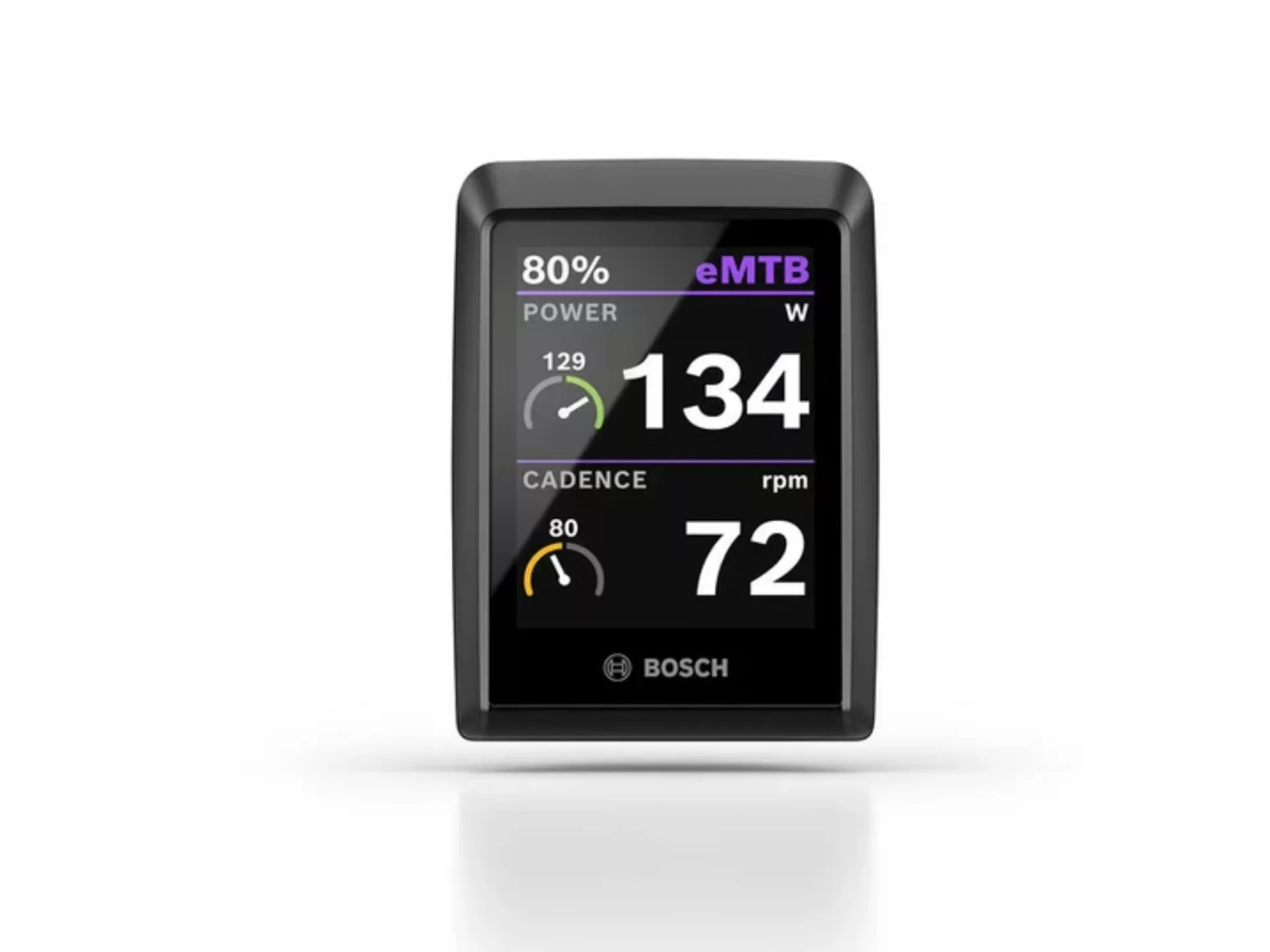

The Kiox 500 shows you extensive distance and fitness data. it informs you, for example, whether you are currently riding above or below your personal average: Get motivated though the graphical comparison of power and cadence. After the ride, you can also share all the recorded fitness data with Strava, Apple Health and komoot via the eBike Flow app.
- NEW - Individually customisable display indicator

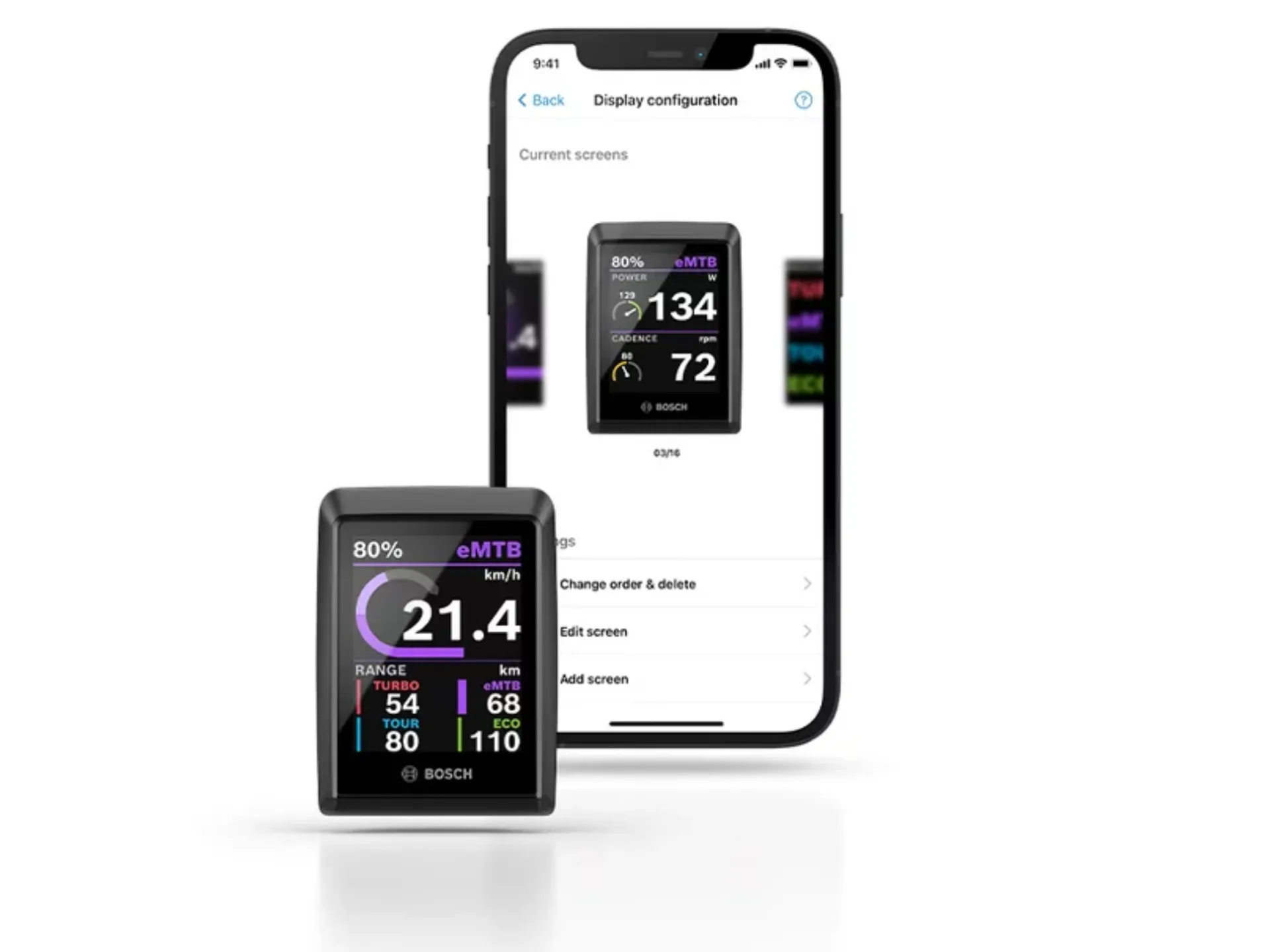

You can customise the display on your Kiox 500 using the eBike Flow app: define the order and content of the screens yourself (available from summer). You can also customise the status bar. Display the battery charge level, the time, or the speed – simply via your control unit. Getting the exact information that is important to you on your ride.
- Flexible display alternative
Need more screen area? Use your mobile all-rounder: instead of the Kiox 500, place the SmartphoneGrip on the display mount and use your smartphone with the eBike Flow app as a large display – with more comprehensive navigation.

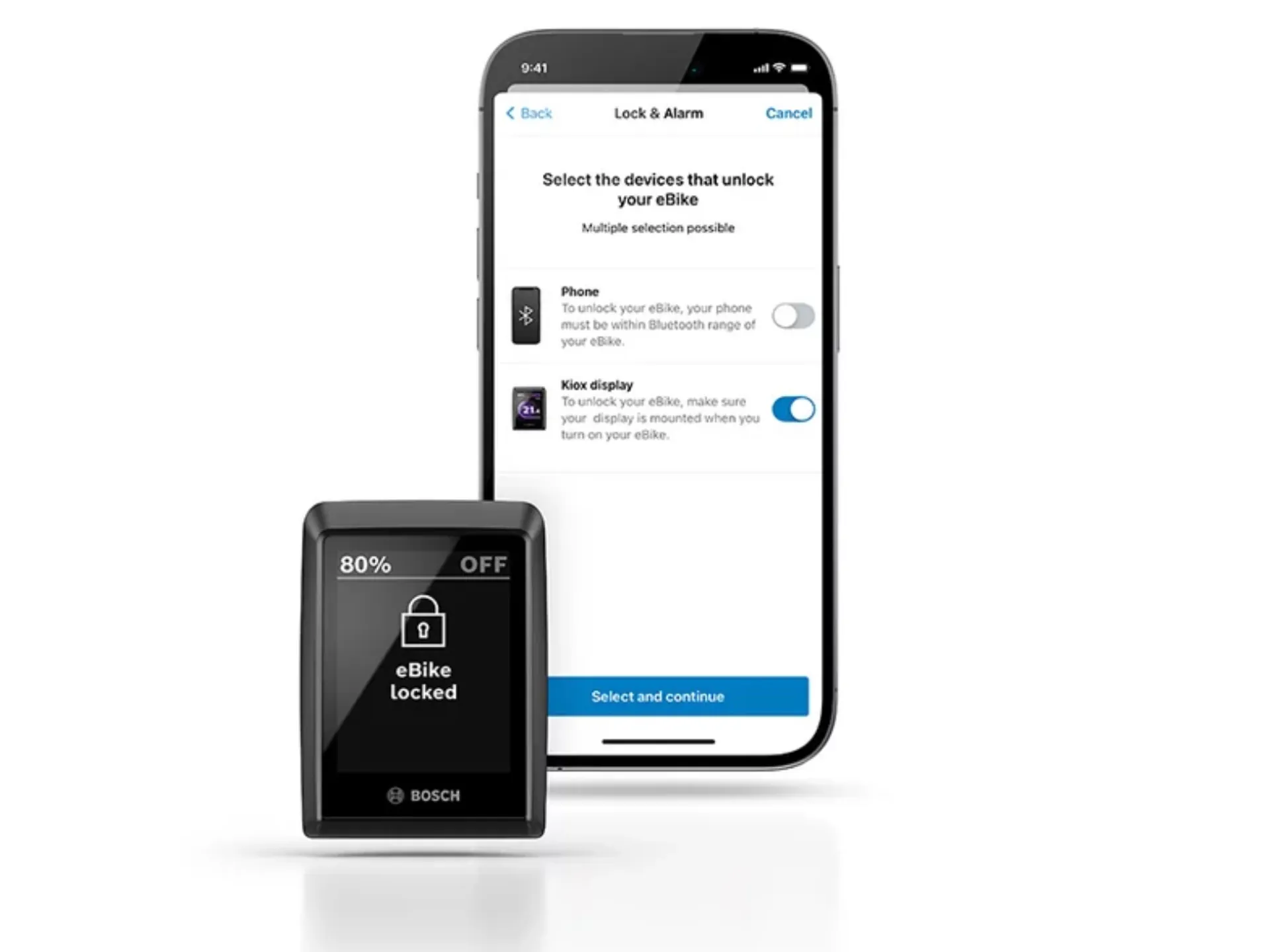

Turn your Kiox 500 into a key for your eBike. It's as intuitive as it sounds: simply remove the display from the mount and stow it away. This immediately provides additional protection for your eBike. Reinsert the display and use it to activate motor support before riding off.
With a shift recommendation, you shift more efficiently and ride in the optimum gear: the Kiox 500 provides you with tips on shifting up and down.

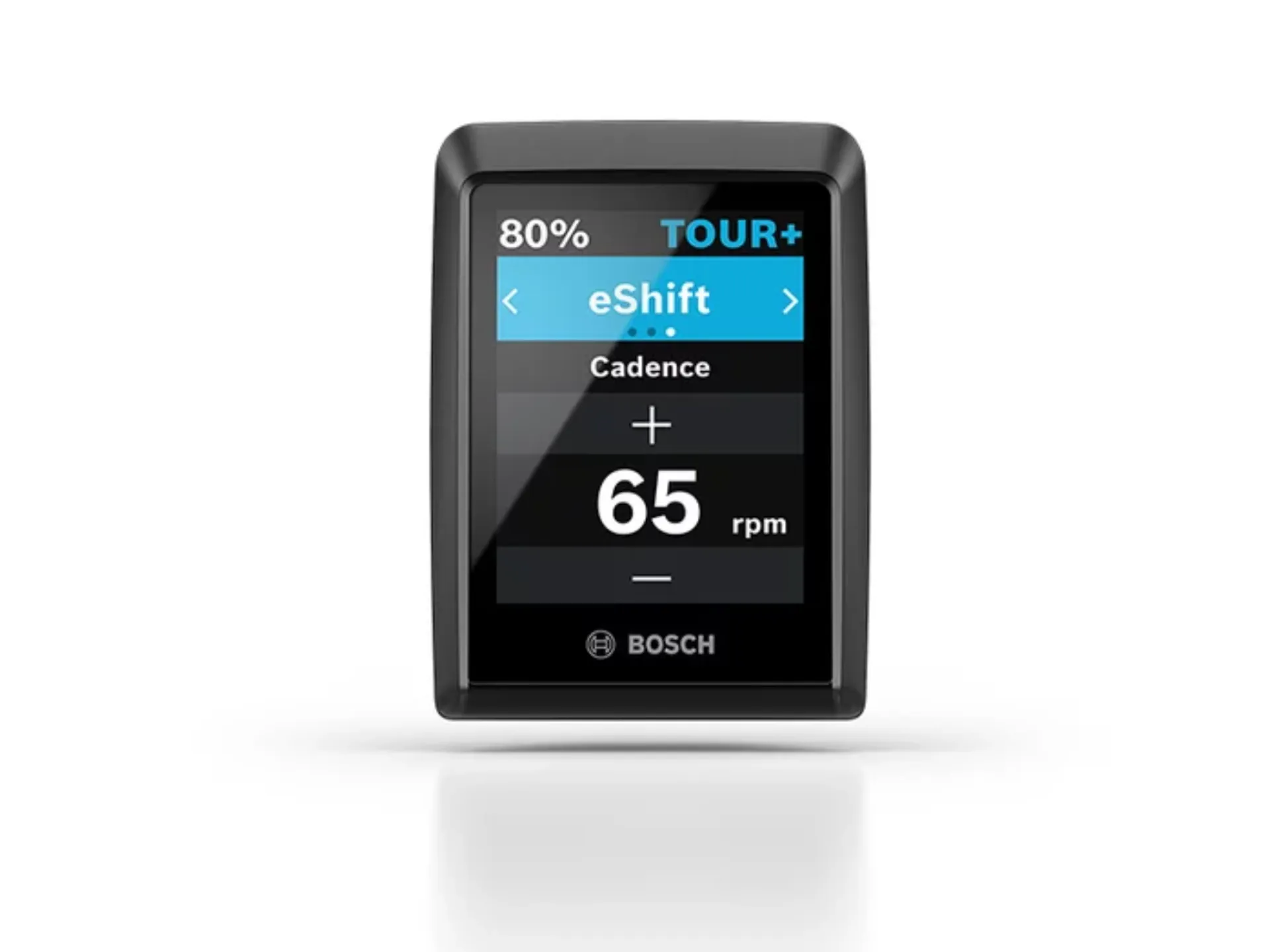

If you ride an eBike with eShift, the electric gear shifting solution, the displays show you the current and maximum gear. Via the Kiox 500, you can set your target cadence (only for enviolo gears); your eBike will then automatically shift to help you reach it.
Features
- Transmissive 2.8-inch TFT display (240 x 320 pixels)
- Operation possible via the LED Remote or Mini Remote in conjunction with the System Controller or Purion 200
- The modular display mount for handlebars with a diameter of 31.8/35 mm allows for flexible positioning of the display (bicycle manufacturers can create their own mount solutions with the display interface)
- Kiox 500 is supplied with power via the eBike battery
- Notification tone for navigation and system messages, adjustable volume
