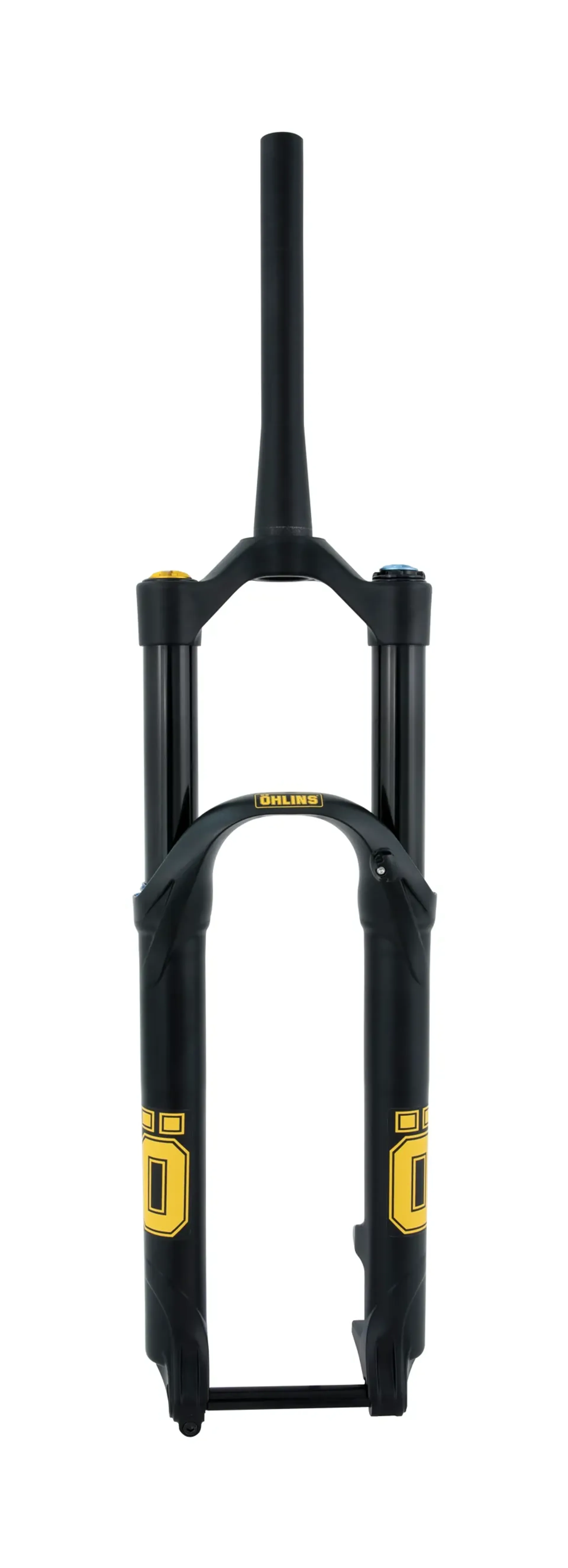

Ohlins RXF38 M.2 Air TTX18 Suspension Fork - Black

Season:2024

Brand:Ohlins

Code:OLN.FRK.RXF38.M2.29

The single crown sibling of our DH38 platform has now been updated to create a more compact, shorter and more lightweight design; optimized for long-travel bikes with up to 180 mm of travel. Designed for both gravity bikes and eMTB with multiple crown offset choices available. The new m.2 version has been re-engineered with a stiff chassis that will keep your line choice on even the most demanding trails. The capable air spring and TTX18 damper will keep your tires planted with the best possible ground contact, swallowing roots and rocks; making your ride more comfortable and controlled.

The RXF38 m.2 boasts a huge range of adjustment; 15 clicks of low-speed compression and low-speed rebound damping and 3 clicks of high-speed compression adjustment, in addition to a climb mode setting. The re-tuned twin-piston, three-chamber air spring system allows for comprehensive air spring tuning from the initial movement right through to the bottom out.

Technical Specifications:

  • TTX18 damping system
  • Independent cartridge air spring and damper systems
  • Air spring adjustable to 160/170/180mm of travel
  • Designed for 200 mm rotor size (max. 220 mm)
  • Easy to tune three-chamber air spring system
  • 38 mm stanchion diameter
  • 44 mm crown offsets
  • Floating axle design
  • Approved for eMTB use and available with eMTB compatible crowns
  • Compatible with maximum tire sizes up to 29x2,6
  • Weight from 2320 grams
  • Axle to crown measurement: 583 mm @170 mm stroke
  • Rebuildable
  • 2 year warranty

Adjustment:

  • 3-click high speed compression damping
  • 15-click low speed compression damping
  • 15-click rebound damping
