Renthal's revolutionary Integra stem combines high strength with ultra-low weight.
The use of two independent, C-shape handlebar clamps, an ultra-wide handlebar clamping area and six bolt assembly give the highest possible strength and stiffness, at an incredibly low weight.
Proven on the World Cup circuit, the Integra is the downhill racers stem of choice.

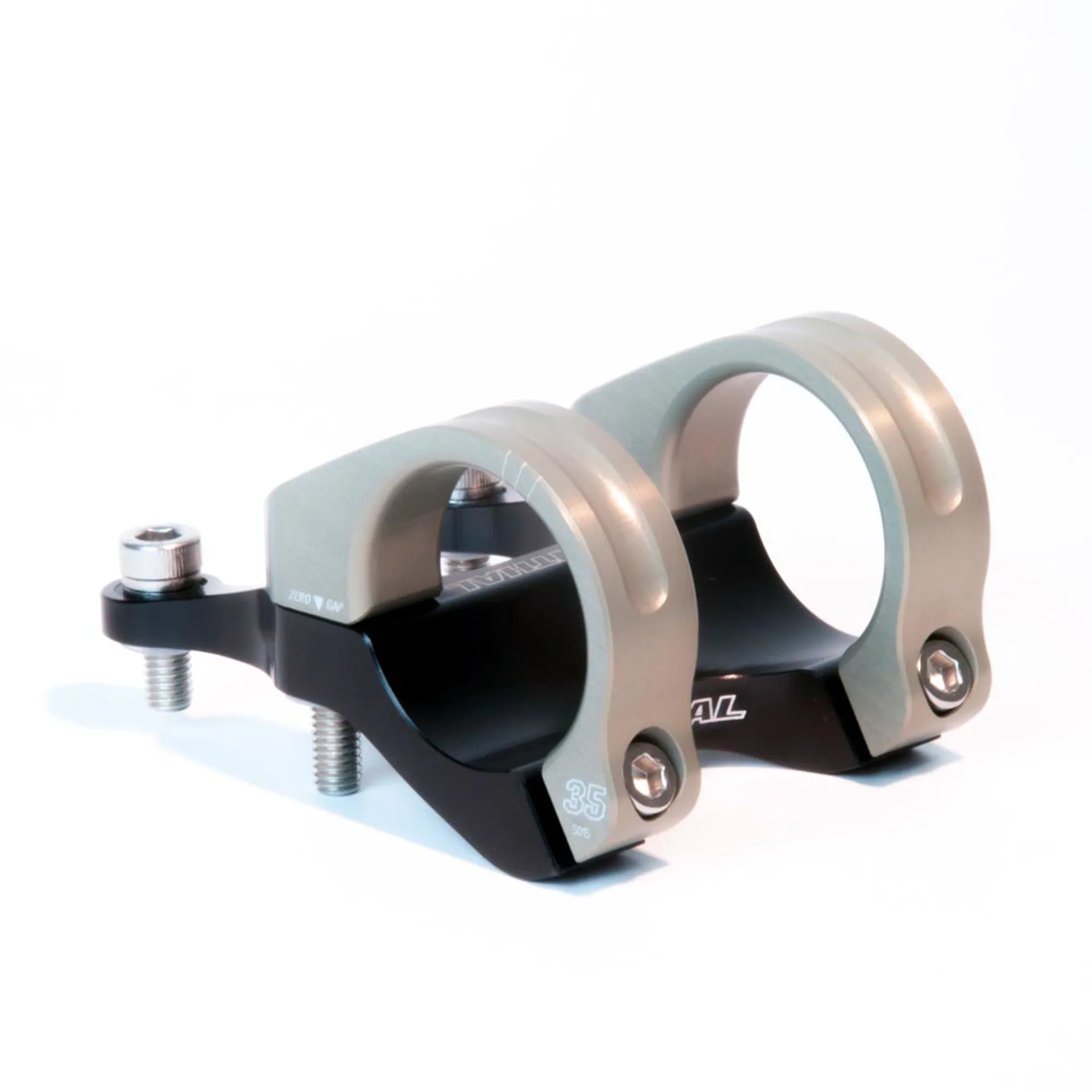

Handlebar Clamp
The clamps are installed over the small diameter section of the handlebar and slid into the centre, giving a 240° wrap of the handlebar.
This clamping system allows the stem body material to be reduced to a minimum, whilst maintaining an incredibly stiff and strong structure."
CNC Machined
The Integra stem is fully CNC machined from solid billet. All unnecessary material is removed to minimise weight, whilst retaining maximum strength and stiffness.
The unique handlebar clamping allows full access to the stem body, to machine away all unnecessary material.
Aluminium Tech
The Renthal Integra features a fully CNC machined 6082 T6 aluminium body and 7075 clamps. The materials and their heat treatment processes have been specifically chosen, to give the highest strength to weight ratio.
Efficient Design
Steel hardware is a major factor in the weight of a stem. The Integra has reduced the required hardware to just six bolts, instead of the normal eight, to vastly reduce overall weight.
Combined with a single piece stem body, the 64mm clamp width gives superior strength and structural stability. This increases control, without the need to add large amounts of material and hence weight
Race Winning
The Renthal Integra has already gained cult status, as the stem of choice for World Cup downhill. Four World Cup overall championships and seven World Championship gold medals have been won using the Integra, cementing it as one of the most successful race products of all time.

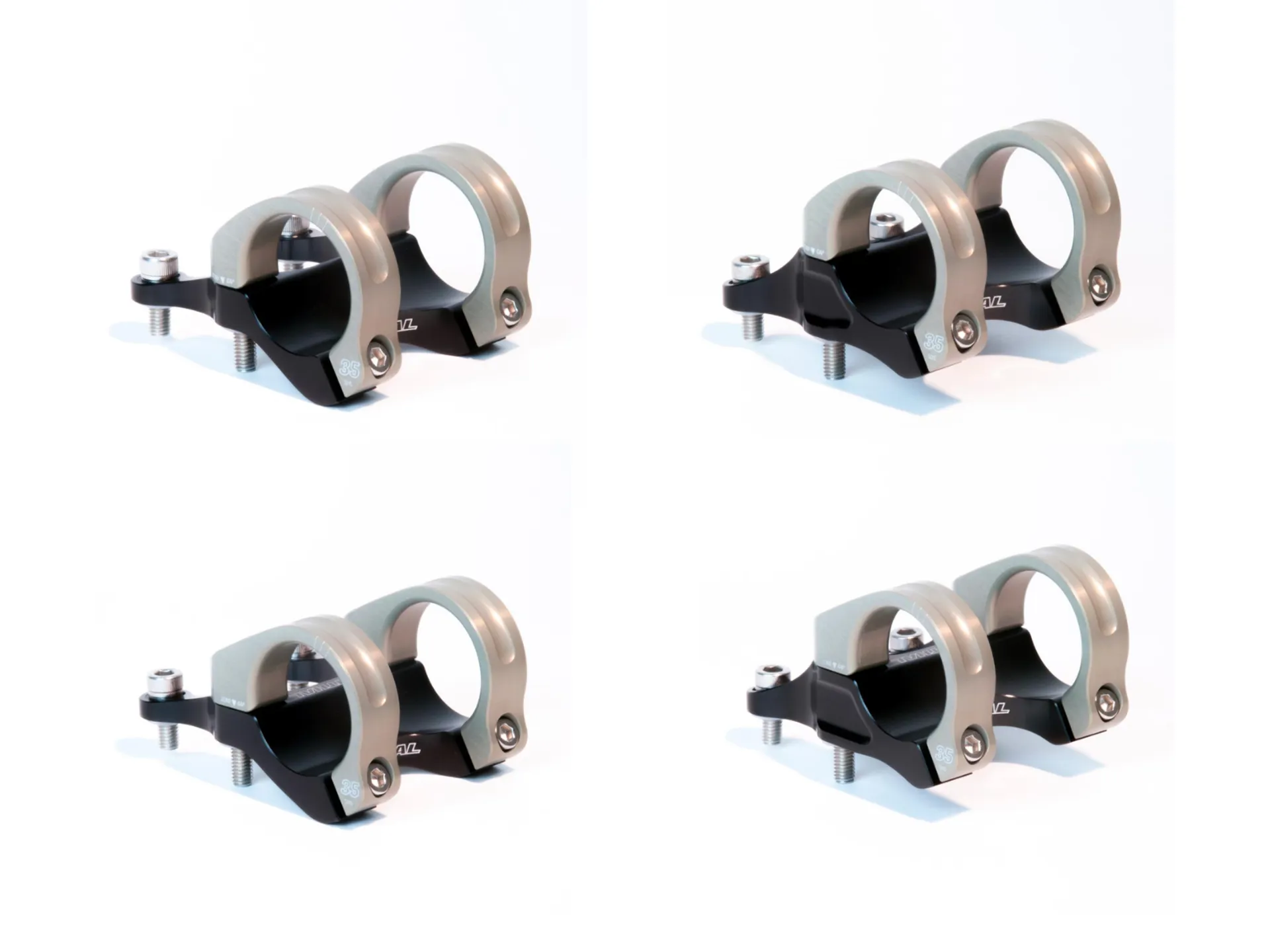

- 45 x zero. Length 45mm. Rise zero. Bar clamp 35mm.
- 45 x +10mm. Length 45mm. Rise +10mm. Bar clamp 35mm.
- 50 x zero. Length 50mm. Rise zero. Bar clamp 35mm.
- 50 x +10mm. Length 50mm. Rise +10mm. Bar clamp 35mm.
- All stems suit Boxxer/IS.
- Weights:
- 45mm x zero: 133g
- 45mm x 10mm: 156g
- 50mm x zero: 157g
- 50mm x 10mm: 177g
