With Bosch's latest full power motor and a great performing easy to maintain component set up, the Alltrack 10 is a great leasure offroad E.MTB
With Bosch's latest full power motor and a great performing easy to maintain component set up, the Alltrack 10 is a great leasure offroad E.MTB
Haibike

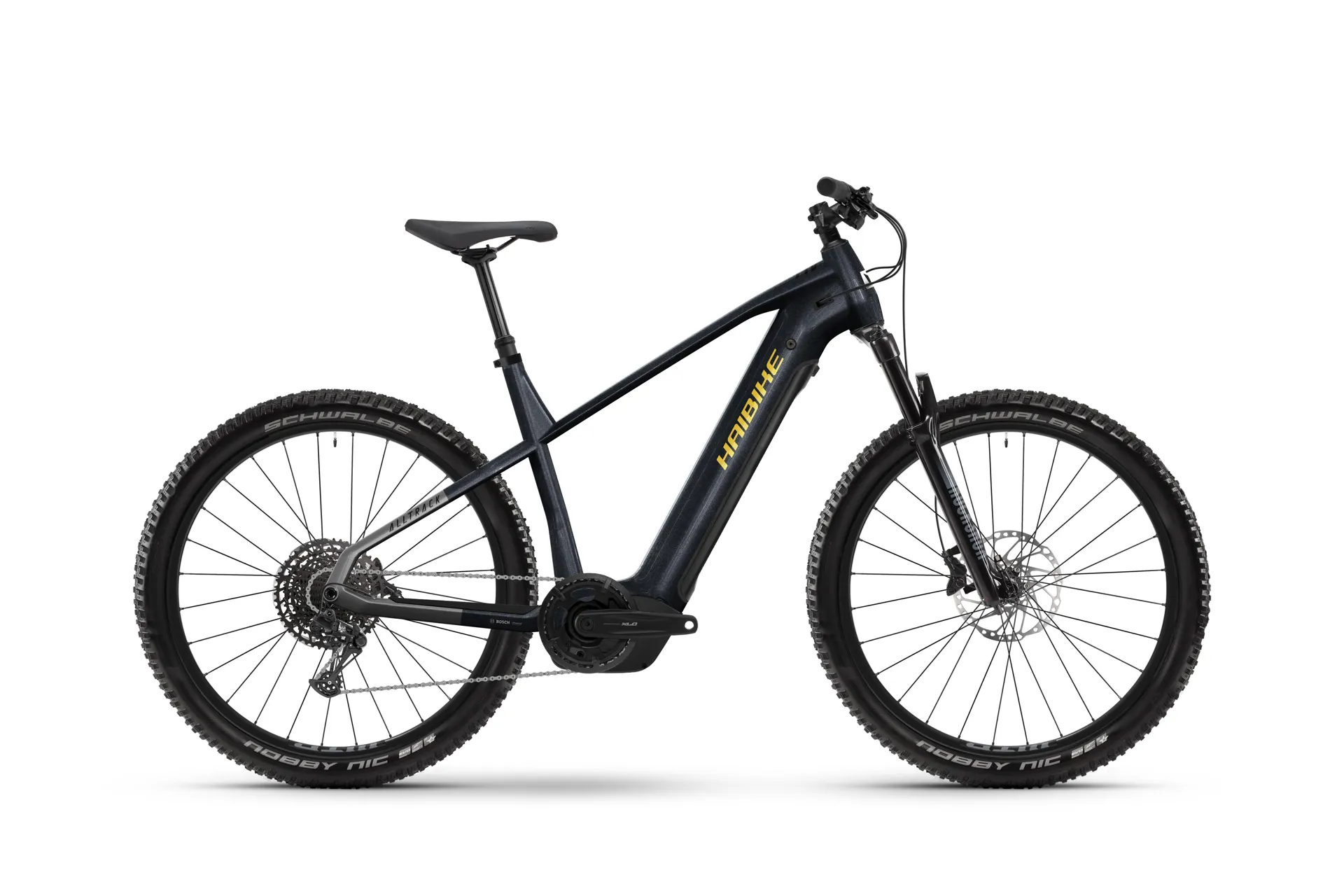

Haibike Alltrack 10 E.Mountain Bike - Gloss Blue/ Titan/ Yellow

£3,599.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Haibike Alltrack 10 E.Mountain Bike - Gloss Blue/ Titan/ Yellow

Season:2025

Brand:Haibike

Code:HKITMulticolor

Fun on the road and in light terrain, the Alltrack hardtail eMTBs are the ideal companion for the street and light off-road riding.

  • New Aluminum frame platform
  • Bosch GEN5 Performance Line CX motor
  • 600Wh battery
  • Purion Display
  • 120mm travel RockShox 35 Silver forks
  • SRAM SX Eagle 12 speed groupset
  • Shimano MT420 brakes
  • WTB ST i30 wheelset
  • 27.5" wheels (S) 29" wheel (M,L,XL)
Technical Information
  • Motor
    Bosch Performance CX Gen 5 85Nm
  • UI/Remote
    Bosch Purion 200
  • Battery
    Bosch InTube 600Wh
  • Charger
    Bosch Charger 4A
  • Frame
  • Seat Binder
  • Stem
  • Handlebars
    XLC MTB Dia. 31.8 mm, Rise: 15 mm
  • Grips
    Velo VLG-1751D2, MTB Grips
  • Saddle
    Selle Royal Vivo Ergo 1217HRN
  • SeatPost
    Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
  • Rear Shock
    N/A
  • Fork
    Rockshox 35 Silver R 120 mm
  • Front Brake
    Shimano Hydraulic Disc brake Deore BR-MT420, 203mm
  • Rear Brake
    Shimano Hydraulic Disc brake Deore BR-MT420, 180mm
  • Chainrings
    SRAM T-Type Chainring
  • Shift Levers
    Sram Triggershift SX Eagle Single Click
  • Rear Derailleur
    Sram SX Eagle 12 speed
  • Cassette
    Sram PG-1210 Eagle, HG, 11-50t
  • Chain
    SRAM SX Eagle, 12-speed
  • Crankset
    Miranda Crius ISIS Crankarm 170mm
  • Rims
    WTB ST i30 TCS 2.0 32H
  • Front Hub
    Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
  • Rear Hub
    Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
  • Spokes
    DT Swiss Industry
  • Front Tire
    Schwalbe Nobby Nic Performance 65-622
  • Rear Tire
    Schwalbe Nobby Nic Performance 65-622
  • Inner Tubes
    Standard, Presta Valve
  • Pedals
    XLC VPE-527 MTB Alloy Pedal w. Reflector
Sizing Information
Frame size
S 40
M 45
L 50
XL 55
Wheel Size27.5"29"29"29"
Body height (cm)161-173171-181179-189187-198
Seattube length (mm)400450500550
Toptube length (mm)610625648670
Headtube length (mm)140140150160
Seattube angle (deg)74747474
Headtube angle (deg)68676767
Stack (mm)656674683692
Reach (mm)422432452472
BB Drop (mm)60656565
Wheelbase (mm)1171121612401264
