Haibike Alltrack 5 Hardtail Mountain E.Bike - Gloss Anthracite/ Slate

Season:2023

Brand:Haibike

Code:HKDP1GRY

Asphalt or off-road? With our ALLTRACK 5, you don’t have to choose.
Featuring a clean design and all-round capabilities, this hardtail eMTB is your perfect companion for both on- and off-road adventures – and the ideal entry into the world of XC eMountain bikes. The SR Suntour suspension fork with 120mm travel and Shimano hydraulic disc brakes ensure safety and comfort, even on rough terrain.
The Yamaha PW-S2 motor helps you to conquer steep climbs, while the 720Wh battery lets you ride further than you ever imagined, no matter the surface. Available in frame sizes Small with 27.5"" wheels, and Medium to X.Large with 29"" wheels.

  • New ALU frame platform
  • Yamaha PW-S2 motor
  • 720Wh battery + side switch
  • SR Suntour XCM32
  • Shimano CUES 10 Speed
  • Shimano MT200 Brakes
  • Rodi Tryp 30 wheelset
  • 27.5” Wheel (S) 29” Wheels (M,L,XL)
  • 120mm Fork travel
Technical Information
Frame

High Aluminium Uni

MotorYamaha PW-S2 75NM

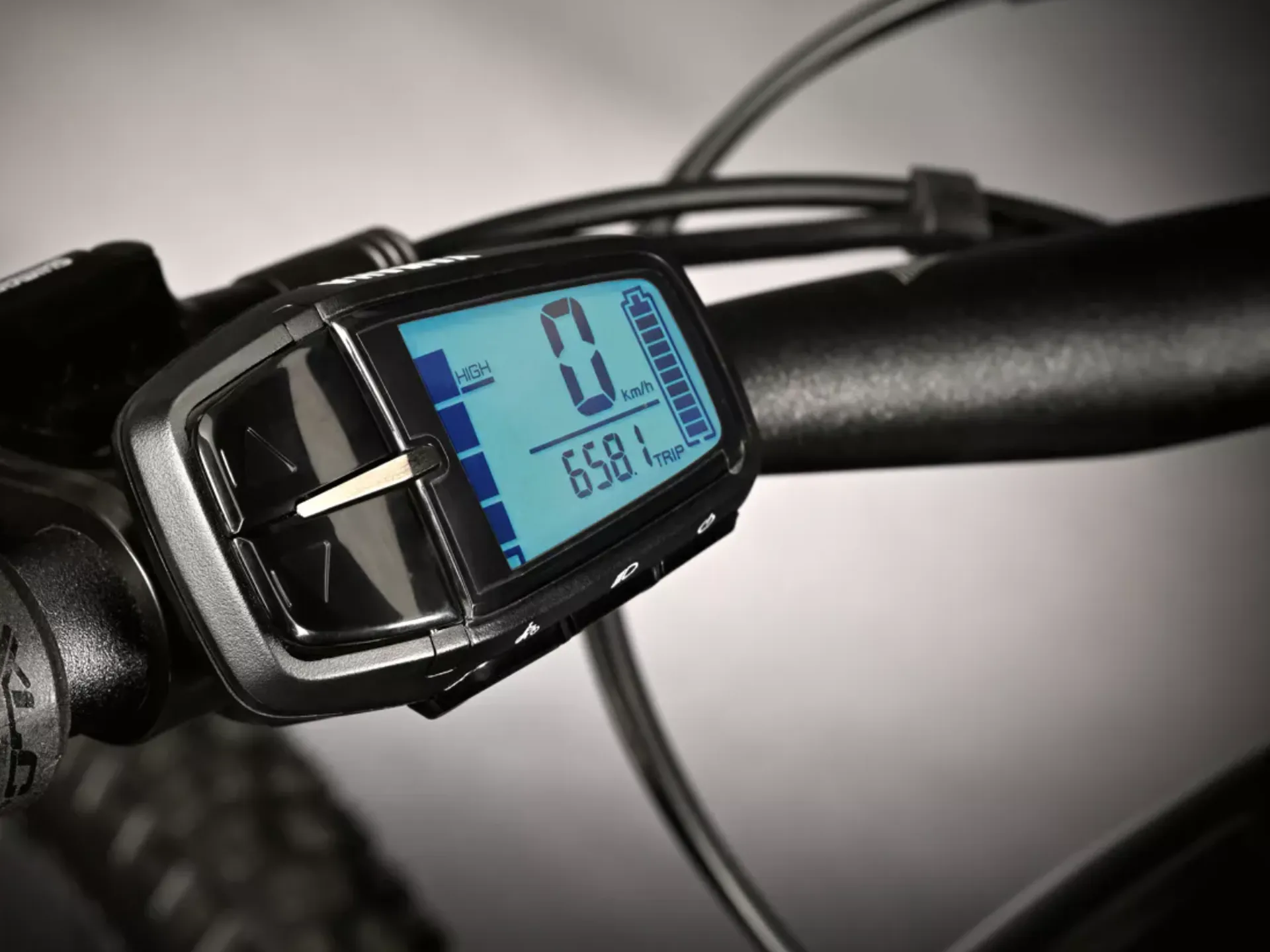

UI/RemoteYamaha A2 Display
ConnectivityUSB Dealer Diagnostic ability
BatteryYamaha InTube 720Wh
ChargerYamaha Standard Charger 4A
Rear Shock

N/A

ForkSuntour XCM32 Boost DS 120 mm
Stem

Haibike Alloy

GripsVelo VLG-1751D2, MTB Grips
Handlebars

Kalloy MTB Dia. 31.8 mm, Rise: 15 mm

SaddleSelle Royal E-MTB 2096HRN with XLC Logo

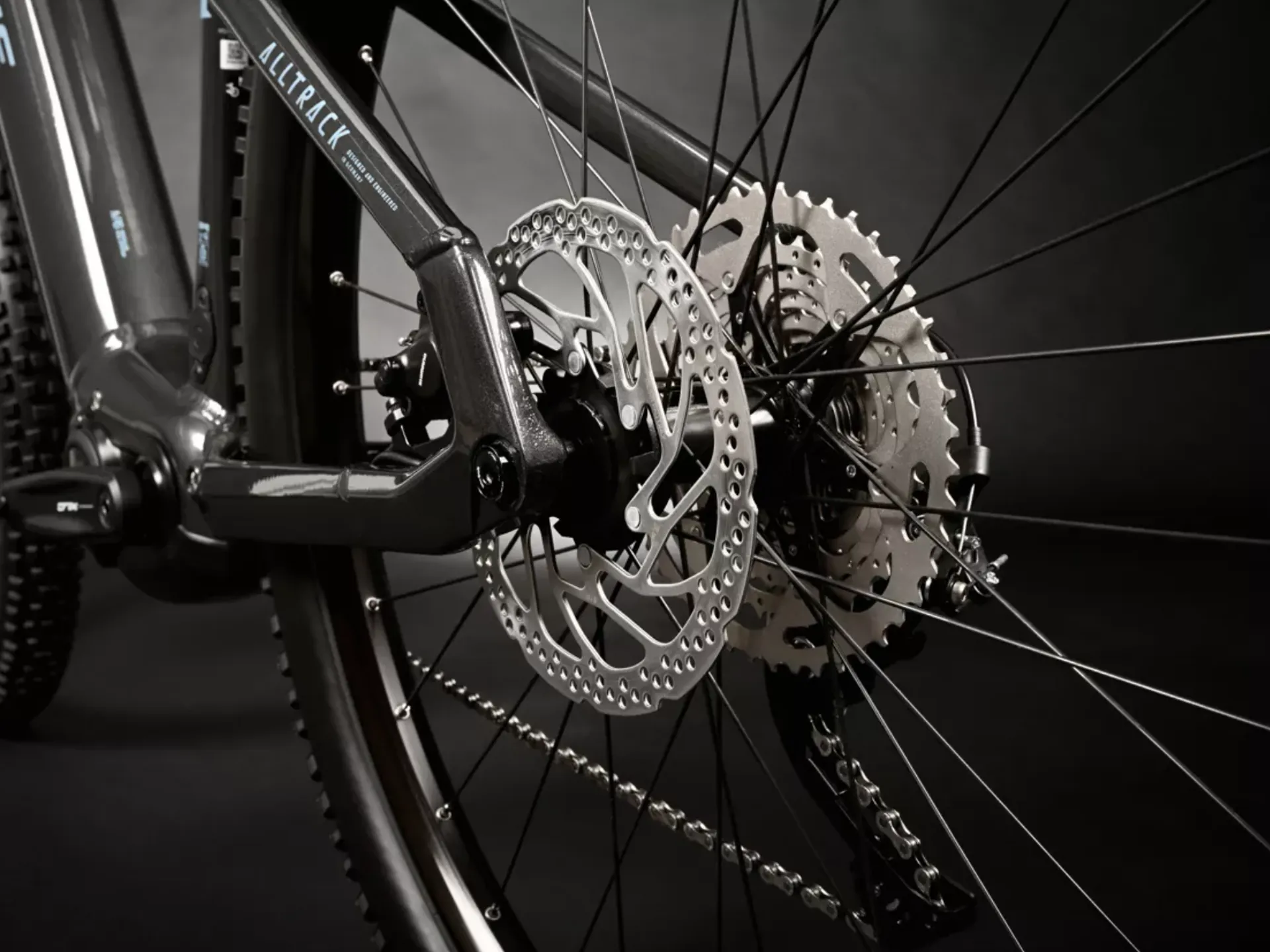

BrakesShimano Hydraulic Disc brake BR-MT200, 180mm Rotors F+R
Rear DerailleurShimano Cues RD-U6000 10s
Shift LeversShimano Triggershift Cues SL-U6000, Rapidfire+
CassetteShimano Cues CS-LG300-10, HG
ChainShimano Chain Cues CN-LG500 10s
CranksetMiranda Kies ISIS Crankarm 170 mm + Chainring 170
ChainringsDirect Mount 34 Teeth Steel With Chain Guard
Wheels

Rodi TRYP 30 Disc 32H with eyelets (F+R 27.5" Small/ F+R 29" Medium-X.Large)

TyresSchwalbe Nobby Nic Performance 2.35"
SeatPost

JD Non Suspension SP20T.1A, 34.9x 400 mm

Sizing Information
Frame size
Small
Medium
Large
X.Large
Wheel Size27.5"29"29"29"
Body height (cm)161-172170-181179-189187-198
Seattube length (mm)400450500550
Toptube length (mm)610625648670
Headtube length (mm)140140155170
Seattube angle (deg)74747474
Headtube angle (deg)68676767
Stack (mm)656674683692
Reach (mm)422432452472
BB Drop (mm)60656565
Wheelbase (mm)1171121612401264
