RIFTY LOVE, ELECTRIFIEDThe renowned trail bike, now available with a boost
RIFTY LOVE, ELECTRIFIEDThe renowned trail bike, now available with a boost
Marin

Marin Rift Zone E Mountain E.Bike - Grey/ Blue

£3,395.00 £4,355.00 22% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

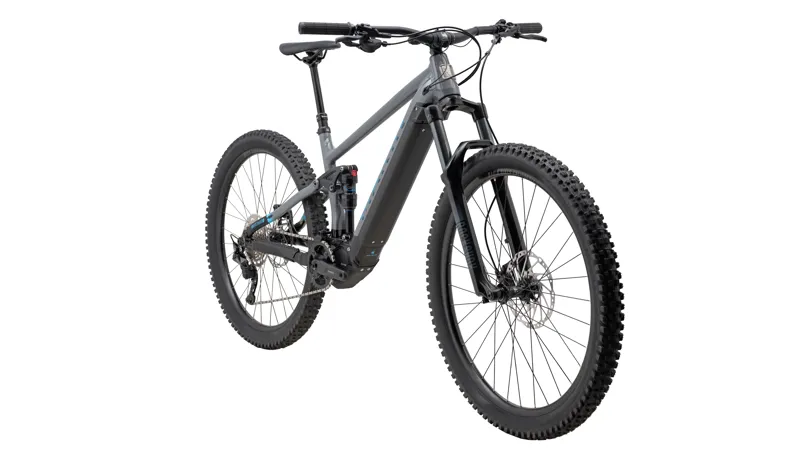

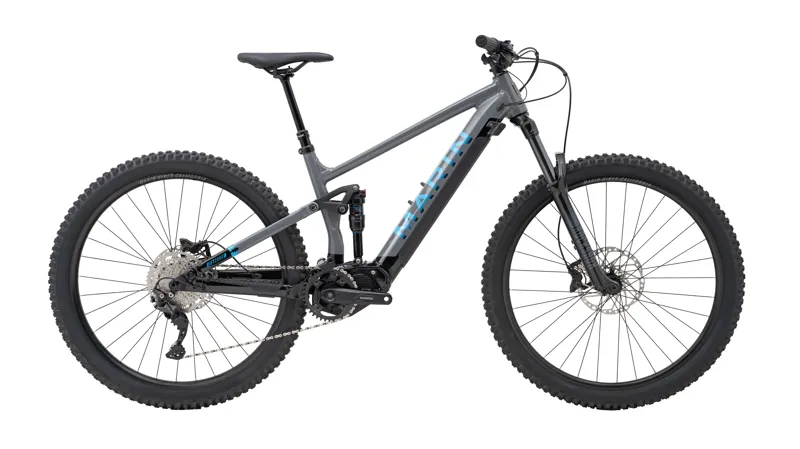

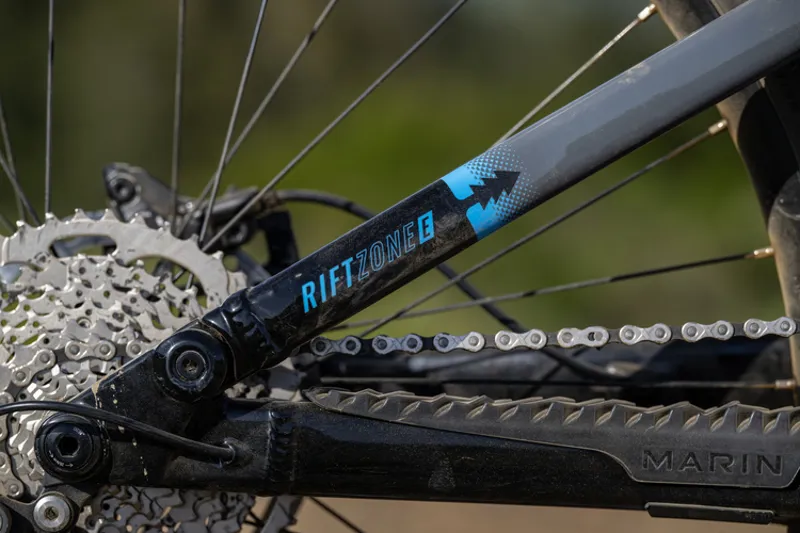

Marin Rift Zone E Mountain E.Bike - Grey/ Blue

Season:2024

Brand:Marin

Code:7365850GLSGRYBLU

Marins electric assist mountain bikes are for riders who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own.
Designed from the ground up around durable Shimano motor and battery units, the 2023 Marin electric mountain bike lineup is our most capable to date

One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s brand-new STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.
Technical Information

  • FRAME

    All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

  • FORK

    RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

  • SHOCK

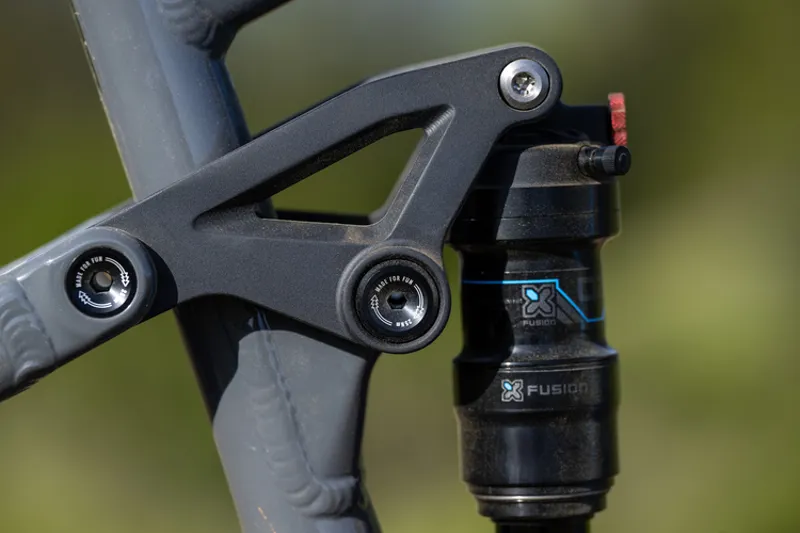

    X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount

  • RIMS

    Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body

  • HUB FRONT

    Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

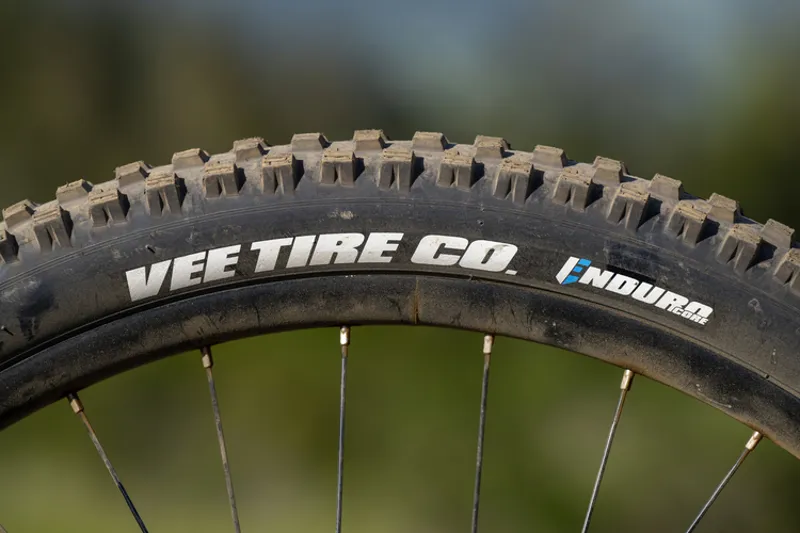

    Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing

  • DERAILLEUR REAR

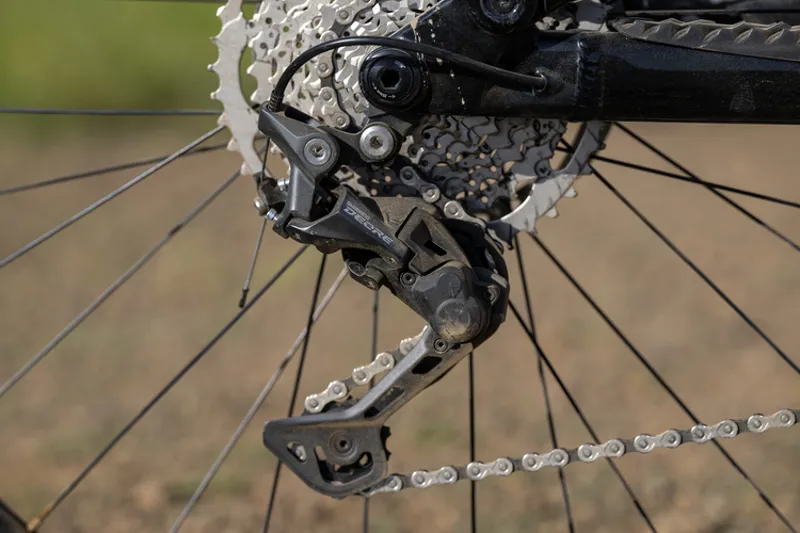

    Shimano Deore, Direct Attachment, 10-Speed SGS

  • SHIFT LEVER

    Shimano Deore, 10-Speed

  • CRANKSET

    Aluminum, 160mm Length, 38t Chainring

  • MOTOR

    Shimano Steps EP6 Drive Unit, 250W, 85Nm

  • CHAIN

    KMC X-10E, Silver

  • CASSETTE

    Shimano Deore 10-speed 11-46T

  • BRAKES FRONT

    TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor

  • BRAKES REAR

    TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor

  • BRAKE LEVERS

    TRP Slate Evo

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin Grizzly Lock On

  • HEADSET

    FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

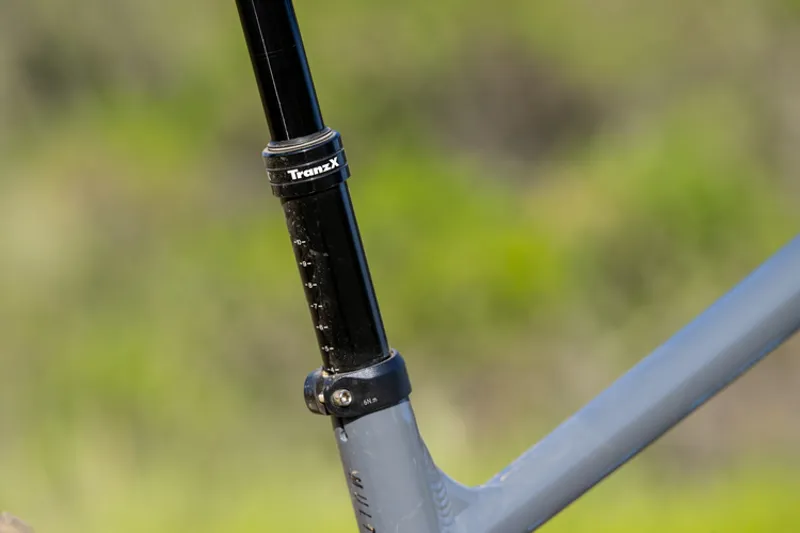

    TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

  • SADDLE

    Marin eMTB Saddle

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    Shimano BT-EN805L, Internal 504Wh

  • DISPLAY

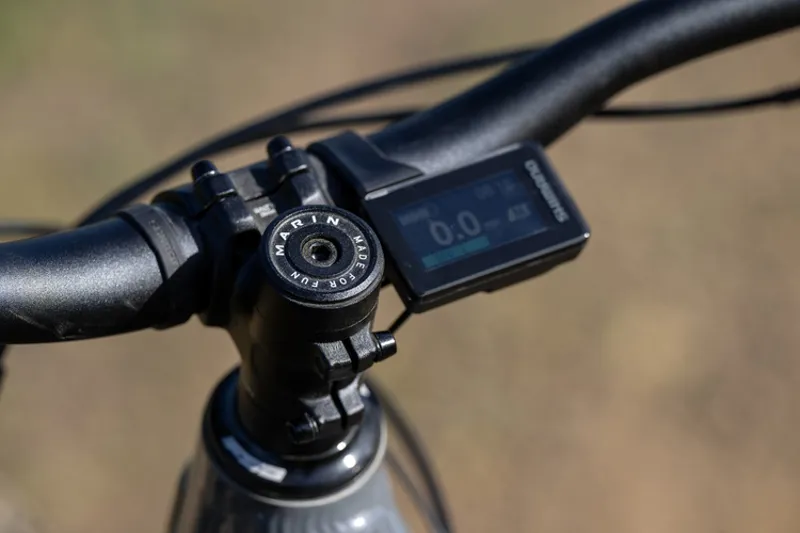

    Shimano SC-E600

  • SWITCH

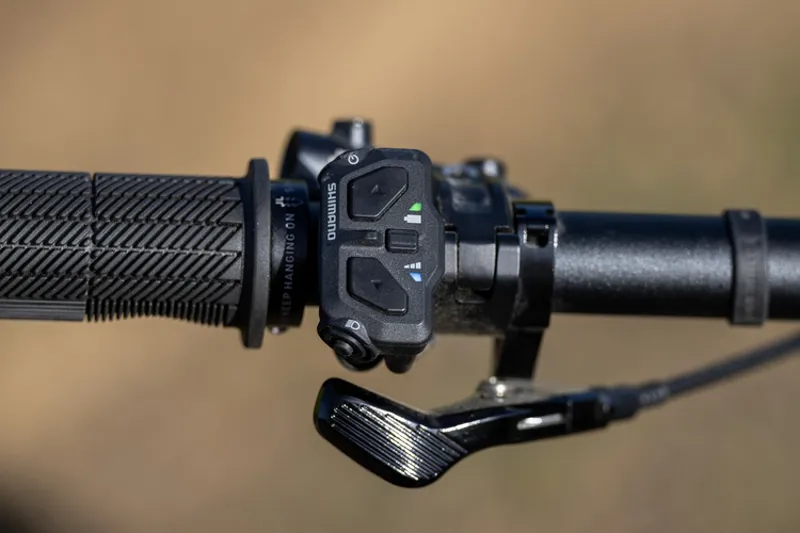

    Shimano SW-EN600L Left Hand Switch for Assist Mode Change

  • EXTRAS

    Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide

Specifications, pricing, and availability are subject to change without notice.

Sizing Information
Rift Zone E geometry diagram
SMLXL
Stack606.98614.04625.1634.16
Reach445465485515
Head Tube Angle65°65°65°65°
Head Tube Length100110120130
Seat Tube Angle77°77°77°77°
Seat Tube Length390400425435
Top Tube Effective585.13607.22629.32661.41
BB Height348.5348.5348.5348.5
BB Drop32323232
Chainstay440440440440
Wheelbase1198.291222.521246.741280.97
Standover Height693.65696.01709.94719.93
Fork Offset42424242
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length160160160160

All lengths in millimeters
