Santa Cruz throws all the best toys on this top of the range Heckler so you can get the very best out of their full power trail E.bike
Santa Cruz throws all the best toys on this top of the range Heckler so you can get the very best out of their full power trail E.bike
Santa Cruz

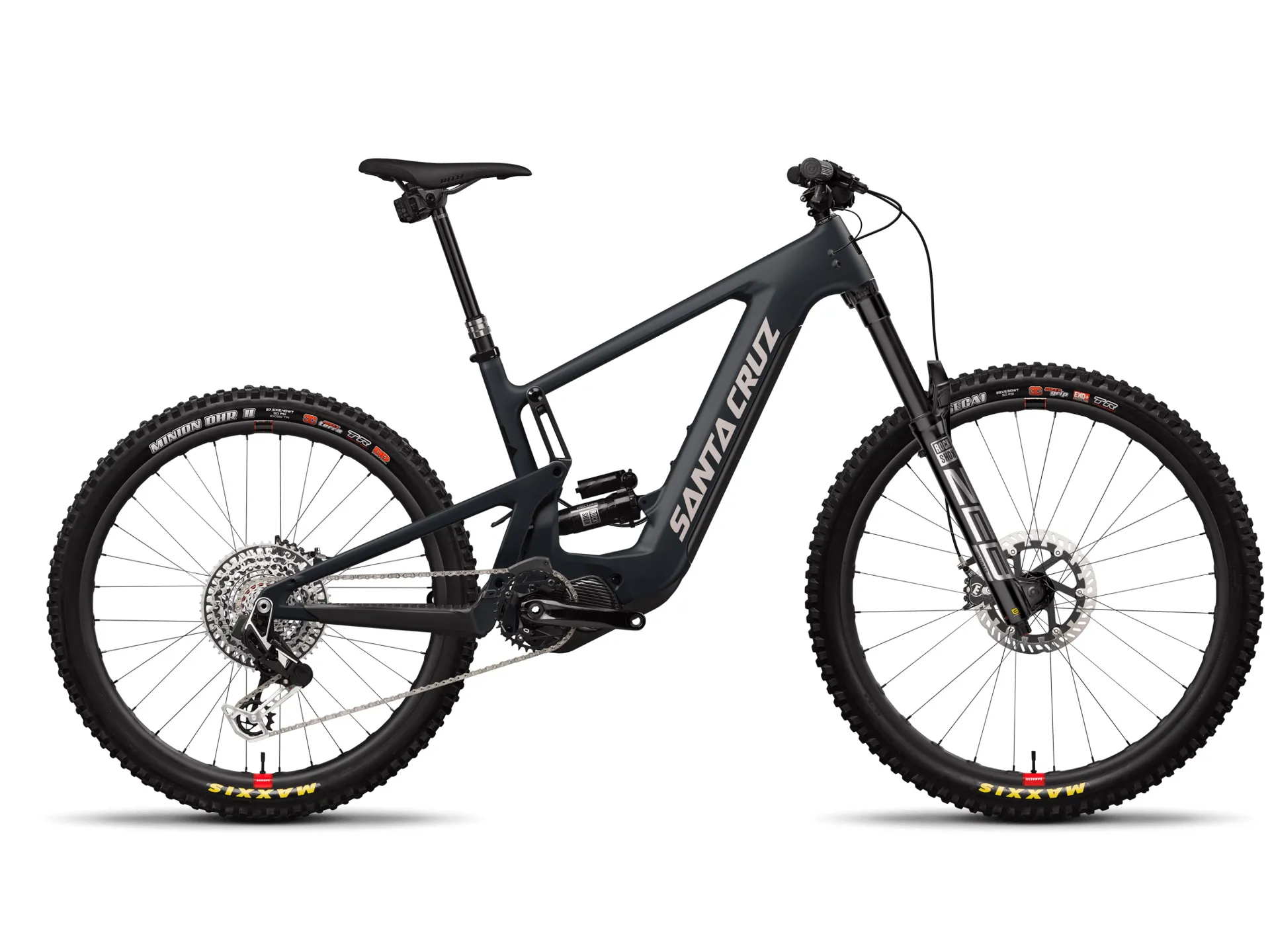

Santa Cruz Heckler CC V9 XX AXS RSV MX Kit E.Bike - Matte Dark Pewter

£11,999.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Heckler CC V9 XX AXS RSV MX Kit E.Bike - Matte Dark Pewter

Season:2024

Brand:Santa Cruz

Code:SCHECKCV9XX9DMP

Danny MacAskill just doesn't stop talking about ebikes. He's infatuated with them. In fact, the only time he's not chewing someone's ear off about how good they are is when he's riding them. And when he's riding an ebike he rides and rides and rides. Which is partly why we've made the newest Heckler able to go further, higher, faster and be funner.

The latest generation of the Heckler has a larger interchangeable battery (720wh up from 504wh), which allows riders to expand their own trail map - accessing previously unreachable trails, unlocking less-used trails and cramming more into less time.

The new Heckler has both mixed or dual 29-inch wheel size options. Wheel size isn't the only option for riders. There's a full size range of both from medium to XXL, with the small size frame having dual 27.5 wheels. Two levels of carbon (Santa Cruz's own C and CC blends) open up the range of options for build kits.

The thing that sets our ebikes apart from the pack is theon-trail manners of the bike. We sweat the carbon layup and frame design so it's tough enough to handle the sheer quantity of riding ebikes allow. There's no corners cut in the componentry so you're only concern is not getting lost rather than being stuck with a mechanical. The geometry has been honed from a lot of testing and feedback in order to make the ride fun whether going up or down. And finally, the legendary VPP suspension has been tuned precisely for ebike use. 150mm rear travel (with 160mm travel fork up front) seems to be the sweet spot for a bike intended to tame big trails on big days, with slightly less anti-squat to give it glue-like traction on the climbs you'll be testing yourself on.

Key Features:

Frame Material:Carbon CC
Wheel Size:MX - 29" Front/ 27.5" Rear
Front Travel:160mm
Rear Travel:150mm
Battery Size:720wh
Transmission:SRAM XX Eagle AXS T-Type
Brakes:Magura MT7 Pro
Wheels:Reserve E.Bike
SuspensionRockshox ZEB/ Super Deluxe Ultimate
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Technical Information
FrameCarbon CC MX 150mm Travel VPP™
ForkRockShox Zeb Ultimate, 160mm -or- FOX 36 Float Factory
ShockRockShox Super Deluxe Ultimate, 210x55
Drive unitShimano Drive Unit DU-EP801
BatteryDarfon 720 Wh Integrated Battery
Rear DerailleurSRAM XX Eagle AXS T-Type, 12spd
ShiftersSRAM AXS Pod Ultimate Bridge
CranksetShimano EM900 HollowTech Crank Arms 165mm
Chain GuideE.13 E-Spec+ AL
CassetteSRAM XX Eagle T-Type, 10-52t
ChainSRAM XX Eagle T-Type, Flattop, 12spd
BrakesMagura MT7 Pro
Brake RotorsMagura MDR-P, 6-Bolt, 203mm
HeadsetChris King DropSet 3 Integrated Headset
BarsSanta Cruz e35 Carbon Bar, 800mm, 35mm Rise
StemIndustry Nine A35, 40mm
GripsSanta Cruz House Grips
Front HubIndustry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h
Rear HubIndustry Nine Hydra, 12x148, XD, 6-Bolt, 32h
RimsReserve HD/30 29” Carbon (F), Reserve DH/31 27.5" Carbon (R)
SpokesSapim D-Light
Front TireMaxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, TR
Rear TireMaxxis Minion DHRII 27.5x2.4" 3C MaxxTerra, Double Down
TubesStan's Sealant
Seat PostRockShox Reverb AXS, 31.6
SaddleWTB Silverado Medium, Ti
Sizing Information
Hi SettingSMLXLXXL
Reach430mm455mm475mm495mm520mm
Stack607.3mm615.8mm629.4mm647.5mm665.6mm
Head Tube Angle64.8°64.8°64.8°64.8°64.8°
Seat Tube Length390mm405mm430mm460mm500mm
Front Center760.6mm780.9mm807.3mm835.8mm869.4mm
BB Height346mm346mm346mm346mm346mm
BB Drop8mmR:8 / F: 26.5R:8 / F: 26.5R:8 / F: 26.5R:8 / F: 26.5
Wheelbase1205.6mm1225.9mm1252.3mm1280.8mm1314.4mm
Rear Center445mm445mm445mm445mm445mm
Head Tube Length130mm100mm115mm135mm155mm
Top Tube Length571.4mm599mm623.6mm644.6mm673.5mm
Seat Tube Angle76.9°76.8°76.7°77°77°
Standover Height720mm745mm743.2mm741mm740.5mm
