The pinnicle of Specialized's full power mountainE.Bike range, the S.Works Levo is top flight performance from the very best or best.
The pinnicle of Specialized's full power mountainE.Bike range, the S.Works Levo is top flight performance from the very best or best.
Specialized

Specialized S-Works Turbo Levo Mountain E.Bike - Gloss Black Al/Chrome

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

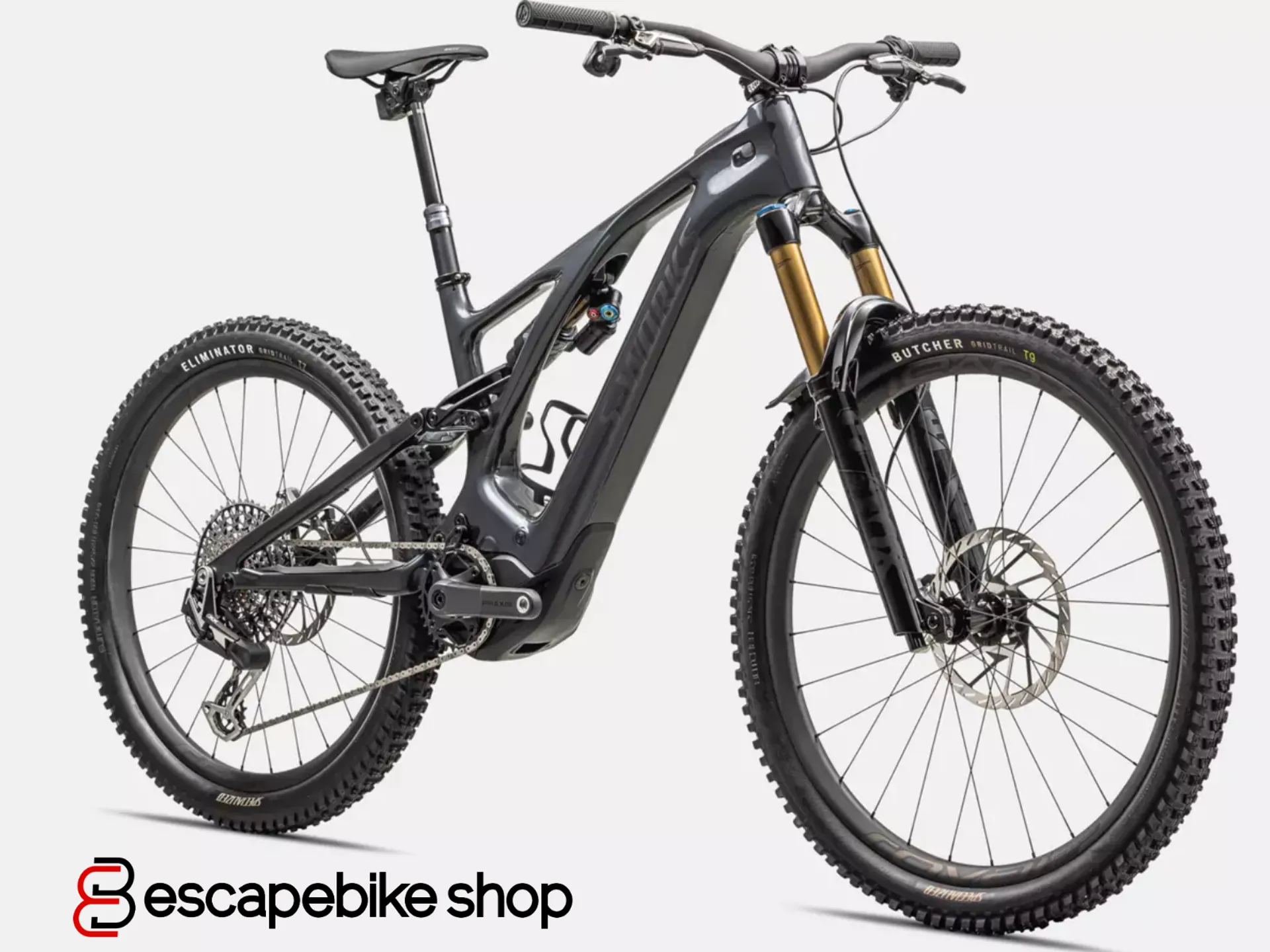

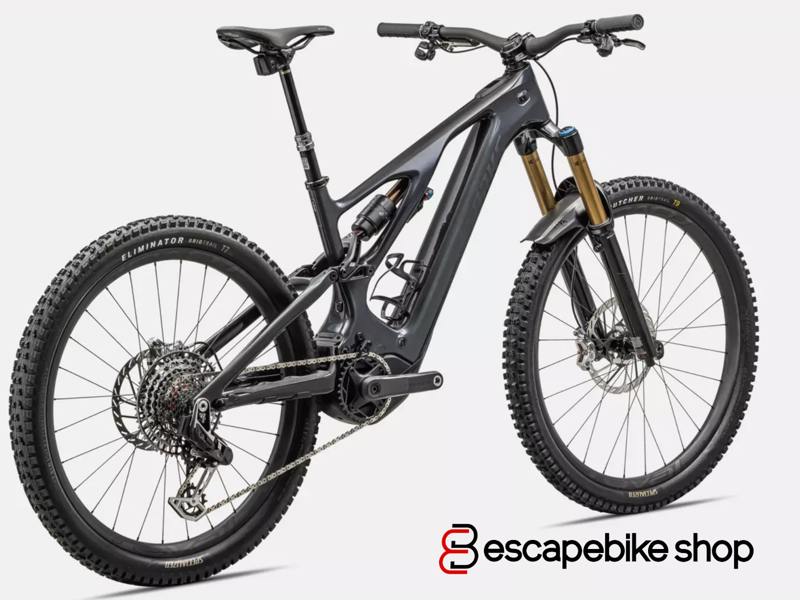

Specialized S-Works Turbo Levo Mountain E.Bike - Gloss Black Al/Chrome

Season:2023

Brand:Specialized

Code:398017352755

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

When nothing but the best will do, the top-shelf S-Works Levo is the bike to go for, specification highlights are:
  • SRAM XX T-Type Transmission
  • FOX Float 38 Grip2/ Float X2 Factory suspension
  • Roval Traverse SL wheelset
  • Rockshox Reverb AXS dropper
  • SRAM Code Stealth Ultimate brakes
Levo features and benefits found on the S.Works model are:
  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit delivercategory-leading 90 Nm of torque and565 watts of powerforup to five hours of ride time, empoweringyou to ride farther and faster than ever before.

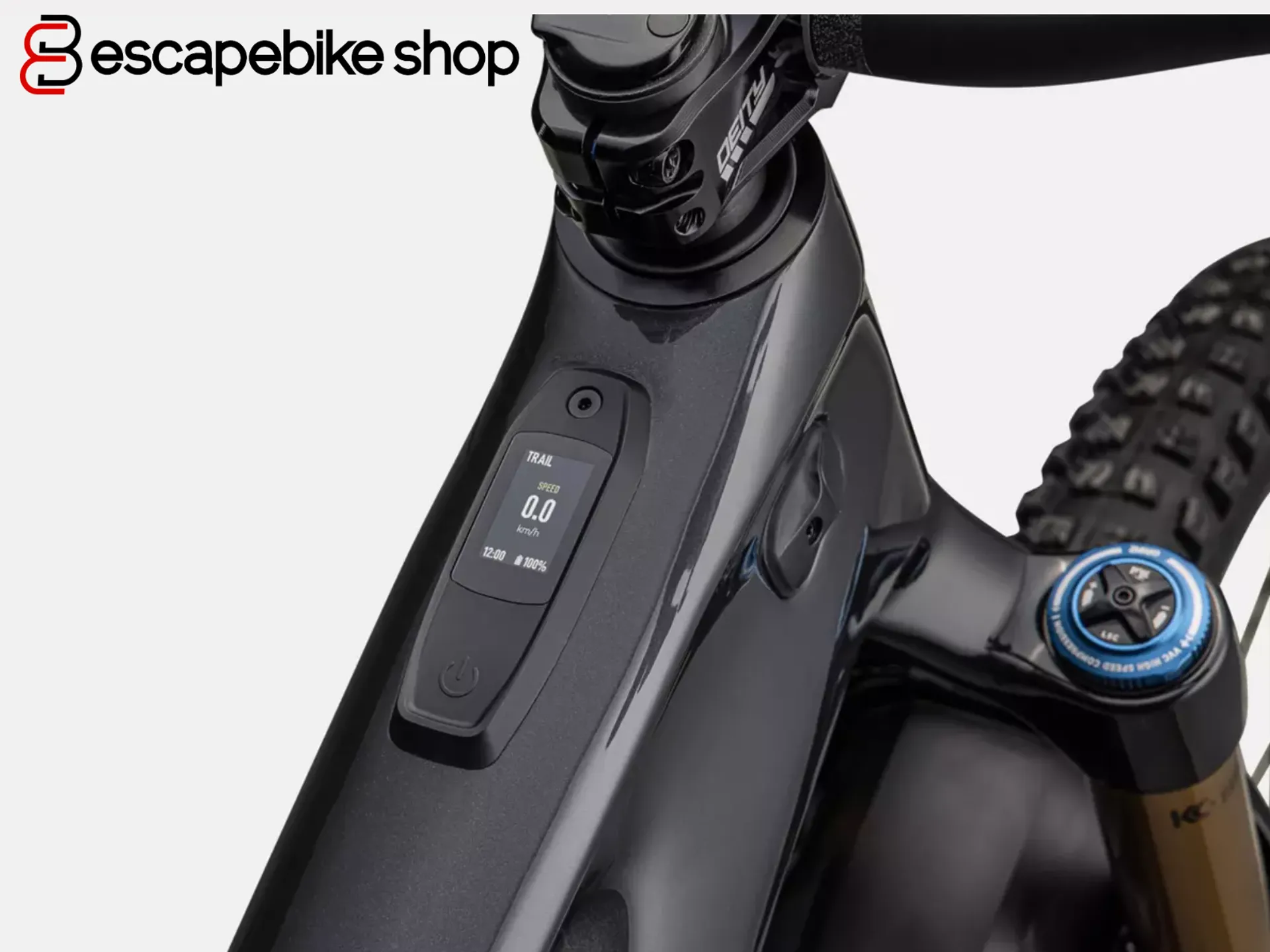

  • TheMasterMindTurboControlUnitis your information hub with customizable display fields, including the exact percentage of battery level, anditfeatures our all-new MicroTune function to adjust power delivery in 10% increments,so you get exactly the support you need to experience precisely the ride you want.
  • Adedicatedmixed-wheelsizedesign witha27.5” wheel in the back and 29” up front deliversanimble ride that carves circles around other full-powere-MTBs.A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easilydial-inits performance for anyridingstyleandany terrain. Headtubeangle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
  • Levo’s 150mm ofreartravel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimbleandmore flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Technical Information
Frameset
Seat Binder
Alloy, 38.6mm
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Suspension
Fork
Fox 38 Factory, Grip 2 damper, 29", 160mm travel, Kashima, 44mm offset
Rear Shock
Fox Float X2 Factory, Kashima, 210x55mm
Cockpit
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Grips
Deity Grips
Stem
Deity, 35.0mm
Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Brakes
Rear Brake
SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor
Front Brake
SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
Crankset
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm
Shift Levers
SRAM AXS POD Controller
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Chain
SRAM XX Eagle Transmission Flattop Chain
Wheels
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Rear Wheel
Roval Traverse SL 27.5, 148mm spacing, XD freehub body
Front Wheel
Roval Traverse SL Carbon 29
Inner Tubes
Standard, Presta Valve
E-bike
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Sizing Information
S1S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm
Seatpost Length125mm150mm175mm175mm200mm
Handlebar Width780mm780mm780mm780mm780mm
Stem Length35mm50mm50mm50mm50mm
Saddle Width155mm143mm143mm143mm143mm
Stack605mm617mm626mm635mm644mm653mm
Reach412mm432mm452mm477mm502mm532mm
Headtube Length105mm105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height352mm350mm350mm350mm350mm350mm
BB Drop25mm27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm130mm
Fork Length (full)557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center738mm760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Seat Tube Length380mm390mm405mm425mm445mm465mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
Geometry
