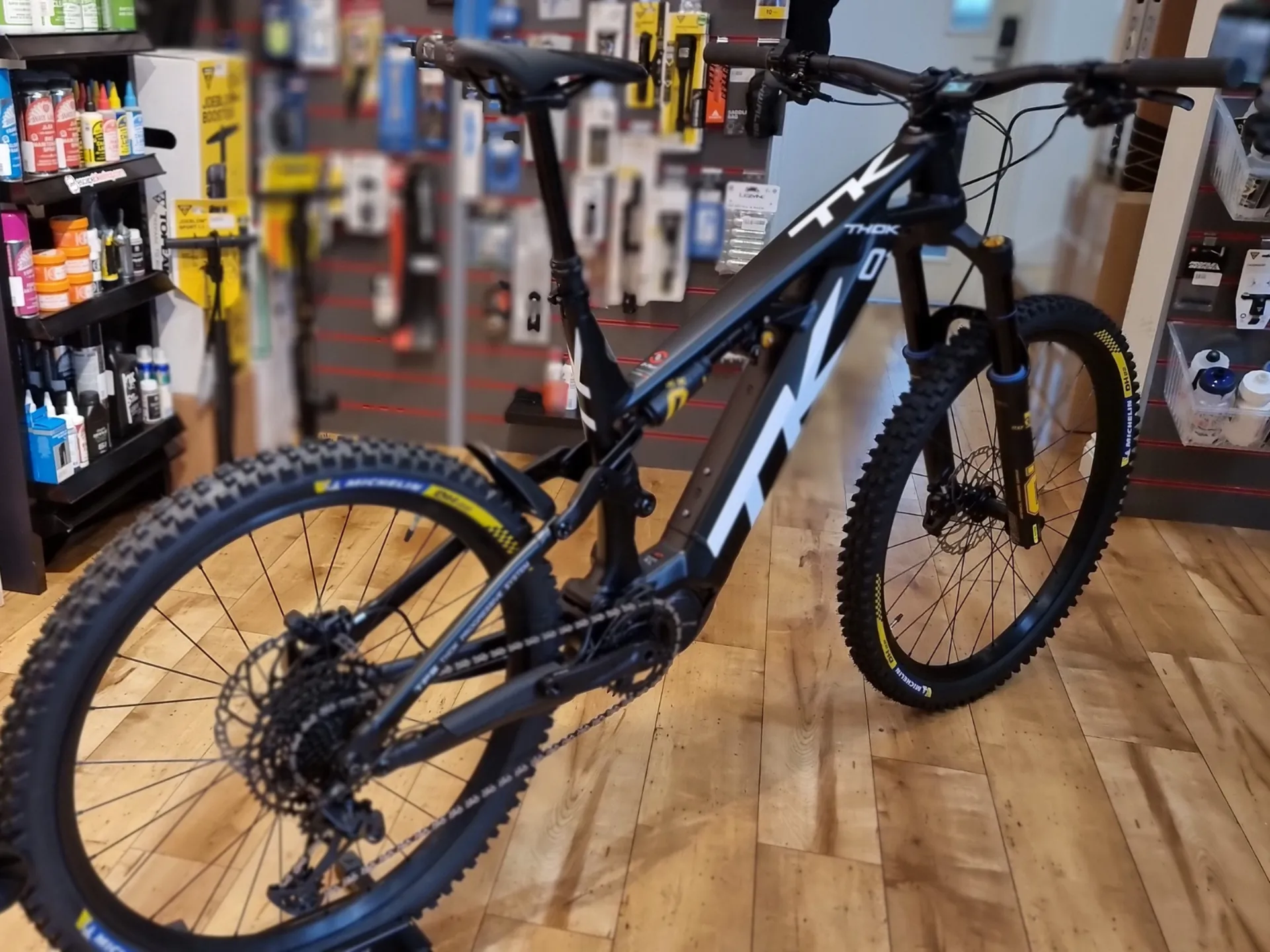

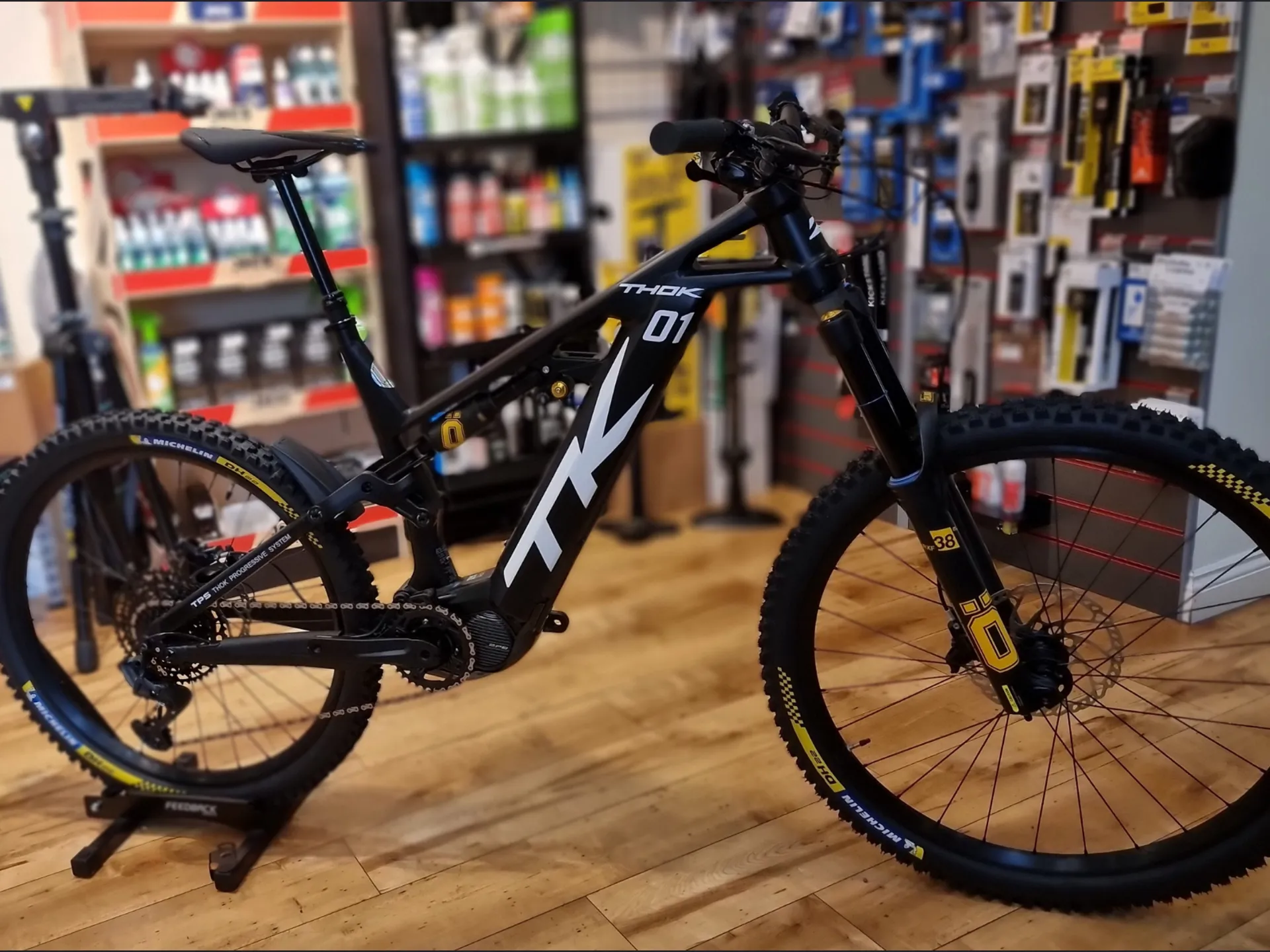

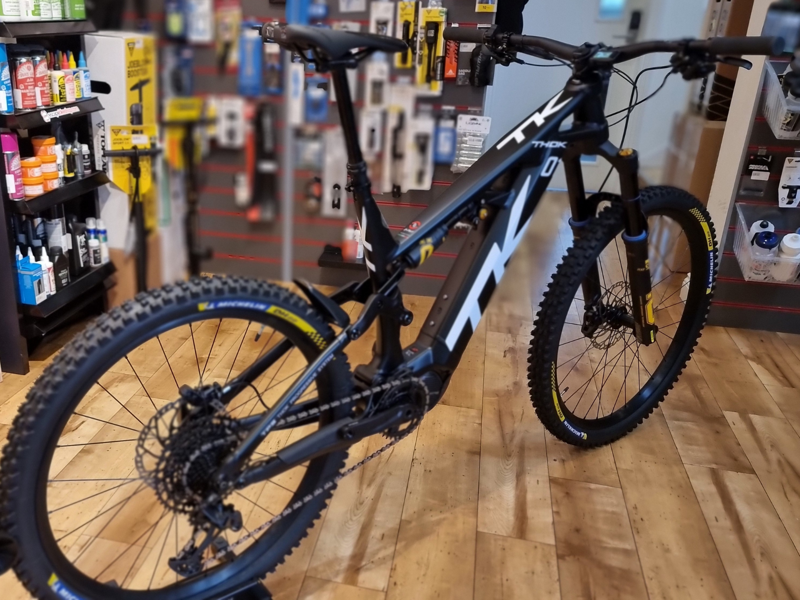

Custom Built in store, this bike is based around a X.Large Thok TK01 Ohlin Dream Frame Kit - We have assembled it with a nice functional specification using all brand new parts. The full spec can be seen in the specification section.
The TK01 Dream Kit is made for all riders who aim at having a truly exclusive e-bike: it’s a frame kit made to create the ultimate E.Bike, a performance-first starting point to build a unique and entirely customizable bike.
The kit includes: a TK01 frame, a complete Shimano EP8 85NM system with a 630WH battery; Ohlins very best air suspension and other top-quality components such as the FSA transmission kit and the carbon cover; Dream box.
TK01 Frame
TCG "THOK Control Geometry" Plus
Its the innovative geometry from thok represented by a longer top tube "Viper Head", and a new standard tapered head tube 1.8, with 64.5 head angle, straight seat tube of 75,5, ensuring riding comfort and total control on technical singletrack.
PFE "Precise Front End"
The new alloy hydroformed "Viper Head" top-tube, projected for the innovative tapered head-tube 1.8, and the rear connection to the verticalized down-tube, revolutionize the steering-area concept. Supreme stiffness and riding accuracy.
Lowered stand-over
Improved frame stiffness, increased handling, and easier saddle's height regulation.

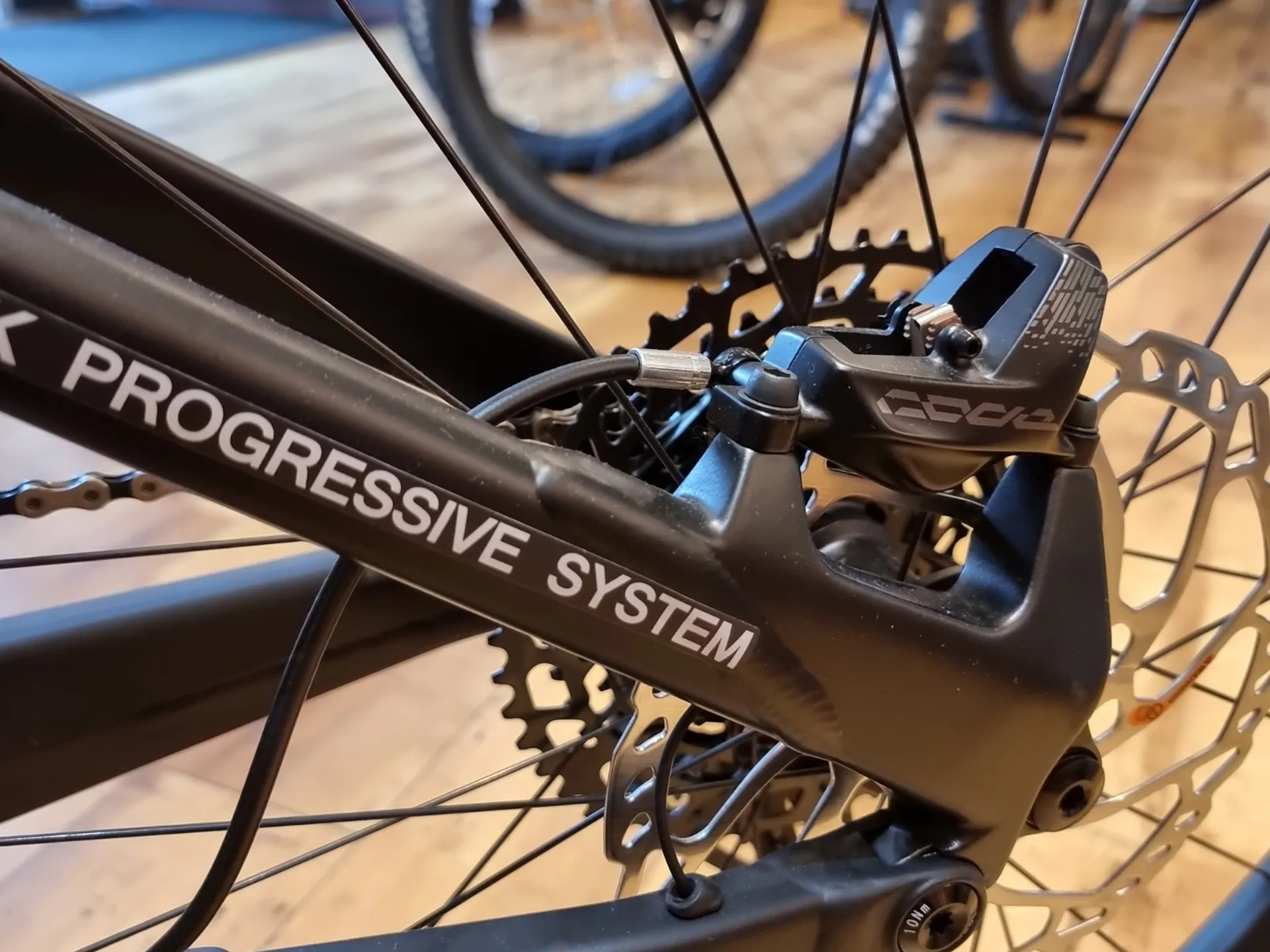

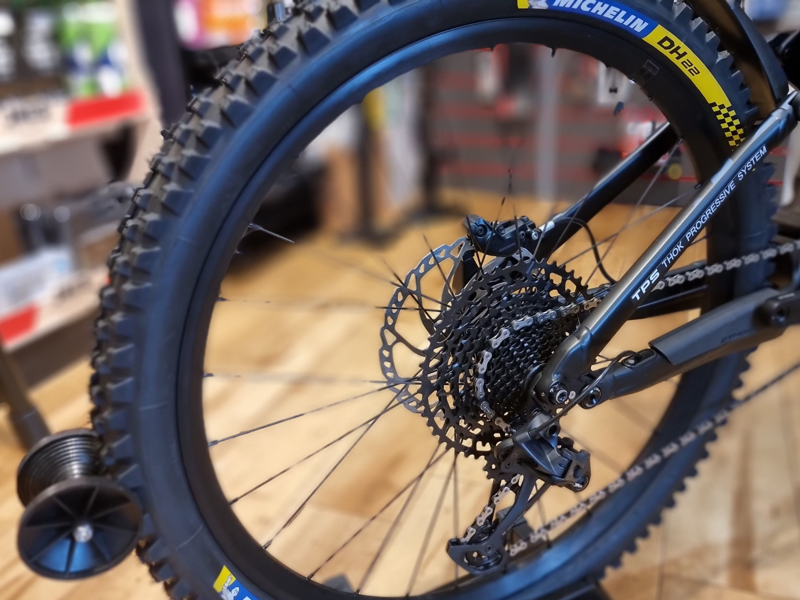

TPS "THOK Progressive System" Oversize
THOK's successful rear progressive system, designed for e-mtb, uses a metric rear shock and a dedicated rocker. The progressive suspension, together with the oversize chain stays, ensure rigidity, better handling, and perfect traction on all types of terrain.
THOK disk mount
For greater efficiency and powerful braking, the brake calliper has been mounted directly on the frame (without any adapter).
THOK integrated battery
The special design of the down tube and its vertical position integrate the new 630wh battery, allowing to place it close to the engine, in order to ensure a low centre of gravity - a highlight of THOK e-bikes' philosophy. This means longer rides uphill with the same fun on downhill trails. Rideability, handling, and reactivity to stay true to the claim performance first.
Comfy engine start
The easy touch button is placed under the top tube in a protected but easily-accessible position.
Shimano EP8 motor and complete system
Shimano EP8 motor
EP8 is the revolutionary second-generation engine produced by Shimano. With its 2.6 kg weight it is, to date, one of the lightest drive units available on the market and, thanks to the increase of the maximum torque to 85 nm and the reduction of friction by 36%, it ensures great riding power. Pedalling with fluid, direct and natural delivery, guaranteeing complete control of the bike.
EP8 complete system
- Remote control: SW-EM800.

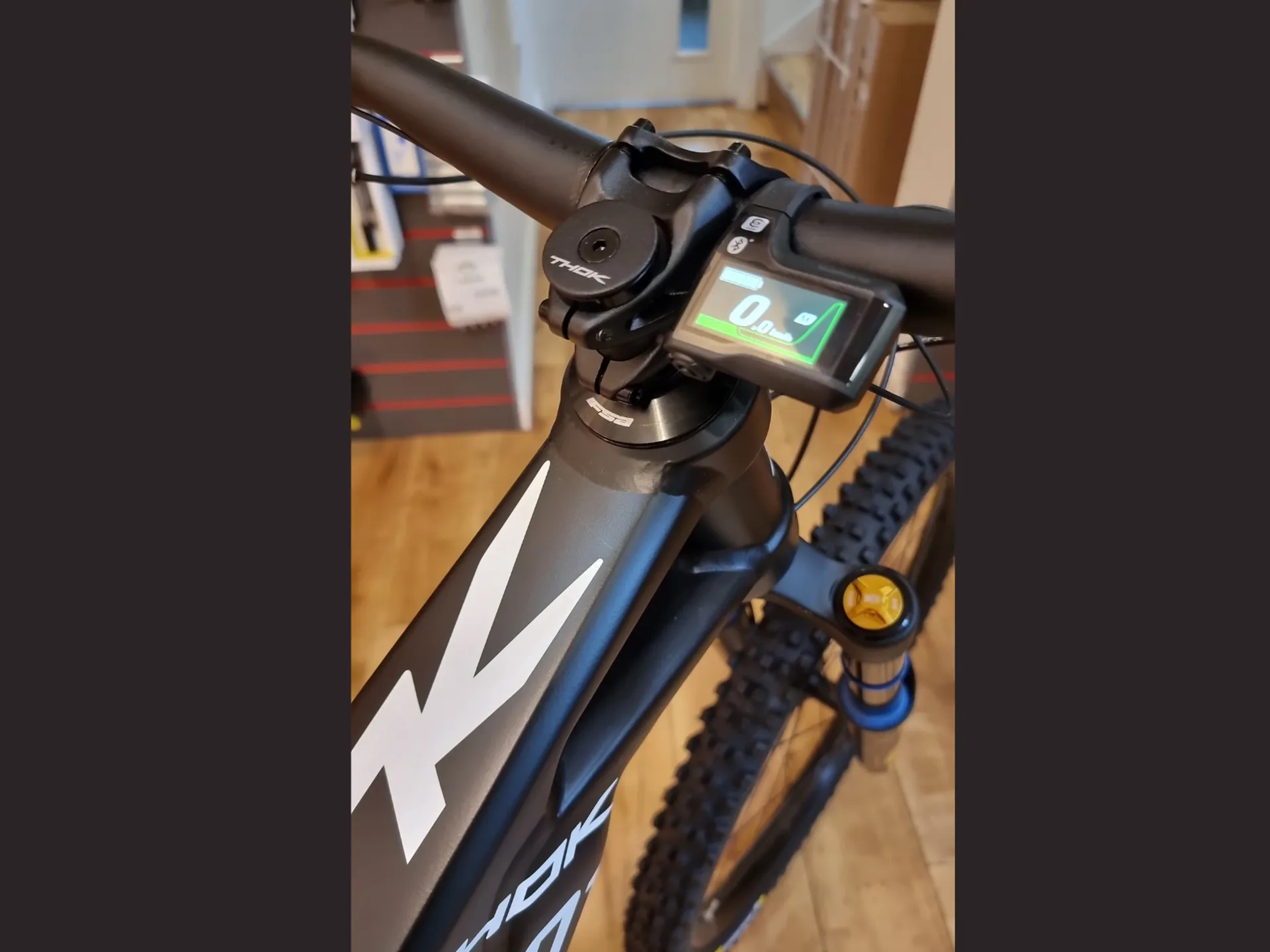

- Display: SC-EM800 colour.
- 630wh semi-integrated battery with supports Shimano wiring.
- Motor and battery cover in carbon fibre.
Öhlins suspension

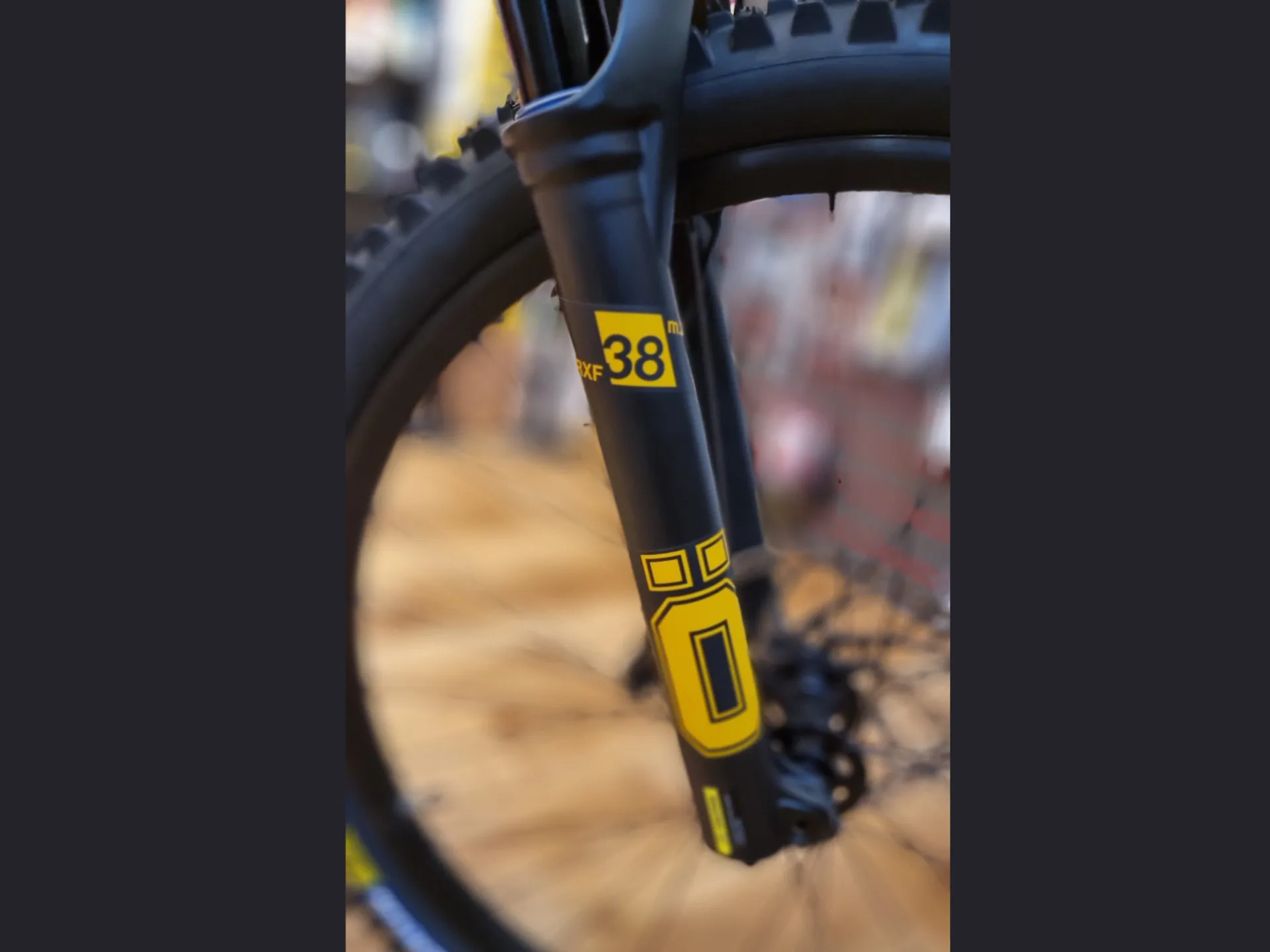

- Fork: RXF 38 m2 29 180mm - air.
- Rear shock: TTX2 170mm - air.
Dream box
- THOKcare: double the warranty of your thok frame.
- Exclusive accessories: water bottle, bottle cage, dropout, multitool, suspension pump, keychain, lasered cup, stickers set
- Libellum: THOK certificate that certifies the uniqueness of your TK01.
Sizing
| Small | 154-167cm |
| Medium | 168-177cm |
| Large | 178-184cm |
| X.Large | >185cm |
This size table based on your height is only a suggestion. The optimal frame size also depends on other physical characteristics and personal riding style.
