For 2024 Whyte have really hit the ball out the park with what a light weight E.bike can be like, with a real world 16kg weight, yet the power and capability to still push the limits of where a MTB can take you. This is the creme de la creme!
For 2024 Whyte have really hit the ball out the park with what a light weight E.bike can be like, with a real world 16kg weight, yet the power and capability to still push the limits of where a MTB can take you. This is the creme de la creme!
Whyte Bikes

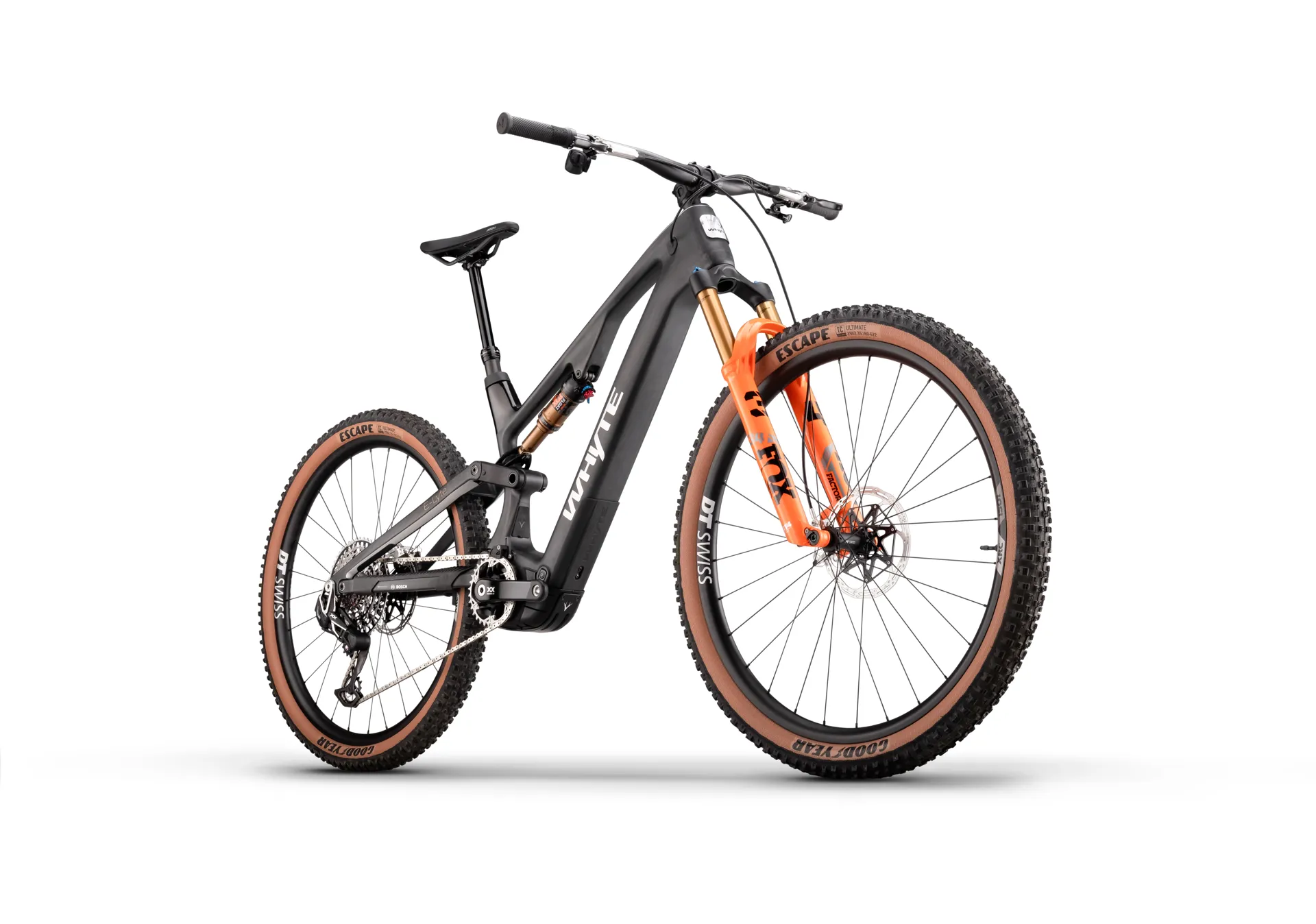

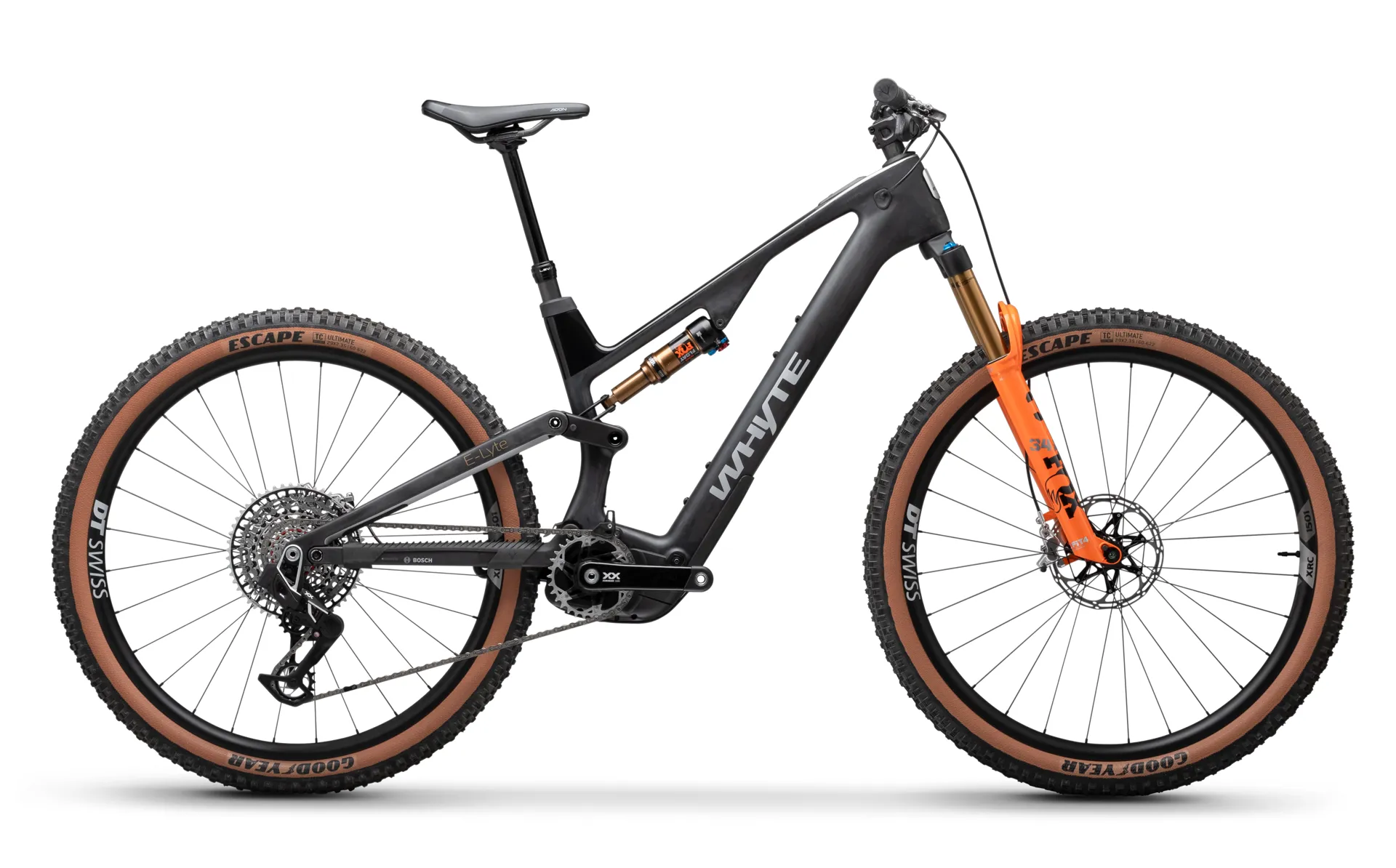

Whyte E-Lyte 140 Works Mountain E.Bike - Matt UD Carbon/Black

£10,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

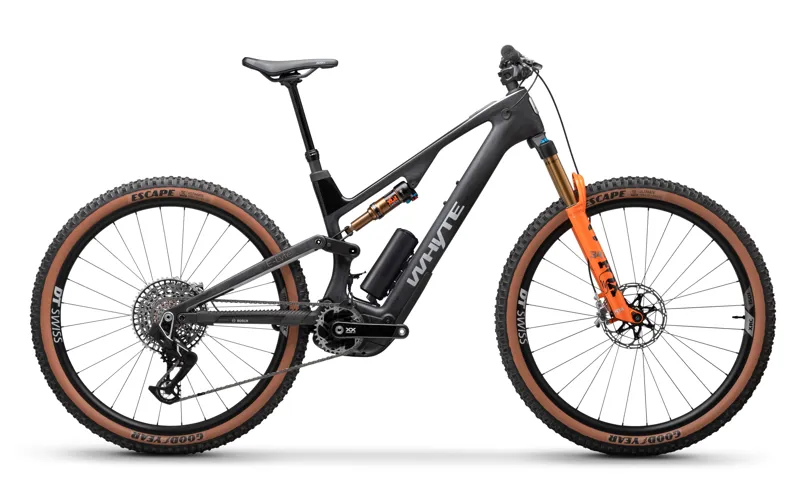

Whyte E-Lyte 140 Works Mountain E.Bike - Matt UD Carbon/Black

Season:2024

Brand:Whyte Bikes

Code:EL140WMATUDCBNGLSBLK

Lightweight without compromise

The E-Lyte 140 Works is our lightest ever electric mountain bike (eMTB): at 16.4kg complete (size M) with 55Nm of torque, together with 600W of peak power, it perfectly blends lightweight cross country (XC)/trail bike performance with the capability of full power eMTBs to deliver an unparalleled and uncompromised ride, wherever the trail leads you: the singletrack, the all-day epic, the home trail hot laps, the descents and the climbs back out – andwith a total combined battery capacity of 650Wh, it has the range to do it all. E-Lyte 140 Works: lightweight, mid-torque, full power. Zero compromises.

Confidence by design
This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.
Made for riding –not headlines
We've not taken any shortcuts when it comes to assembling the finest trail-proven parts possible for the E-Lyte 140 Works. Nothing that has been put on that compromises performance just to save a few grammes to grab a headline: SRAM's top-shelf XX SL T-Type AXS 1x12 delivers flawless wireless electronic gearing; Fox Float Factory suspension units deliver the ultimate in suspension performance; SRAM Level Ultimate Stealth four-pot hydraulic disc brakes with 180mm rotors for rich, useable power; full-width 800mm wide RaceFace NEXT R bars for maximum control; a full 175mm drop KS Lev Ci post for real-world trail drop; and more.
Beautifully light, reassuringly strong

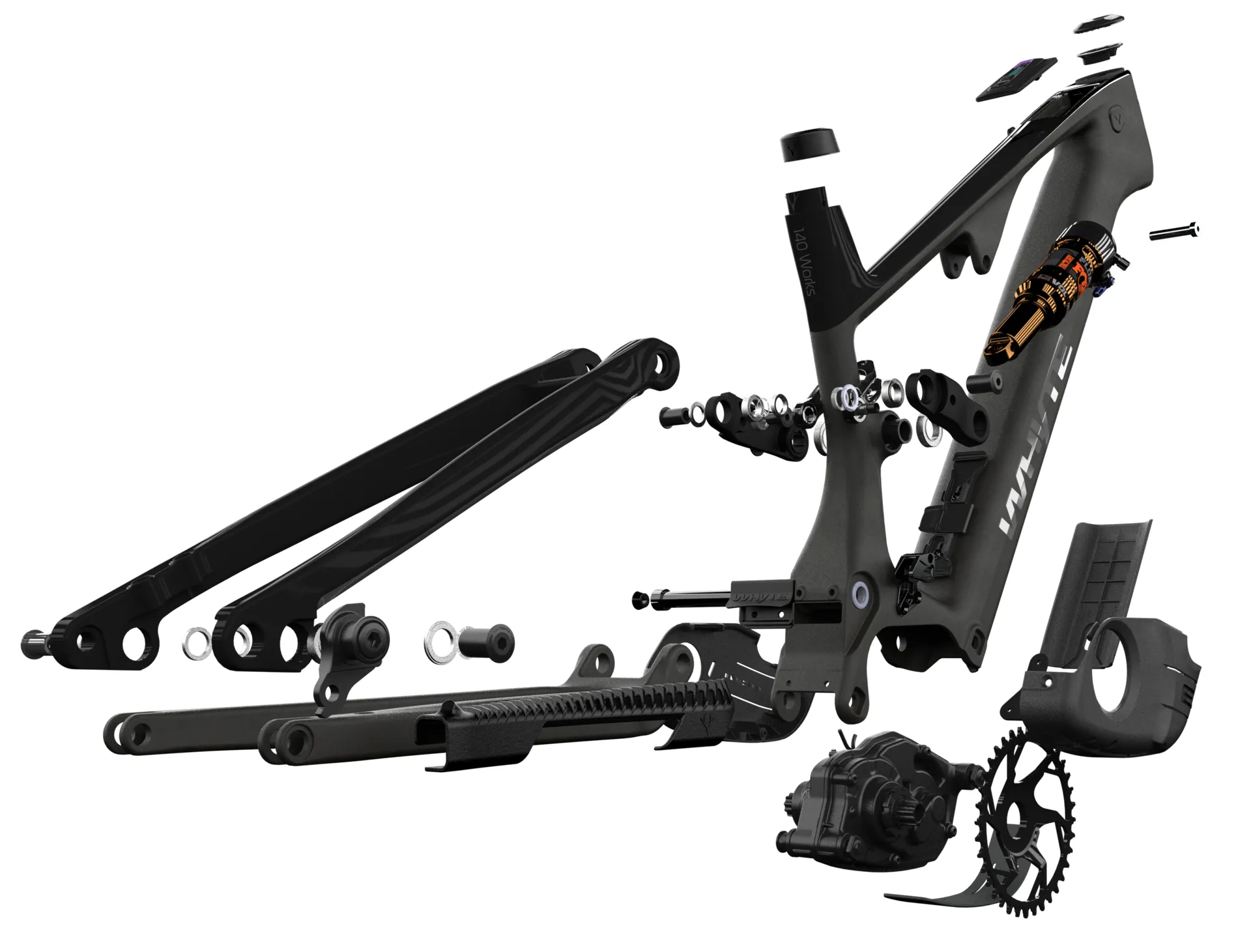

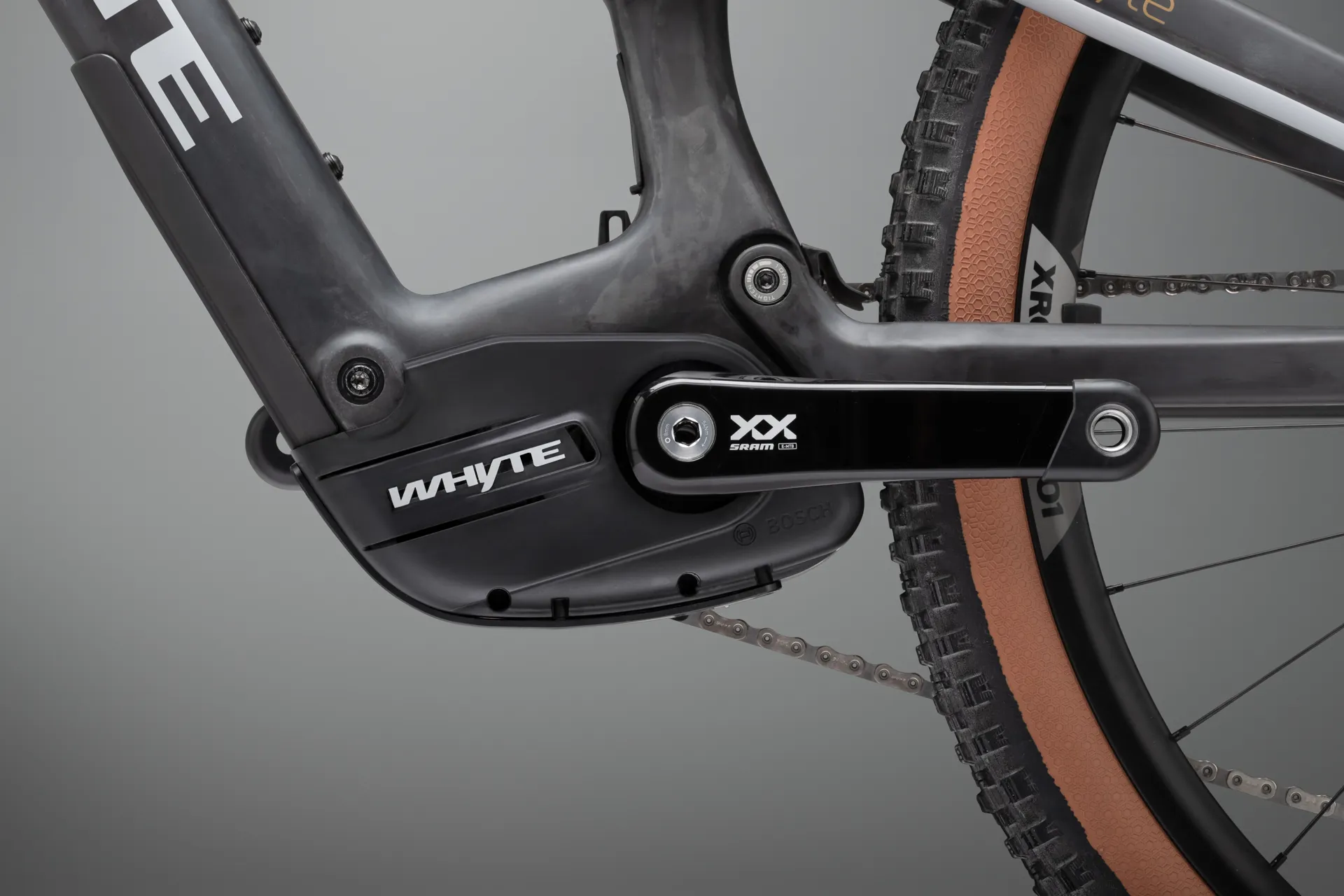

The beating heart of the E-Lyte 140 Works is an all-new, lightweight yet strong carbon fibre chassis that carefully packages Bosch's light and powerful Performance Line SX mid-torque (55Nm), full power (600W) motor – and the 400Wh internal battery –seamlessly so you can fly under the radar as stealthily as you'll fly down the trails. We've also carefully positioned the Bosch PowerMore range extender as low in the frame as possible to optimise the bike's centre of gravity and deliver an exceptional handling bike, however you want to ride – with the range extender for longer rides out in the hills, or without for lapping your local trails.
Your bike, your way

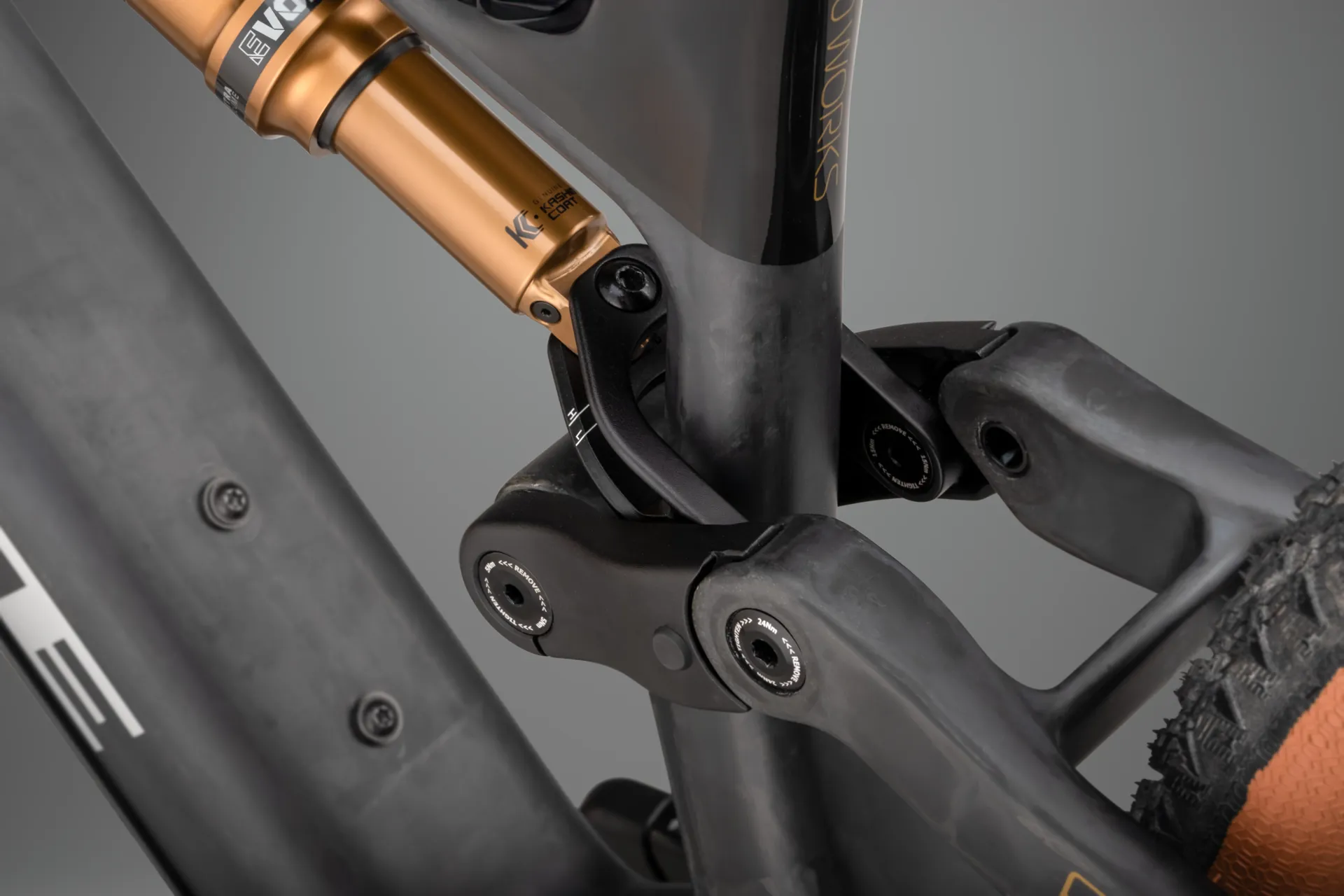

We’ve engineered the E-Lyte 140 Works to give you the option to set it up and ride it as you want. Want more battery? The E-Lyte 140 Works comes with Bosch’s 250Wh PowerMore range extender – that mounts in the lower bottle boss position. Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 400ml bottle (on sizes M-XL) – even with the PowerMore in place. Or you can use the Fidlock mounts for tool or tube mounting (all sizes). Want to slacken the geometry out? The ‘Shape.it Link V2’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins. Want to pedal further? Keep it in its higher, more all-day ride-friendly position.

Highlights

  • 140mm front + 135mm rear of efficient custom-tuned suspension travel.
  • Uni-directional carbon fibre frame is light and reassuringly strong.
  • Bosch Performance Line SX lightweight, mid-torque (55Nm), full power (600W) motor.
  • 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
  • FOX Float 34 Factory Fork and Float Factory shock
  • SRAM XX SL T-Series AXS Transmisson
  • 29er Carbon wheels front and rear for balanced handling.

eBike specification
  • Bosch Performance Line SX drive unit, 55Nm maximum torque, 600W peak power. Features four power settings including Tour+, that allows riders to focus on riding whilst being economic on power usage, and e-MTB mode which automatically adjusts the motor's level of support to the terrain as you ride.
  • Bosch Compact PowerTube 400Wh, integrated within the downtube as the lowest point for stability and control.
  • Bosch PowerMore 250Wh (included with E-Lyte Works bikes).
  • Bosch System controller mounted in the top tube, paired with bar-mounted Mini Remote.
  • 4A Compact Charger (230V).

Bike Classification Grading: 3 Trail
This bike is intended for cross country (XC) riding on rough off-road trails which require technical skils where loss of contact between the wheels and surface may occur –up to 61cm (24in) or less.


Technical Information
eBike motorBosch Performance Line SX drive unit, 55Nm maximum torque, 600W peak power. Features four power settings including Tour+, that allows riders to focus on riding whilst being economic on power usage, and e-MTB mode which automatically adjusts
eBike displayBosch System controller mounted in the top tube, paired with bar-mounted Mini Remote
eBike batteryBosch Compact PowerTube 400Wh, integrated within the downtube as the lowest point for stability and control + PowerMore 250Wh Range Extender (included)
eBike battery chargerBosch’s 4A Compact Charger (230V)
FrameUni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 Guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
ForkFox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost E-thru-axle

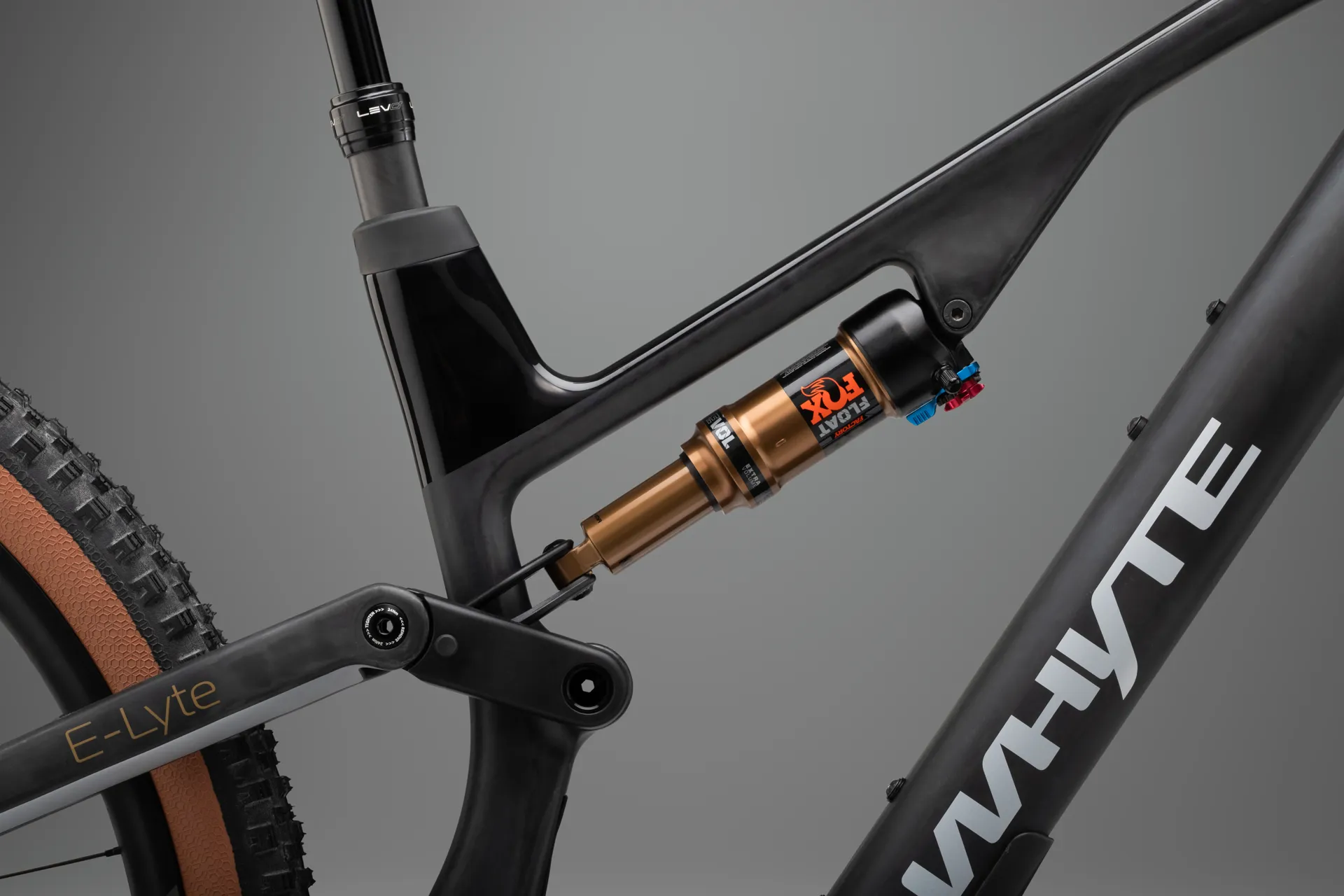

ShockFox Float Factory, Evol LV, adjustable rebound and three position compression
HeadsetFSA No.69/SRS 1-1/8in/1.5in ACB - with 15mm top cover - side entry internal routing
Rear HubDT SWISS 240, straight pull, six bolt, 15 x 110mm
Front HubDT Swis Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost
SpokesDT SWISS Competition spokes straight pull (SP)
RimsDT SWISS XRC 1501 Spline
TyresGood Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear
Shift LeversSRAM AXS Pod, right, MMX
Rear DerailleurSRAM XX SL T-Type AXS
CassetteSRAM XS 1297, T-Type, 10-52T
ChainSRAM XX T-Type, 12 speed

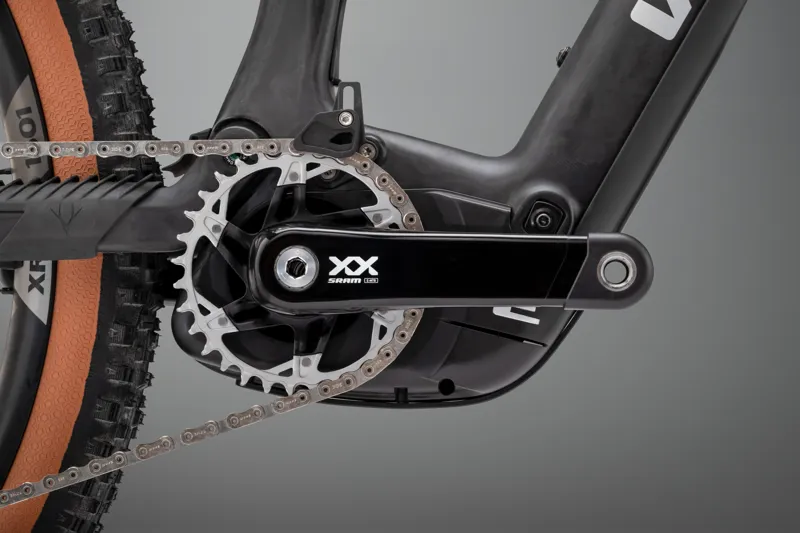

CranksetSRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T, T-Type Light eMTB
Bottom BracketN/A
SeatpostKS Lev Ci, 30.9mm - 175mm drop, with Southpaw remote
SeatFizik Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail
BarRace Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide
StemWhyte Trail Full CNC, 40mm Extension, 35 Bar bore
GripsWhyte Lock-on Enduro

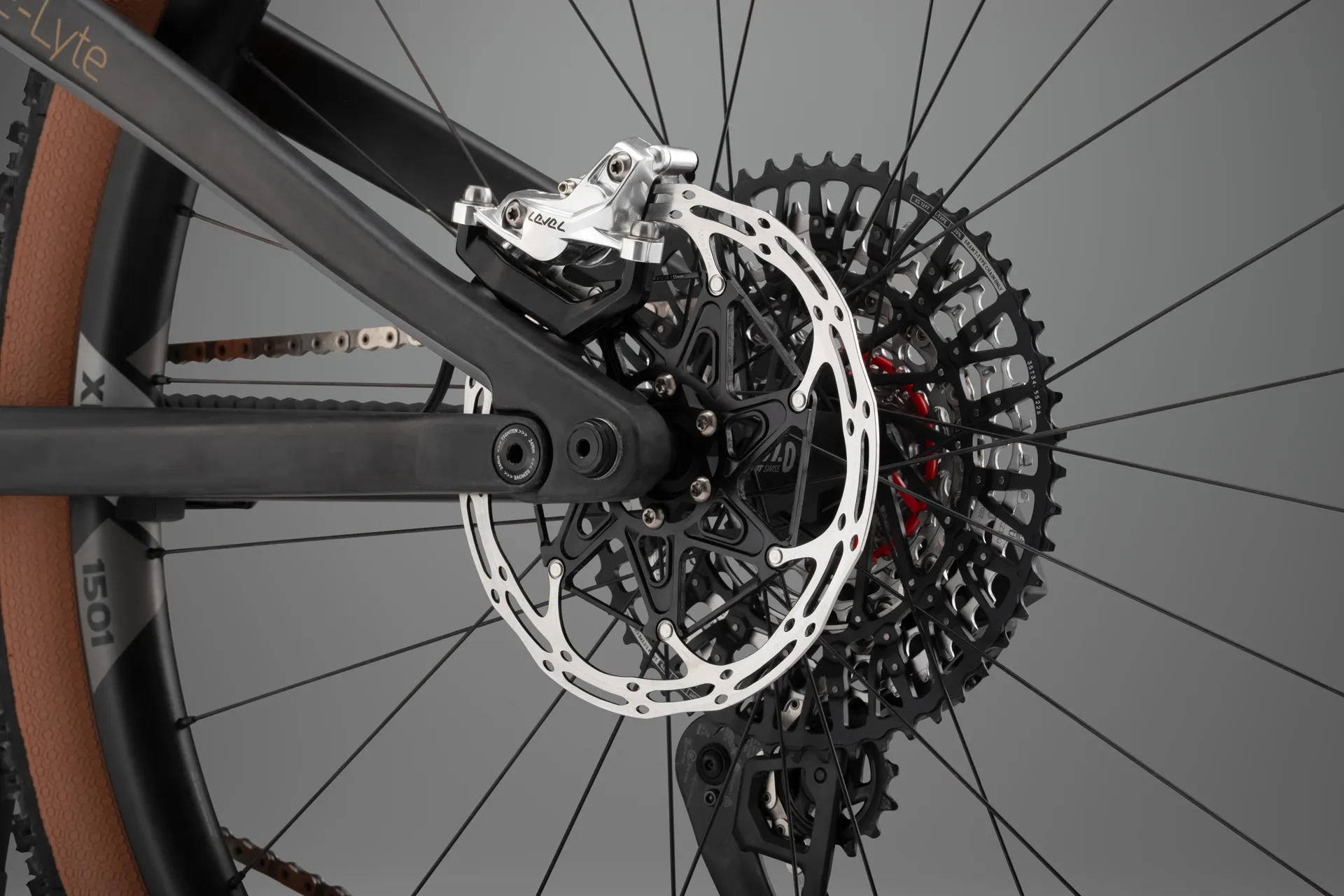

Front BrakeSRAM Level Ultimate Stealth, four Piston, 180mm disc
Rear BrakeSRAM Level Ultimate Stealth, four Piston, 180mm disc
PedalsClick here to choose an upgrade pedal
Weight16.4Kg
Sizing Information
SmallMediumLargeX.Large
Head angle (deg)64.4 (65)64.4 (65)64.4 (65)64.4 (65)
Seat angle (deg)77.977.977.977.9
Top tube (mm)562591619648
BB height (mm)331 (339)331 (339)331 (339)331 (339)
Stand over (mm)739739739739
Wheelbase (mm)1208123812691299
Chainstay (mm)450450450450
Seat post (mm)30.930.930.930.9
Head tube (mm)114127140152
Seat tube (mm)395420445470
