Marin have simplified the world famous Alcatraz by fitting a rigid fork and easy to adjust mechanical disc brakes, now this great bike is even more affordable.
Marin have simplified the world famous Alcatraz by fitting a rigid fork and easy to adjust mechanical disc brakes, now this great bike is even more affordable.
Marin

Marin Alcatraz 1 Dirt Jump Bike - Blue/ Blue Fade

£899.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

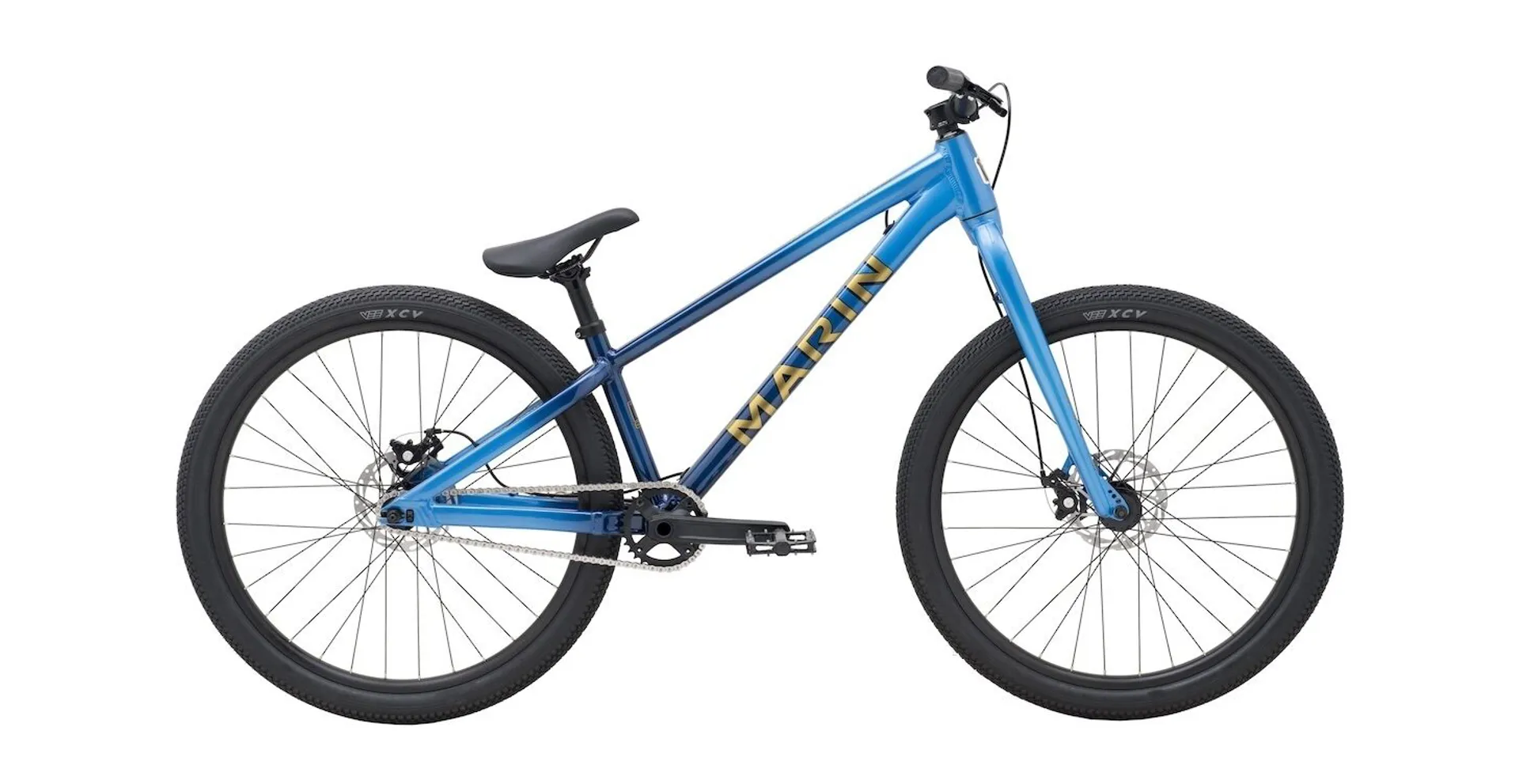

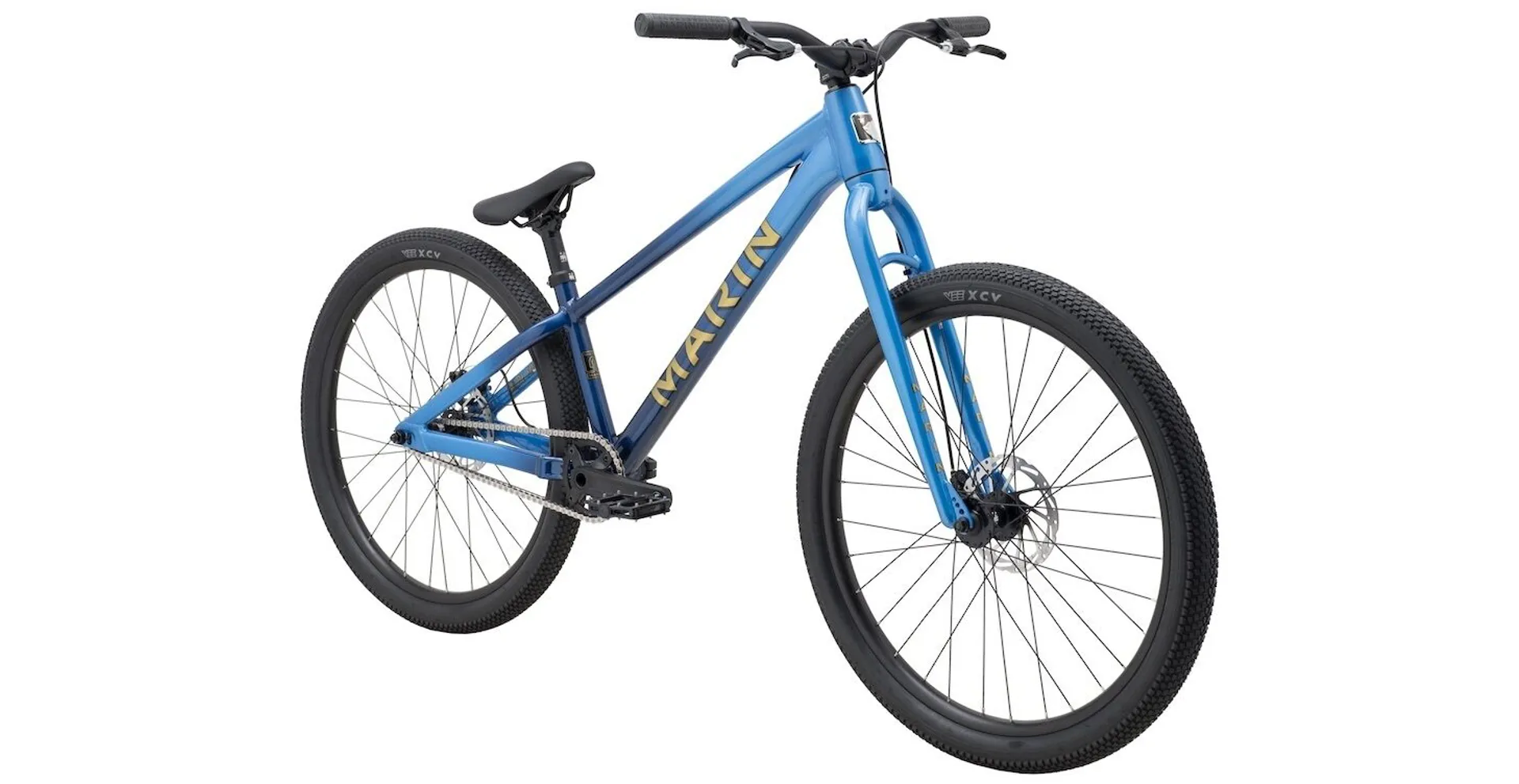

Marin Alcatraz 1 Dirt Jump Bike - Blue/ Blue Fade

Season:2025

Brand:Marin

Code:7391160BLUFADE

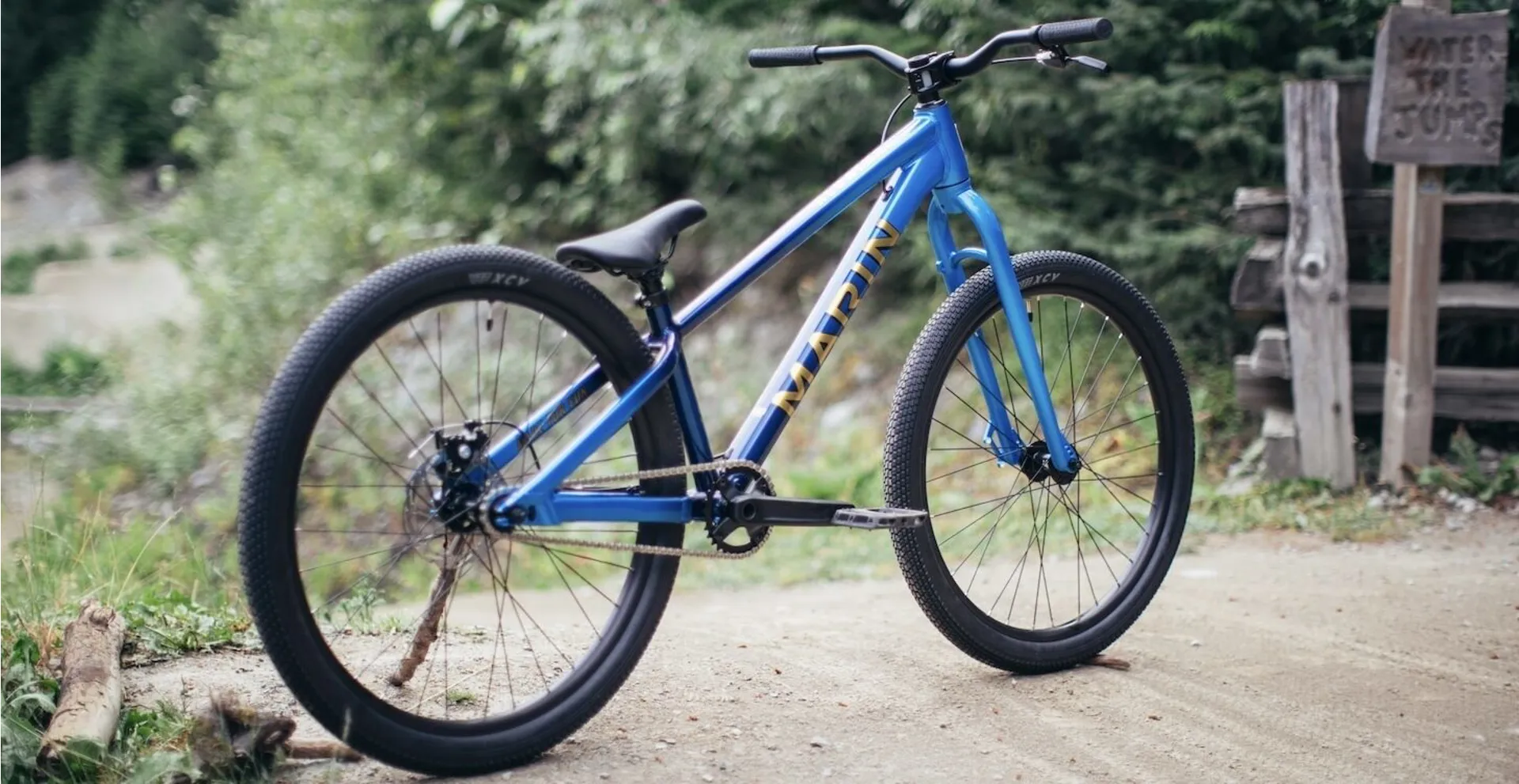

The Alcatraz 1 allows the rider to follow in Matt Jones’ footsteps to build and personalize the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park the Alcatraz has what you need to take care of business.

The Series 3 aluminum frame is built for the hard knocks and is stiff enough for lightning-fast acceleration and tough enough for the heavy hits. Short stays keep manuals easy and ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork, front and rear Tektro disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.

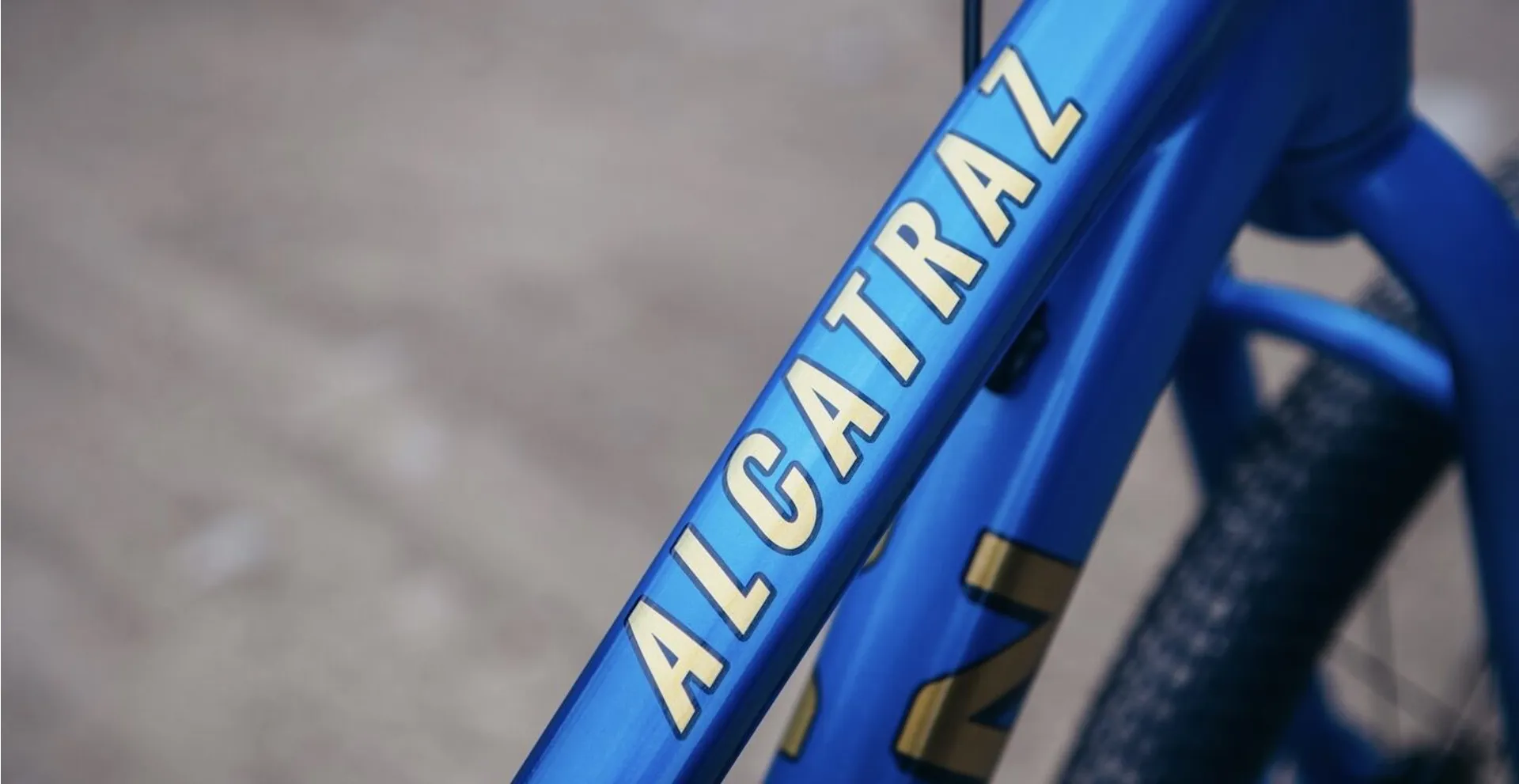

  • SERIES 3 ALUMINUM FRAME - The Alcatraz features a 6061 Series 3 alloy frame, with a burly double butted tubesets for the best ride quality and stiffness, tapered headtubes for maximum strength on big jumps, and horizontal drop out with slotted IS disc brake tabs.
  • SHORT CHAINSTAYS - We have optimized the chainstay length of the Alcatraz to make sure you can have the shortest chainstays possible, giving you the ability to pop a wheelie or manual anywhere at anytime.

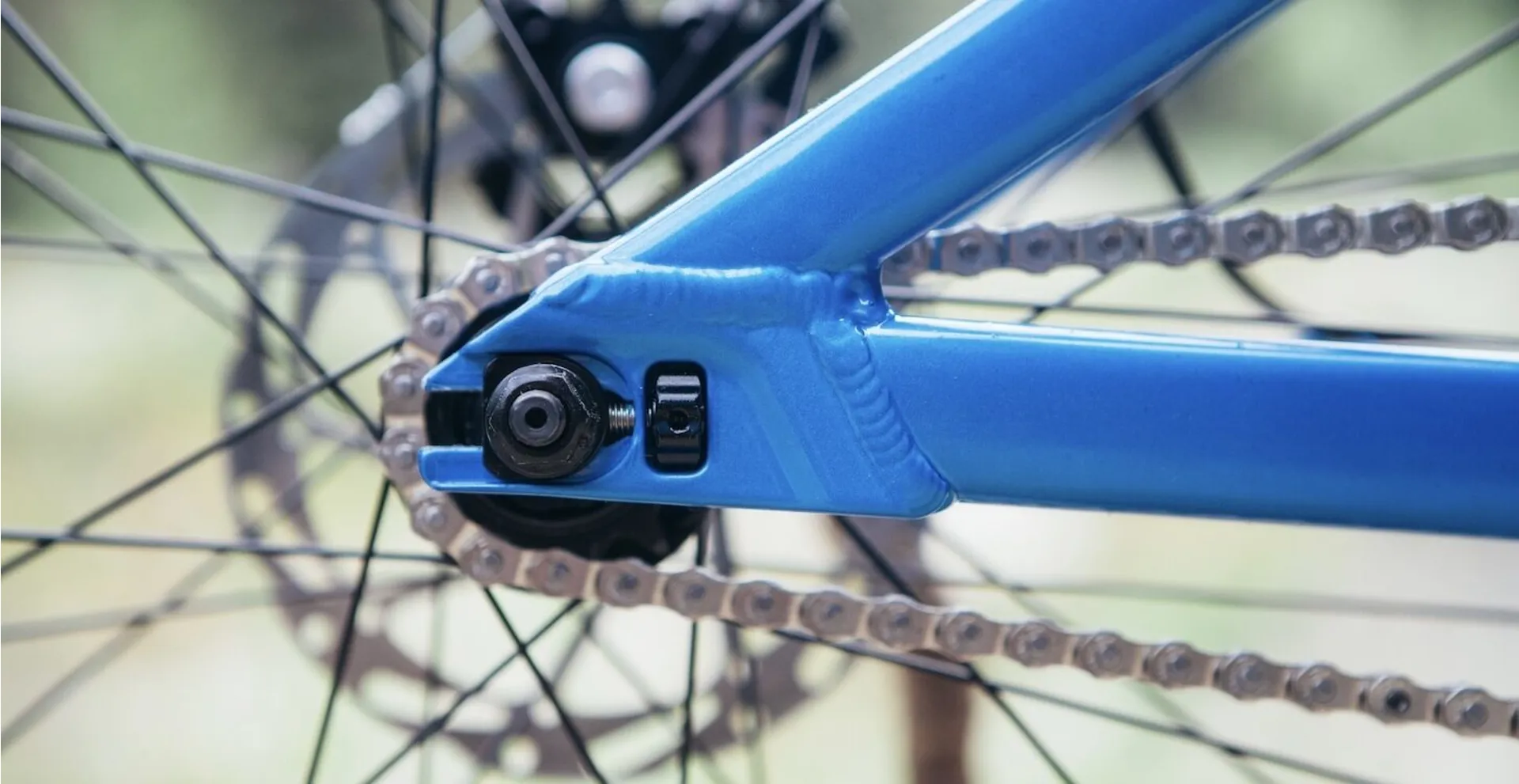

  • 135X10MM HORIZONTAL DROPOUTS - The Alcatraz features 135x10mm horizontal dropouts — the standard in dirt jump technology for axle and dropout strength.
  • DIRT JUMP SPECIFIC SUSPENSION FORK - 100mm travel X-Fusion Slant DJ-specific fork with air spring, compression and rebound damping, and tapered alloy steerer tube.
Technical Information
  • FRAME
    Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
  • FRONT SUSPENSION
    Marin Series 2 CroMo 26", Suspension Corrected, 100x9mm Dropouts
  • REAR SUSPENSION
    -
  • RIMS
    Marin Custom Extrusion, 27mm Inner, Pinned Joint
  • HUB, REAR
    Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
  • HUB, FRONT
    Forged Alloy, 110x20mm, Disc, 32H
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    Vee Tire Co. XCV 26x2.25”, LSG Compound, Wire Bead
  • DERAILLEUR, REAR
    -
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    -
  • CRANKSET
    Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD
  • BOTTOM BRACKET
    External Sealed Cartridge Bearings
  • CHAIN
    KMC HL-1
  • CASSETTE
    14T Single Speed Cog
  • BRAKE, FRONT
    Tektro MD-M280 Mechanical Disc 160mm Rotor
  • BRAKE, REAR
    Tektro MD-M280 Mechanical Disc 160mm Rotor
  • BRAKE LEVERS
    Tektro CL-330TS Alloy
  • HANDLEBAR
    Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back
  • STEM
    Marin 3D Forged Alloy, 40mm
  • GRIPS
    Marin MTN, Closed End
  • HEADSET
    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • SEATPOST
    Marin Alloy, 30.9mm
  • SADDLE
    Marin DJ Saddle
  • PEDALS
    Alloy Platform
  • EXTRAS
    Marin Chain Tension Device
Sizing Information
ShortLong
Stack575580
Reach385430
Headtube Angle69°69°
Headtube Length115120
Seattube Angle69°69°
Seattube Length320320
Toptube Effective600646
BB Height317317
BB Drop2222
Chainstay395395
Wheelbase10371083
Standover Height370400
Fork Offset4242
Seatpost Diameter30.930.9
Handlebar Width750750
Stem Length4040
Crank Length170170
