Put a mega component and suspension package on the super capable Rift Zone chassis and you get a bike for all occasions, this bike can crunch the miles or rip the most techy trails out there
Put a mega component and suspension package on the super capable Rift Zone chassis and you get a bike for all occasions, this bike can crunch the miles or rip the most techy trails out there
Marin

Marin Rift Zone XR 27.5 Mountain Bike - Gloss Black/ Grey

£3,799.00
Size Guide
Marin Rift Zone XR 29 Mountain Bike - Gloss Black/ Grey
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

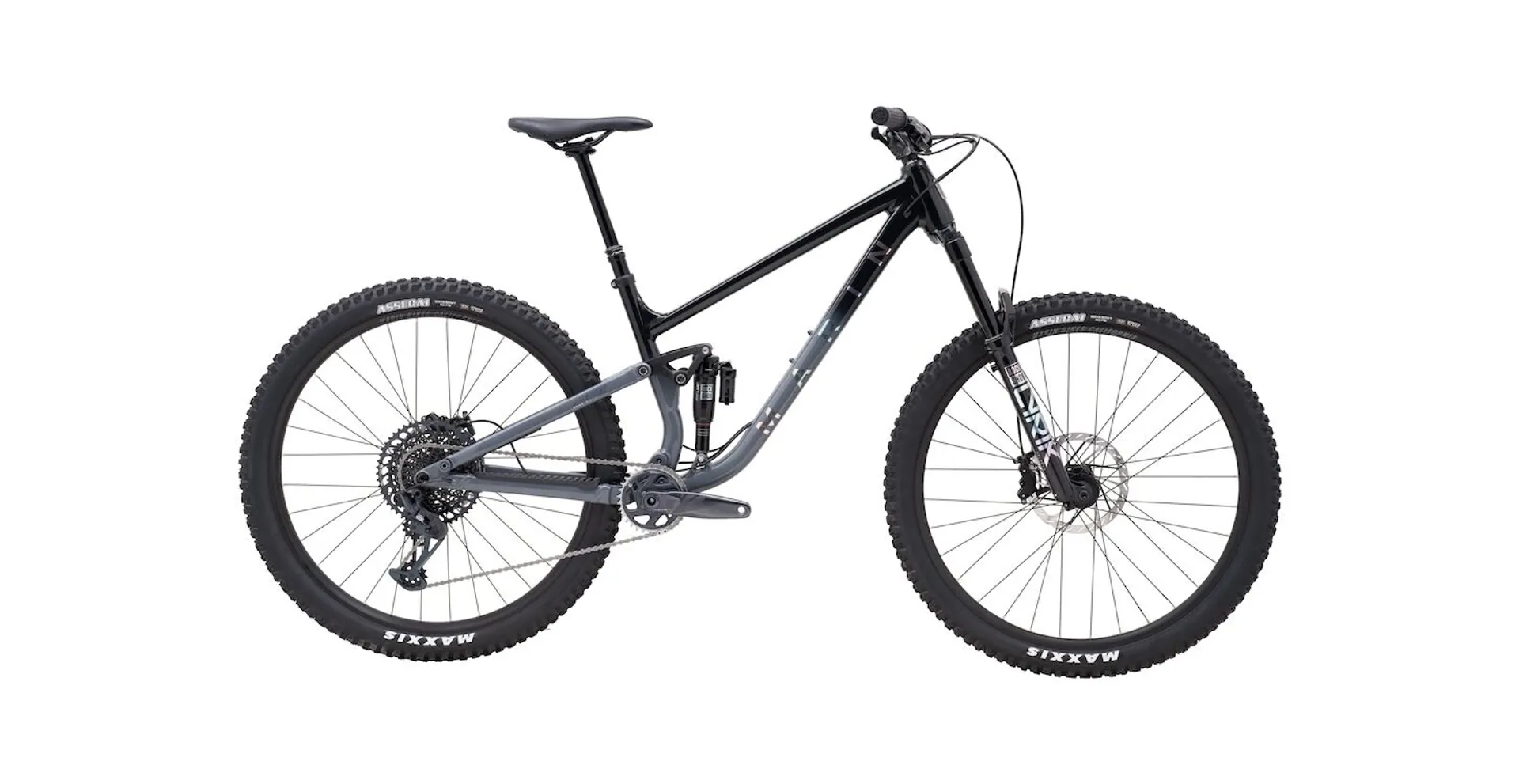

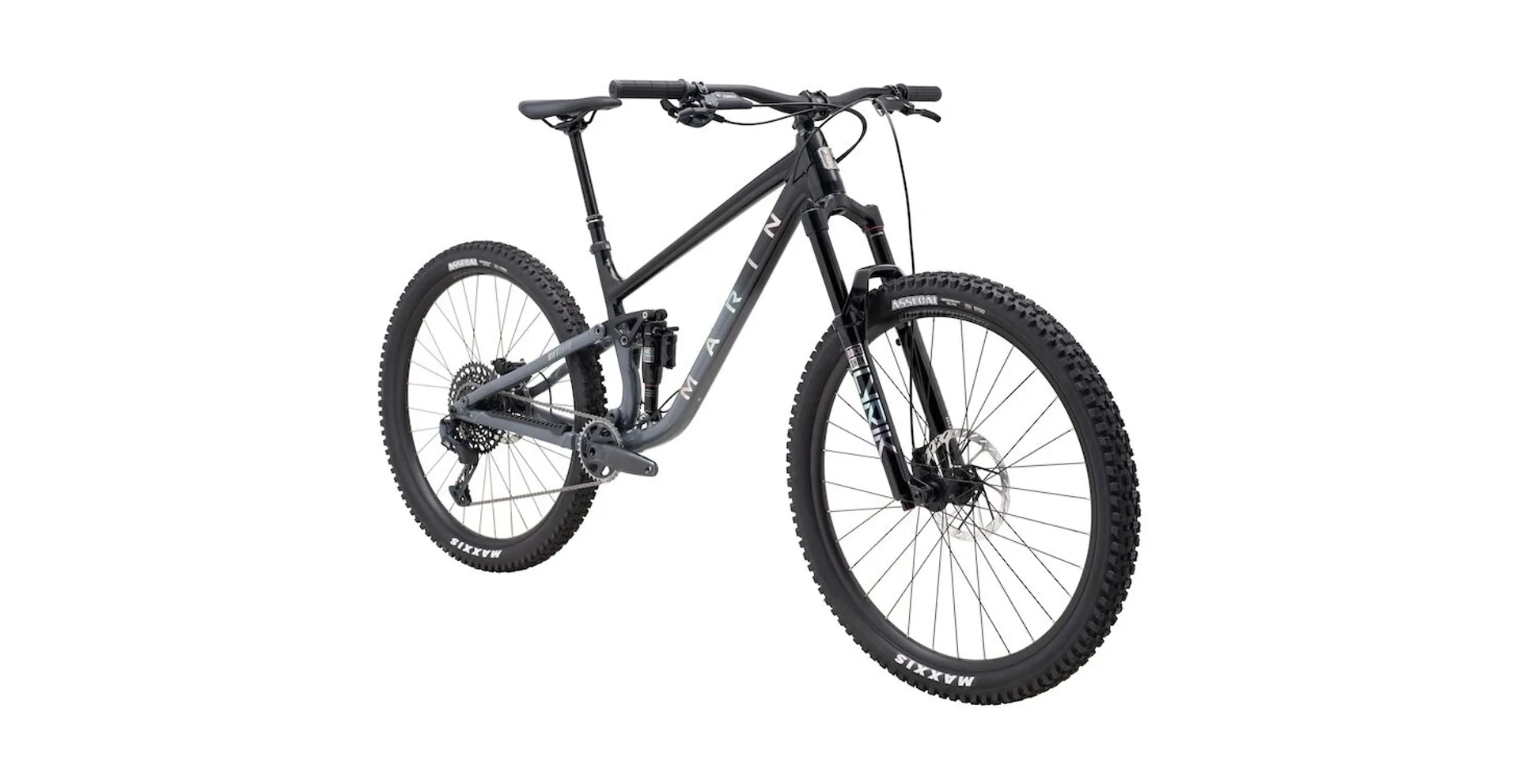

Marin Rift Zone XR 27.5 Mountain Bike - Gloss Black/ Grey

Season:2025

Brand:Marin

Code:7390800BLK

Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.

The Rift Zone XR brings together trail-taming 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

"XR" means Extra Rad over here at Marin, and with that, the Rifty XR gets an extra spicy build. Starting out front, the fork is RockShox's supreme Lyrik Select+ model, now sporting 150mm of travel. Not wanting to leave the rear in the lurch, the Super Deluxe Select+ shock balances out the bouncy bits. SRAM's wide-range 12-speed GX Eagle drivetrain helps get the power to the rear wheel, while SB8 4-piston brakes offer impeccable braking performance.

KEY UPGRADES FROM THE RIFT ZONE 2

  • RockShox Lyrik Select+ fork w/150mm travel
  • RockShox Super Deluxe Select+ rear shock
  • SRAM GX Eagle 12-speed drivetrain
  • SRAM DB8 4-Piston hydraulic disc brakes
  • Maxxis Assegai 2.5" tires

Technical Information
  • FRAME
    Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • FRONT SUSPENSION
    RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
  • REAR SUSPENSION
    RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune
  • RIMS
    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
  • HUB, REAR
    Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
  • HUB, FRONT
    Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    Maxxis Assegai, 27.5" or 29x2.5", MaxxTerra, EXO, Tubeless Compatible
  • DERAILLEUR, REAR
    SRAM GX Eagle Lunar 12 Speed
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    SRAM GX Eagle Lunar 12 Speed, MMX Mount
  • CRANKSET
    SRAM GX Eagle, 32T, 55MM CL, 170MM Length
  • BOTTOM BRACKET
    SRAM DUB MTB 73
  • CHAIN
    SRAM NX Eagle
  • CASSETTE
    SRAM XG 1275 Eagle Cassette 10-52T
  • BRAKE, FRONT
    SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor
  • BRAKE, REAR
    SRAM DB8 4-Piston Hydraulic Disc, HSC 180mm Rotor
  • BRAKE LEVERS
    SRAM DB8 Hydraulic
  • HANDLEBAR
    Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
  • STEM
    Marin CNC, 35mm Length, 35mm Bar Bore
  • GRIPS
    Marin Grizzly Lock-On
  • HEADSET
    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • SEATPOST
    TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
  • SADDLE
    Marin Speed Concept
  • PEDALS
    -
  • EXTRAS
    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
Sizing Information
Rift Zone 1 geometry diagram
XSSM (27.5)M (29)LXL
Stack569.1600.7605.2637.3637.3641.8
Reach415430450460485515
Headtube Angle65.5°65.5°65.5°65.5°65.5°65.5°
Headtube Length115120125115125130
Seattube Angle77°77°77°77°77°77°
Seattube Length330390400400425430
Toptube Effective552.6568.7589.7605632.1663.2
BB Height339339339343343343
BB Drop353535353535
Chainstay430430430430430430
Wheelbase1147.81164.81186.91205.11234.41266.3
Standover Height661.7677.8687.8691.2701.7700.5
Fork Offset444444444444
Seatpost Diameter30.930.930.930.930.930.9
Handlebar Width780780780780780780
Stem Length353535353535
Crank Length170170170170170170
