A tighter budget shouldn't mean a limit to your fun, the Rift Zone 1 ticks all the boxes for essential features and rides like a proper champs bike
A tighter budget shouldn't mean a limit to your fun, the Rift Zone 1 ticks all the boxes for essential features and rides like a proper champs bike
Marin

Marin Rift Zone 1 27.5 Mountain Bike - Gloss Pink/ Coral

£1,699.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

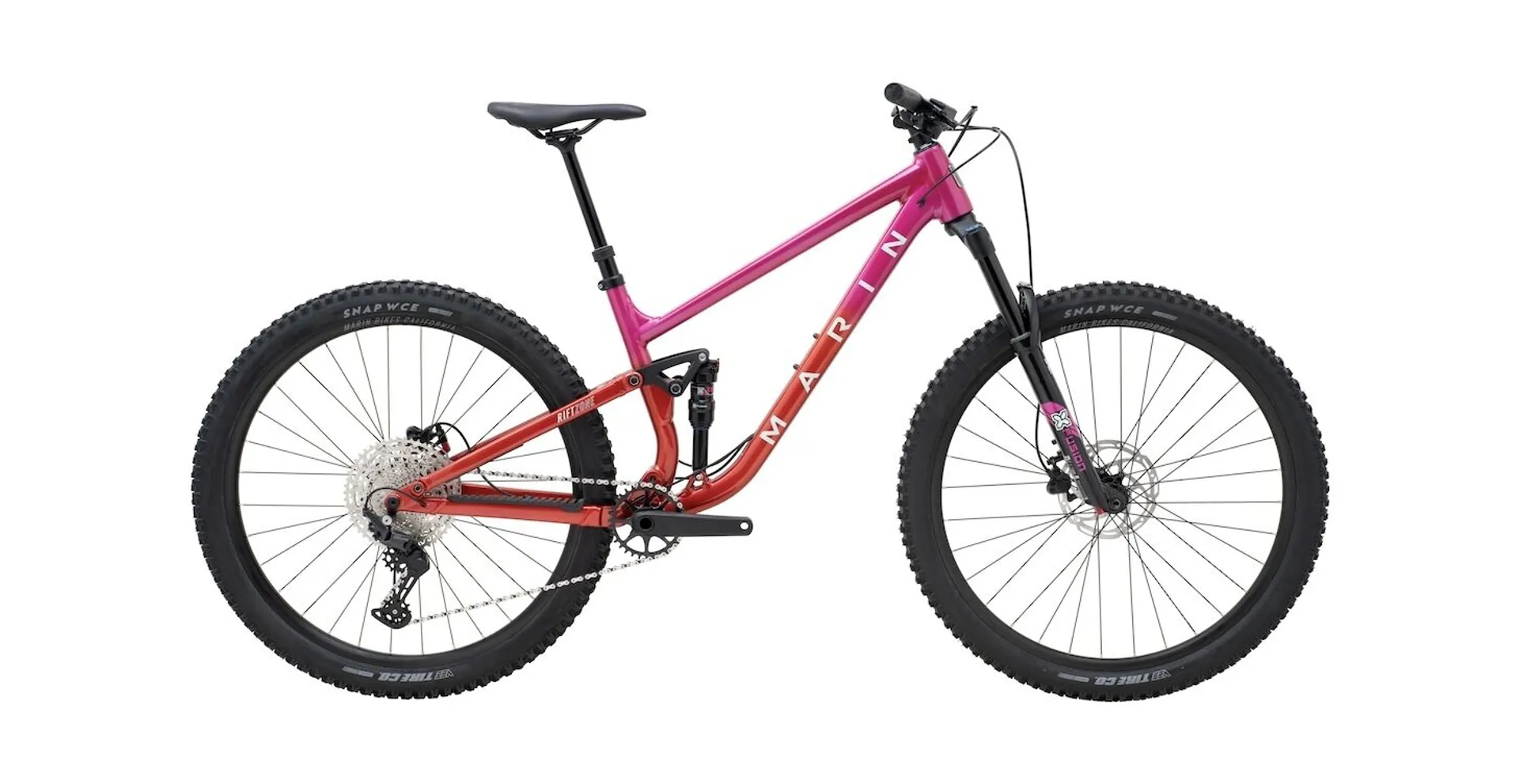

Marin Rift Zone 1 27.5 Mountain Bike - Gloss Pink/ Coral

Season:2025

Brand:Marin

Code:7390760PNKWHT

Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.

The Rift Zone 1 brings together 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.

The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.

Available in X.Small, Small and Medium with 27.5(650B) wheels or 29" wheels on a Medium, Large and X.Large frame size.

SERIES 3 ALUMINUMIM FRAME
Rift Zone alloy models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform.

MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. 130mm rear travel on all Rift Zone models.

MODERN TRAIL GEOMETRY
Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle make for a playful yet confidence-inspiring bike.

INTERNAL ROUTING
Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up.

CHAINSTAY/SEATSTAY PROTECTORS & UDH ON ALLOY MODELS
Rift Zone models have enhanced chainstay and seat stay protectors for a quiet ride, and utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame as well as allow for T-type drivetrains.

ENHANCED CHAINSTAY/SEATSTAY PROTECTION
Rift Zone models have prominent chainstay and seat stay protectors for a quiet ride that also protects the paint finish.

Technical Information
  • FRAME
    Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
  • FRONT SUSPENSION
    X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
  • REAR SUSPENSION
    X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
  • RIMS
    Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
  • HUB, REAR
    Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
  • HUB, FRONT
    Shimano HF-MT400B, 110x15mm, Centerlock
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
  • DERAILLEUR, REAR
    Shimano Deore, 11 Speed, SGS
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    Shimano Deore, 11-Speed, SL-5100R
  • CRANKSET
    Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
  • BOTTOM BRACKET
    External Sealed Cartridge Bearing
  • CHAIN
    KMC X-11 Silver and Black
  • CASSETTE
    Sunrace, 11-Speed, 11-51T, ED Black
  • BRAKE, FRONT
    Tektro HD-M280 Hydraulic, 180mm Rotor
  • BRAKE, REAR
    Tektro HD-M280 Hydraulic, 180mm Rotor
  • BRAKE LEVERS
    Tektro HD-M280
  • HANDLEBAR
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • STEM
    Marin 3D Forged Alloy, 35mm
  • GRIPS
    Marin MTN, Closed End
  • HEADSET
    FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • SEATPOST
    X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
  • SADDLE
    Marin Speed Concept
  • PEDALS
    -
  • EXTRAS
    Closed 9-12 Thru-Axle QR System
Sizing Information
Rift Zone 1 geometry diagram
XSSM (27.5)M (29)LXL
Stack569.1600.7605.2637.3637.3641.8
Reach415430450460485515
Headtube Angle65.5°65.5°65.5°65.5°65.5°65.5°
Headtube Length115120125115125130
Seattube Angle77°77°77°77°77°77°
Seattube Length330390400400425430
Toptube Effective552.6568.7589.7605632.1663.2
BB Height339339339343343343
BB Drop353535353535
Chainstay430430430430430430
Wheelbase1147.81164.81186.91205.11234.41266.3
Standover Height661.7677.8687.8691.2701.7700.5
Fork Offset444444444444
Seatpost Diameter30.930.930.930.930.930.9
Handlebar Width780780780780780780
Stem Length353535353535
Crank Length170170170170170170
