The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Marin

Marin Alpine Trail XR 29 Mountain Bike - Gloss Blue/ Black/ Red

£2,299.99 £3,155.00 27% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

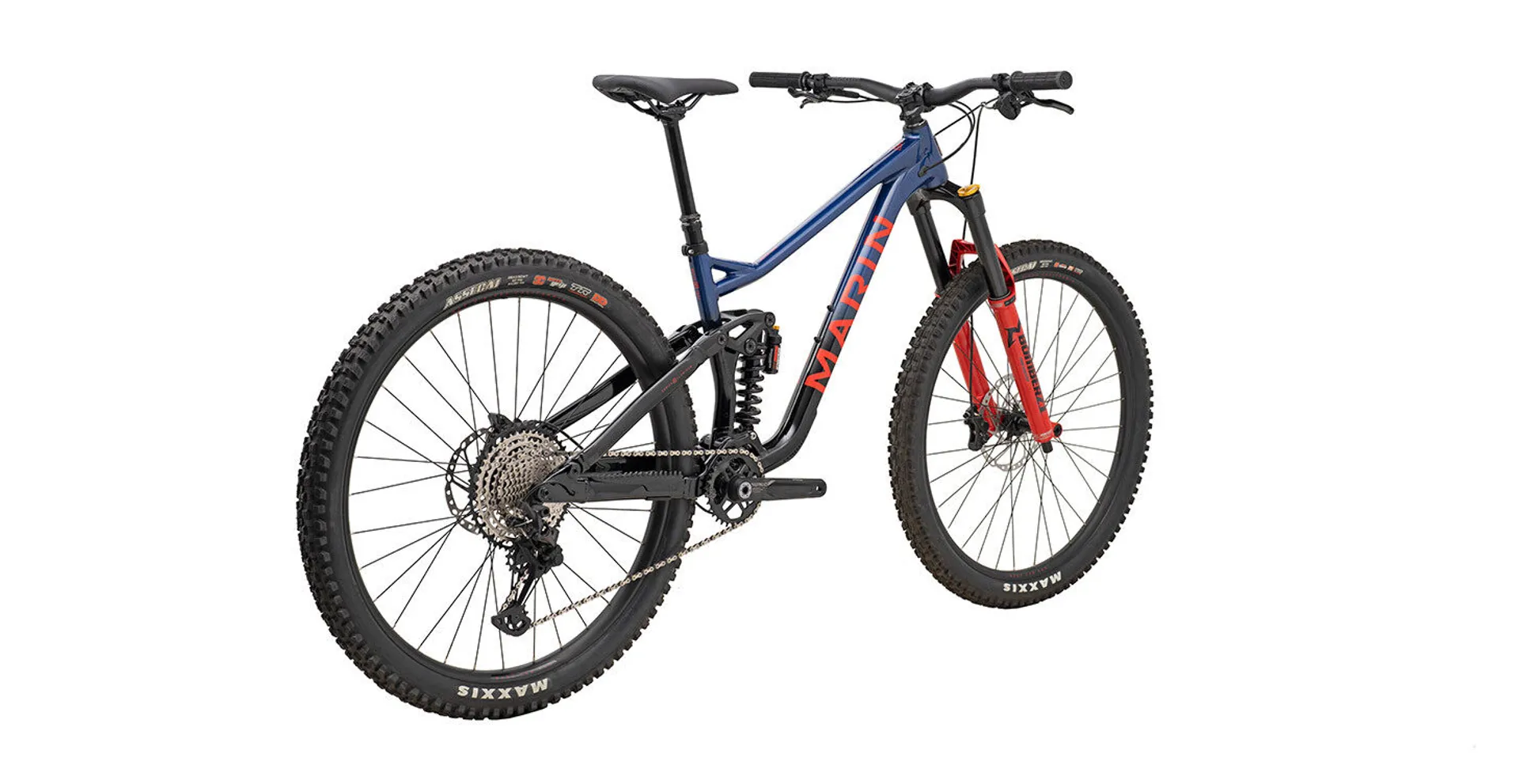

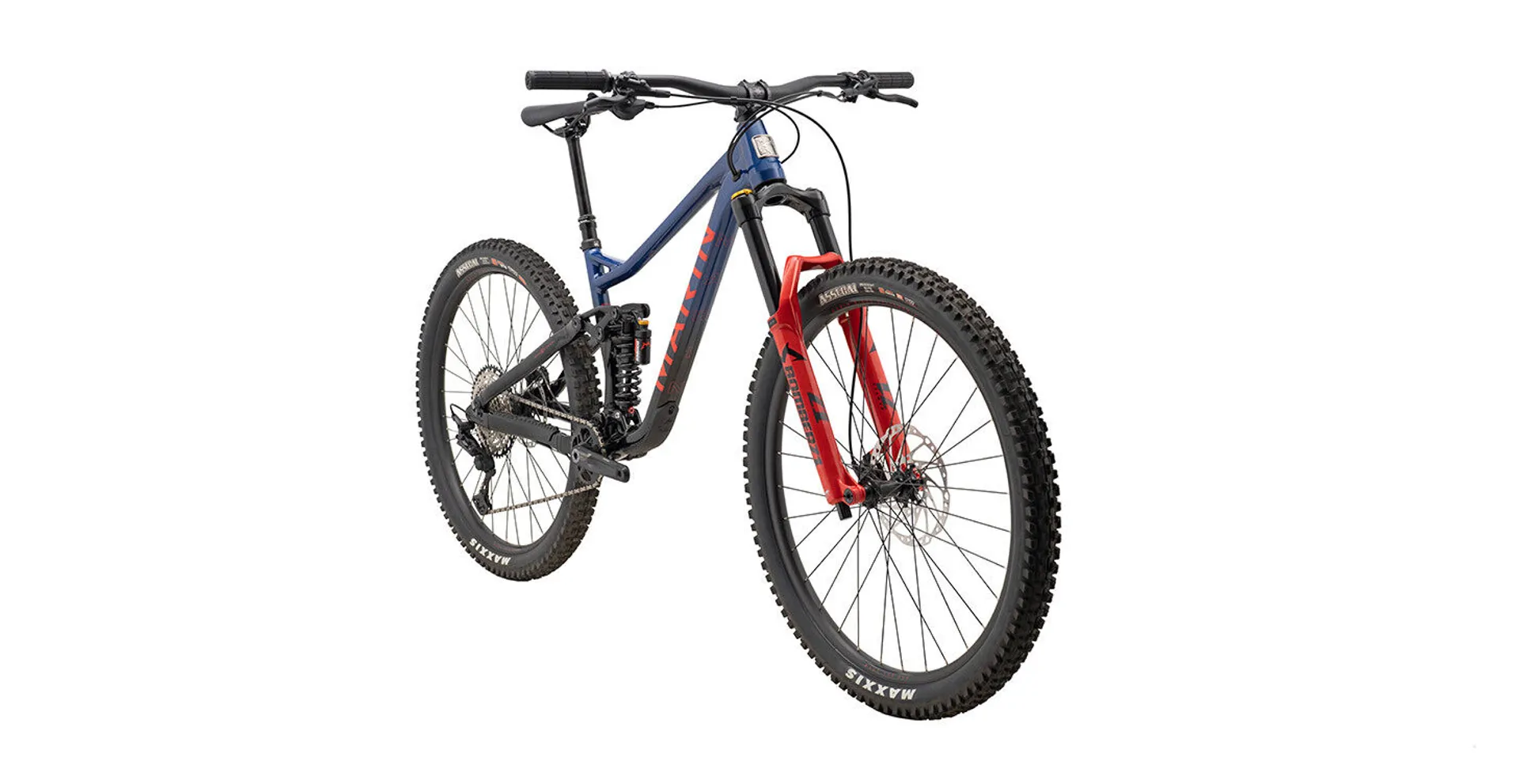

Marin Alpine Trail XR 29 Mountain Bike - Gloss Blue/ Black/ Red

Season:2023

Brand:Marin

Code:7359670GLSBLURED

The Alpine Trail XR is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

Features:

  • Marzocchi Z1 Coil/Marzocchi CR Coil suspension
  • Shimano SLX/XT drivetrain
  • TRP Slate EVO brakes
  • FSA Gradient crankset
Technical Information
  • FRAME
    Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • FRONT SUSPENSION
    Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium spring rate
  • REAR SUSPENSION
    Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring
  • RIMS
    Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
  • HUB, REAR
    Shimano HB-MT510B, 148x12mm, Disc, Microspline Freehub Body
  • HUB, FRONT
    Shimano HF-MT410B, 110x15mm, Center\lock
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    Maxxis Assegai 29x2.5", MAXX TERRA, EXO+, Tubeless Compatible
  • DERAILLEUR, REAR
    Shimano XT 12-Speed, SGS
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    Shimano SLX 12-Speed, I-Spec EV
  • CRANKSET
    FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
  • BOTTOM BRACKET
    MEGAEVO BB, 73mm BSA Threaded
  • CHAIN
    KMC X-12 Silver and Black
  • CASSETTE
    Shimano SLX M7100 Cassette, 12-Speed, 10-51T
  • BRAKE, FRONT
    Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
  • BRAKE, REAR
    Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
  • BRAKE LEVERS
    Shimano BL-M4100, I-Spec EV Compatible
  • HANDLEBAR
    Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
  • STEM
    Marin CNC Stem, 35mm Length, 35mm Bar Bore
  • GRIPS
    Marin Grizzy Lock On
  • HEADSET
    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • SEATPOST
    X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
  • SADDLE
    Marin Speed Concept
  • PEDALS
    -
  • EXTRAS
    Bolt-On Thru-Axle
  • EXTRAS
    Downtube Protector
Sizing Information
Alpine Trail XR geometry diagram
SMLXL
Stack619628632643
Reach430455480515
Headtube Angle63.5°63.5°63.5°63.5°
Headtube Length100110115130
Seattube Angle78°78°78°78°
Seattube Length390400425430
Toptube Effective561.7589615652
BB Height342342342342
BB Drop35353535
Chainstay430430430430
Wheelbase1199122912561297
Standover Height714716732734
Fork Offset44444444
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length50505050
Crank Length170170170170
