FRAME
All New Series 3 6061 Aluminum Frame, 26" Wheels, 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB
FRONT SUSPENSION
X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

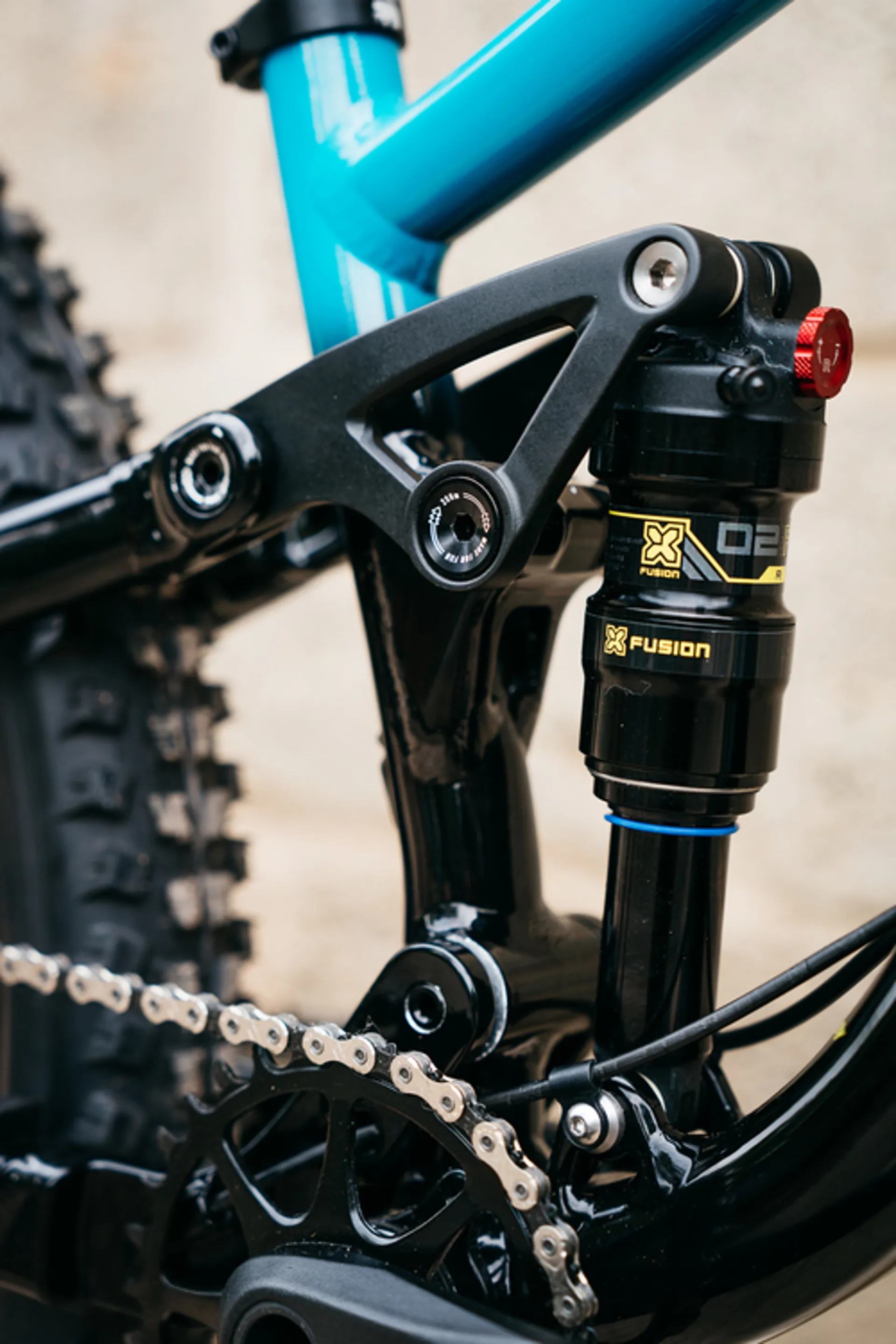

REAR SUSPENSION
X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware
RIMS
Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
HUB, REAR
Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
HUB, FRONT
Forged Alloy, 100x15mm, Centerlock Disc, 32H
SPOKE, NIPPLES
14g Stainless Steel
TIRES
Vee Tire Co, Flow Snap 26x2.4", Tackee Compound, Wire Bead
DERAILLEUR, REAR
Shimano Deore, 11 Speed, SGS
DERAILLEUR, FRONT
-
SHIFT LEVER
Shimano Deore, 11-Speed, SL-5100R
CRANKSET
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing, 170mm Length
BOTTOM BRACKET
External Sealed Cartridge Bearings
CHAIN
KMC X-11 Silver and Black
CASSETTE
SunRace, 11-Speed, 11-51T, ED Black
BRAKE, FRONT
Shimano MT-201 Hydraulic Disc, 180mm Rotor
BRAKE, REAR
Shimano MT-201 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS
Shimano BL-MT201 Hydraulic
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Dual Density
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
Marin Alloy, 30.9mm
SADDLE
Marin Speed Concept
PEDALS
-
EXTRAS
Closed 9-12 Thru-Axle QR System
