From all day epics to technical singletrack, Rocky Mountain've got you covered.
From all day epics to technical singletrack, Rocky Mountain've got you covered.
Rocky Mountain

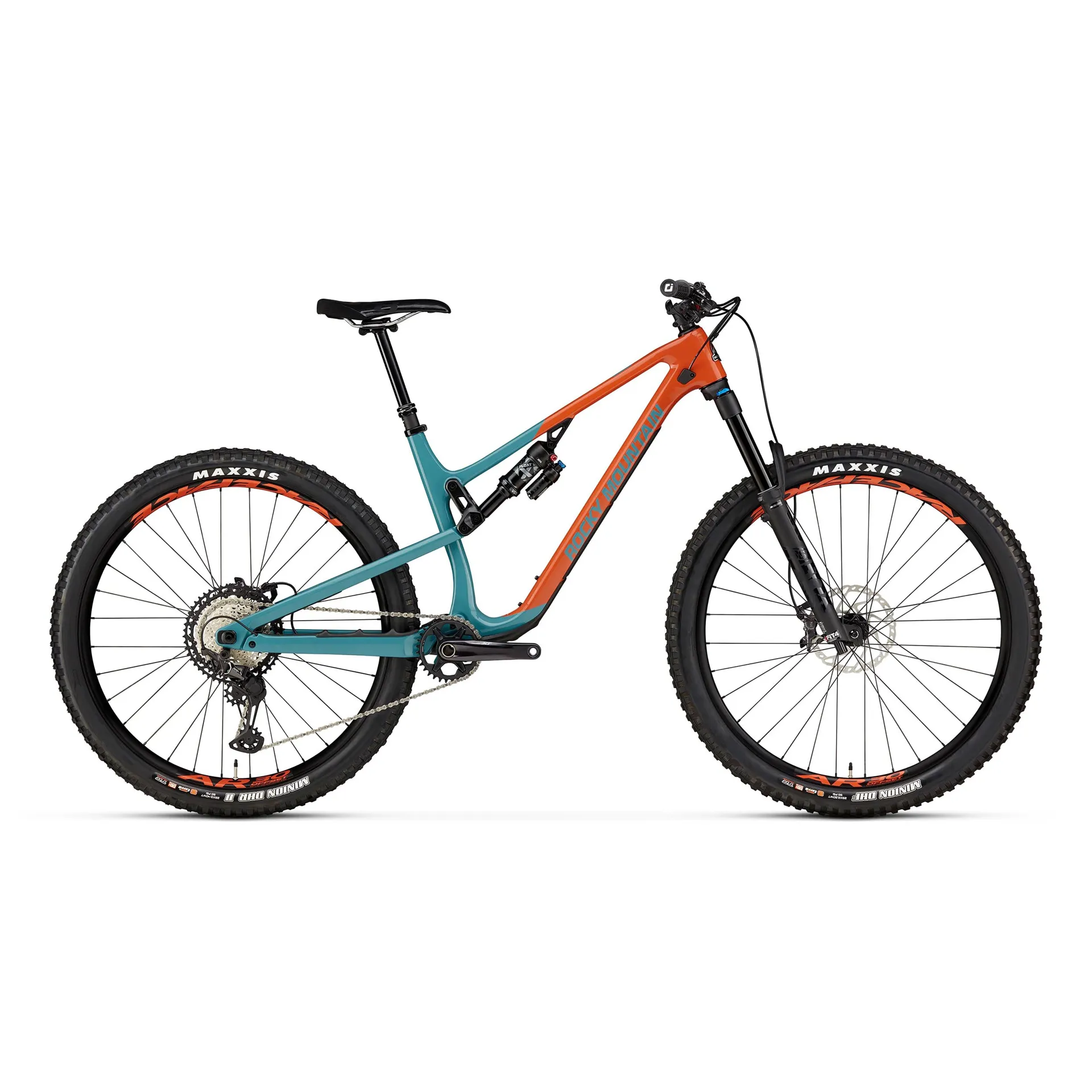

Rocky Mountain Instinct Carbon 70 Mountain Bike - Blue/Orange

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Rocky Mountain Instinct Carbon 70 Mountain Bike - Blue/Orange

Season:2023

Brand:Rocky Mountain

Code:MY23B0215C1

If you're looking for one bike that does it all, look no further than the Instinct.

Rocky Mountain have designed a bike that's capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. They've updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up's, down's, and everything in between. Trust your Instinct.

Technical Information
Frame
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
ShockFox Float X Performance Elite | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune
ForkFox 36 Float EVOL FIT4 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset
HeadsetFSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
HandlebarRocky Mountain AM | 780mmWidth | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
GripsODI Elite Pro Lock On
BrakesShimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm
Gear ShifterShimano XT 12Spd
Rear DerailleurShimano XT 12Spd
CranksShimano XT | 32T | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm
Bottom bracketShimano SM-BBMT500
CassetteShimano XT 10-51T 12spd
Chain
Shimano M8100
Front HubRocky Mountain Sealed Boost 15mm
Rear HubDT Swiss 370 Boost 148mm | 18T Star-Ratchet
RimsDT Swiss Competition 2.0/1.8/2.0
SpokesRace Face AR 30 | 32H | Tubeless Ready - Tape / Valves Inc
TyresF: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Seat PostRace Face Turbine R (by Fox) Dropper 30.9mm | XS - SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
SaddleWTB Volt Race 142
Sizing Information
Neutral PositionX.Small 27.5Small 27.5Small 29Medium 29Large 29X.Large 29
Top Tube Horizontal (mm)549577582608636670
Head Tube Angle (deg)65.965.965.765.765.765.7
Head Tube Length (mm)901009095110125
Seat Tube Angle (deg)76.976.976.776.776.776.7
Seat Tube Length (mm)355380380420445480
Rear Centre (mm)427-438427-438437 - 448437 - 448437 - 448437 - 448
Bottom Bracket Drop (mm)191937363636
Reach (mm)414439437462487517
Stack (mm)581589611615628642
Standover Height (mm)758758749801801801
Wheelbase (mm)113311621182120912401277
