Bred from Santa Cruz's race programe so you can go as fast as possible, simple as that! An S Kit level bike like this sets you up with a great package of affordable and high performing parts.
Bred from Santa Cruz's race programe so you can go as fast as possible, simple as that! An S Kit level bike like this sets you up with a great package of affordable and high performing parts.
Santa Cruz

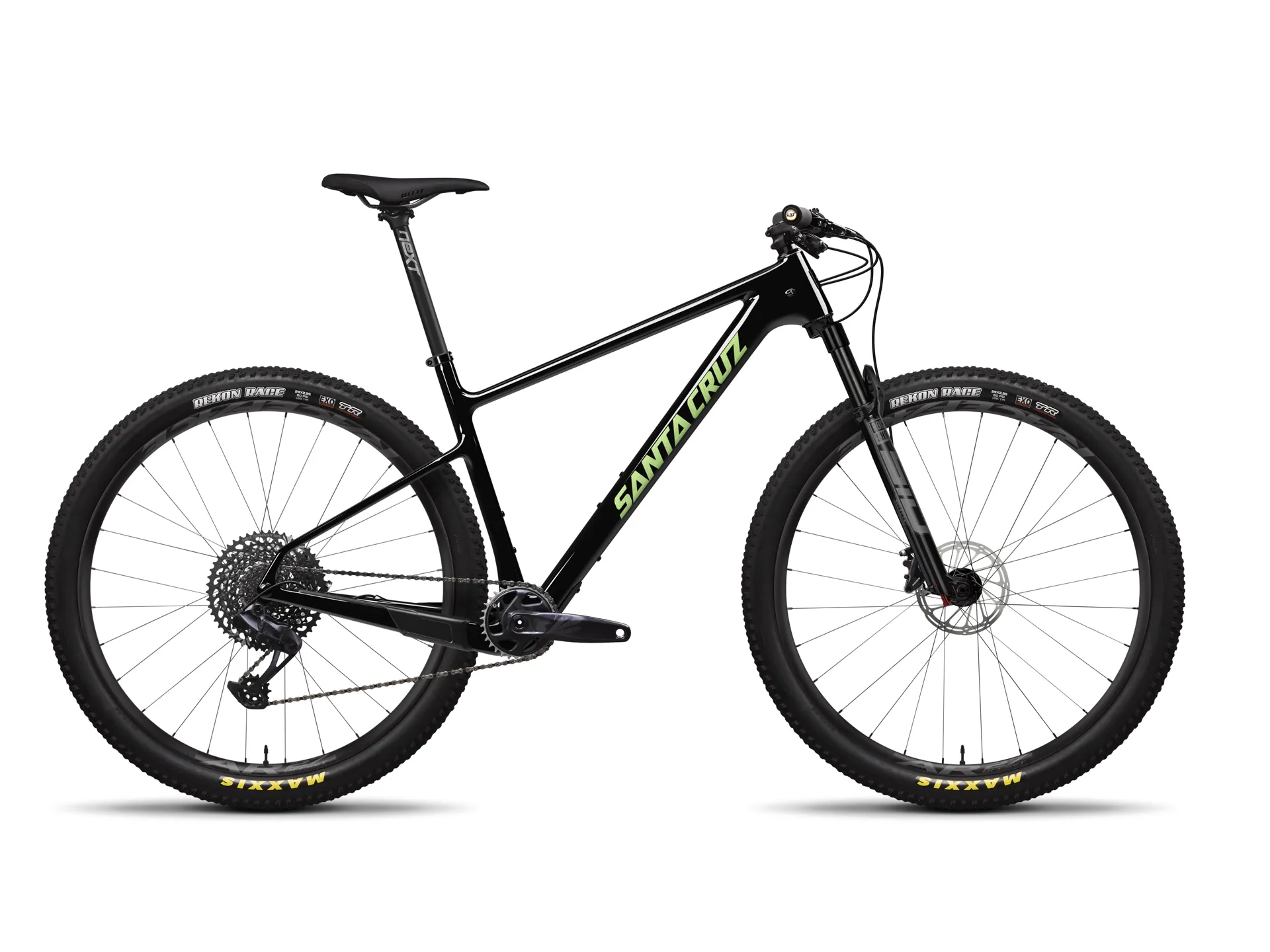

Santa Cruz Highball C V3 S Kit - Gloss Black

£4,099.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Highball C V3 S Kit - Gloss Black

Season:2024

Brand:Santa Cruz

Code:SCHBCV3SGB

Wide open, dawn to dusk.

The Highball is our race-bred XC hardtail.

When the trail (or the competition) calls for the direct drive efficiency that only a hardtail can offer, the Highball is the choice. It looks straightforward but that belies the high-tech features and design hidden within. This is a modern take on the simple machine that many still choose to put battery acid in their thighs and fire in their lungs in order to conquer something. Whether you’re chasing medals, personal demons, or just some riding buddies, this is a hardtail you’ll be happy to log long hours upon.

Key Features:

Frame Material:Carbon C
Wheel Size:29"
Front Travel:100mm
Transmission:SRAM GX Eagle
Brakes:SRAM Level TL 2 Piston
Wheels:Raceface AR Offset 27 and DT Swiss 370 Hubs
SuspensionR.Shox SID SL Select+ Remote
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Technical Information
FrameCarbon C
ForkRockShox Sid SL Select+, 3-Position, 110mm, w/Remote
RemoteSRAM TwistLoc Ultimate, 3-Position, Sprint
Rear DerailleurSRAM GX Eagle, 12spd
ShiftersSRAM GX Eagle, 12spd
CassetteSRAM XG1275 Eagle, 12spd, 10-50t
ChainSRAM GX Eagle, 12spd
CranksSRAM GX Eagle 148 DUB 34t
Bottom BracketSRAM DUB 68/73mm Threaded BB
BrakesSRAM Level TL 2-Piston
Brake RotorsSRAM Centerline, 160/160mm
HeadsetCane Creek 40 IS Integrated Headset
BarsSRAM Atmos Flat Bar
StemSRAM Atmos Stem, 60mm
GripsSRAM Grips
Front HubDT Swiss 370, 15x110, Torque Cap, 6-Bolt, 28h
Rear HubDT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
RimsRaceFace AR Offset 27, 29"
Front TireMaxxis Rekon Race 29"x2.35", EXO
Rear TireMaxxis Rekon Race 29"x2.35", EXO
TubesReserve Sealant
Seat PostRaceFace Next, 27.2, 400mm
SaddleWTB Silverado Medium, CroMo
Sizing Information
SMLXL
Reach 415440460490
Stack 596605614633
Head Tube Angle 67°67°67°67°
Seat Tube Length 405430470530
Front Center 693719743781
BB Height 313313313313
BB Drop 60606060
Wheelbase 1119114511691207
Rear Center 426426426426
Head Tube Length 95105115135
Top Tube Length 595619642677
Seat Tube Angle 73.5°73.5°73.5°73.5°
Standover Height 707704739755

Frame Sizing

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.

Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
