The Entry level 2024 Whyte E-160 S gets you the same E.bike experience as it's posher relatives with a chunk left in the bank for planning those epic trips away.
The Entry level 2024 Whyte E-160 S gets you the same E.bike experience as it's posher relatives with a chunk left in the bank for planning those epic trips away.
Whyte Bikes

Whyte E-160 S Mountain E.Bike - Lime with Matt Black

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

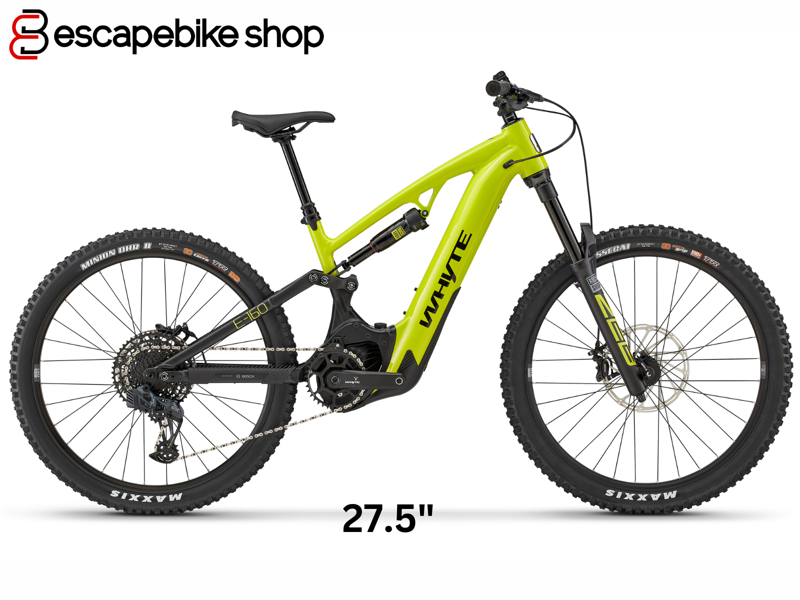

Whyte E-160 S Mountain E.Bike - Lime with Matt Black

Season:2024

Brand:Whyte Bikes

Code:E160SGLSGRNWhitehBLK

Built to perform but priced just right

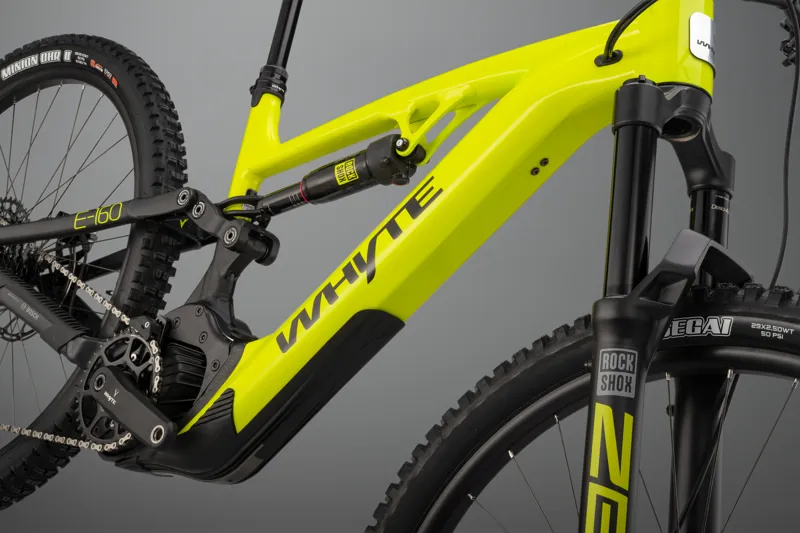

With its super low centre of gravity and Whyte Total Geometry handling – that combine to deliver you exceptional confidence and capability – the E-160 S has all the unique Whyte engineering innovations of the E-160 platform – tilted motor, large 750Wh in-tube battery, class-leading reliability and impeccable weather-proofing – wrapped up in a high value build that will help you break barriers without breaking the bank.

Confidence by design
This bike is designed with our holistic Whyte Total Geometry approach to deliver you the most extraordinary confidence-inspiring ride, every ride.
Engineered to unlock your potential
With its huge 750Wh battery and high power 85Nm Bosch Performance Line CX motor, our E-160 S ensures you're geared up for maximum enjoyment on the trails, wherever you go. We've also fitted exactly the componentry you need to inspire you to take your riding further: fully wireless and electronic SRAM AXS GX 1x12 gearing delivers instant shifting through all conditions, custom-tuned RockShox suspension keeps you connected and in control on the trail, and four-piston SRAM brakes deliver reliable power through all weathers.
Confidence on any terrain
Our Total Geometry approach gives the E-160 S a generous reach, reassuring head angle and short offset fork, making it the most confidence-inspiring, nimble e-bike we’ve ever made. We’ve also given the E-160 S a rock-bottom centre of gravity by optimising the distribution of the battery and motor mass within the chassis. So you can expect exceptional cornering agility and a planted feel on even the choppiest terrain. You can also adjust the bike's geometry using its Shape.It Link ‘flip-chip’ geometry adjust (switchable from the stock 'High' setting to 'Low' to slacken the bike out by 0.6 degrees and lower the bottom bracket by 8mm) for even more gravity-focused handling.
Engineered for life
We’ve engineered the E-160 S not just to perform today but for every day you want to ride it – for years to come. Everything from making the day-to-day tasks simple and easy – like hassle-free battery installation/removal, keeping room for a water bottle in the main frame, and in-the-bike-charging – to standing behind you for the long haul with the best rider support out there, four-year extended frame warranty and our lifetime warranty on bearings for total peace of mind. Because when a bike is this good you’ll want to ride it as much as possible.
Smartly connected
With the Bosch Smart System – which links up the E-160 S’s bar-mounted LED Remote, battery and motor via the companion 'eBike Flow' app – you can have even more information at your fingertips to manage, tailor and personalise your bike just how you want: tune the motor support levels; keep track of your bike’s performance and battery consumption; plan and navigate routes; keep your software up to date. And much, much more.

Highlights
  • Optimised low centre of gravity gives you exceptional handling.
  • 160mm front + 155mm rear suspension travel is capable for everything.
  • Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
  • Bosch Performance CX 85Nm motor (600W peak power) for class-leading performance and reliability.
  • 750Wh battery gives you the range to ride further for longer in between charges.
  • Rockshox ZEB Fork and Deluxe Select R shock
  • SRAM GX AXS Transmisson

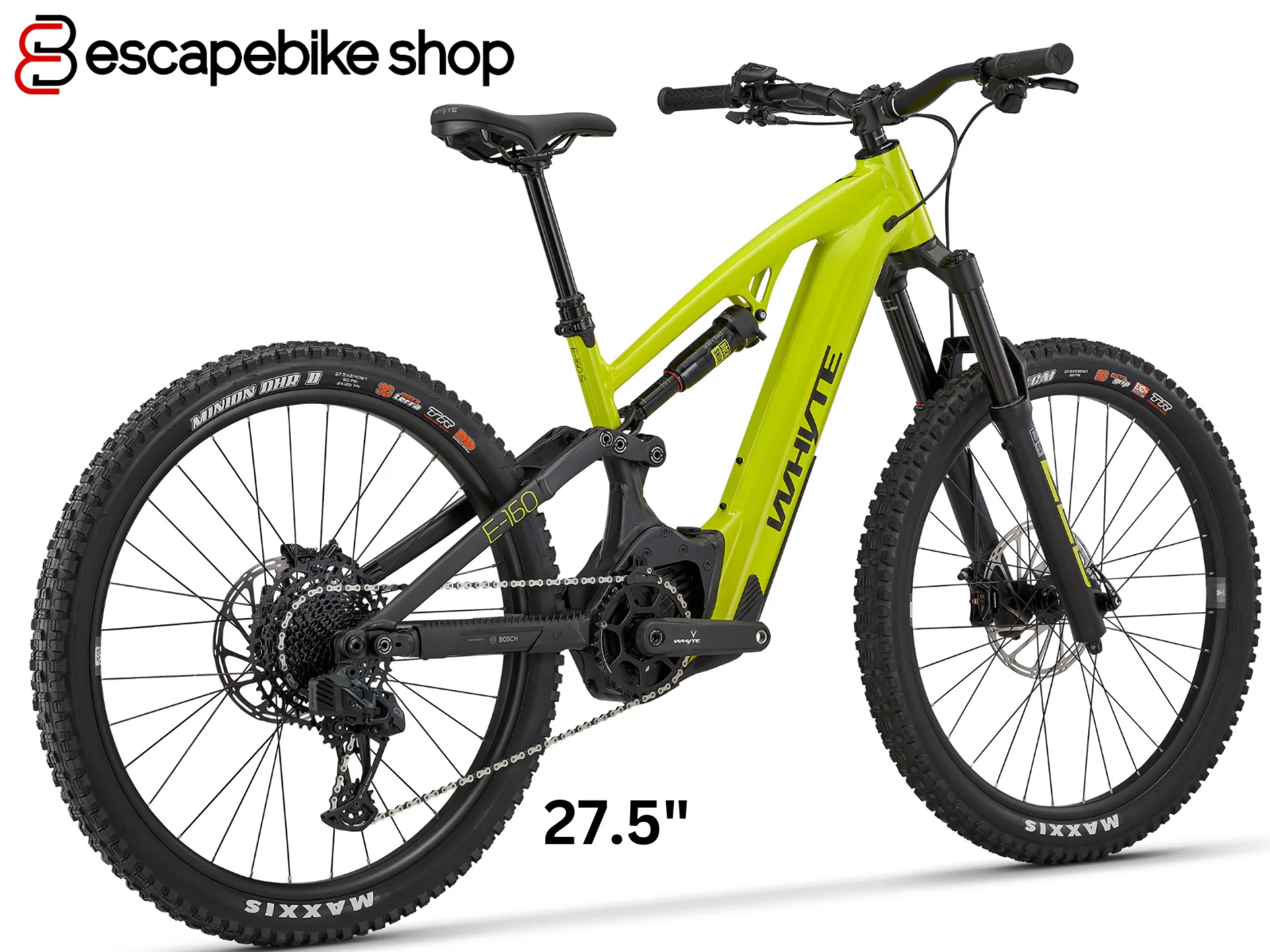

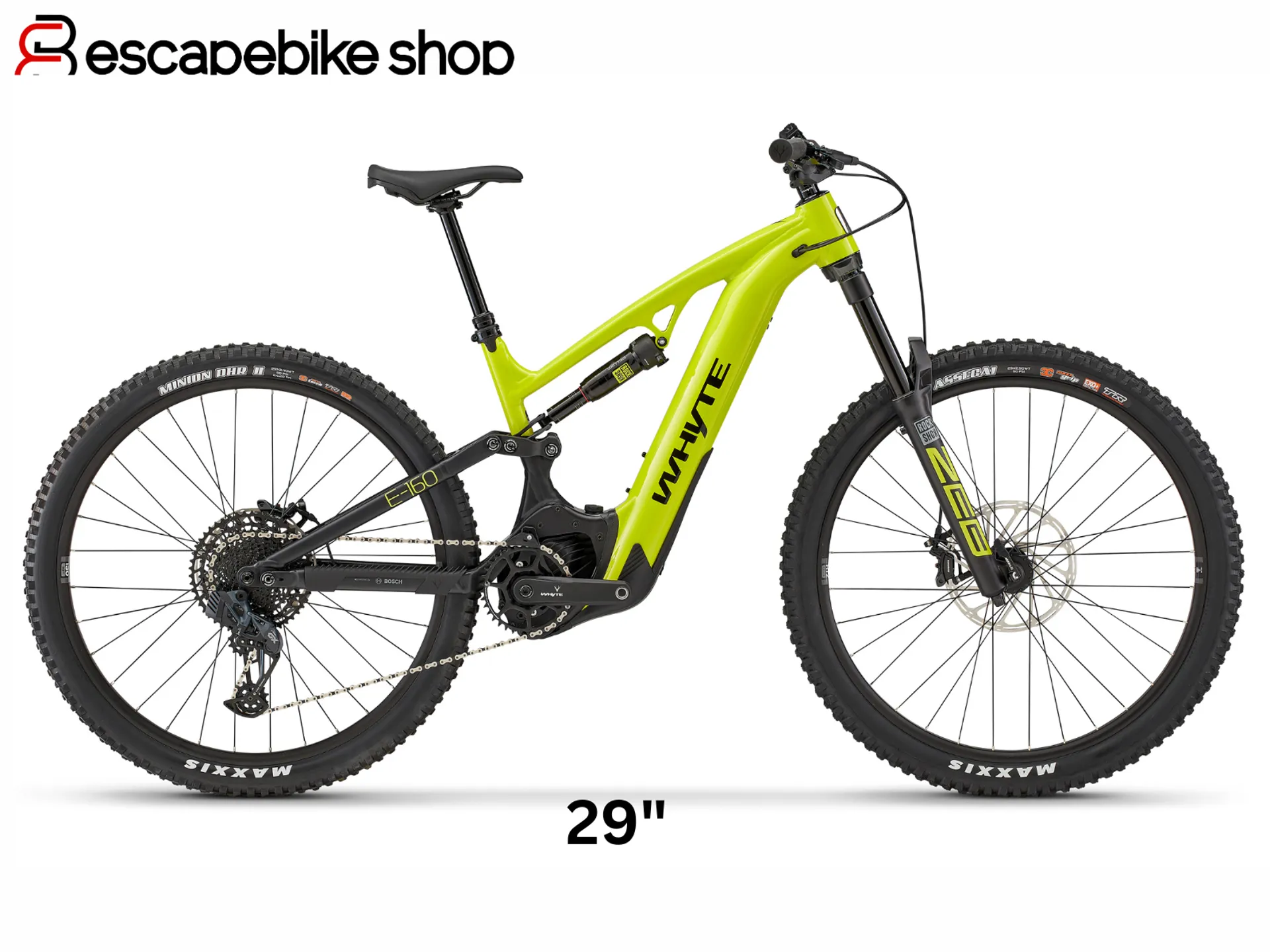

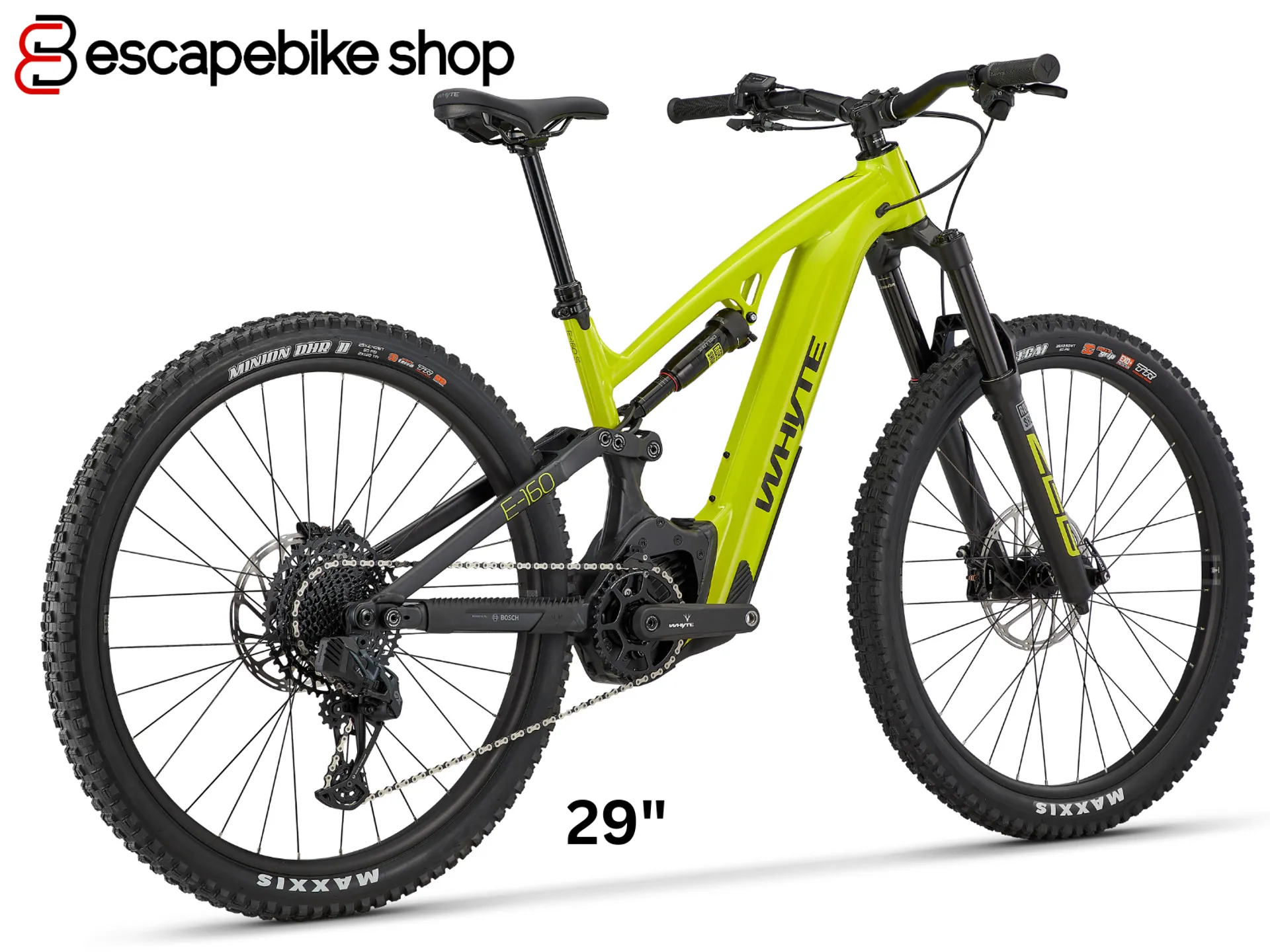

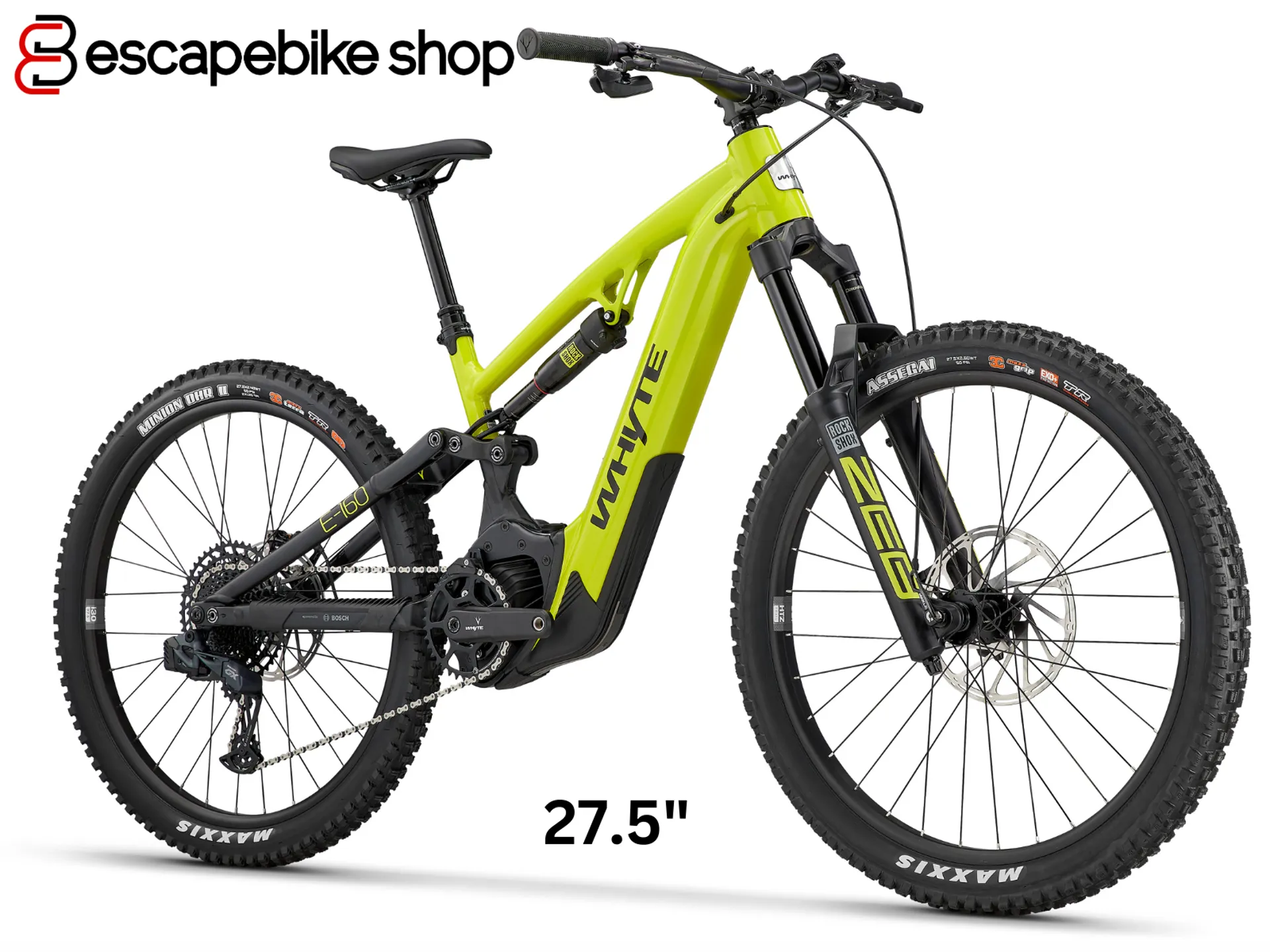

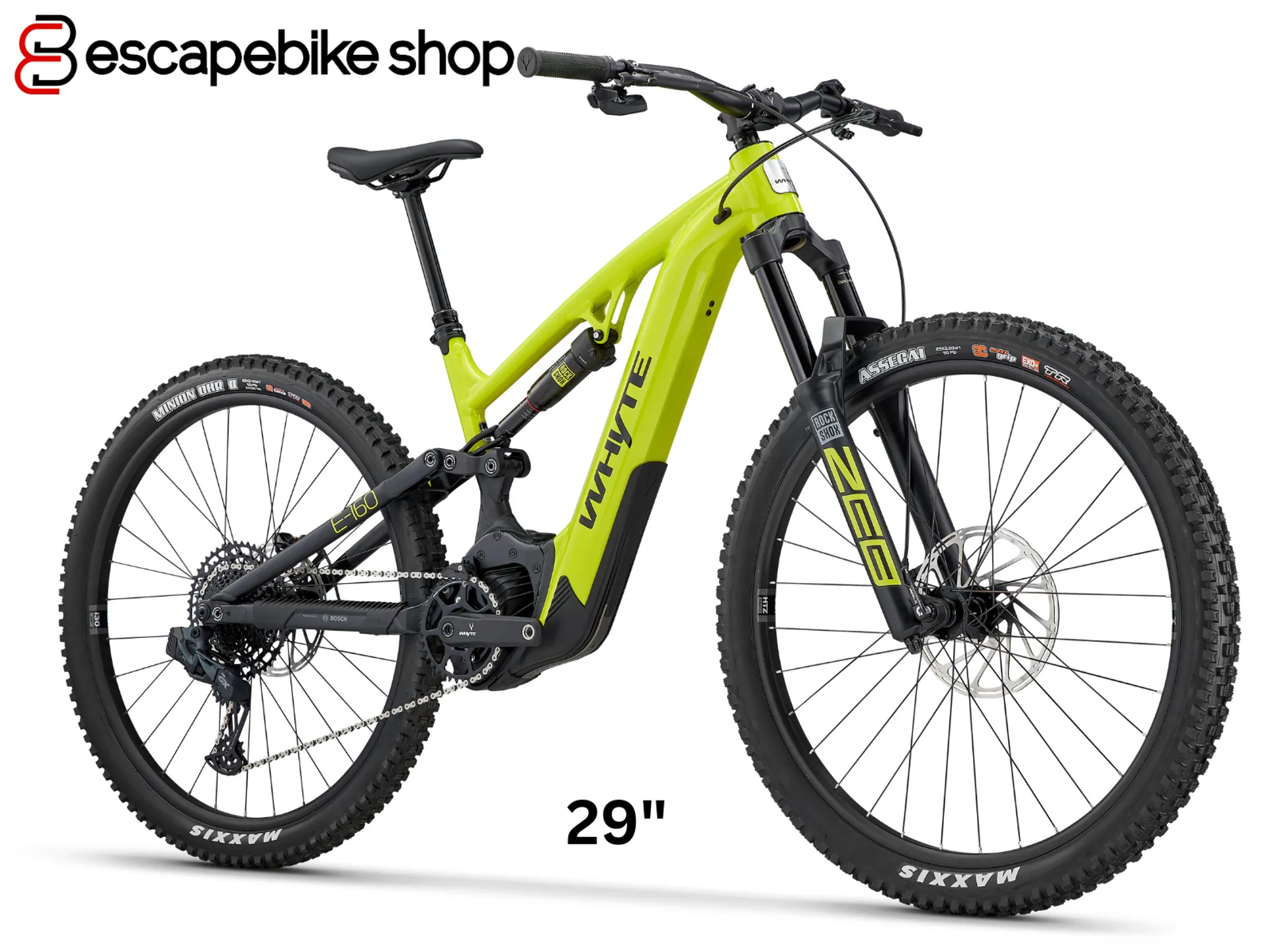

  • 29er wheels front and rear (size M-XL); 27.5in wheels (size XS-S) for balanced handling.
eBike specification
  • Bosch Performance Line CX (Smart System) drive unit with 85Nm maximum torque, 250W nominal power. Features four power settings including Tour+, that allows riders to focus on riding whilst being economical on power usage, and eMTB mode which automatically adjusts the motor's level of support to the terrain as you ride.
  • Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge.

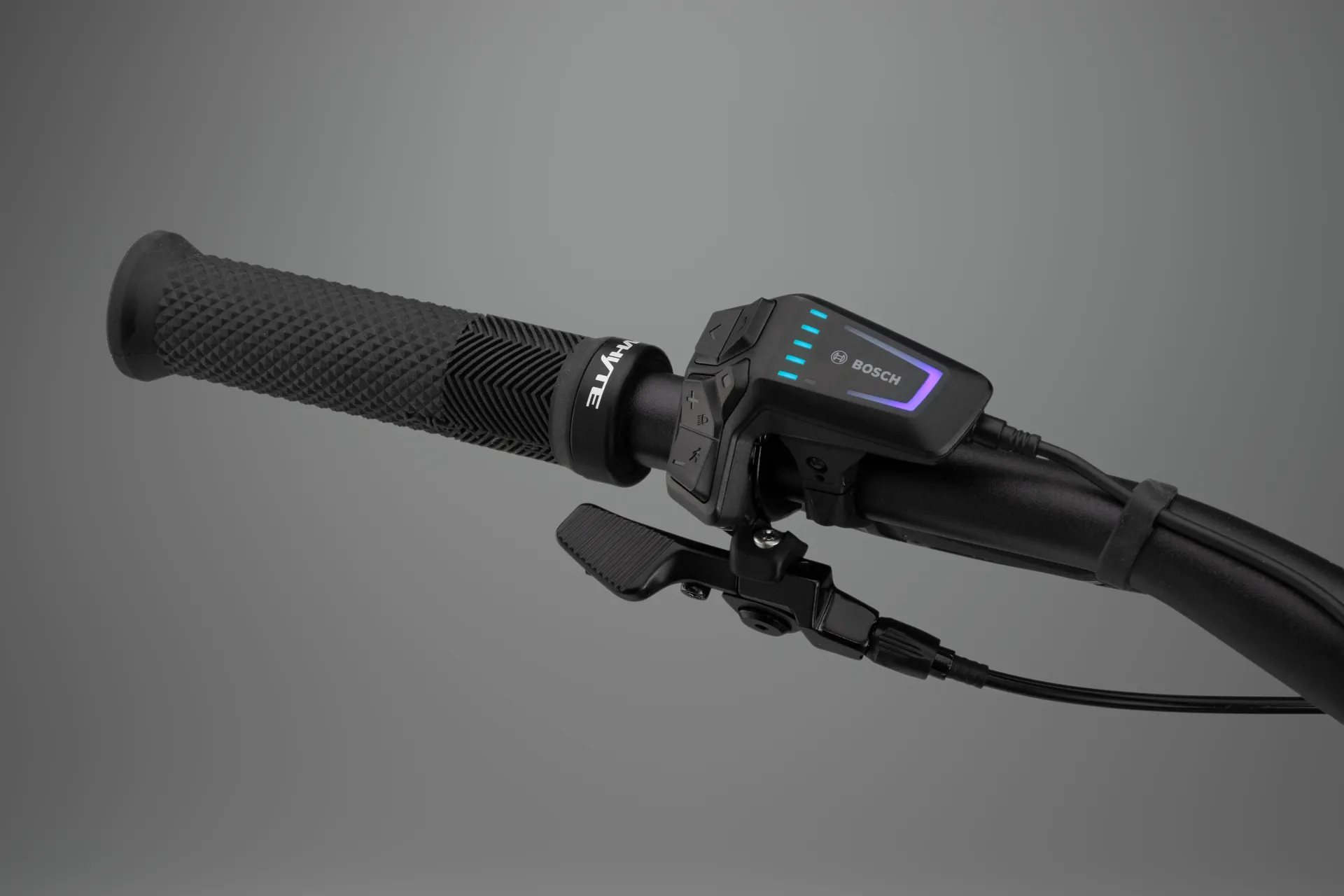

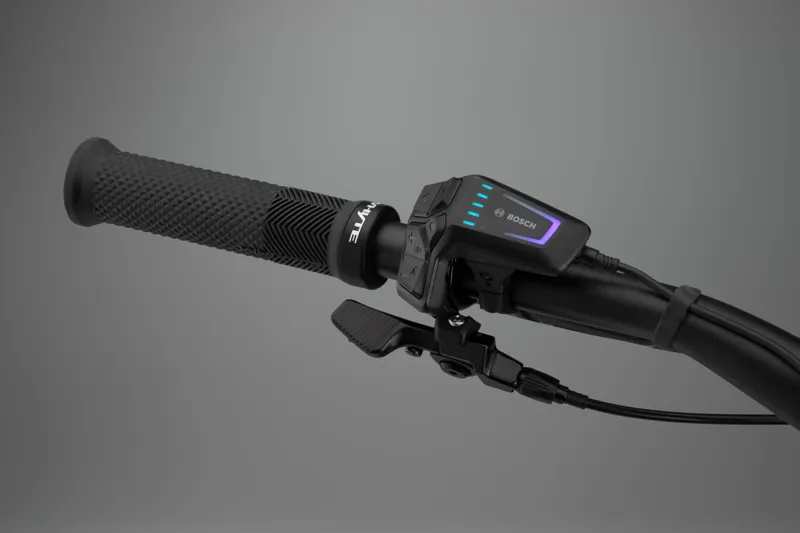

  • Bosch LED Remote allows for easy use and visibility as you ride, and also connects to Bosch’s eBike Flow App to give you even more insight and control over your bike.
  • 4A Compact Charger (230V).
Bike classification grading: 4 Enduro
This bike is intended for all-mountain and enduro use over rough terrain, where loss of contact between the wheels and surface is common, up to speeds of 40km/h.
Technical Information
eBike motorBosch Performance Line CX (Smart System) drive unit with 85Nm maximum torque, 250W nominal power. Features four power settings including Tour+, that allows riders to focus on riding whilst being economic on power usage, and eMTB mode which automatically adjusts
eBike displayBosch LED Remote allows for easy use and visibility for the rider, also connecting to Bosch’s eBike Flow App to give the rider even
more insight and control at their fingertips
eBike batteryBosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal.
Reaches full charge in less than 6 hours, and just over 2 hours for half charge.
eBike battery chargerBosch’s 4A Compact Charger (230V)
Frame6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
ForkRockShox ZEB 29in, 160mm travel, 44mm offset, DebonAir, Rush RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle
Ultimate

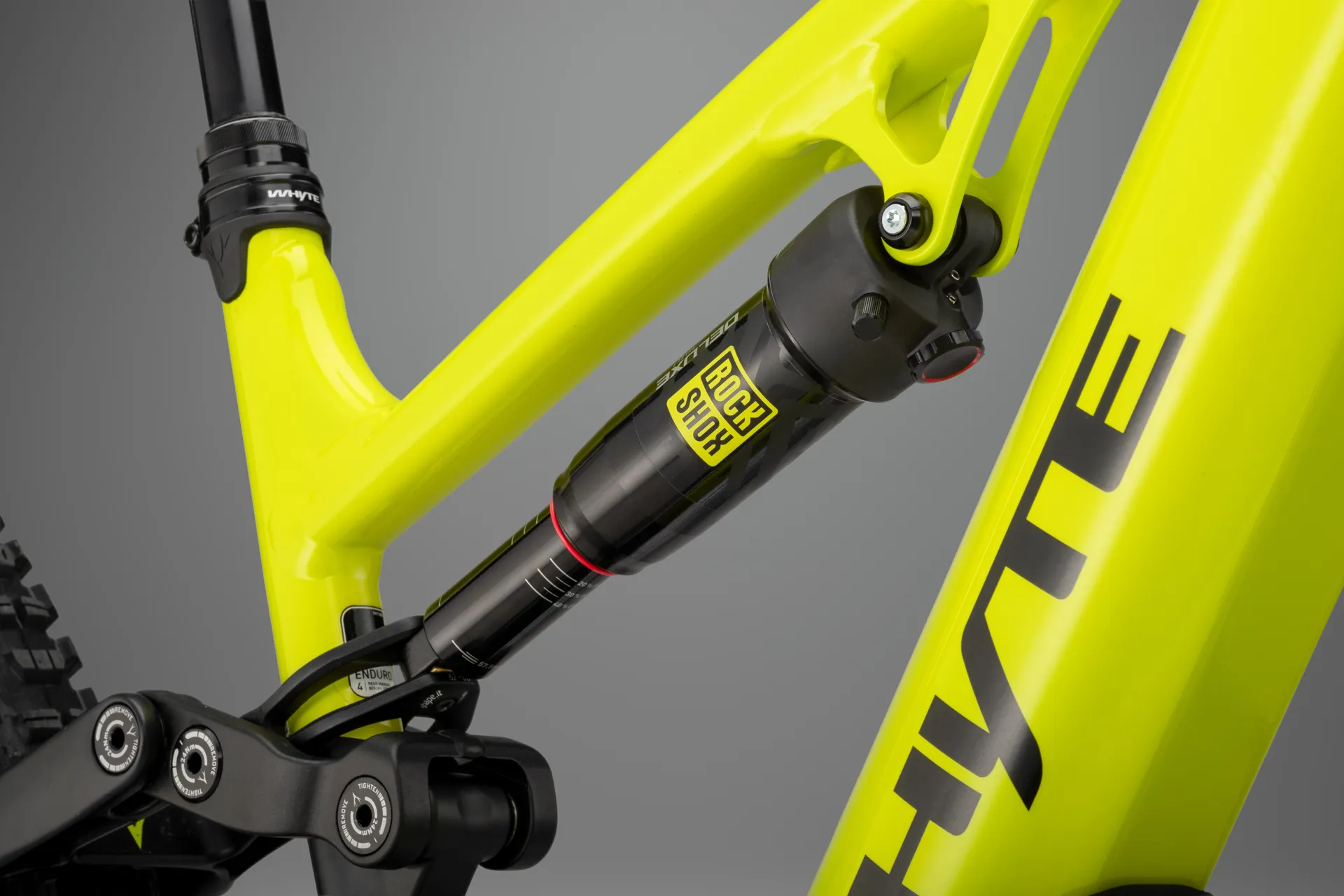

ShockRockShox Deluxe Select R, Fast Black coating, adjustable rebound
HeadsetFSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings
Rear HubAlloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost thru-axle, 32 hole
Front HubAlloy, double sealed cartridge bearings, 15mm x 110mm Boost thru-axle, 31mm torque caps, 32 hole
SpokesDT Swiss New Champion 2.0mm, black stainless, brass nipples
RimsWTB HTZ i30 TCS 2.0 System, asymmetric, sleeved joint, super tough construction, tubeless ready, 32 hole
TyresMaxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI,
Double Down, 3C Maxx Terra, rear
Shift LeversSRAM GX AXS Eagle, two button, MMX, 12 speed
Rear DerailleurSRAM GX AXS Eagle, 12 speed
CassetteSRAM PG-1210 Eagle, 11-50TT, 12 speed
ChainSRAM GX Eagle, 12 speed
CranksetWhyte, forged alloy, 155mm, direct mount 36T
Bottom BracketN/A
SeatpostWhyte drop.it Adjust, 30.9mm (M/L 140-170mm travel; XL 170-200mm travel), MMX Paddle remote lever
SeatWhyte Custom, dual density, triple panel design
BarWhyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
StemWhyte Enduro, 35mm bar bore, 35mm extension
GripsWhyte Lock-on Enduro
Front BrakeSRAM Guide RE, four piston with sintered metal pads, 220mm disc
Rear BrakeSRAM Guide RE, four piston with sintered metal pads, 200mm disc
PedalsClick here to choose an upgrade pedal
Weight26Kg
Sizing Information
X.SmallSmallMediumLargeX.Large
Head angle (deg)64.8 +/- 0.564.8 +/- 0.564.5 +/- 0.564.5 +/- 0.564.5 +/- 0.5
Seat angle (deg)76.1275.775.575.375.1
Top tube (mm)547571.4607.3640.4672.5
BB height (mm)347.8347.8340340340
Stand over (mm)768769771773776
Wheelbase (mm)1181.21200.41234.81269.21302.7
Chainstay (mm)444444446446446
Seat post (mm)30.930.930.930.930.9
Head tube (mm)120130105120135
Seat tube (mm)360395420445470
