The DSX is the mountain bikers gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability
The DSX is the mountain bikers gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability
Marin

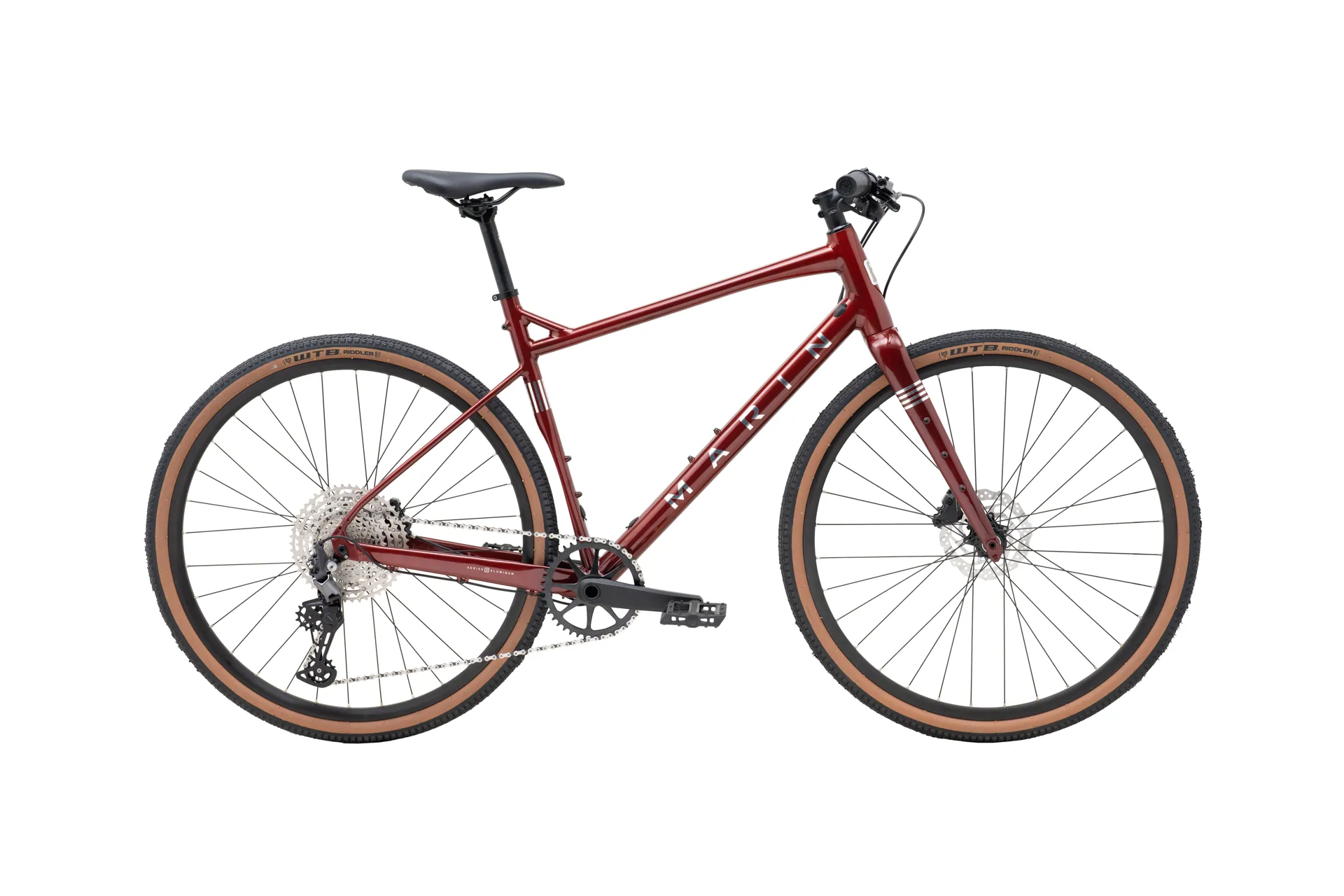

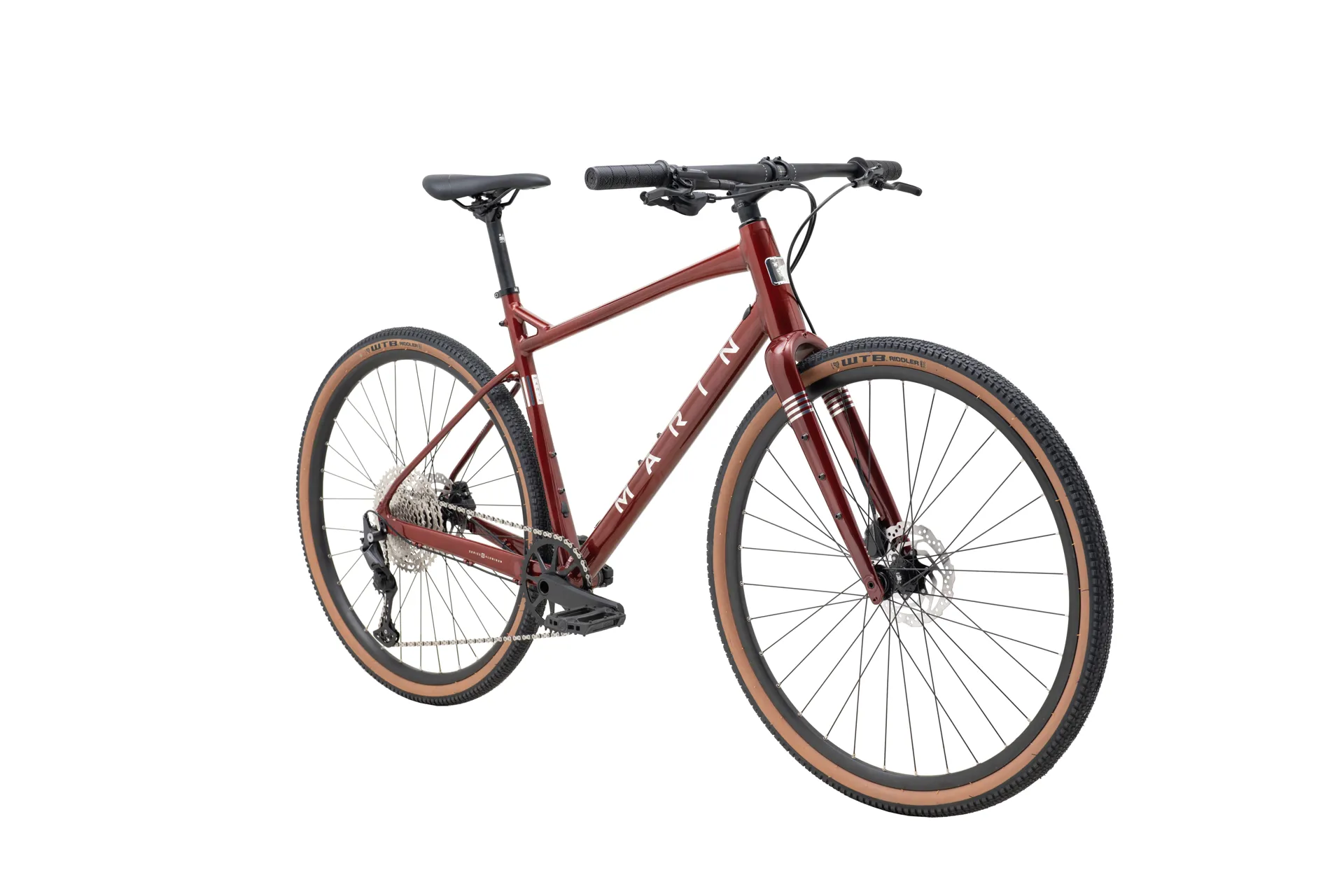

Marin DSX 2 Gravel Bike - Red

£1,149.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin DSX 2 Gravel Bike - Red

Season:2025

Brand:Marin

Code:7375530RED

The Marin DSX is everything we want from a modern, flat-bar gravel bike.

Zippy aluminum frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.

The Marin DSX 2 is built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

Key upgrades over the DSX 1:

  • Shimano Deore 6100 1x12 drivetrain
  • Tektro R285 hydraulic disc brakes
Technical Information
  • FRAME
    Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • FORK
    Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • RIMS
    Marin Aluminum Double Wall, 21mm Inner, Disc Specific
  • HUB, REAR
    Forged Aluminum, 142x12mm, Disc Specific, 32H
  • HUB, FRONT
    Forged Aluminum, 100x12mm, Centerlock, 32H
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    WTB Riddler, 700Cx45mm
  • DERAILLEUR, REAR
    Shimano Deore 12-Speed
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    Shimano Deore 12-Speed
  • CRANKSET
    Forged Aluminum, 42T Steel Narrow Wide Chainring
  • BOTTOM BRACKET
    Sealed Outboard Bearing
  • CHAIN
    KMC X12
  • CASSETTE
    SunRace, 12-Speed, 11-51T
  • BRAKE, FRONT
    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • BRAKE, REAR
    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • BRAKE LEVERS
    Tektro Hydraulic
  • HANDLEBAR
    Marin MiniRiser
  • STEM
    Marin 3D Forged Alloy
  • GRIPS
    Marin MTB
  • HEADSET
    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • SEATPOST
    Marin Alloy
  • SADDLE
    Marin DSX
  • PEDALS
    Marin Oso OE Flat
  • EXTRAS
    Bolt-On Thru-Axles F and R
Sizing Information
DSX 2 geometry diagram
SMLXL
Stack544.4572.5600.6628.7
Reach380405420435
Head Tube Angle69.5°69.5°69.5°69.5°
Head Tube Length120150180210
Seat Tube Angle74°74°74°74°
Seat Tube Length430480520558
Top Tube Effective536.1569.2592.2615.3
BB Height279.5279.5279.5279.5
BB Drop80808080
Chain Stay425425425425
Wheel Base1024.4210601085.41110.9
Stand Over Height658.76700.51730.39758.5
Fork Offset50505050
SeatPost Diameter27.227.227.227.2
Handlebar Width640680680680
Stem Length70707070
Crank Length170175175175
