The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Marin

Marin DSX Flat Bar Gravel Bike - Gloss Blue/ Orange

£699.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

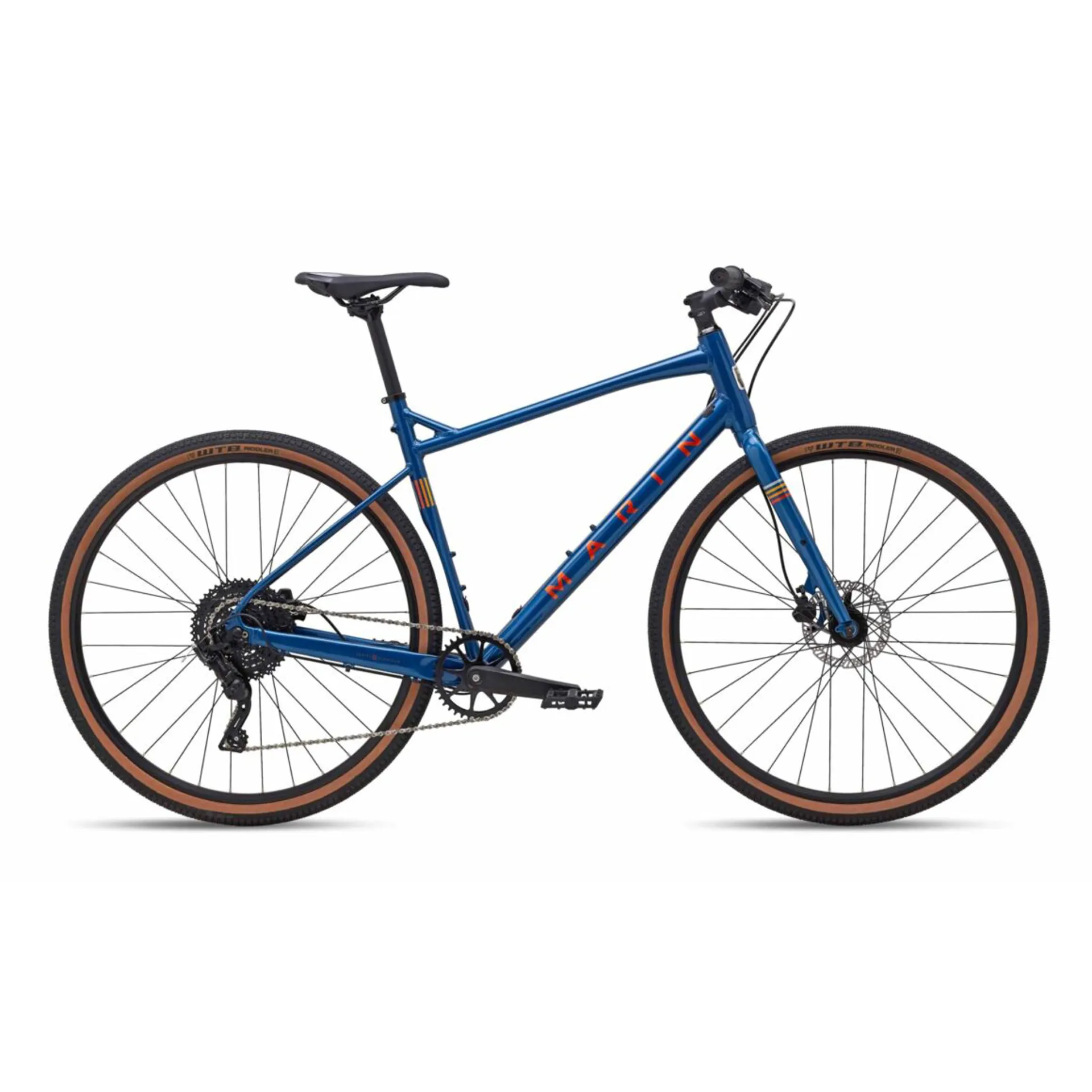

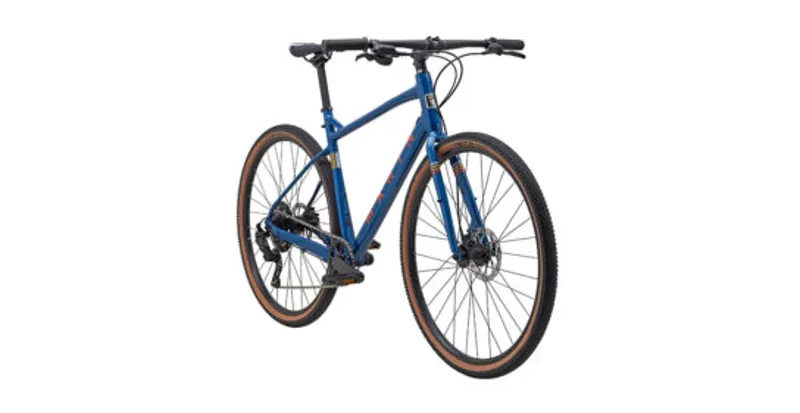

Marin DSX Flat Bar Gravel Bike - Gloss Blue/ Orange

Season:2025

Brand:Marin

Code:7339600GLSBLUORG

LONG DISTANCE MIXED SURFACE COMMUTING, GRAVEL RIDING or ADVENTURE ON AND OFF-ROAD RIDING

The most affordable member of the family, the Marin DSX feels high-end, but doesn’t blow your adventure budget. It has a Series 2 aluminum frame and fork, microSHIFT 9-speed drivetrain, Clark’s hydraulic brakes, WTB Riddler tires and plenty of reliable Marin components to complete the package.

Technical Information
  • Frame

    Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount

  • Fork

    6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

  • Rims

    Marin Aluminum Double Wall, Disc Specific

  • Hub, Rear

    Forged Aluminum Alloy, Disc, 32H

  • Hub, Front

    Forged Aluminum Alloy, Disc, 32H

  • Spoke, Nipples Nipples

    14g Black Stainless Steel

  • Tires

    WTB Riddler, 700Cx45mm

  • Derailleur, Rear

    MicroSHIFT Advent 9, Clutch

  • Derailleur, Front

    -

  • Shift Lever

    MicroSHIFT Advent 9 Trail

  • Crankset

    Alloy Crank, Steel Narrow-Wide Chainring, 38T

  • Bottom Bracket

    Sealed Cartridge Bearings, Square Taper

  • Chain

    KMC X9

  • Cassette

    SunRace 9-Speed, 11-46T

  • Brake, Front

    Clark's Clout Hydraulic Disc, 160mm Rotor

  • Brake, Rear

    Tektro HD-M275 Hydraulic Disc, 160mm Rotor

  • Brake Levers

    Tektro Hydraulic

  • Handlebar

    Marin MiniRiser

  • Stem

    Marin 3D Forged Alloy

  • Grips

    Marin MTB

  • Headset

    FSA, Orbit CE No.8B

  • Seatpost

    Marin Alloy

  • Saddle

    Marin DSX

  • Pedals

    Commute Platform

Sizing Information
SMLXL
Stack544.4572.5600.6628.7
Reach380405420435
Headtube Angle69.5°69.5°69.5°69.5°
Headtube Length120150180210
Seattube Angle74°74°74°74°
Seattube Length430480520558
Toptube Effective536.1569.2592.2615.3
BB Height279.5279.5279.5279.5
BB Drop80808080
Chainstay425425425425
Wheelbase1024.4210601085.41110.9
Standover Height658.76700.51730.39758.5
Fork Offset50505050
Seatpost Diameter27.227.227.227.2
Handlebar Width640680680680
Stem Length70707070
Crank Length170175175175
