The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Marin

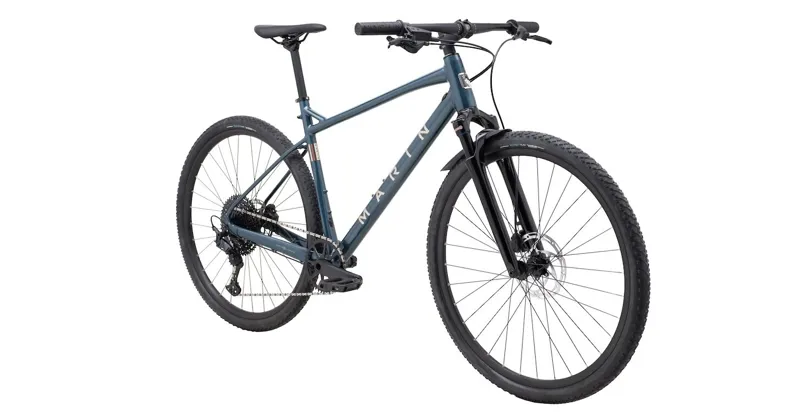

Marin DSX FS Flat Bar Gravel Bike - Gloss Blue/ Silver

£1,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin DSX FS Flat Bar Gravel Bike - Gloss Blue/ Silver

Season:2025

Brand:Marin

Code:7390670BLU

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar.

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.

Upgrades from DSX 2

  • SR/Suntour GVX LOR suspension fork with 60mm travel & air spring
  • Shimano SLX 12-speed drivetrain
Technical Information
  • FRAME
    Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • FORK
    SR/Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
  • RIMS
    Marin Aluminum Double Wall, 21mm Inner, Disc Specific
  • HUB, REAR
    Forged Aluminum, 142x12mm, Disc Specific, 32H
  • HUB, FRONT
    Forged Aluminum, 100x12mm, Centerlock, 32H
  • SPOKE, NIPPLES
    14g Black Stainless Steel
  • TIRES
    Vee Tire Co. Rocket Man, 700Cx44mm
  • DERAILLEUR, REAR
    Shimano SLX, RD7100, 12-Speed
  • DERAILLEUR, FRONT
    -
  • SHIFT LEVER
    Shimano Deore, SLM6100, 12-Speed
  • CRANKSET
    Forged Aluminum, 42T Steel Narrow Wide Chainring
  • BOTTOM BRACKET
    Sealed Outboard Bearing
  • CHAIN
    KMC X12
  • CASSETTE
    SunRace, 12-Speed, 11-51T
  • BRAKE, FRONT
    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • BRAKE, REAR
    Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • BRAKE LEVERS
    Tektro Hydraulic
  • HANDLEBAR
    Marin MiniRiser
  • STEM
    Marin 3D Forged Alloy
  • GRIPS
    Marin MTB
  • HEADSET
    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • SEATPOST
    Marin Alloy
  • SADDLE
    Marin DSX
  • PEDALS
    Marin Oso OE Flat
  • EXTRAS
    Bolt-On Thru-Axles F and R
Sizing Information
DSX FS geometry diagram
SMLXL
Stack583.2601.8629.7657.6
Reach400425440455
Headtube Angle68.5°68.5°68.5°68.5°
Headtube Length100120150180
Seattube Angle74°74°74°74°
Seattube Length430480520558
Toptube Effective567.23597.6620.6643.6
BB Height277.5277.5277.5277.5
BB Drop82828282
Chainstay425425425425
Wheelbase10651097.31123.31149.3
Standover Height667708738761
Fork Offset47474747
Seatpost Diameter27.227.227.227.2
Handlebar Width680680680700
Stem Length70707070
Crank Length170175175175
